Air Live SD-3030 Quick Installation Manual
  1. Manuals
  2. Brands
  3. Air Live Manuals
  4. IP Camera
  5. SD-3030
  6. Quick installation manual

Air Live SD-3030 Quick Installation Manual

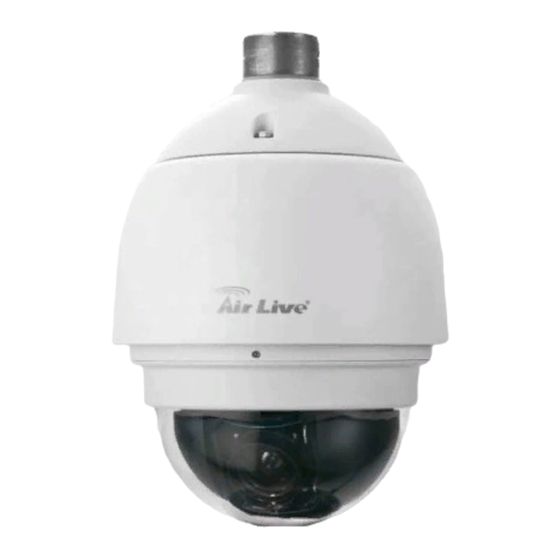

30x 3mp optical zoom speed dome ip camera
Hide thumbs Also See for SD-3030:

Advertisement

Quick Links

Download this manual See also: User Manual
Support
You can download the
complete guides and
supporting programs from
<http://www.airlivesecurity.c
om/product/sd-3030/downlo
ad>, or scan the QR code
here.
Please consult with the FAQs
<http://www.airlivesecurity.c
om/product/sd-3030/faq>
before writing to OvisLink
Tech Support Team for further
assistance
For any other question, please read the user
SD-3030
manual in the CD or mail to tech@airlive.com
for technical support.
30X 3MP Optical Zoom

Speed Dome IP Camera

Quick Installation Guide
