Instruction Manual Book

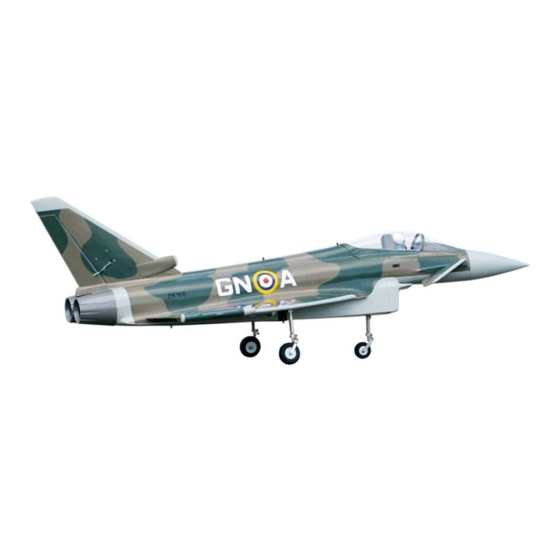

EF - 2000 TYPHOON
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 1,238 mm (48.75 in).
- Length: 1,650 mm (64.96 in).
- Weight: 7.2 - 7.4kg (15.84-16.28 lbs).
2
- Wing area: 63.2dm .
- Wing loading:114g/dm .
- Wing type: Boeing 707.54 Span.
- Gear type: Electric retract gear,
size: (92.2 x 51 x 30.6)mm (not included).
CNC Suspension Metal Struts (included).
NOT INCLUDING ELECTRIC RETRACT GEAR.
ONLY INCLUDING CNC SUSPENSION METAL STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
2
Item code: BH165.
Parts listing required (not included):
- Radio: 9 channels.
- Servo: 8 standard high torque servos, size: (33 x 17)mm.
+ 2 servos (Futaba BLS 352), size: (39.9 x 20.1 x 37.1)mm canard.
- Engine: EDF 120mm.
- Battery: 12S LIPO - 44.4 V.
- ESC: 160A.
Recommended EDF and Battery set up (not included):
- Engine: Ducted Fan EDF JETFAN-120 eco Ejets
+ HET 800-68-685.
Battery: 12S LIPO - 44.4 V ≥　 6000Amh 40C.
- Or Engine: Ducted Fan EDF Schubeler DS-86-AXI HDS 120mm
+ TP 5660-9D motor.
Battery: 10 - 12S LIPO – 37 - 44.4 V ≥　 6000Amh 40C.
- ESC: 160A Phoenix Castle.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF - 2000 TYPHOON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ripmax EF - 2000 TYPHOON

Summary of Contents for Ripmax EF - 2000 TYPHOON

  • Page 1 Instruction Manual Book Item code: BH165. EF - 2000 TYPHOON NOT INCLUDING ELECTRIC RETRACT GEAR. ONLY INCLUDING CNC SUSPENSION METAL STRUTS. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY Parts listing required (not included): SPECIFICATION: - Radio: 9 channels.
  • Page 2 EF - 2000 Typhoon Item code: BH165 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly EF -2000 Typhoon before starting assembly of your . Use the parts listing below to identify all parts.

  • Page 3: Tools And Supplies Needed

    EF - 2000 Typhoon Item code: BH165 TOOLS & SUPPLIES NEEDED EPOXY A EPOXY B Epoxy Glue (5 minute type). Hand or electric drill. Epoxy Glue (30 minute type). Threadlocker (screw cement). Hobby knife. Some more tools. Awl. Assorted drill bits.
  • Page 4 EF - 2000 Typhoon Item code: BH165 : Fuselage (1a, 1b). : Wing panel (2a, 2b). : Horizontal stabilizer (3a, 3b). : Vertical stabilizer. : Aluminium wing dihedral brace. : Carbon tube horizontal stabilizer. : Aluminium tube vertical stabilizer. : Cockpit fuselage (8a: Canopy, 8b : Pilot, 8c: Cockpit).

  • Page 5: Installing The Aileron Servos

    EF - 2000 Typhoon Item code: BH165 * Apply drops of thin CA to the top and bottom of each INSTALLING THE AILERONS, FLAPS, SLATS hinge. Do not use CA accelerator. After the CA has fully hardened, test the hinges by pulling on the aileron.
  • Page 6 EF - 2000 Typhoon Item code: BH165 2 x 10mm Screw - - - - - 24 2x10mm 2x10mm 2x10mm Repeat the procedure to install the opposite gear. INSTALLING THE CONTROL HORNS, LINKAGES Silicone tube - - - 6 2mm Nut...
  • Page 7 EF - 2000 Typhoon Item code: BH165 Attach the clevis to the outer hole in the servo Insert the 90 degree bend down through the hole in the arm. Install a silicone tube on the clevis. control horn. Install one nylon snap keeper over the Using pliers, carefully make a 90 degree bend wire to secure it to the control horn.
  • Page 8 EF - 2000 Typhoon Item code: BH165 PLASTIC BOMB TOP WING Use C/A glue to secure the plastic bomb to the wing. C/A glue C/A glue Repeat the procedure to install the opposite wing.

  • Page 9: Vertical Stabilizer

    EF - 2000 Typhoon Item code: BH165 Use A+B Epoxy glue to secure the INSTALLATION VERTICAL STABILIZER vertical stabilizer to the fuselage. vertical stabilizer Aluminium tube 132mm Rudder are installed 5mm Silicone Tube - - - - - 1 - - - 1...
  • Page 10 EF - 2000 Typhoon Item code: BH165 Using a modeling knife, carefully remove the film covering from the tail slots at the rear of the fuselage. Make sure that you do not remove any wood from the slots as this will affect the alignment of the tail.
  • Page 11 EF - 2000 Typhoon Item code: BH165 INSTALLING THE EDF SYSTEM (ELECTRIC DUCTED FAN) Drill 3 holes from the air outlet for the wires of EDF. 3 x 15mm Screw - - - - -- - 4 Fuselage bottom side...

  • Page 12: Installing The Wheel Well

    EF - 2000 Typhoon Item code: BH165 Air intake. INSTALLING THE WHEEL WELL Wheel well Using a modeling knife, carefully remove the film covering from the f uselage gear tray. Make sure that you do not remove any wood. Trim...

  • Page 13: Installing Main Gear

    EF - 2000 Typhoon Item code: BH165 Using a modeling knife, carefully remove Bottom view the film covering from the wing gear tray. Make sure that you do not remove any wood. Trim and remove the covering Repeat the procedure to install the opposite gear...

  • Page 14: Option 1: Main Gear

    EF - 2000 Typhoon Item code: BH165 THERE ARE TWO OPTIONS: OPTION 1: MAIN GEAR Bottom view 3x15mm Secure Secure C/A glue Secure Repeat the procedure to install the opposite wing.

  • Page 15: Option 2: Electric Gear Retracts

    EF - 2000 Typhoon Item code: BH165 OPTION 2: ELECTRIC GEAR RETRACTS Bottom view 3x15mm Secure Secure C/A glue Secure Repeat the procedure to install the opposite wing.
  • Page 16 EF - 2000 Typhoon Item code: BH165 INSTALLING NOSE GEAR INSTALLING THE NOSE GEAR SERVO. THERE ARE TWO OPTIONS: OPTION 1: Crimp Cable wire. Screw the gear in position. Install two cable to the steering servo nose gear.
  • Page 17 EF - 2000 Typhoon Item code: BH165 OPTION 2: ELECTRIC GEAR RETRACTS 3x6mm Spring Crimp Secure Cable wire. 3x6mm Secure the strut suspension to the electric retract and slide the two cable to the steering plate. Screw the gear in position.
  • Page 18 EF - 2000 Typhoon Item code: BH165 INSTALLING THE RECEIVER, ESC AND BATTERY Position the battery pack and receiver 1) Plug the servo leads and the switch lead into the receiver. behind the fuel tank. Use two tie wraps to hold...

  • Page 19: Secure The Wing To The Fuselage

    EF - 2000 Typhoon Item code: BH165 SECURE THE WING TO THE FUSELAGE 12mm Aluminium tube. - - - - - 4 183mm Attach the aluminium into the wing. Use tube A+B Epoxy glue. A+B Epoxy glue to secure the aluminium to the wing.
  • Page 20 EF - 2000 Typhoon Item code: BH165 Screw the wing panel in position. Secure Secure Secure INSTALLING THE FUSELAGE 4x25mm 4x25mm Secure...

  • Page 21: Adhesive Tape

    EF - 2000 Typhoon Item code: BH165 INSTALLING COCKPIT FUSELAGE A+B Epoxy glue. Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening. Use canopy glue to secure the canopy to the canopy hatch. Use low- tack tape to hold the canopy in position until the glue fully cures.
  • Page 22 EF - 2000 Typhoon Item code: BH165 PLASTIC PARTS OF VERTICAL STABILIZER. PLASTIC PARTS OF FUSELAGE. C/A glue Plastic parts of fuselage. Plastic parts of vertical stabilizer.

  • Page 23: Control Throws

    EF - 2000 Typhoon Item code: BH165 BALANCING CONTROL THROWS 1) It is critical that your airplane be balanced correctly. 1) We highly recommend setting up a plane using the Improper balance will cause your plane to lose control control throws listed.
  • Page 24 I/C FLINGT WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings the propeller, and do not allow any part of other dangerous areas including airports, and houses etc.
