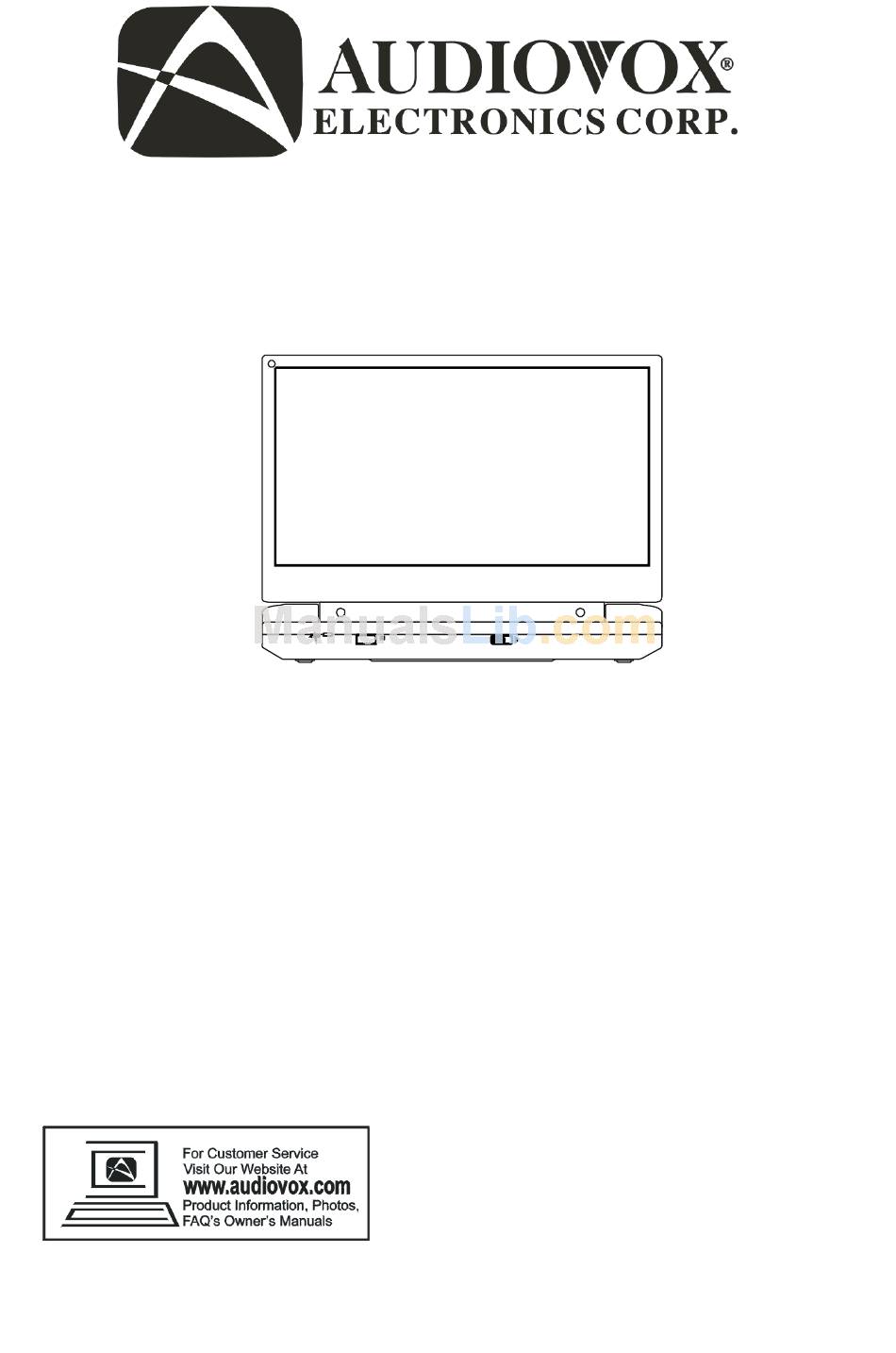

  • Page 1 D1915 PORTABLE DVD PLAYER AND 9" LCD MONITOR...
  • Page 2: Table Of Contents

    Contents A. Introduction ... 3 B. Cautions and Warnings ... 3 C. Contents ... 5 D. Powering and Installation ... 5 E. Controls, Indicators and Connectors ... 6 F. Loading and Playing a Disc ... 7 G. Basic Operation... 8 H.
  • Page 3: Introduction

    A. Introduction Thank you for choosing the D1915 portable DVD player. The main features include a 9" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices, vehicles or your home.
  • Page 4 operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type, in order to protect the environment, please dispose of the battery properly.
  • Page 5: Contents

    7.Regional Coding Both the DVD player and discs are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. DVDs with other regional codes can not be played in this unit C.
  • Page 6: Controls, Indicators And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) LCD Panel Shut Off Switch Wide Button Previous/Next/Pause/Stop Play Button Menu Button Up/Down/Left/Right/OK Button Press to close Headphone Jack 1 Headphone Jack 2 Figure 2 Volume Control Brightness Control 11) Door Open Switch 12) Remote Control Sensor 13) Power LED...
  • Page 7: Loading And Playing A Disc

    2. Remote Control (Refer to figure 3) 1) Setup Button 2) Up Button 3) Previous Button 4) Enter Button 5) Reverse Scan/Left Button 6) DOWN Button 7) Numeric Button 8) Display Button 9) Zoom Button 10) Subtitle Button 11) Next Button 12) A-B Repeat Button 13) Forward Scan/Right Button 14) 1/All Repeat Button...
  • Page 8: Basic Operation

    G. Basic Operation POWER OPEN PLAY SLOW PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP Turn the unit on/off Remove/load the disc Start Play/Confirm item or setting Play at 1/2, 1/4, 1/8 or 1/16 normal speed Still Picture (1 time) Stop at the present playing point / (2 times) Stop playing...
  • Page 9: Menu

    H. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 10 2. ANGLE During playback of a disc, press ‘ANGLE’ to display the available angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press ‘ANGLE’ to select another angle, then press again to exit and return to the normal view- ing angle.
  • Page 11: Normal Playback

    Audio Language 5. ZOOM During playback press ‘ZOOM’ to enlarge the picture by 2X, 3X or 4X. (1) Press “zoom”one time, the picture will be enlarged 2X. (2) Press “zoom” a second time, the picture will be enlarged 3X. (3) Press “zoom” a 3rd time, the picture will be enlarged 4X. (4) Press “zoom”...
  • Page 12: Playing Audio Cds

    7. REPEAT a. During playback press ‘REPEAT’ to select see the repeat mode desired. Chapter Repeat J. Playing Audio CDs When playing an audio CD press the DISPLAY button on the remote to view time playback information. The options below appear on the display: Single Elapsed Display Off...
  • Page 13: Using The Repeat Feature

    Total Elapsed: The current track playing and the total time that the CD has been playing. Total Remain: The current track playing and the amount of time remaining on the CD. Display Off: The CD time Information will not be displayed. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF.
  • Page 14 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
  • Page 15: Playing Jpg File

    L. Playing JPEG file 1) Load the JPEG Disc into tray. 2) Select JPEG file by pressing “UP/DOWN” button. 3) You can preview the JPEG file by pressing “Play” or “ENTER”. 4) Pressing the “Left Key“ will rotate the picture counterclockwise. Pressing the “Right Key“...
  • Page 16 i. Press “display” 9th time, “EXTEND FROM CENTER H” will dis- play on the screen, the picture will refresh from horizontal center to both sides. j. Press “display” 10th time, “EXTEND FROM CENTER V” will display on the screen, the picture will refresh from vertical cen- ter to both sides.
  • Page 17: Connecting To Other Elevctronic Equipment

    M. Connecting to Other Electronic Equipment 1. Connecting to a TV or another monitor ( Refer to Figure 4) a. Position the AV In/Out Switch to the “Out” Position. b. Connect one end of the audio/video adapter cable’s black (1/8” plug) plug into the unit’s DVD AV jack, and connect the other end to a standard A/V Cable (purchased separately).
  • Page 18 3. Headphone Optional wired headphones may be used with the unit. Simply plug in the headset to either Headphone 1 jack or Headphone 2 jack on the right side of the DVD. ( Refer to Figure 5) Plugging into Headphone jack 1 disables the internal speakers. Notice: 1.This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S.
  • Page 19: Setup

    N. Setup Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode. 1) Press “SETUP”, the ‘General Setup Page’ will be displayed. a).Select ‘TV Display’...
  • Page 20 TV Type Screen Display b).Select ‘Angle Mark’ using the UP/DOWN buttton, and then press the RIGHT button to enter the submenu. Choose Angle Mark on or off using the UP/DOWN button and then press ENTER to confirm the setting. Press the LEFT button to return. Angle Mark Screen Display * On: The screen will show the angle mark icon.
  • Page 21 c). Select ‘Screen Saver’ using the UP/DOWN button, and then press the RIGHT button to enter the submenu. Choose Screen Saver on or off using the UP/DOWN button and then press ENTER to confirm the setting. Press the LEFT button to return. *On: Enables screen saver *Off: Disables screen saver (off) *NOTE: The DVD player will enter the Screen Saver mode after ap-...
  • Page 22 2) Select the “Video Quality Setup” page by using the LEFT/RIGHT but- tons. Press “Enter” to enter the video quality set up page. Main SETUP Menu VIDEO QUALITY a).Select “Brightness by using the UP or DOWN buttons, then press “Enter”. You can change the Brightness by pressing the LEFT or RIGHT buttons.
  • Page 23 c).Select “Hue” (Tint) by using the UP or DOWN buttons, then press “Enter”. You can adjust the Hue by pressing the LEFT or RIGHT but- tons. To exit “Hue” (Tint) Setting, press “Enter”again to return to the main Menu. d).Select “Saturation” (color) by using the UP or DOWN buttons, then press “Enter”.
  • Page 24 3).With no disc inside the player select “password” using the LEFT or RIGHT buttons, press ‘ENTER’ to enter the password setup page, then press the RIGHT button to enter the submenu . PASSWORD CHANGE Menu Press ‘ENTER’ to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Con- firmed New Password.
  • Page 25 4). With no disc in the player select ‘PREFERENCES’ using the LEFT or RIGHT buttons, then press ‘ENTER’ to enter the preferences page. a. Select ‘AUDIO’ using the DOWN button, then press ‘RIGHT’ to enter the submenu. Select the audio language you desire using the UP or DOWN buttons, then press ‘ENTER’...
  • Page 26 Note: Language and subtitle selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original recorded language contained in the disc. c.
  • Page 27 e. Select ‘DEFAULT’ using the DOWN button, then press RIGHT to en- ter the submenu. Press ENTER to make all of the settings return to the factory-set mode. Loading Factory Setting NOTE: The parental setting is not affected by the default reset func- tion.
  • Page 28: Specifications

    O. Specifications Compatible DISC: DVD/CD/MP3/JPEG Signal system: NTSC Panel size: 9 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12VDC Power consumption: 12 W...
  • Page 29 battery in optimum condition. Under no circumstances short the bat- tery terminals, store the battery in a metal container, or leave the bat- tery in a humid or damp environment. Ideally, store the battery in an airtight container with desiccant or other dehumidifying agent. Each full recharge takes approximately five-hours and one full charge can provide power to the player for at least 2 hours.
  • Page 30 Installing the Battery Pack: 1. First, make sure the player is in the “Power Off” mode and that the AC power supply has been disconnected. 2. Flip down the monitor. 3. Push the battery towards the rear of the player until it locks into position.
  • Page 31: Troubleshooting

    Q. Troubleshooting PROBLEM No sound or distorted sound Can’t advance through a movie The icon ( appears on screen Picture is distorted No forward or reverse scan SOLUTION • Make sure your DVD player is connected properly. Make sure all cables are securely inserted into the appropriate jacks.
  • Page 32: Troubleshooting (Cont)

    Troubleshooting (Cont) PROBLEM IR sensor inoperative Disc won’t play Play starts, but then stops immediately SOLUTION • Verify that the batteries in the remote are fresh. • Verify that the remote sensor eye is not obstructed. • Insert a disc with the label side facing •...
  • Page 33: Day Limited Warranty

    AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
