Daewoo FRN-T30H3GP Service Manual
  1. Manuals
  2. Brands
  3. Daewoo Manuals
  4. Refrigerator
  5. FRN-T30H3GP
  6. Service manual

Daewoo FRN-T30H3GP Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
FRN-T30H3GP
( FRT-803ZG..)
FRN-T30H3PW
( FRT-813HP..)
FRN-T30H3TB
( FRT-803HB..)
FRN-T30H2MW
( FRT-822HW..)
May. 2013.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRN-T30H3GP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo FRN-T30H3GP

Summary of Contents for Daewoo FRN-T30H3GP

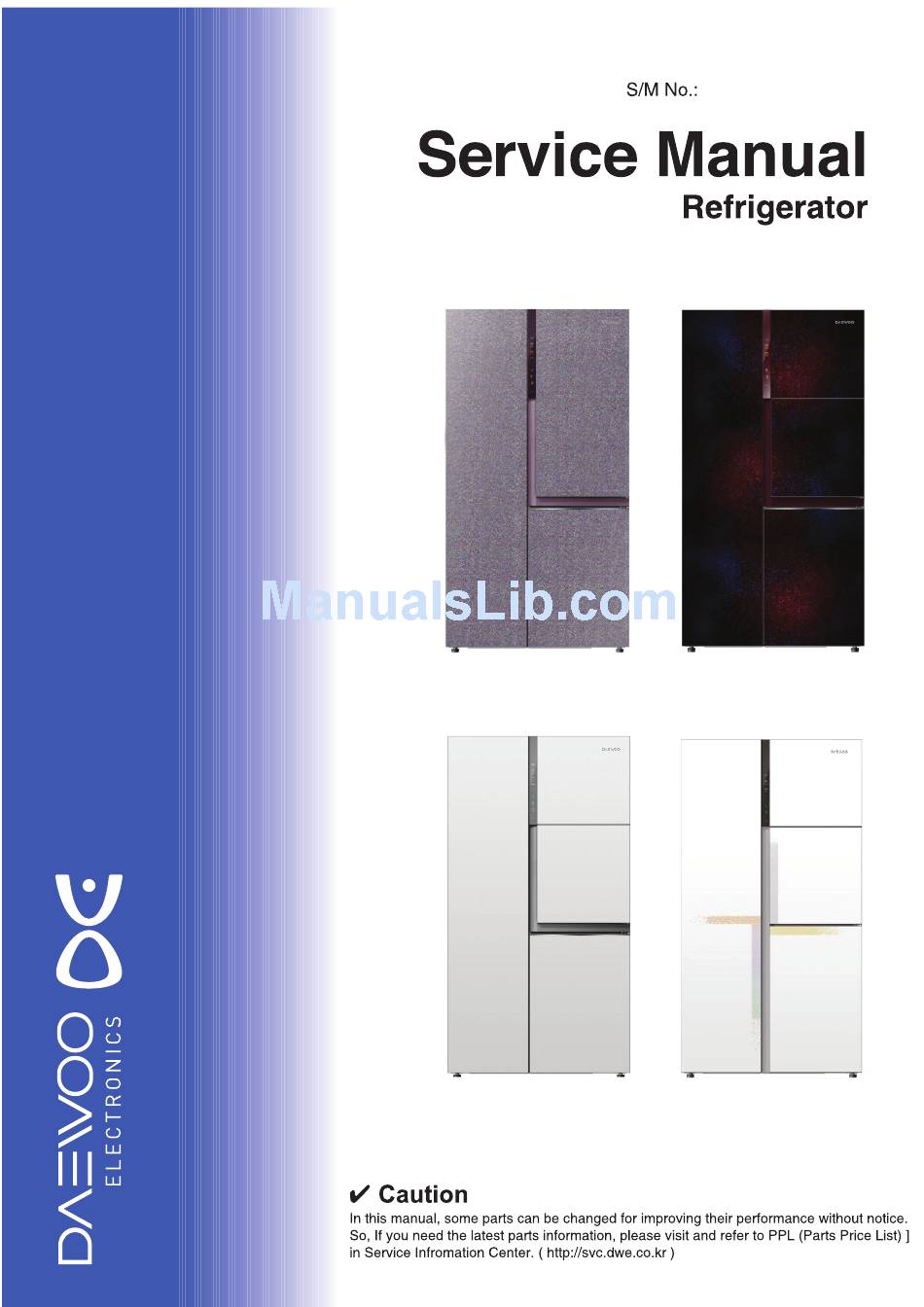

  • Page 1 FRN-T30H3GP FRN-T30H3TB ( FRT-803ZG..) ( FRT-803HB..) FRN-T30H3PW FRN-T30H2MW ( FRT-813HP..) ( FRT-822HW..) May. 2013.

  • Page 2: Specification

    Specification 1. Information FRN-T30H3GP FRN-T30H3TB FRN-T30H3PW FRN-T30H2MW Buyer No. ( Glitzen Pearl ) ( Stella Black ) ( Preuve White ) ( Mone White ) Factory No. FRT-803ZG.. FRT-803HB.. FRT-813HP.. FRT-822HW.. Image Total 904.2 904.2 904.2 907.5 Gross Vol. Freezer 374.2...
  • Page 3 Specification 2. Outside Diemension...
  • Page 4 Specification 3. Interior Parts 1) T30H3GP / T30H3TB 1. Door storage compartment 7. Egg case 2. Ice maker / Ice storage bin 8. Door storage compartment 3. Freezer shelf 9. Can pocket 4. Freezer compartment drawer 10. Multi crisper 5. Takeout case 11.
  • Page 5 Specification 2) T30H3PW / T30H2MW * The real features are model dependent. 1. Door storage compartment 6. Egg case 2. Ice maker / Ice storage bin 7. Door storage compartment 3. Freezer shelf 8. Can pocket 4. Freezer compartment drawer 9.

  • Page 6: Refrigerant Cycle

    Refrigerant Cycle...
  • Page 7 Air Flow [ Side View ] [ Freezer Compartmnet ] [ Refrigerator Compartmnet ] * The illustration is 'FRN-T30H3GP / FRN-T30H3TB' model.
  • Page 8 Functions 1. Display Multi Crisper ( Option ) button ; To select Fish - Meat - Vegetable - Speed mode. ( Speed mode works for 60 minutes.) Frz. Set button 1) Initial plug in : Medium ( -20C ) 2) Every time you press the Frz. Set button, the setting temperature changes below order.
  • Page 9 Functions ECO Mode ; Eco Mode is automatically lights up when energy-saving mode is driving. 1) Green : Power saving mode 2) Blue : Normal control mode 3) Pink : Acceleration mode ( Refrigerator is driving continually to lower temperature of inside of refrigerator when there is a big difference between inside and outside.
  • Page 10 Functions 2. Refrigerator Compartment Control 1) Adjust by the pushing the REF.SET button. 2) Refrigerator Compartment ON/OFF Difference - Dial 5C / 4C / 3C : 2.0C - Dial 2C : 2.1C - Dial 1C : 2.6C - Dial 0C : 3.5C * Medium OFF point : 3.5C Division Plug in...
  • Page 11 Functions 3. Multi Crisper Control ( *Option ) 1) Adjust by the pushing the Multi Crisper button. 2) Display is 'Fish → Meat → Vegetable → Speed' 3) Each mode controls Compressor, Fan Motor, Step Valve and Damper. Division Fish Meat Vegetable Speed...
  • Page 12 Defrost 1. Freezer Defrost Process - Time limit : 50 minutes. ( Comp., Freezer Fan, Step Valve is active. ) or - Until Freezer Defrost sensor is below -27c. Precool ( If Error F3 happens, Precool is over. ) - Until Freezer Defrost Sensor is 13c. Heater Defrost - If Error F3 happens, Defrost Heater is active for 30 minutes.
  • Page 13 Defrost - Freezer 3. When Freezer Compartment Defrost Mode start? ; When total Compressor runnig time becomes at 10, 12 ~ 60hours. - Any error happens ( R1, F1, D1, F3, RT-Sensor, C1, Door switch etc. ) or door opening time is over 2 minutes. - Door opening time is over 1 minutes and compressor operating rate is over 85%.
  • Page 14 Defrost - Refrigerator 4. When Refrigerator Compartment Defrost Mode start? ; When total Compressor runnig time becomes at 4, 6 ~ 40hours. - Any error happens ( R1, F1, D1, F3, RT-Sensor, C1, Door switch etc. ) or door opening time is over 2 minutes. - Door opening time is over 1 minutes and compressor operating rate is over 85%.
  • Page 15 Plug-in Defrost / Pull Down / Compressor RPM 1. Plug-in Defrost 1) When Freezer & Refrigerator Defrsot sensor is below 3.5c, Defrost mode start. 2) Freezer and Refrigerator compartment defrost start by defrost sensor. 3) Plug-in Defrost makes Compressor Delay 6 min. 2.

  • Page 16: Other Functions

    Other Functions 1. Buzzer 1) When FCP buttoning. 2) After 3 seconds plug-in. 3) When Pull Down or A/S Defrosting start. 4) Every 1 minute with door opening for 5 minutes. 2. Electric parts time delay 1) Compressor / All Fan Motor - Check Step Valve position and after 90 seconds compressor start.
  • Page 17 Other Functions 4. Led Lamp Control 1) Each door switch connected to each compartment Led Lamp. 2) When door switch is opened for 10 minutes, Led Lamp is off automatically. 3) When door switch is opened for 1 hour, FCP display Error 'd F' or 'd R' or 'd H'. ( 'd F' = Freezer door switch error, 'd R' = Refrigerator door switch error, 'd H'= Homebar door switch error.
  • Page 18 Other Functions 7. Multi Crisper Compartment ( Option Parts ) 1) Every 'Multi crisper' buttoning, Fish → Meat → Vegetable → Speed ( Default is Fish mode ) 2) When choosing 'Speed' mode, After 60 minutes' operation ( max. time limit ), back to 'Fish' mode. 3) Damper Control ;...

  • Page 19: Error Display

    Error Display 1. How to enter this check mode 1) Push the LOCK button. 2) Push the LOCK button 5 times while pressing the Frz.SET button. 2. The Front LED displays the current error code ( if happens ). ; Every time you press the Freezer Set button, the following value display. 1) The appliance running time.
  • Page 20 Error Display Display (Error Code) Remark Multi Crisper room room sensor disconnection or short Return after defrosting : Defrosting parts is abnormal or defective. ( Refrigerator ) Step Valve ( Freezer part ) pipe blockage. Step Valve ( Refrigerator part ) pipe blockage. Step Valve ( Freezer / Refrigerator ) pipe wrong assembly.
  • Page 21 FUNCTIONS ( Error Display ) 5. Troubleshooting when error display 8) 'd 2' display ( No error ) - Display A/s Defrosting is operating. 9) 'C o' display ( No error ) - Display Pull Down Mode is operating. 10) 'r d' error - Cause : Refrigerator defrost sensor disconnection or short.
  • Page 22 FUNCTIONS ( Error Display ) 7) EF error - Cause : When Flow-sensor abnormal. ( There is no pulse during some time. ) The number of pulse signal is below 10 by 1 second during water supply. - Check point : Water supply line. 8) Et error - Cause : Level switch abnormal.

  • Page 23: Function Key

    Function Key Function Key Summary ; All Function Key is active in Lock Mode. ( After pushing Lock button ) [ A/S Deforsting Mode ] → Ref. Set 5 times while pushing Frz. Set [ Pull Down Mode ] → Lock 10 times while pushing Ref. Set [ Demo Mode ] →...

  • Page 24: Wiring Diagram

    Wiring Diagram...
  • Page 25 Disassemble & assemble each parts 1. Inner LED Lamp Freezer LED Lamp Refrigerator LED Lamp Take out the LED window. Unscrew 2 point. Exchange LED PCB.
  • Page 26 Disassemble & assemble each parts 2. Multi Crisper & Ionizer LED ( *Option Parts ) Multi Crisper LED Lamp Ionizer LED Lamp Disassemble LED cover Take out the LED cover. pushing back side. Unscrew 2 point. Unscrew 2 point. Exchange the LED PCB. Exchange the LED PCB.
  • Page 27 Disassemble & assemble each parts 3. Freezer inner LED Panel Unscrew 4 points. Disassemble Freezer Disassemble with pushing Louver screw ( 4ea ). the hook. Pull out Freezer Louver Remove sealing material with proper tools. from the Louver. Take off LED cover. Disconnect the wire.
  • Page 28 Disassemble & assemble each parts 4. Refrigerator inner LED Panel Unscrew 7 points. Disassemble with pushing Disassemble Ref. the hook. Louver screw ( 3ea ). Pull out Refrigerator Louver Remove sealing material with proper tools. Disconnect the wire. Take off LED cover. Disconnect the wire from the Freezer Louver.
  • Page 29 Disassemble & assemble each parts 5. Freezer side Evaporator (1) Remove Freezer Louver A : Previous page. Defrost Heater - Freezer inner (Temp. fuse include) LED Panel - Defrost sensor Freezer Fan Remove screw cap & screw. ( 1 point ) Temp Fuse Defrost sensor Pull out Freezer...
  • Page 30 Disassemble & assemble each parts 6. Refrigerator side Evaporator (1) Remove Ref. Louver A : Previous page. - Ref. inner LED Panel - Ionizer (*option) Defrost Heater (Temp. fuse include) Ref. Fan Ref. Damper Defrost sensor Remove screw cap & (*option) screw.
  • Page 31 Disassemble & assemble each parts 7. Freezer Fan Motor (1), (2) Remove Frz. Louver A : Previous page. Remove 4ea screws. Disasseble the Fan Motor. Disassemble with holding the hook. Remove the spring from the Fan. Remove the Fan Blade. Unscrew 2 points.
  • Page 32 Disassemble & assemble each parts 8. Refrigerator Fan Motor (1), (2) Remove Ref. Louver A : Previous page. Remove 4ea screws. Unscrew 2 points. Disassemble with Disasseble the Fan holding the hook. Motor. Remove the spring from the Fan. Remove the Fan Blade.
  • Page 33 Disassemble & assemble each parts 9. Damper As, Ionizer ( *Option Parts ) & Deodorizer (1), (2) Remove Ref. Louver A & B : Previous page. (1) Pull out the case. Cut the Sealing material. Remove the Air Return Cover pushing the mark point.
  • Page 34 Disassemble & assemble each parts 10. Step Valve As Step Valve As Step Valve Connector Disconnet the housing. Pull out the Step Valve As. ※ When assembling the Step Valve As, check capi-pipe color. ( Yellow - Yellow / Blue - Blue ) Cut the Capi-pipe 2 point.
  • Page 35 Disassemble & assemble each parts 11. Door Switch, RT Sensor & Humidity Sensor [Door Switch] Unscrew 5 points. Remove door switch arrow direction with flat tool. [Humidity Sensor] Disconnect wire harness. Door Switch Humidity sensor RT sensor [RT Sensor] Remove opposite Ref.
  • Page 36 Disassemble & assemble each parts 12. FCP Panel Disconnect the wire harness. Remove upside 1 screw. Lift up FCP Panel about 10 cm about 10 cm. Holding the topside and rotate the FCP Panel CCW.
  • Page 37 Cooling Cycle Repair 1. Summary of Heavy Repair Process Contents Tools Remove Cut charging pipe ends (Comp. & Dryer) and refrigerant Nipper, side cutters discharge refrigerant from drier and compressor. Residuals Confirm refrigerant (R-134a or R-600a) and oil for compressor and drier. Parts Confirm N2 sealing and packing conditions before use.
  • Page 38 Cooling Cycle Repair 2. Precautions During Heavy Repair Items Precautions Use of tools. - Use special parts and tools for R-134a or R-600a. 1) Remove retained refrigerant more than 5 minutes after turning off a refrigerator. (If not, oil will leak inside.) Removal of retained 2) Remove retained refrigerant by cutting first high pressure side refrigerant.
  • Page 39 Cooling Cycle Repair 3. Practical Work for Heavy Repair Items Precautions 1. Removal of residual 1) Remove residual refrigerant more than 5 minutes later after refrigerant. turning off the refrigerator. ( If not, compressor oil may leak inside.) 2) Remove retained refrigerant slowly by cutting first high pressure side (drier part) with a nipper and then cut low pressure side.
  • Page 40 Cooling Cycle Repair Items Precautions * Pipe Connection Connect a red hose to the high pressure side and a blue hose 3.Vacuum degassing to the low pressure side. * Vacuum Sequence Open 1,2 valves and evacuate for 40 minutes. Close valve 1. Evaporato Compresso Condense...
  • Page 41 Cooling Cycle Repair Item Precautions 4.Refrigerant charging 4) Refrigerant Charging Charge refrigerant while operating a compressor as shown above. 5) Pinch a charging pipe with a pinch-off plier after completion of charging. 6) Braze the end of a pinched charging pipe with copper brazer and take a gas leakage test on the welded parts.
  • Page 42 CABINET PART-CODE PART NAME SPEC. Q'ty ASSY CAB URT 3012936801 HINGE *T *R AS FR-T89LR 3012936701 HINGE *T *L AS FR-T89LR 3014808610 SENSOR RT AS PBN-43B 3018125601 SWITCH H/BAR DR AS SP101B-2D1(G) GRAY 3012777500 HARNESS R DR S/W AS FRX-621B 3014810600 SENSOR HUMID AS DW-HS001A 301149BA00 COVER HI*T...
  • Page 43 MACHINE ROOM_EVA AS MACHINE ROOM MACHINE ROOM PART-CODE PART NAME SPEC. Q'ty 3010365700 BASE COMP AS FR-T89LR.. 39591A5280 COMPRESSOR ENV4A5G-L2B , 220-240V/50HZ 3814300600 BOX INVERTER ASSY SBC3-LC3 3010101480 ABSORBER COMP AS FRU-541D 3016002520 WASHER COMP SK-5 T0.8XW19XL19.5(2STAGE) 301119UV10 CASE VAPORI AS PP(NATURAL) 3010143000 ABSORBER VALVE...
  • Page 44 F-ROOM PART-CODE PART NAME SPEC. Q'ty 3012547000 GUIDE DRN F GA T0.4 3018931100 LOUVER F B AS FR-T89LR.. 3010924600 CAP F LOUVER HIPS T2.3 3018930801 LOUVER F A AS 10-LED FR-4 131*20-1.6T(2PIN) 3012040000 FIXTURE F MOTR AS FR-T89LR.. 3015921700 MOTOR R FAN AS DREP9020LR 3012040100 FIXTURE F MOTR...
  • Page 45 R-ROOM PART-CODE PART NAME SPEC. Q'ty 3012547100 GUIDE DRN R GA T0.4 3018931700 LOUVER R C AS FR-T89LR… 301099AP00 CAP R LUVR B HIPS 301149BU00 COVER RETURN AS FR-T89LR 3018701800 DEO ANTI AS T5*W40*L40 3018932600 LOUVER R B AS FR-T88LR.. 3012040300 FIXTURE R MOTR AS PBN-34B 3015921700 MOTOR R FAN AS...
  • Page 46 DOOR FREEZER DOOR PART-CODE PART NAME SPEC. Q'ty F‐DOOR R1‐DOOR 30100C1700 ASSY F DR 3012330200 GASKET F DR AS PVC-S+MAGNET 3019067400 POCKET F *T GPPS 3012244900 FRAME I/MAKER AS FR-T89LR 3019068320 POCKET I/MAKER AS SECC+PAINT(WH) 3019067420 POCKET F *T GPPS,2 STAR PRINT REFRIGERATOR DOOR (R1-DOOR) PART-CODE PART NAME...

This manual is also suitable for:

Frn-t30h3tbFrn-t30h3pwFrn-t30h2mw
