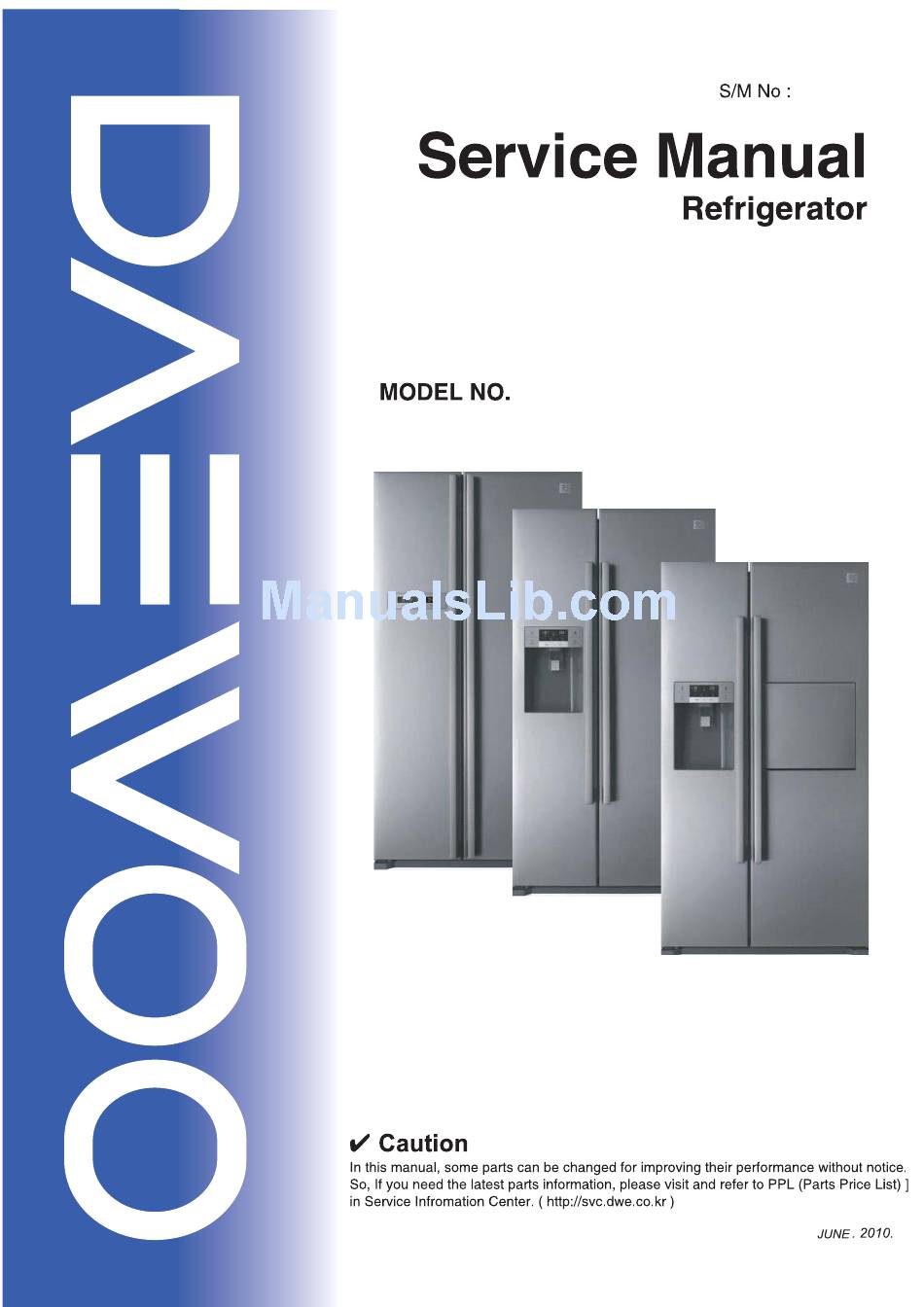

- Page 1 FRXY601201 FRS-X22B.. FRN-X22B.. FRS-X22D(E).. FRN-X22D(E).. FRS-X22F(G).. FRN-X22F(G)..
- Page 6 B : Basic (None H/Bar, None Magic Room) D : Dispenser (None H/Bar, None Magic Room) E : Dispenser + Magic Room (None H/Bar) F : Dispenser + H/Bar (None Magic Room) G : Dispenser + H/Bar + Magic Room...
- Page 32 Ice separating Mode...
- Page 35 “ ” “ ” “ ” “ ” “ ” “ ” “ ” “ ” “ ” “ ”...
- Page 40 •...
- Page 70 1. Connect refrigerant discharge hose Pinch plier and connect to pinch plier. discharge hose 2. Install the other end of discharge hose to the outside of door. 1. Fix pinch plier to compressor charging pipe Pinch piler and 2. Fix tool so that there is no moving. fix charging pipe When there is moving, it may cause fire by inlet of refrigerant in to a room.
- Page 71 1. Weld connection area of del. Pipe, suction pipe,capillarytube,dryer&hot pipe Cu. & Cu. Weld - 5% Weld Cu. & St. Weld - 35% Weld 1. Separate charging nipple cap and separate inside valve ass'y Inner rubber melt if perform welding without separating inside valve.
- Page 72 1. Make inside of cycle vacuum by operating vacuum pump. Surely perform vacuum for 60~80 minutes > When perform vacuum within 60 minutes perfromance to be weak and cause of light 1. Check whether gauge scale reach to If it is not possible to make vacuum it has a leakage problem.
- Page 73 1. Connect electrical source to refrigerant and charge refrigerant approx. 10 minutes Charge refrigerant so that there is no around can charging area 1. Check leakage around welding area using gas leakage inspector When there is gas leakage, work again start from No.1 1.
- Page 104 X600 SVC manual Internal filter type 2. Connect check valve 1) Cut water tube adequately which is connected with tap water. 2) Insert end of cut water tube into a tube fixture of a refrigerator. 3) Using check valve, connect water tube. Caution! Check valve is used to protect back flow and connection between tube and assemble so that water supply...
- Page 105 Cabinet Parts Q'ty PART-CODE PART NAME SPEC. X22B.. 22D../22E.. 22F../22G.. ASSY CAB URT 3012933100 HINGE *T *R PO T3.0+PAINT 3012933000 HINGE *T *L PO T3.0+PAINT 3001434900 COVER HI *T *R 3001434800 COVER HI *T *L 3001434800 SWITCH H/BAR DR AS SP101B-2DI 3014HR070 X22B...
- Page 106 MACHINE ROOM PARTS Q'ty PART-CODE PART NAME SPEC. X22B.. 22D../22E.. 22F../22G.. 3010359600 BASE COMP AS ALL MODELS CORD POWER AS COUNTRY Dependent OPTION 3956183D40 MK183B-L2U(220V/60HZ) 3956183D20 MK183D-L2U(110~127V) MK183Q-L2U(220~240V/50Hz) 3956183D50 COMPRESSOR 3956180910 EGX80HLC 3959115280 EU4A5Q-L2X LQ140NAEM 3956114M80 3018129620 293SHB,J531Q(MK183B) 3018129610 445PHB,J531Q(MK183D) 265RHB,J531Q(MK183Q) 3018129600 SWITCH P RELAY AS...
- Page 107 F-ROOM PARTS Q'ty PART-CODE PART NAME SPEC. X22B.. 22D../22E.. 22F../22G.. 3017068900 220-240V, 280W EVA AS 3017068910 110-127V, 250W 33-1 SENSOR D AS PBN-43 3014809500 3012824210 220-240V, 280W 33-2 HEATER SHEATH AS 3012824220 110-127V, 250W 3018928600 LOUVER F A AS FRY-621B 35-1 3015920700 MOTOR F FAN AS...
- Page 108 R-ROOM PARTS Q'ty PART-CODE PART NAME SPEC. X22B.. 22D../22F.. 22E../22G.. 3001436900 FRS-X22B, FRS-X22D.. COVER DAMPER AS 3001436910 FRS-Y22D.. 3017851300 SHEPLF R AS FRX-621B 3001437200 COVER VEGETB CASE AS FRX-621B 3011199N00 CASE VEGETB*T AS 3011446600 COVER V/CASE A GPPS 3011199P00 CASE VEGETB*M AS...
- Page 109 F-DOOR ( Middle Handle ) Q'ty PART-CODE PART NAME SPEC. X22B1.. 22D1../22F1.. 22E1../22G1.. 3019058000 POCKET F*T GPPS 3019057900 POCKET F*M GPPS 3019058100 POCKET F*U GPPS 30100A4H00 X22B, TITANIUM PCM X22B, TITANIUM VCM 30100A4H10 30100A4H20 X22B, WHITE VCM 30100A4H40 X22B, SUS430 ASSY F DR 30100A4J00 X22D, TITANIUM PCM...
- Page 110 F-DOOR ( Long Handle ) Q'ty PART-CODE PART NAME SPEC. X22B2.. 22D2../22F2.. 22E2../22G2.. 3019058000 POCKET F*T GPPS 3019057900 POCKET F*M GPPS 3019058100 POCKET F*U GPPS 30100A5H00 X22B, TITANIUM PCM 30100A5H10 X22B, TITANIUM VCM 30100A5H20 X22B, WHITE VCM 30100A5H40 X22B, SUS430 ASSY F DR 30100A5J00 X22D, TITANIUM PCM...
- Page 111 R-DOOR ( Middle Handle ) Q'ty PART-CODE PART NAME SPEC. Non H/Bar Door H/Bar Door 30100A4K00 X22B, TITANIUM PCM 30100A4K10 X22B, TITANIUM VCM 30100A4K20 X22B, WHITE VCM 30100A4K40 X22B, SUS430 ASSY R DR 30100A4L00 X22D, TITANIUM PCM 30100A4L10 X22D, TITANIUM VCM 30100A4L20 X22D, WHITE VCM 30100A4L40...
- Page 112 R-DOOR ( Long Handle ) Q'ty PART-CODE PART NAME SPEC. Non H/Bar Door H/Bar Door 30100A5K00 X22B, TITANIUM PCM 30100A5K10 X22B, TITANIUM VCM 30100A5K20 X22B, WHITE VCM 30100A5K40 X22B, SUS430 ASSY R DR 30100A5L00 X22D, TITANIUM PCM 30100A5L10 X22D, TITANIUM VCM 30100A5L20 X22D, WHITE VCM 30100A5L40...
