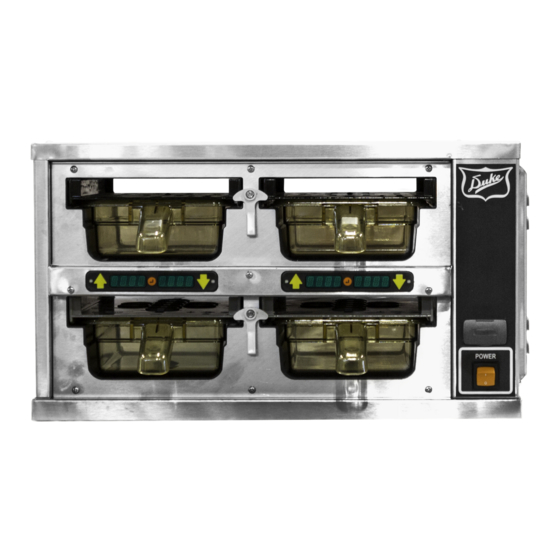

Heated warmer product holding cabinet
Hide thumbs Also See for FWM3-22:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
Operators and Service Manual
Product Holding Cabinet
U.S. Patent 6175099, 6262394
Other U.S. and Foreign Patents Pending
FWM3-23
FWM3-22
FWM3-24
FWM3-42
For information or technical assistance, call:
TOLL FREE
(800) 735-DUKE (3853)
or
(314) 231-1130
156825R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWM3-22 and is the answer not in the manual?

Questions and answers

Related Manuals for Duke FWM3-22

Summary of Contents for Duke FWM3-22

  • Page 1 Operators and Service Manual Product Holding Cabinet U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending FWM3-23 FWM3-22 FWM3-24 FWM3-42 For information or technical assistance, call: TOLL FREE (800) 735-DUKE (3853) (314) 231-1130 156825R...
  • Page 2 This Page Intentionally Left Blank...

  • Page 3: Table Of Contents

    St. Louis, MO 63102 Model #: FWM3-22-100 FWM3-24-100 FWM3-22-120 FWM3-24-120 FWM3-22-208 FWM3-24-208 FWM3-22-230 FWM3-24-230 The Duke Product Holding Unit was developed for FWM3-22-240 FWM3-24-240 extended food-holding capabilities provide consistently high, “just cooked” food quality. FWM3-23-120 FWM3-42-100 FWM3-23-208 FWM3-42-120 The Duke Product Holding Unit utilizes Duke’s...

  • Page 4: Specification Sheet

    208 V, 5.8 A, 1200 W, 50/60 Hz FWM3-22-230 230 V, 5.2 A, 1200 W, 50/60 Hz FWM3-22-240 240 V, 5.0 A, 1200 W, 50/60 Hz U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 4 of 20...
  • Page 5 230 V, 7.8 A, 1800 W, 50/60 Hz FWM3-23-240 240 V, 7.5 A, 1800 W, 50/60 Hz P O WER U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 5 of 20...
  • Page 6 208 V, 11.5 A, 2400 W, 50/60 Hz FWM3-24-230 230 V, 10.4 A, 2400 W, 50/60 Hz FWM3-24-240 240 V, 10.0 A, 2400 W, 50/60 Hz U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 6 of 20...
  • Page 7 208 V, 11.5 A, 2400 W, 50/60 Hz FWM3-42-230 230 V, 10.4 A, 2400 W, 50/60 Hz FWM3-42-240 240 V, 10.0 A, 2400 W, 50/60 Hz U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 7 of 20...

  • Page 8: Installation Instructions

    CLEANING GUIDE. using approved cordset. !CAUTION! Risk of fire or electric shock. Replace cord with one of the following Duke cordsets only: P/N 156533 Cordset, NEMA 5-15P, 120 V P/N 156811 Cordset, NEMA 5-20P, 120 V Canadian FWM3-24 & FWM3-42 units...

  • Page 9: Unit To Unit Communication Connections

    NOTE: Product Holding Cabinets with digital keyboard timer can only use up to a maximum of four digital keyboard combinations. Figure 2 U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 9 of 20...

  • Page 10: Periodic Maintenance, Checklist And Cleaning Guide

    These can damage the stainless steel and plastic surfaces. !Warning! Bottom and sides of warmer wells are very hot and cool slowly. U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 10 of 20...

  • Page 11: Troubleshooting

    MANUAL Troubleshooting There are no user serviceable parts on the Duke Product Holding Cabinet. If a malfunction occurs, ensure unit is plugged in then check all switches and circuit breakers. If the malfunction still exists, contact your Duke Manufacturing Company authorized service agent or call 1-800-735-3853.

  • Page 12: Control Programming

    7. Replace cover on control side of the Holding Cabinet. Flashing Lights Top Shelf Bottom Shelf TABLE 1 Figure 4.2 U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 12 of 20...

  • Page 13: Parts Lists And Illustrations

    CONTROL, ICC TIMER, W/O SOUNDER, FWM3-22 & FWM3-23 156409 CONTROL, ICC TIMER, W/O SOUNDER, FWM3-24 & FWM3-42 156939 CONTROL, ICC TIMER, W/100 DB SOUNDER, FWM3-22 & FWM3-23 156935 CONTROL, ICC TIMER, W/100 DB SOUNDER, FWM3-24 & FWM3-42 156610 CONTROL, ICC TIMER, DIGITAL, W/ SOUNDER, FWM3-22 & FWM3-23...
  • Page 14 Rear View of MB1 & SB1 Rear View of MB2 & SB2 Figure 5, FWM Product Holding Cabinet Exploded View U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 14 of 20...

  • Page 15: Wiring Schematic

    6/12/2009 RESTAURANT EQUIPMENT PRODUCT HOLDING CABINET MANUAL Wiring Schematics Figure 6, FWM Internal Wiring Schematic U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 15 of 20...
  • Page 16 Wiring Schematics (Continued) Figure 7.1, Interface Cable Schematic with ICC Timer Control Figure 7.2, Interface Cable Schematic without ICC Timer Control U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 16 of 20...
  • Page 17 Figure 7.3 FWM3-42 Interface Cable Schematic with ICC Timer Control Figure 7.4 FWM3-42 Interface Cable Schematic without ICC Timer Control U.S. Patent 6175099, 6262394 Other U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130 17 of 20...
  • Page 18 This Page Intentionally Left Blank...
  • Page 19 This Page Intentionally Left Blank...
