OPERATOR'S MANUAL
DEAD AIR WORKSTATION
AC600 Series Dead Air Box
& Timed UV Light
with UVTect™ Controller
3248 Lake Woodard Drive, Raleigh, NC 27604 USA
Phone: 919-255-3220 • Toll Free: 800-849-0472 • Fax: 919-255-6120
Website: www.aircleansystems.com • Email: info@aircleansystems.com
* Product designs are subject to change without notice.
© 2012 AirClean
Systems
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for AirClean systems AC600 Series
- Page 1 OPERATOR’S MANUAL DEAD AIR WORKSTATION AC600 Series Dead Air Box & Timed UV Light with UVTect™ Controller 3248 Lake Woodard Drive, Raleigh, NC 27604 USA Phone: 919-255-3220 • Toll Free: 800-849-0472 • Fax: 919-255-6120 Website: www.aircleansystems.com • Email: info@aircleansystems.com * Product designs are subject to change without notice.
-
Page 2: Table Of Contents
CONTENTS SECTION PAGE Warranty Declaration of Conformity Symbols and Definitions Cautions and Precautions Technical Specifications Overview Installation Instructions Controller Instructions Programming Menus Operating Instructions Alarm Messages Maintenance: • Bulbs 14-16 • Cleaning Spare Parts List Options 17-18 Shipping Claims Contact Information FIGURES PAGE Figure 1,... -
Page 3: Warranty
WARRANTY Warranty registration must be completed online. To activate warranty visit: aircleansystems.com/warranty AirClean Systems is committed to providing our customers with quality equipment and service ® after the sale. We request that you take a moment to fill out the warranty registration form at aircleansystems.com/warranty so that we may ensure prompt and efficient service in the future. -
Page 4: Declaration Of Conformity
DECLARATION OF CONFORMITY AirClean Systems, Inc. ® 3248 Lake Woodard Drive Raleigh, North Carolina 27604 declare that: Product Name: Ductless PCR Workstation Model Numbers: AC632DBC and AC648DBC in accordance with the following Directives: 73/23/EEC The Low Voltage Directive as amended by 93/68/EEC 89/336/EEC EMC Directive as amended by 92/31/EEC has been designed and manufactured to the following specifi cations:... -
Page 5: Symbols And Definitions
SYMBOLS THAT MAY APPEAR ON YOUR ENCLOSURE Alerts the user to the presence of dangerous voltages within the product’s enclosure that maybe of sufficient magnitude to constitute a risk of electric shock to persons. Alerts the user to the presence of important operating maintenance or service instructions. Alerts the user to the possible presence of ultraviolet light. -
Page 6: Cautions And Precautions
CAUTIONS AND PRECAUTIONS Notices in this Manual Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury. WARNING Indicates a potentially hazardous situation, which if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices or potential equipment damage. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICATIONS AC632DBC AC648DBC Physical Dimensions Outside Dimensions 32”w x 30”h x 24”d 48”w x 32”h x 24”d Inside Dimensions 31”w x 18”h x 23”d 47”w x 19”h x 23”d Weight 100 lbs. 150 lbs. Electrical Voltage 110VAC 60 Hz or 230VAC 50 Hz 110VAC 60 Hz or 230VAC 50 Hz Current 1.4A / .7A... -
Page 8: Overview

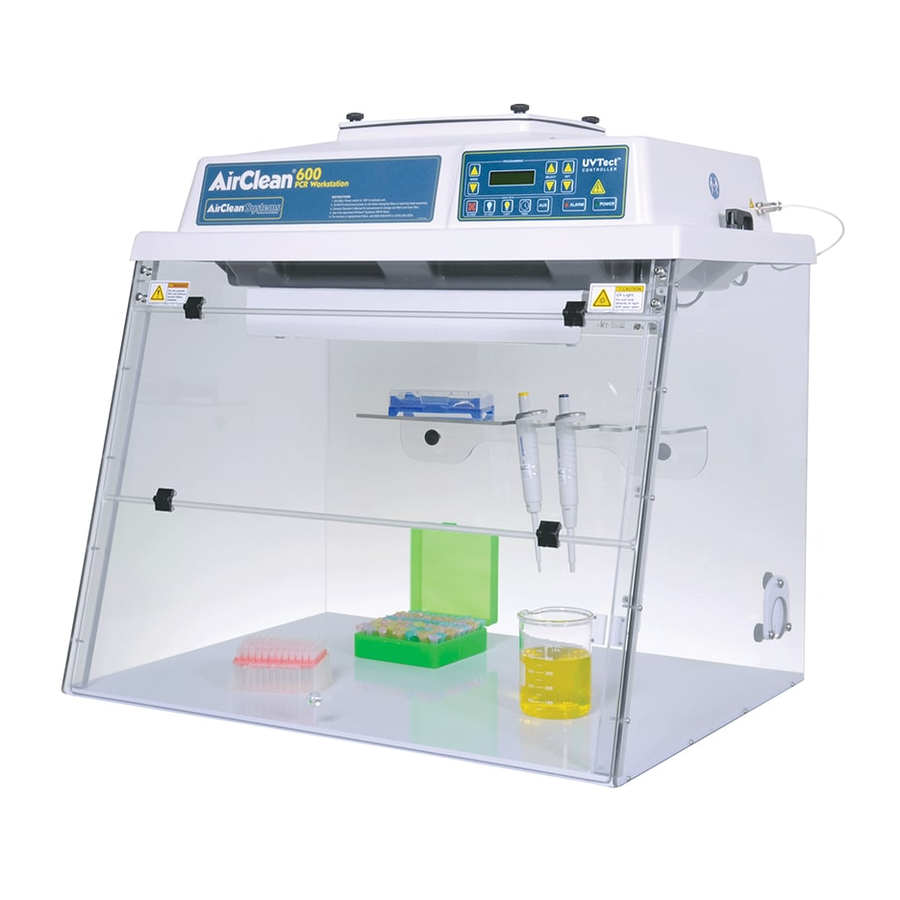

OVERVIEW The AC600 Series DBC Workstation, with UVTect™ microprocessor-driven controller provides 254 nm short-wave UV light to effectively irradiate contaminating DNA and RNA within minutes. Short- wave UV bulbs (254 nm) have a definable useful life of 1000 hours in your workstation. The UVTect™... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS DO NOT lift the workstation by the head assembly, the sash, or any protruding wires. CAUTION 1) If ordered, assemble the mobile cart. Assembly instructions are included with the cart and also in the OPTIONS section of this manual. (Page 20) 2) Designate the appropriate installation location. - Page 10 Swell Latch Swell Latch AC632DBC model AC648DBC model Figure 3, Swell latch locations. 8) Ensure that the door switch cable on the right hand side of the head assembly is secure. See figure 4. Only use approved accessories with the exterior connectors.
-
Page 11: Controller Instructions
CONTROLLER INSTRUCTIONS Figure 5, Control panel layout. QUICK KEYS UV LIGHT (light blue icon) - One touch to enable UV light bulb. When front sash is opened, safety switch automatically turns UV light off to prevent exposure. Front sash must be closed for UV light to illuminate. LIGHT (yellow icon) - Inactive key for workstation. -
Page 12: Programming Menus
PROGRAMMING MENUS NOTE: The UVTect™ controller has been pre-programmed by AirClean Systems to allow the ® unit to be operational immediately. (The fluorescent light, which is preset to run at full speed, automatically turn on when sash is opened.) The UV light time is preset to stay on for a 15-minute period when the sash is closed and the UV key is depressed. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS 1) To activate the main power of the workstation, flip the switch above the power inlet. See figure 5. 2) On the controller, the green light on the POWER quick key should be illuminated. If it is not, press the POWER quick key once to turn on the system. -
Page 14: Maintenance
MAINTENANCE BULBS Fluorescent Bulb Replacement The AC632DBC workstation contains one fluorescent bulb, and the AC648DBC workstation contains two fluorescent bulbs. They may be replaced as needed with a 15W Cool White Bulb. To replace the fluorescent light bulb in the AC632 model: Disconnect the linecord from the power entry module prior to proceeding. - Page 15 To replace the fluorescent light bulb in the AC648DBC model: Disconnect the linecord from the power entry module prior to proceeding. CAUTION 1. Disconnect linecord from the power entry module. Disconnect the door switch cable and light cables. See figure 4. (Page 10) 2.
-
Page 16: Cleaning
CLEANING Exterior: • Clean with only a soft, damp cotton cloth or an acrylic cleaner. • Do not use paper products to clean unit, as they may scratch the material. Interior: • A high level disinfectant or 10% bleach/water solution may be used as needed. Sporicidin ®... -
Page 17: Options
OPTIONS AIRCLEAN SYSTEMS CART ASSEMBLY INSTRUCTIONS ® Model ACA1011 and ACA1039 Your AirClean Systems Cart is shipped with the following components: ® 4 - Cross pieces 8 - 1¼” washers (cross piece washers) 2 - End pieces 4 - Casters Hook &... - Page 18 CART COMPONENTS Location for Hook & Loop Fasteners 8 - 1¼” Washer Hook Hole 1 Hole 2 Loop Hook & Loop Fasteners 4 - Hook Hole 3 Hole 4 4 - Loop 8 - 2” x ¼” Bolt Hole 5 4 - Cart Cross Piece BOTTOM 2 - Cart End Piece...
-
Page 19: Shipping Claims
SHIPPING CLAIMS If a shipment is received with visible damage, be certain to make a notation on the delivering carrier’s receipt and have their agent confirm the damage on your receipt. Otherwise, the damage claim may be refused. If concealed damage or pilferage is discovered, notify the carrier immediately and retain the entire shipment intact for inspection. - Page 20 3248 Lake Woodard Drive, Raleigh, NC 27604 Phone: 919-255-3220 Toll Free: 800-849-0472 Fax:919-255-6120 Website: www.aircleansystems.com • Email: info@aircleansystems.com * Product designs are subject to change without notice. © 2012 AirClean Systems ®...
