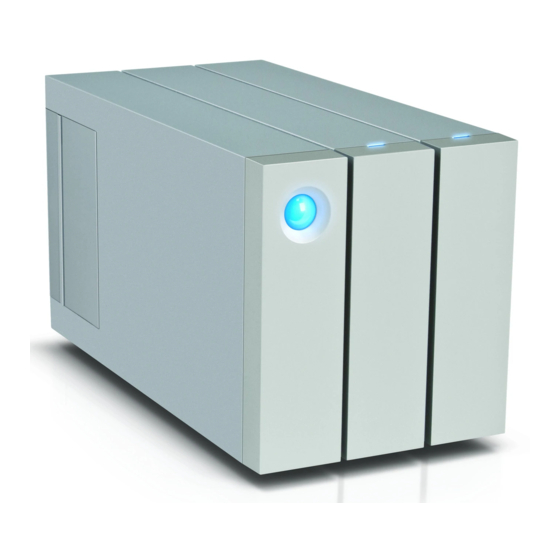

LACIE 2BIG THUNDERBOLT 2 USER MANUAL
CLICK HERE TO ACCESS AN UP-TO-DATE ONLINE VERSION
of this document. You will find the most recent content as well as expandable illustrations, easier
navigation, and search capability.
LaCie 2big Thunderbolt 2 User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2big Thunderbolt and is the answer not in the manual?

Questions and answers

Related Manuals for LaCie 2big Thunderbolt

Summary of Contents for LaCie 2big Thunderbolt

  • Page 1 LACIE 2BIG THUNDERBOLT 2 USER MANUAL CLICK HERE TO ACCESS AN UP-TO-DATE ONLINE VERSION of this document. You will find the most recent content as well as expandable illustrations, easier navigation, and search capability. LaCie 2big Thunderbolt 2 User Manual...

  • Page 2: Box Content

    The LaCie 2big also features a USB 3.0 port. Transfer rates can reach up to 5Gb/s when connected to a computer with a USB 3.0 port. Since it is backwards compatible, USB 3.0 gives you universal connectivity to any computer with a USB 2.0 port.

  • Page 3: Software Suite

    LaCie Private-Public (protect data with AES 256-bit encryption) MINIMUM SYSTEM REQUIREMENTS Your system must meet certain requirements in order for your LaCie product to function properly. For a list of these requirements, please refer to the product packaging or consult the product support web page at www.lacie.com/support/.

  • Page 4: Views Of The Enclosure

    VIEWS OF THE ENCLOSURE Front view LED and power button Hard drive trays LaCie 2big Thunderbolt 2 User Manual...
  • Page 5 LaCie 2big Thunderbolt 2 User Manual...

  • Page 6: Top View

    Top view Hard drive LEDs LaCie 2big Thunderbolt 2 User Manual...

  • Page 7: Side View

    Side view Removable access panel LaCie 2big Thunderbolt 2 User Manual...

  • Page 8: Side View - Open Panel

    Side view - open panel SELECT: RAID selection button FAST, SAFE, JBOD: LEDs for RAID modes CONFIRM: RAID confirmation button LaCie 2big Thunderbolt 2 User Manual...

  • Page 9: Rear View - Open Panel

    Rear view - open panel USB 3.0 port Thunderbolt 2 ports Power supply connection (12V 5A) LaCie 2big Thunderbolt 2 User Manual...

  • Page 10: Quiet Operation And Heat Management

    QUIET OPERATION AND HEAT MANAGEMENT To reduce noise during operation, the LaCie 2big's fan is located at the back of the device. The advanced thermo-regulated fan guarantees optimal heat management by adjusting its rotational speed for the environment and a wide exhaust chamber allows for enhanced airflow. Additionally, the LaCie 2big's metal casing dissipates heat from the hard drives, keeping them safe and prolonging their life.

  • Page 11: Position And Stacking

    POSITION AND STACKING Always make certain to place the LaCie 2big on a flat, even surface designed to support the heat output and airflow of a professional hard drive enclosure. For proper heat dissipation, the LaCie 2big is designed to stand on its rubber feet, situated on the bottom of the enclosure.

  • Page 12: Lacie 2Big Thunderbolt 2: Advanced Storage Technology

    TECHNOLOGY THUNDERBOLT 2 TECHNOLOGY The LaCie 2big Thunderbolt 2 uses Thunderbolt 2 technology, the fastest, most versatile connection for your computer. While first generation Thunderbolt technology transfer rates are 10Gb/s bi-directional, Thunderbolt 2 technology provides 20Gb/s bi-directional. Additionally, Thunderbolt 2 technology gives priority to the video stream, apportioning the required bandwidth for playback.

  • Page 13: Lacie 2Big Thunderbolt 2 Technology: Hardware Raid For Protection And Performance

    LaCie 2big Thunderbolt 2 technology: hardware RAID for protection and performance Featuring hardware RAID, the LaCie 2big is a rarity in the world of high-end direct-attached storage (DAS). While most DAS must choose between high transfer rates or data protection, the LaCie 2big offers both extraordinary performance and built-in protection.

  • Page 14: Leds And Led Power Button

    LEDS AND LED POWER BUTTON LED STATES The LED on the front of the LaCie 2big provides indications on the state of its health: State Solid blue The product is in active mode. The product is starting up or shutting down. The LED will become solid blue once it has Blinking blue initialized.

  • Page 15: Receiving Power

    USB 3.0 port. LED BUTTON The LED is also a button to turn the LaCie 2big on or off. Always eject the LaCie 2big’s volumes before turning it off or placing it in idle and power-saving modes. Long press. Push the LED for two seconds to power off the enclosure.

  • Page 16: Idle Mode (Thunderbolt 2 Only)

    To exit idle mode, apply a short press to the LED button. The hard drives spin up and the volumes should appear on the desktop. Technical note: The LaCie 2big must receive power via its power cable to allow for a daisy chain in idle mode.

  • Page 17: Cables And Connectors

    Your LaCie product features Thunderbolt 2 technology, the most flexible interface ever created. When connected to a computer that supports Thunderbolt 2 technology, your LaCie device can reach up to 20Gb/s, bi-directional, on a single port, the fastest data connection available on a personal computer.
  • Page 18 Your LaCie drive is shipped with a SuperSpeed USB 3.0 cable to ensure maximum data transfer performance when connected to a compatible USB 3.0 port. The cable will also work when connected to a USB 2.0 or 1.1 port, but drive performance will be limited to their respective transfer rates.

  • Page 19: Getting Connected

    GETTING CONNECTED Follow the steps in the order they are given to ensure that the LaCie 2big Thunderbolt 2 volume mounts correctly on your computer. By default, the drives are configured in FAST mode (see Manage RAID) and formatted for Mac (HFS+ journaled).

  • Page 20: Connect The Power And Interface Cables

    Important: The side panel may require added pressure to remove it from the slot. Connect the included power supply in the following order: The LaCie 2big’s power port. An active power outlet. Choose a port to connect the LaCie 2big: Thunderbolt 2: LaCie 2big Thunderbolt 2 User Manual...
  • Page 21 Windows. USB 3.0: Connect the included USB 3.0 cable to the USB 3.0 port on the LaCie 2big and a compatible port on your computer. USB 3.0 transfer rates are only available when connecting the LaCie 2big to a computer with a USB 3.0 port.

  • Page 22: Windows: Install Thunderbolt Driver

    Controller. Connect the 2big Thunderbolt 2 to your PC. Plug one end of the Thunderbolt cable to the LaCie 2big and the other end to a compatible port on your PC. Note that a second item named Standard AHCI 1.0 Serial ATA Controller appears in IDE ATA/ATAPI controllers.
  • Page 23 Right click on the second item named Standard AHCI 1.0 Serial ATA Controller and choose Properties. Choose the Details tab. LaCie 2big Thunderbolt 2 User Manual...
  • Page 24 Confirm that the value string includes 1B4B, 9220 and 00111C19. If the value does not include the characters demonstrated in the screenshot, close the properties and check the first Standard AHCI 1.0 Serial ATA Controller for the string. LaCie 2big Thunderbolt 2 User Manual...
  • Page 25 Right click on the properly identified Standard AHCI 1.0 Serial ATA Controller and choose Update Drive Software. Choose Browse my computer for driver software and navigate to the driver downloaded in step 1. LaCie 2big Thunderbolt 2 User Manual...
  • Page 26 Choose the folder that applies to your version of Windows and then choose OK: 64-bit: Choose amd64. 32-bit: Choose i386. Choose Next to confirm the update. Device Manager shows that the new driver has been installed. LaCie 2big Thunderbolt 2 User Manual...

  • Page 27: Windows: Clean The Hard Drives

    Windows Disk Management cannot erase the EFI partition so you must run Diskpart, a separate Windows utility. For additional information on Diskpart, click here. Important info: Cleaning hard drives is data destructive. If you have data on the LaCie 2big, LaCie recommends that you back up all files before following the steps below.
  • Page 28 Button). Search for and launch Diskpart. In the Diskpart prompt, type list disk. Make certain to locate the disk number(s) for your LaCie device then type select disk n. n is the number for LaCie 2big Thunderbolt 2 User Manual...
  • Page 29 LaCie hard drive (1 in the screenshot below). If you are uncertain of the disk number for the LaCie product, launch Disk Management. You should see the number assigned to the LaCie product. Diskpart confirms that your hard disk has been selected.
  • Page 30 Diskpart confirms that your hard disk is clean, meaning that the partitions have been deleted. The LaCie product is ready to be formatted for your operating system. See Formatting for instructions. LaCie 2big Thunderbolt 2 User Manual...

  • Page 31: Unmounting The Volume

    UNMOUNTING THE VOLUME In order to avoid file system corruption, it is important to unmount the volumes before turning off the enclosure or disconnecting the interface cable. See Unmounting Your Drive for details. LaCie 2big Thunderbolt 2 User Manual...

  • Page 32: Daisy Chain (Thunderbolt 2 Only)

    Thunderbolt technology storage devices and a display with a MiniDisplay port. In such a case, make certain that the LaCie 2big is the first enclosure connected to the computer. You can lose the higher performance offered by Thunderbolt 2 technology if a Thunderbolt 2 device is daisy-chained behind first generation Thunderbolt devices and/or displays.

  • Page 33: How To Daisy Chain

    How to daisy chain Connect the Thunderbolt cable to one of the Thunderbolt 2 ports on the back of the LaCie 2big and to your computer. The additional port may be used to daisy chain compatible first generation Thunderbolt and Thunderbolt 2 peripherals, such as hard drives and monitors.

  • Page 34: Lacie Desktop Manager

    LaCie Desktop Manager provides a list of all compatible LaCie devices in the left-hand column. If you have more than one compatible LaCie device, choose a product and use the tabs to navigate to the page you want. Options can vary based upon the product.
  • Page 35 From the Info tab, you can reformat the hard drives. Caution: Choosing Reformat launches your operating system's disk utility (see Formatting for details). Formatting erases all data stored on your hard drives. To protect files, back up your hard drives before selecting Reformat. LaCie 2big Thunderbolt 2 User Manual...

  • Page 36: Status Tab

    Review the health of the: Hardware RAID configuration You can also enable alerts to receive status updates. Important info: Activating alerts may affect the transfer rates of your device. For optimal transfer rates, disable alerts. LaCie 2big Thunderbolt 2 User Manual...

  • Page 37: Email Tab

    EMAIL TAB You can enter up to five email addresses to receive messages regarding changes to the status of your LaCie device. You can also enter an email subject line. Check the boxes to select the events that trigger email alerts.

  • Page 38: Manage Raid

    FAST (RAID 0): RAID 0 is the fastest RAID mode. In a RAID 0 array, the available capacities of each hard drive are added together so that one logical volume mounts on the computer. It offers the best performance but no data protection should a hard drive fail. LaCie 2big Thunderbolt 2 User Manual...
  • Page 39 An advantage to this configuration is the availability of 100% of the hard drives' total storage capacity. However, it does not offer redundancy and all data on a single hard drive is lost if it fails. LaCie 2big Thunderbolt 2 User Manual...

  • Page 40: Modify The Raid Mode

    MODIFY THE RAID MODE Important info: Changing the RAID mode destroys data stored on the LaCie 2big. Back up all your data before adjusting the RAID. Before starting the steps below, locate the RAID selection tool included with the enclosure and know the RAID mode you want to use.
  • Page 41 Replace the side panel to protect the cable connections. Technical note: Behavior will differ slightly if the interface cable is not connected to its port during the RAID modification. The device will power off once the RAID has been changed. LaCie 2big Thunderbolt 2 User Manual...
  • Page 42 Important info: If the RAID mode has not been changed, you can try the steps again. When following the steps, make certain to choose CONFIRM as soon as the LED toggles to your preferred RAID mode. LaCie 2big Thunderbolt 2 User Manual...

  • Page 43: Raid Configuration Times

    Performance may be affected during RAID synchronization. Automatic power off and RAID SAFE synchronization In general, the LaCie 2big powers off when the computer is shut down. However, the device remains powered on if it is in the midst of a RAID SAFE synchronization.

  • Page 44: About File System Formats

    FAT32: FAT32 is an older format with a maximum single file size limited to 4GB. Since performance is far from optimal, use FAT32 only if you are going to share your LaCie storage device between Mac and Windows computers.

  • Page 45: Windows Users

    FAT32 is supported by Windows 7 and Windows 8 but the volume size is limited to 32GB and the individual file size is limited to 4GB. Technical info: FAT32 can reduce the performance of your LaCie product. NTFS: This acronym stands for New Technology File System, and it is the native file system for Windows 7 and Windows 8.

  • Page 46: Formatting Instructions

    Caution: Formatting will erase everything on the storage device. LaCie highly recommends that you back up all data on your storage device before performing the steps below. LaCie is not responsible for any data lost due to formatting, partitioning, or using a LaCie storage device.
  • Page 47 Right-click on Computer and choose Manage. From the Manage window select Disk Management. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. By default, a partition is already created on the device with LaCie software utilities. Follow your operating system instructions to reset the existing partition.

  • Page 48: Removing And Replacing A Hard Drive

    REMOVING AND REPLACING A HARD DRIVE Important info: Your LaCie professional DAS gives you instant updates on the health of the enclosure and its hard drives. In addition to LED status indications, you can configure the system to send you email alerts...

  • Page 49: Removing A Hard Drive

    If you remove a hard drive from an unprotected array when the LaCie 2big is powered on, you can lose all your data. If one of the drives in RAID FAST mode has been removed and the front LED turns solid red, try the following: Power off the device using a long press on the front LED button or unplug the power cable from the device.
  • Page 50 Unmounting Your Drive. When removing one drive improperly, it is likely that both volumes will unmount at the same time. However, the volume for the hard drive that is within its slot will reappear. LaCie 2big Thunderbolt 2 User Manual...

  • Page 51: Replacing A Hard Drive

    Drive LEDs are on the top end of the drawer. Important info: Contact your LaCie reseller or LaCie technical support if a hard drive or part fails. LaCie 2big enclosures, drives, and parts that experience failure and are within the warranty period must be replaced by equivalent replacement parts from LaCie.

  • Page 52: Raid Safe: Degraded Versus Broken

    A broken RAID SAFE means that both hard drives have failed or, a hard drive has failed during RAID synchronization. All data is lost if the RAID is broken. LaCie 2big Thunderbolt 2 User Manual...

  • Page 53: Remove The Failed Hard Drive

    Place your finger on the indent on top of the drive bay handle and gently pull it away from the LaCie 2big. Grasp the drive tray handle and carefully extract the hard drive. Place the hard drive tray on a flat, even surface.

  • Page 54: Install The Replacement Hard Drive

    Important info: A failed hard drive within the warranty period must be swapped with a replacement hard drive from LaCie. Replacement hard drives for the LaCie 2big are shipped within the tray. The steps below can be performed while the enclosure is powered on or powered off.

  • Page 55: Status Following A Hard Drive Swap

    Refer to the table below for the RAID behavior following a hard drive swap: RAID Data Status Mode The LaCie 2big recreates FAST mode with the new hard All data has been lost with the hard FAST drive and your operating system prompts you to format drive failure.
  • Page 56 Automatic power off and RAID SAFE synchronization In general, the LaCie 2big powers off when the computer is shut down. However, the device remains powered on if it is in the midst of a RAID SAFE synchronization. LaCie 2big Thunderbolt 2 User Manual...

  • Page 57: Unmounting Your Drive

    Drag the storage device icon to the Trash. (The icon pictured below is a generic USB device icon. Your LaCie storage may be represented by an icon that looks like the device itself.) When the icon disappears from the desktop, the storage device can be disconnected.

  • Page 58: Windows 7 And Windows 8

    A message will appear, detailing the devices that may be safely unmounted. Select Eject for the device you wish to unmount. A message will appear notifying you that it is safe to remove it. LaCie 2big Thunderbolt 2 User Manual...

  • Page 59: Getting Help

    GETTING HELP If you are having problems with your LaCie product, consult the table below for a list of available resources. Order Source Description Location Concise steps to Quick follow for getting your Either a printed leaflet or accessory box and included in the...

  • Page 60: Troubleshooting Topics

    Select your product, then click the “Troubleshooting” tab. Thunderbolt 2 connection (Mac) Problem: I do not see the LaCie 2big when using the Thunderbolt 2 port. Q: Are there other Thunderbolt technology devices connected to the same port? A: Disconnect other Thunderbolt devices and see if the volume appears on the desktop.
  • Page 61 Check both ends of the Thunderbolt technology cable to make sure they are fully seated in their respective ports. Try disconnecting the Thunderbolt technology cable then wait 10 seconds before reconnecting it. If the drive is still not recognized, restart your computer and try again. LaCie 2big Thunderbolt 2 User Manual...

  • Page 62: Usb 3.0 Connection (Pc/Mac)

    Q: Is the device connected to a USB 2.0 port on your computer or hub? A: If the LaCie 2big is connected to a USB 2.0 port or hub, this is normal. A SuperSpeed USB 3.0 device can only operate at USB 3.0 performance levels when it is connected to a computer with a USB 3.0 port. Otherwise, the USB 3.0 device will operate at the slower USB transfer rates.
  • Page 63 A: Certain versions of Windows require additional drivers to support USB 3.0. Q: Is your computer's internal hard drive limiting transfer speeds? A: If your computer has a low-performance internal hard drive (typically a notebook or netbook computer), it can limit the transfer speed. LaCie 2big Thunderbolt 2 User Manual...
  • Page 64 ? < > / \ : Since it does not offer optimal performance, LaCie does not recommend using the FAT32 file system with Thunderbolt 2 and/or USB 3.0 storage. Consider formatting the hard drive as HFS+ Journaled with a Striped or Mirrored RAID Set.

  • Page 65: Problem: The Hard Drive Space Does Not Seem Right

    Problem: The hard drive space does not seem right. Q: I just threw a lot of files into the Trash from my LaCie storage device. Why don't I see more space to copy new files? A: Hard drive space will not be reclaimed until files are deleted or emptied from the Trash.

  • Page 66: Health And Safety Precautions

    II). Do not expose the LaCie hard drive to temperatures outside the range of 5º C to 30º C (41º F to 86º F); or to operational humidity beyond 10-80%, non-condensing, or non-operating humidity beyond 10-90%, non-condensing.
  • Page 67 Never use excessive force on your LaCie hard drive. If you detect a problem, consult the troubleshooting section in this manual. Protect your LaCie hard drive from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.

  • Page 68: Warranty Information

    LaCie (“LaCie”) warrants, to the original purchaser, that this equipment shall be free of defects in materials and workmanship for a period of one (1), two (2), three (3), or five (5) years, depending on the model, from LaCie's date of original shipment when the equipment is used normally and is properly serviced when needed. If you discover a defect covered by the warranty set forth above, your sole and exclusive remedy will be for LaCie, in its sole discretion to (i) repair or replace the product at no charge to you;...
  • Page 69 Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data. To help prevent the loss of your data, LaCie highly recommends that you keep TWO copies of your data;...

  • Page 70: Service Doa

    Within the 15 calendar days of purchase, should you experience an issue with your new LaCie product, we ask you to return the product to the place where it was originally bought. You will be required to give a proof of purchase.

  • Page 71: Legal Information

    LEGAL INFORMATION COPYRIGHTS Copyright © 2015 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.

  • Page 72: Canada Compliance Statement

    This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio/TV receiver, it may cause radio interference. Install the equipment according to the manual. This statement does not apply to the LaCie CloudBox.
