LaCie 301382U Quick Install Manual

Enterprise class esata 3gb/s | firewire 800 | firewire 400 | hi-speed usb 2.0
Hide thumbs Also See for 301382U:
Table of Contents
  • Box Content
  • Front View
  • Rear View
  • Changing the RAID Mode
  • Warranty Information
  • Installation
  • Installazione

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 28

Quick Links

Download this manual See also: User Manual
2big Quadra
ENTERPRISE CLASS
eSATA 3Gb/s | FireWire 800 | FireWire 400 | Hi-Speed USB 2.0
Quick Install Guide
Design by Neil Poulton

Advertisement

Table of Contents
loading

Related Manuals for LaCie 301382U

Summary of Contents for LaCie 301382U

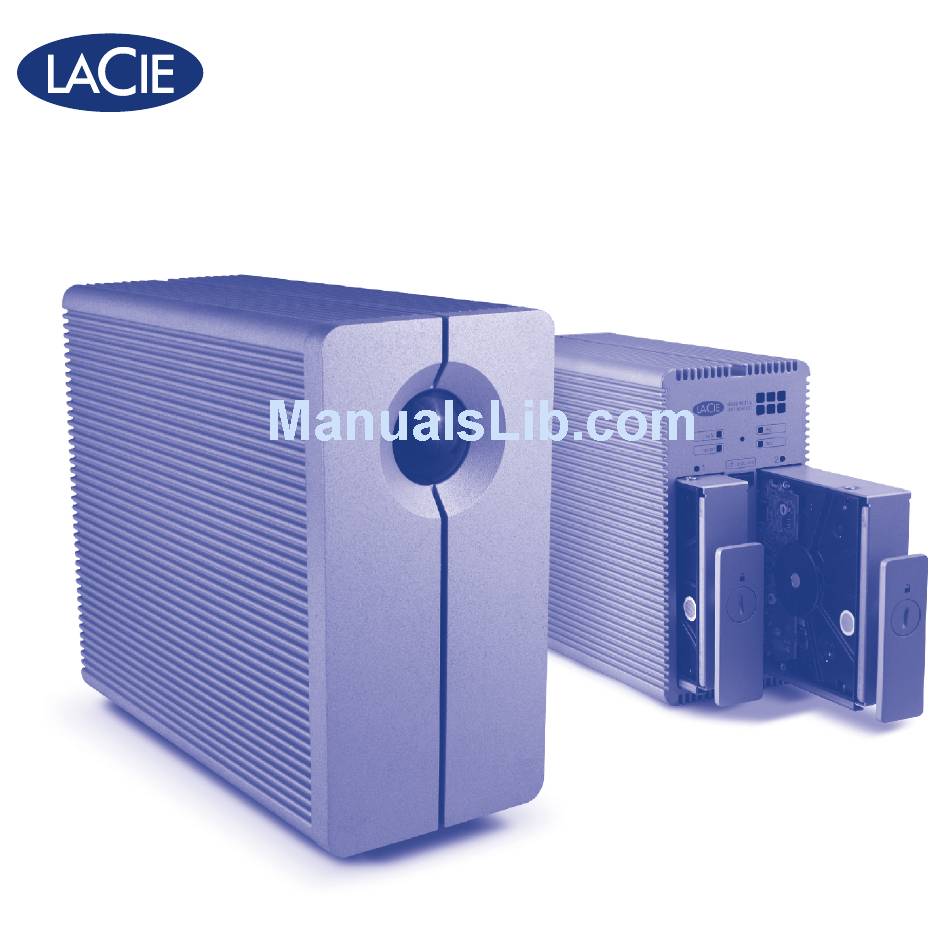

  • Page 1 2big Quadra ENTERPRISE CLASS eSATA 3Gb/s | FireWire 800 | FireWire 400 | Hi-Speed USB 2.0 Quick Install Guide Design by Neil Poulton...

  • Page 3: Box Content

    (3Gb/s) cable FireWire 800 (9:9 pin) cable FireWire 400 (6:6 pin) cable Hi-Speed USB 2.0 cable Power supply kit LaCie CD-ROM (with detailed user manuals and software, including LaCie Desktop Manager) Protect your investment – register for free technical support: www.lacie.com/register...
  • Page 4 Please note that the term of your warranty remains five years. PCI-E eSATA 3Gb/s card LaCie offers a wide range of host adapaters including the eSATA II PCI Express Card 3Gb/s. Featuring four external eSATA 3Gb/s connectors, it is the best interface choice for professionals who demand high speed.

  • Page 5: Front View

    Front View 1. Shortcut button with activity LED Rear View 2. Drive status LED 3. Drive tray handle 4. Drive tray lock 5. RAID mode LEDs 6. RAID selection switch 7. off/auto/on power switch 8. eSATA 3Gb/s port 9. Hi-speed USB 2.0 port 10.
  • Page 6 Setup 1. Plug the power supply into an AC outlet and connect the power cable to the 2big Quadra. 2. Decide which interface cable you will use (eSATA 3Gb/s , FireWire 400, FireWire 800, USB 2.0) and connect your 2big Quadra to your computer. NOTE: Do not connect more than one interface cable between your computer and your 2big Quadra.
  • Page 7 Enterprise-class hard disks installed. The disks are formatted in HFS+, so Windows users will need to reformat the disks before using the 2big Quadra. Please see the detailed User Manual on the LaCie CD-ROM for information on formatting hard disks.

  • Page 8: Changing The Raid Mode

    Changing the RAID Mode CAUTION! - Changing the RAID mode will erase the data stored on the 2big Quadra. Back up data before changing the RAID mode. - The 2 disk trays must be in place before the RAID mode can be modified. NOTE: Changing the RAID mode and formatting will not change the encryption configuration but will erase the encrypted data.

  • Page 9: Warranty Information

    Precautions Do not stack more than two LaCie 2big Quadra Enterprise Class together. Do not expose the drive to temperatures over 35° C (95° F) or 30° C (86° F) when stacked. Do not expose the device to liquids. Use only the power supply shipped with the device.

  • Page 10: Installation

    REMARQUE : ne connectez pas plus d’un câble d’interface entre l’ordinateur et le 2big Quadra. 3. Le LaCie 2big Quadra Enterprise Class est fourni avec deux disques durs professionnels SATA II de 3,5” intégrés. Ces disques durs étant formatés en HFS+, les utilisateurs Windows doivent les reformater avant d’utiliser le 2big Quadra.

  • Page 11: Installazione

    NOTA: La crittografia di LaCie Enterprise Class offre un livello molto elevato di protezione per i vostri dati più importanti. La potenza della crittografia renderà impossibile il recupero dei dati nell'improbabile caso di un guasto del disco o di un componente.
  • Page 12 4. Die Festplatten sind als RAID 0 (Fast-Modus) konfiguriert. Wenn Sie den RAID-Modus ändern möchten, lesen Sie bitte die Informationen unten über das Ändern des RAID-Modus auf der nächsten Seite. 5. Installieren Sie die Software LaCie Desktop Manager von der CD-ROM, um die Verschlüsselungsfunktion und den Shortcut Button zu konfigurieren.
  • Page 13 NOTA: no conecte más de un cable de interfaz entre el ordenador y la unidad 2big Quadra. 3. LaCie 2big Quadra Enterprise Class se suministra con dos discos SATA II de clase empresarial de 3.5” instalados. Los discos están formateados en HFS+, por lo que los usuarios de Windows no tendrán que volver a formatearlos para utilizar la unidad 2big Quadra.
  • Page 14 4. De schijven zijn in de Fast-modus geconfigureerd. Raadpleeg “De RAID-modus veranderen” op de volgende pagina indien u de RAID-modus wilt wijzigen. 5. Installeer de LaCie Desktop Manager-software die u op de CD-ROM vindt om de codering en de Shortcut Button te configureren.
  • Page 15 NOTA: Não ligue mais do que um cabo de interface entre o computador e o sistema 2big Quadra. 3. O LaCie 2big Quadra Enterprise Class inclui dois discos rígidos SATA II Enterprise class de 3,5 pol. instalados. Os discos estão formatados em HFS+, pelo que os utilizadores do Windows terão de reformatar os discos antes de utilizar o sistema 2big Quadra.
  • Page 16 OBSERVERA! Anslut inte mer än en gränssnittskabel mellan datorn och 2big Quadra. 3. LaCie 2big Quadra Enterprise Class levereras med två 3,5-tums hårddiskar av SATA II Enterprise-klass. Hårddiskarna är formaterade i HFS+, vilket innebär att Windows-användare måste formatera om dem för att kunna använda 2big Quadra.
  • Page 17 BEMÆRK: Tilslut ikke mere end et interfacekabel mellem din computer og din 2big Quadra. 3. LaCie 2big Quadra Enterprise Class leveres med to 3.5” SATA II Enterprise-class harddiske installeret. Diskene er formateret i HFS+, så Windows-brugere skal omformatere dem, før 2big Quadra tages i brug.
  • Page 18 2big Quadra tietokoneeseen. HUOM. Kytke tietokoneen ja 2big Quadran välille vain yksi liitäntäkaapeli. 3. LaCie 2big Quadra Enterprise Class -asemassa on toimitettaessa kaksi 3.5” SATA II Enterprise Class -kiintolevyä. Levyt on alustettu HFS+-taltioiksi, joten ne on alustettava uudelleen, ennen kuin 2big Quadraa voidaan käyttää...
  • Page 19 UWAGA: Do komputera i macierzy 2big Quadra można podłączyć tylko jeden przewód połączeniowy. 3. W macierzy LaCie 2big Quadra Enterprise Class są zainstalowane dwa dyski twarde 3,5 cala SATA II klasy korporacyjnej. Dyski są sformatowane w systemie plików HFS+, więc użytkownicy systemu Windows muszą przed korzystaniem z macierzy 2big Quadra sformatować...
  • Page 20 ПРИМЕЧАНИЕ. Подключать устройство 2big Quadra к компьютеру можно только одним кабелем интерфейса. 3. Модель Enterprise Class устройства LaCie 2big Quadra поставляется с двумя 3,5-дюймовыми жесткими дисками SATA II корпоративного класса, отформатированными в файловой системе HFS+. Пользователям Windows перед работой с устройством 2big Quadra потребуется их повторно отформатировать. Сведения о...
  • Page 21 ΣΗΜΕΙΩΣΗ: Μην συνδέετε περισσότερα από ένα καλώδια διασύνδεσης μεταξύ του υπολογιστή και του 2big Quadra. 3. Το LaCie 2big Quadra Enterprise Class παραδίδεται με δύο εγκατεστημένους σκληρούς δίσκους 3.5” SATA II Enterprise-class. Οι δίσκοι είναι μορφοποιημένοι ως HFS+, συνεπώς οι χρήστες των Windows θα πρέπει να...
  • Page 22 2. 使用したいインタフェース ケーブル (eSATA 3Gb/s、FireWire 400、FireWire 800、USB 2.0) 選択し、 2big Quadra をコンピュータに接続します。 注意: コンピュータと 2big Quadra 間に、一度に複数のインタフェースを接続しないでください。 3. LaCie 2big Quadra Enterprise Class には、3.5" SATA II Enterprise 級ハードディスクが 2 台インストー ルされています。ディスクは HFS+ でフォーマットされています。そのため、Windows をご使用の方は 2big Quadra の使用前にディスクをフォーマットすることが必要です。ハード ディスクのフォーマット に関する情報については、LaCie CD-ROM にある詳しいユーザー マニュアルを参照してください。...
  • Page 23 2. 确定要使用哪种接口电缆（eSATA 3Gb/s、FireWire 400、FireWire 800、USB 2.0），然后将 2big Quadra 连接到计算机。 注意：切勿在计算机与 2big Quadra 之间连接多条接口电缆。 3. LaCie 2big Quadra Enterprise Class 装有两块 3.5 英寸 SATA II 企业级硬盘。硬盘已格式化为 HFS+，因此， Windows 用户在使用 2big Quadra 之前需要重新格式化。有关格式化硬盘的详细信息，请参见 LaCie CD-ROM 上的《用户手册》。 4. 硬盘已配置为“快速”模式。如果您想更改 RAID 模式，请参见下一页的“更改 RAID 模式”。...
  • Page 24 NOT: Bilgisayarınızla 2big Quadra'nın arasına birden fazla arabirim kablosu bağlamayın. 3. LaCie 2big Quadra Enterprise Class, iki adet 3,5” SATA II Enterprise sınıfı sabit disk takılı halde gelir. Diskler HFS+ formatında biçimlendirilmiştir; bu nedenle Windows kullanıcılarının 2big Quadra’yı kullanmadan önce yeniden biçimlendirmeleri gerekir.
  • Page 25 ‫ ﻣﺳﺗﻭﻯً ﻋﺎﻟ ﻳ ًﺎ ﻣﻥ ﺍﻟﺣﻣﺎﻳﺔ ﻟﻣﻌﻅﻡ ﺑﻳﺎﻧﺎﺗﻙ ﺍﻟﻬﺎﻣﺔ. ﻧﻅﺭً ﺍ ﻟﻘﻭﺓ ﺍﻟﺗﺷﻔﻳﺭ، ﻟﻥ ﻳﻛﻭﻥ ﺍﺳﺗﺭﺟﺎﻉ‬LaCie Enterprise Class ‫ﻳﻘﺩﻡ ﺗﺷﻔﻳﺭ‬ :‫ﻣﻼﺣﻅﺔ‬ ‫ﺍﻟﺑﻳﺎﻧﺎﺕ ﻣﻣﻛ ﻧ ً ﺎ ﻓﻲ ﺍﻟﺣﺎﻻﺕ‬ .‫ﺍﻟﻣﺳﺗﺑﻌﺩﺓ ﻟﻔﺷﻝ ﺍﻟﻘﺭﺹ ﺃﻭ ﺍﻟﺟﺯء‬...
  • Page 28 28036 Madrid sales.es@lacie.com LaCie Switzerland Davidsbodenstrasse 15 A 4004 Basel sales.ch@lacie.com LaCie United Kingdom & Ireland LaCie LTD · Friendly House 52-58 Tabernacle Street London, England EC2A 4NJ UK: sales.uk@lacie.com Ireland: sales.ie@lacie.com LaCie Worldwide Export 17, rue Ampère 91349 Massy Cedex France sales.intl@lacie.com...
