Summary of Contents for LaCie 2big Dock

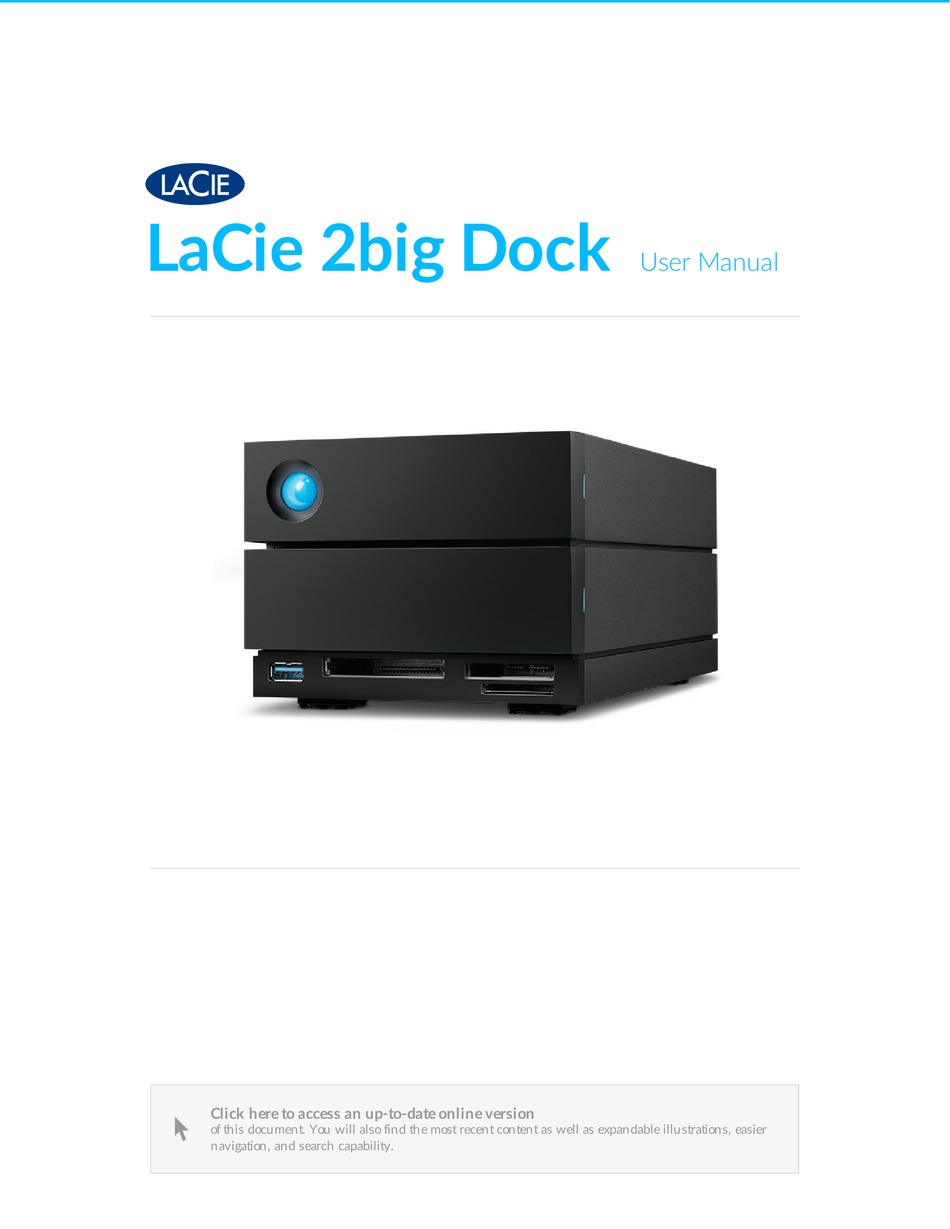

- Page 1 LaCie 2big Dock User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
-
Page 2: Table Of Contents
......................... . Set up LaCie 2big Dock . - Page 3 ......................... . Operation and heat m anagem ent .
- Page 4 ......................... . LaCie RAID Manager device and app m anagem ent 13 Works with iPad USB-C .
-
Page 6: Welcome
Thunderbolt 3 cable (compatible with Thunderbolt 3/USB 3.1 Gen 1/USB 3.1 Gen 2 ports) Quick Install Guide Minimum system requirements Ports Use the included cable to connect your LaCie device to a computer with a Thunderbolt or USB-C port. Opera ng system Go to Operating System Requirements for LaCie Hardware &... -
Page 7: System Overview
5. CFexpress B—Use the slot to read CFexpress B memory cards. See Docking Features. 6. Swappable hard drive trays—Hard drive trays can be removed to replace failed hard drives. The LaCie 2big Dock hard drives are hot-swappable. See Hard Drive Maintenance. -
Page 8: Storage Management
5. Sleep/Wake button—Use this button to power the device off and on. The button is also used confirm key actions during RAID configuration. See Operation. 6. Kensington™ lock port—Use this port to physically lock the 2big Dock to a desk or rack. Important info regarding the ports—The LaCie 2big Dock can be connected to one computer ... -
Page 9: Getting Started
2. Connect the power cord to the power supply. 3. Connect the power cord to a live power socket. Connect to computer The included Thunderbolt cable can be used to connect 2big Dock to USB-C host ports that support Thunderbolt or USB. LaCie 2big Do ck... -
Page 10: Set Up Lacie 2Big Dock
Use the Thunderbolt 3 cable to connect 2big Dock to your computer. Make sure that the cable is: Connected to the host port to the left on the back panel, and not the peripheral/daisy chain port. Connected to a USB-C port on your computer that supports Thunderbolt and/or USB. -
Page 11: Register Your Device
Start Here Mac Start Using a file manager such as Finder or File Explorer, open LaCie 2big Dock and launch Here Win. Register your device Register. Enter your information and click Download Toolkit LaCie 2big Do ck 6/7/22... -
Page 12: Download Toolkit
Using a file manager such as Finder or File Explorer, go to the folder where you receive downloads. LaCieToolkit.zip LaCie Toolkit Installer Open the file. Click on the to launch the application. LaCieToolkit.exe Click on the file to launch the application. LaCie 2big Do ck 6/7/22... -
Page 13: Storage Format
LaCie Toolkit user manual. Storage format 2big Dock is preformatted exFAT for compatibility with both Windows and Mac computers. If you use the drive with only one type of computer, you can optimize file copy performance by formatting it in the native file system for your operating system. -
Page 14: Use Toolkit To Set Up Raid, Import Files, And More
Click here for details on RAID setups. Automated file imports Toolkit lets you effortlessly import files from memory cards inserted in 2big Dock's integrated card readers or from USB storage devices connected to hub port. Click here for details on importing files. -
Page 15: Operation
Power on In most instances, the LaCie 2big Dock powers on automatically when connected to a computer and an active power source. However, the Sleep/Wake button can be used to power on the device if the following two conditions are met: The device was powered off using a long press. -
Page 16: Power-Saving Mode: Daisy Chain
To wake up the device, apply another short press. Power-saving mode: daisy chain You can daisy chain Thunderbolt technology devices when the LaCie 2big Dock is in power-saving mode. Though the hard drive spins down when the device enters power-saving mode, the Thunderbolt signal remains constant—daisy-chained devices continue data operations without interruption. -
Page 17: Receiving Power
A long push is a manual depression on the Sleep/Wake button that lasts more than four seconds. When the product is operating, a long push will cut the power to LaCie 2big Dock, forcing it to shut down immediately. A long push is not recommended for general use as it may result in data loss. - Page 18 Make sure that it is not obstructed and that there is a natural airflow across the casing. Posi on Always make certain to place LaCie 2big Dock on a flat, even surface designed to support the heat output and airflow of a professional hard disk enclosure. For proper heat dissipation, LaCie 2big Dock is designed to stand on its rubber feet, situated on the bottom of the enclosure.
-
Page 19: System Leds
System LEDs LED loca ons 1. Front—System status 2. Side—Hard drive status LED behavior The list of colors below helps you identify the general status of your LaCie 2big Dock. Color State Solid blue Ready Blinking blue Activity Slow blinking blue... - Page 20 LaCie 2big Do ck 6/7/22...
-
Page 21: Safely Remove Device From Your Computer
1. Select the desktop icon for your device and drag it to the Trash. 2. When the device icon is no longer visible on your desktop, you can physically disconnect the device from your Mac. LaCie 2big Do ck 6/7/22... - Page 22 LaCie 2big Do ck 6/7/22...
-
Page 23: Docking Features
Docking Features LaCie 2big Dock provides you with convenient means of managing your digital content. Insert Secure Digital, CFast 2.0, and CFexpress B cards to transfer files for safe storage. Connect smartphones, cameras, and other devices to the USB 3.2 Gen 2 hub to access content. -
Page 24: Macos
2. Insert the card into the SD slot on the front of the device as far as it will go (you may hear an audible ‘click’), and then release. The card is now locked in the slot. LaCie 2big Do ck 6/7/22... -
Page 25: Safely Ejecting And Remo Ving An Sd Memo Ry Card
Safely Remove Hardware icon, click the Show Hidden Icons arrow in the system tray to display all icons in the notification area. 2. In the list of devices, choose the SD card volume you want to eject. Windows displays a notification LaCie 2big Do ck 6/7/22... -
Page 26: Cfast 2.0 Memory Card Reader
4. Remove the card from the slot. macOS 1. Make sure that the CFast 2.0 memory card is not being accessed. 2. Using a Finder window, eject the CFast 2.0 card volume. 3. Remove the card from the slot. LaCie 2big Do ck 6/7/22... -
Page 27: Windows
3. Open a Finder or File Explorer window to browse and manage the contents of the CFexpress B card. Important—LaCie 2big Dock supports CFexpress B but not XQD media card format. Safely ejec ng and removing a CFexpress B memory card... -
Page 28: Macos
Safely Remove Hardware icon, click the Show Hidden Icons arrow in the system tray to display all icons in the notification area. 4. In the list of devices, choose LaCie 2big Dock to eject. Windows displays a notification when it is safe to disconnect the device. -
Page 29: Expansion Port
Connec ng the DisplayPort 1. Insert the DP 1.4 end of the cable or adapter into the port on the back of the 2big Dock until it clicks into place. The cable/adapter is now locked into the DP 1.4 port. -
Page 30: Daisy Chain And Power Delivery
Daisy chaining with devices and displays that are compatible with Thunderbolt technology. How to daisy chain The peripheral Thunderbolt 3 port on 2big Dock can be used to daisy chain compatible Thunderbolt peripherals, such as hard drives and monitors. If you have another Thunderbolt storage device, make certain to connect it to the daisy chain before adding compatible displays or USB devices. - Page 31 Device connected to peripheral port Host port Peripheral port 2big Dock must receive power via its power cable in order to deliver power to compatible devices. LaCie is not responsible for devices that experience harm, damage, or malfunction when ...
-
Page 32: Optional Formatting
Mac OS Extended (also known as Heirarchical File System Plus or HFS+) is an Apple file system used since 1998 for mechanical and hybrid internal drives. macOS Sierra (version 10.12) and earlier use HFS+ by LaCie 2big Do ck 6/7/22... -
Page 33: Learn More
Android mobile devices. Learn more For additional considerations when choosing a file system format, see File System Format Comparisions. Forma ng instruc ons For instructions on formatting your drive, see How to format your drive. LaCie 2big Do ck 6/7/22... -
Page 34: Manage Raid
The number of disks that can fail before data is lost. Your LaCie 2big Dock can be configured as RAID 0, RAID 1, or JBOD. Each RAID level has its own advantages: RAID 0—Data is not duplicated on both hard drives in RAID 0. This results in faster transfers and more storage, since the full capacity of both drives can be used to store unique data. -
Page 35: Download And Install Lacie Raid Manager
Download and install LaCie RAID Manager LaCie RAID Manager manages the storage for your LaCie storage device. Download and install LaCie RAID Manager before connecting the LaCie storage device to your computer. The process automatically installs a driver that allows LaCie RAID Manager to detect the device and manage RAID arrays. For download... - Page 36 LaCie 2big Do ck 6/7/22...
-
Page 37: Works With Ipad Usb-C
Works with iPad USB-C Your LaCie storage devices can be used with higher-end iPads. This is a great option for moving files between computers, cloud services and external storage. The iPad is also a perfect mobile editing station for importing media to more advanced imaging and video apps. -
Page 38: Hard Drive Maintenance
Observe all conventional ESD precautions when handling hard drives. Replacing a hard drive If a failed hard drive is under warranty, make certain to contact LaCie support to receive a replacement disk. It’s not necessary to power down the device to replace a single hard drive. - Page 39 3. If you are replacing a failed hard drive with a full disk tray, skip to Step 4. Continue here if you are replacing the hard drive using the same disk tray. Using a Phillips head screwdriver, carefully unfasten all four screws from their four slots. LaCie 2big Do ck 6/7/22...
- Page 40 4. Using a Phillips head screwdriver, carefully fasten all four screws into their four slots. Do not force the screws into the slots. Forcing the screws too tight into the slots can make it difficult to remove them later and strip the screws’ teeth. LaCie 2big Do ck 6/7/22...
- Page 41 When replacing hard drives that are members of an active RAID array, the hard drive LEDs blink red and blue indicating that the RAID is synchronizing data. You can continue to use LaCie 2big Dock storage but LaCie 2big Do ck...
-
Page 42: Lacie 2Big Dock Enclosure: Non-Serviceable Components
The components inside the chassis are NOT hot-swappable and are NOT serviceable at any location outside of LaCie-approved service centers. Removing the cover voids your product’s warranty. Additionally, removing, replacing or changing any part in the enclosure or, performing any action that involves the components in the enclosure, voids the product’s warranty. -
Page 43: Frequently Asked Questions
Q: Is the device connected to a Thunderbolt 3 USB-C port on your computer or hub? A: Connect 2big Dock to a USB-C port on your computer that supports Thunderbolt 3 or Thunderbolt 4 devices. The lightning bolt icon that represents Thunderbolt 3 support should appear next to the USB-C port. -
Page 44: Problem: I'm Receiving File Transfer Error Messages
Q: Can I password protect my hard drive? A: Yes, it is possible to protect the hard drive or individual folders and files with a password. There are many third-party solutions for password protection. However, LaCie cannot guarantee them since we do not test third-party applications. -
Page 45: Windows
Plus (+) icon to view the full list of devices. If you’re uncertain that your drive is listed, safely unplug it and then reconnect it. The entry that changes is your LaCie hard drive. Q: Is your hard drive listed next to an unusual icon? A: Windows Device Manager usually provides information about failures with peripherals. -
Page 46: Regulatory Compliance
Regulatory Compliance Product Name LaCie 2big Dock Regulatory Model Number LRDMU06 China RoHS China RoHS 2 refers to the Ministry of Industry and Information Technology Order No. 32, effective July 1, 2016, titled Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. -
Page 47: Taiwan Rohs
Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起，Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。 下表符合第5節 「含有標示」要求。 LaCie 2big Do ck 6/7/22... - Page 48 LaCie 2big Do ck 6/7/22...
