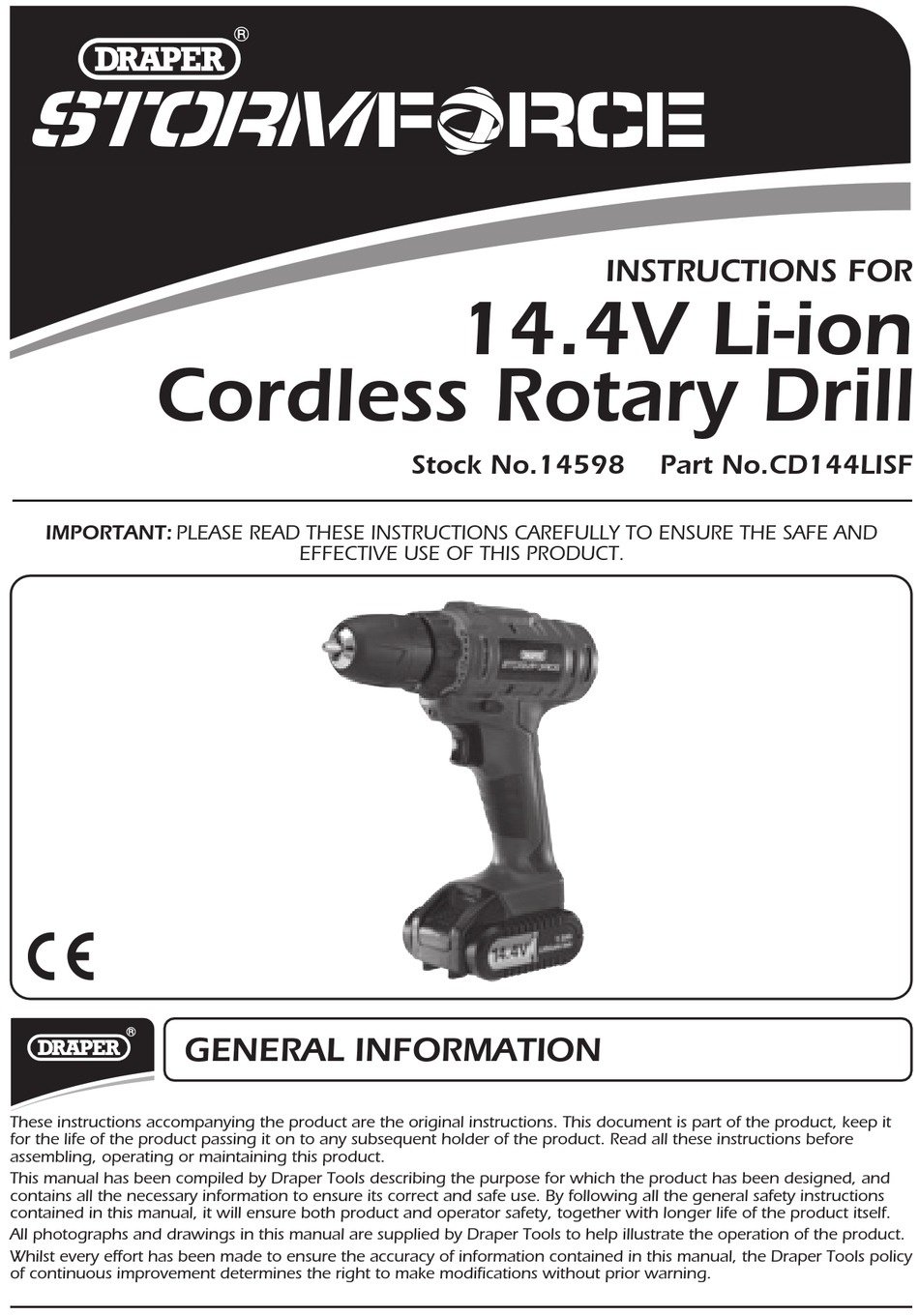

STORM
INSTRUCTIONS FOR
14.4V Li-ion

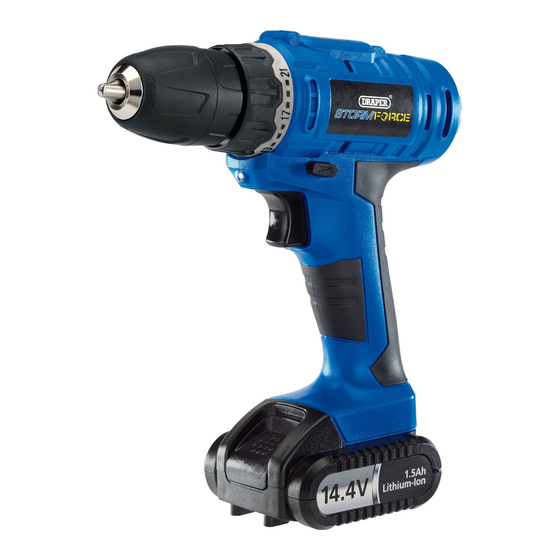

Cordless Rotary Drill
Stock No.14598
Part No.CD144LISF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper STORMFORCE CD144LISF
Summary of Contents for Draper STORMFORCE CD144LISF
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ......................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ................2 COPYRIGHT NOTICE ....................2 CONTENTS CONTENTS .........................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ....................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS ................6 GENERAL INSTRUCTIONS FOR BATTERY POWERED TOOLS &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
INTRODUCTION 4.1 SCOPE This cordless drill is designed for use with a variety of drill bits, intended for drilling holes in wood, plastic, metal, etc. It is intended for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock No.......................... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Do not overreach. Keep proper footing and balance at all times. This enables better control of General Power Tools Safety Warnings the power tool in unexpected situations. Dress properly. Do not wear loose clothing or WARNING: Read all instructions. -
Page 7: General Instructions For Battery Powered Tools & Chargers
HEALTH & SAFETY INFORMATION 5.2 GENERAL INSTRUCTIONS FOR dispose of old battery packs into clean water run-offs; if they eventually leak, they will become a pollutant hazard. BATTERY POWERED TOOLS & Check that cutting tools are undamaged and are kept CHARGERS clean and sharp, this will maintain their operating performance and lessen the loading on the tool. -
Page 8: Instructions For Drills, Chargers And Batteries
Do not use battery if it has been stored at 5°C or The battery charger is only suitable for charging less. Allow it to “normalise” at room temperature rechargeable Draper 14.4V Li-ion batteries. before usage/changing. Any other application is considered misuse. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Variable speed trigger switch Torque selection collar Forward/Reverse/Lock selector 14.4V 1.5Ah Li-ion battery pack 10mm Keyless chuck LED work light... -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the cordless drill. -
Page 11: Basic Cordless Rotary Drill Operations
BASIC CORDLESS ROTARY DRILL OPERATIONS 8.1 BATTERY CHARGING – FIGS. 1 – 2 FIG.1 To charge the battery pack , it must first be removed from the drill. (i) To release the battery pack, press down on the battery release button located on the front of the battery pack and gently pull the battery pack away from the housing (Fig.1). -
Page 12: Installing And Removing Bits
BASIC CORDLESS ROTARY DRILL OPERATIONS 8.3 INSTALLING AND REMOVING BITS – FIG. 3 The drill is fitted with a keyless chuck , this means that a chuck key is not required to secure the drill or screwdriver bit. (i) Place the drill bit shoulder into the chuck as far as it will go. -
Page 13: Torque Control
BASIC CORDLESS ROTARY DRILL OPERATIONS 8.7 TORQUE CONTROL – FIG. 6 By turning the collar it is possible to adjust the amount of torque. (i) In the "twist drill" setting , the drill/screwdriver has full torque. This is set for optimum drilling. -
Page 14: Drilling Wood And Plastic
BASIC CORDLESS ROTARY DRILL OPERATIONS 8.9 DRILLING WOOD AND PLASTIC To prevent splitting around the drill holes on the reverse side, place a piece of scrap timber under the material to be drilled. 8.10 DRILLING METAL Metals such as sheet steel, aluminium and brass may be drilled. Mark the point to be drilled with a centre punch to help the drill bit tip to locate. -
Page 15: Maintenance
MAINTENANCE 9.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool from the power supply and vacuum the ventilation slots. -
Page 16: Optional Accessories
10. OPTIONAL ACCESSORIES 10.1 OPTIONAL ACCESSORIES Stock No. Part No. Voltage 17971 CB144SF 14.4V 1.5Ah Li-ion battery. 17972 C144SF 14.4V 3 – 5hr Adaptor charger. -
Page 17: Troubleshooting
11. TROUBLESHOOTING Warning: For your own safety always turn the main switch on the machine "off" before carrying out any maintenance or trouble shooting. Cause Remedy Problem Drill does not 1. Flat battery. 1. Charge battery. work. 2. Forward/Reverse 2. Select forward or reverse. not selected. -
Page 18: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use only. Do not expose to rain. Li-ion battery must be recycled or disposed of properly. Li-ion 130°C Non-Self-Resetting protective device. -
Page 19: Disposal
13. DISPOSAL 13.1 DISPOSAL At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0616...
