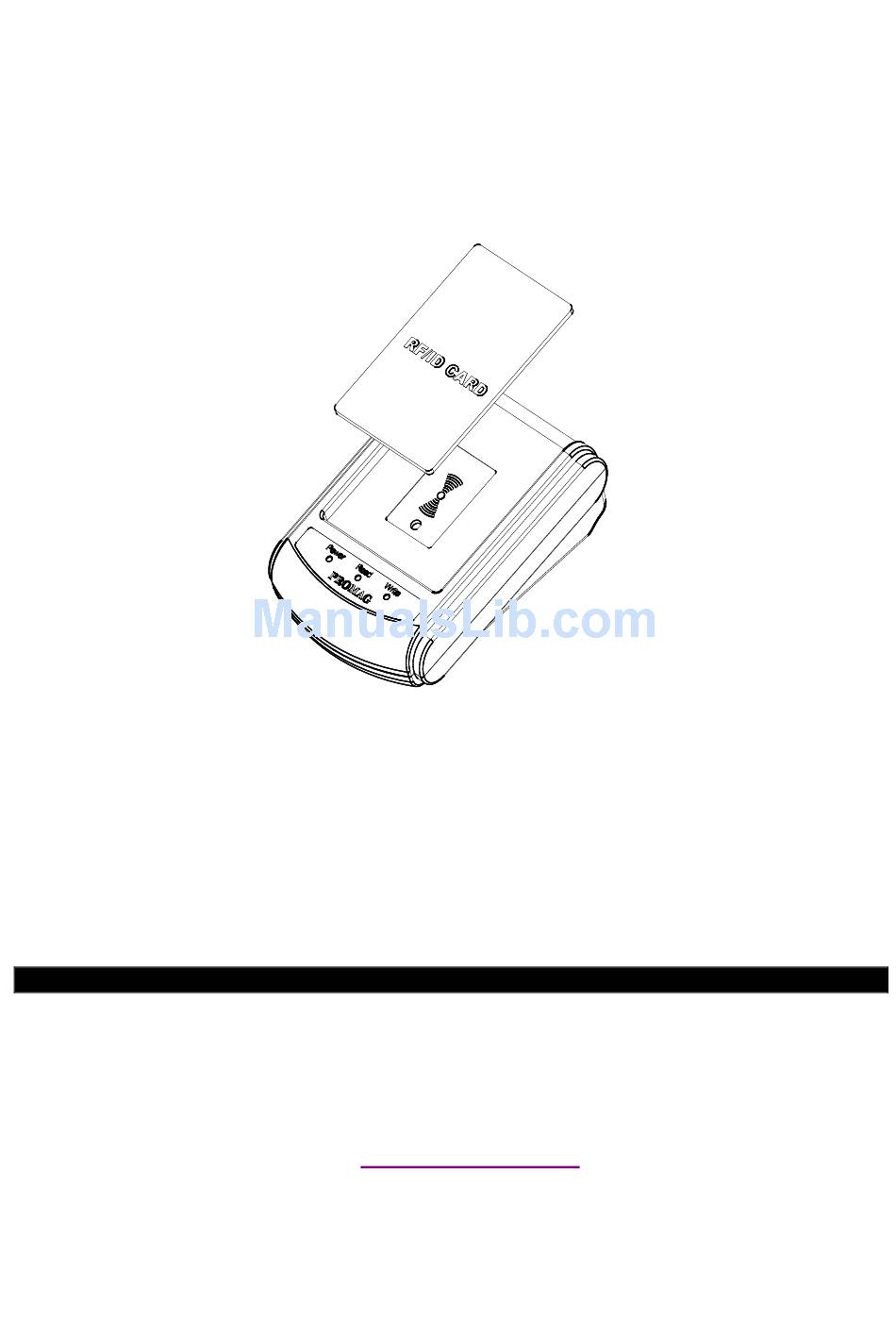

- Page 1 PCR340 Series Dual Frequency RFID Reader Manual Part Number: TM951119 REV: C JAN 2008 GIGA-TMS REGISTERED TO ISO 9001:2000 8F, No.31, Lane 169, Kang-Ning St., Hsi-Chih Taipei Hsien, 221 Taiwan TEL:(886) 2-2695-4214 FAX:(886) 2-2695-4213 www.gigatms.com.tw...
-
Page 2: Table Of Contents
Content Specification ……………………………………………….. 3 Accessory ……………………………………………..…… 4 Technical & Operational Description ……………..…….. 5 Pin Assignment & Connection ………………..…………. 6 Importance notice of PCR340 operation ……………..… 9 Software Operation ………………………………….…… 10 Command and Packet Format …………………….……. 19... -
Page 3: Specification
Specification 1. EM compatible64 bits, ASK Manchester coding 2. ISO 14443A Mifare® MF1 1K&4K / Ultralight / Card types DESFire *Read Only (For Unique Serial Number / Unique Identifier) Frequency 125KHz、13.56MHz 50 mm @ 125KHz Reading distance 40 mm @ 13.56MHz Baud rate 19200、14400、9600、4800、2400 bps PS2、USB(Human interface for PS2)、... -
Page 4: Accessory
Accessory Main Unit Configure Software ( PCR340 ) ( DISK5274 ) RS232 Cable PS2 Cable ( WAS-T0042 ) ( WAS-T0044 ) USB Cable Mini Din Power Cable ( WAS-T0043 ) ( WAS-1536A ) -
Page 5: Technical & Operational Description
Technical & Operational Description Power / Signal Port Reaction panel Status LED Power / Signal port: Direct power from USB and PS2 connection or use external power supply for RS-232 connection. Reaction Panel Put the card on reaction panel to read the card information. Status LED Red LED Status... -
Page 6: Pin Assignment & Connection
Pin Assignment & Connection WAS-T0042 pin assignment: PHONE PLUG PIN FUNCATION DB9 FEMALE PIN FUNCATION PIN5 PIN2 PIN6 PIN3 PIN7 PIN10 PIN5 Connection: DC 5V / 150mA... - Page 7 WAS-T0043 pin assignment: PHONE PLUG PIN FUNCTION USB PLUG PIN FUNCTION PIN7 PIN1 PIN8 PIN9 PIN2 PIN10 PIN3 PIN4 Connection:...
- Page 8 WAS-T0044 pin assignment: MINI DIN PHONE PLUG PIN NUMBER MALE PIN FEMALE PIN PIN1 KB_CLOCK CLOCK (PIN5) PIN2 PC_CLOCK CLOCK (PIN5) PIN3 PC_DATA DATA (PIN1) PIN4 KB_DATA DATA (PIN1) PIN5 PIN6 PIN7 +5V (PIN4) +5V (PIN4) PIN8 PIN9 PIN10 GND (PIN3) GND (PIN3) Connection:...
-
Page 9: Importance Notice Of Pcr340 Operation
Importance notice of PCR340 operation 1. To reach the ideal performance, please keep away from the other RFID readers at about 50 cm distance while the PCR340 is in operation to avoid the interference 2. Once continuous card reading is completed, hold for a while for Green LED goes off to access the next card reading. -
Page 10: Software Operation
Software Operation First connect PCR340 with PC through RS-232 port , then run demo software on the disk. Step 1: Main page Product information Functional setting tab Function keys Displaying information... - Page 11 Step 2: Auto Scan Click”AUTO SCAN” to communicate with PC. The software will detect PCR340 and related setting. If the communication is successful, it will show”Found PCR-340” and product information as below : Step 3: MISC Settings Click MISC to set “Baudrate”, “Language (Keyboard type)” & “Using code matching to right numeral part of keyboard”...
- Page 12 Step 4: ID Filter Click “ID Filter” to set different card formats for data output after reading. Choose the card type and set the range/length of data information. Then, click “Write” to save the new setting to PCR340. Select Hex/Dec Filter Drag (start)&...
- Page 13 Step 6: Convert Table If you want to show alphabetical string instead of showing card number, click “Convert Table” to edit the message with the following processes: A) Click “Format” and enable [Output by string table] B) Then click “Convert Table” and add a card to table Click the “Card ID”...
- Page 14 C) Modify “Convert Table” Select item D) Remove “Convert Table” Select item...
- Page 15 Step 7: Click “Save” to save all settings as .txt file. Step 8: If you want to download the settings form the file, click “Open” to open the file and click “Write” to download the settings.
- Page 16 Step 9: If you want to know the default setting of PCR340, click ”Read” and download the file to show it on display area. Step 10: Click “Default” to reset PCR340 and get default setting if necessary. Default values are as below (red –lined area). Default Baud Rate 19200 (8, N, 1)
- Page 17 Command and Packet Format Packet format PC → PCR340 CONTENTS CHECKSUM 1 character 1 character 3 character 1 character 1 character PC ← PCR340 REPLY CONTENTS CHECKSUM 1 character 1 character 3 character 1 character 1 character Functional command ITEM Function Start for test ASCII...
- Page 18 Ack command Command ASCII Contents Description Reply information ACK + Information ERROR Index Table NCK + Information Error index Topic Error index Description Access LEVEL Access Denied or Password Error Command packet is too long Command packet is empty COMMAND CODE Command code is out of range Illegal Command or Data Database and Register is Empty...
-
Page 19: Command And Packet Format
Command notation Write to register ( ‘C’ ， 43H ) STX +’ C ’ + Register address +’ ，’+ Write parameter + CHECKSUM + CR PC→PCR340 PC←PCR340 STX + ACK + CR For Instance: 02 + C + 00 + ，+ FF + 5B + 0D PC→PCR340 PC←PCR340 02 + A + 0D... - Page 20 Control mode ( ‘X’, 58H ) PC→PCR340 STX + X + CR PC←PCR340 STX + A + CR For Instance: PC→PCR340 02 + X + 0D PC←PCR340 02 + A + 0D Show memory data ( ‘Y’ ， 59H ) PC→PCR340 STX + Y + CR PC←PCR340...
- Page 21 Register table: Register Function Description Address 000h ~ 07Fh Set Corresponding Card ID 16 Characters 100h ~ 1FFh Set Output Characters 16 Characters ＊ ＊ 080h ~ 09Fh 0A0h ~ 0AFh Prefix up 16 Characters 0B0h ~ 0BFh Postfix up 16 Characters 0C0h ~ 0CFh OnRemove up...
- Page 22 New added functions of the latest version V1.01R2 Register Function Description Address FFh : Output Card ID in MSB first sequence. 088h Mifare Card ID Sequence 00~FEh : Output Card ID in LSB first sequence. FFh : Output Card ID in MSB first sequence. 089h 125KHZ EM Card ID Sequence 00~FEh : Output Card ID in LSB first sequence.
