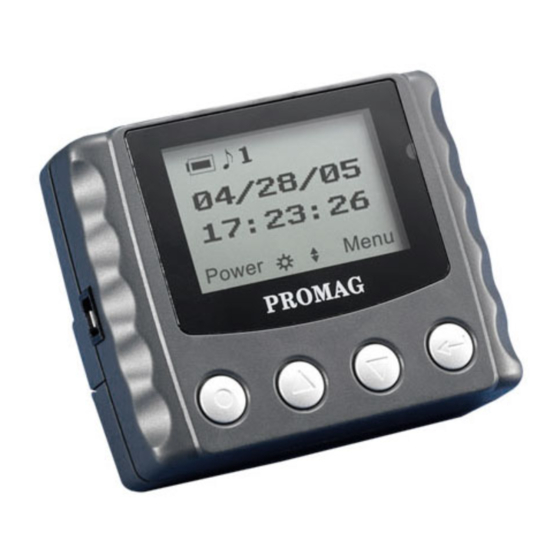

GIGA-TMS PCR120 Series User Manual

GIGA-TMS PCR120 Series User Manual

125khz rfid card reader with lcd

Advertisement

Quick Links

March 2007
REGISTERED TO ISO 9001:2000
8F, No.31, Lane 169, Kang-Ning St., Hsi-Chih Taipei Hsien, 221 Taiwan
Phone: (886) 2-2695-4214
1
FAX: (886) 2-2695-4213
www.gigatms.com.tw

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCR120 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GIGA-TMS PCR120 Series

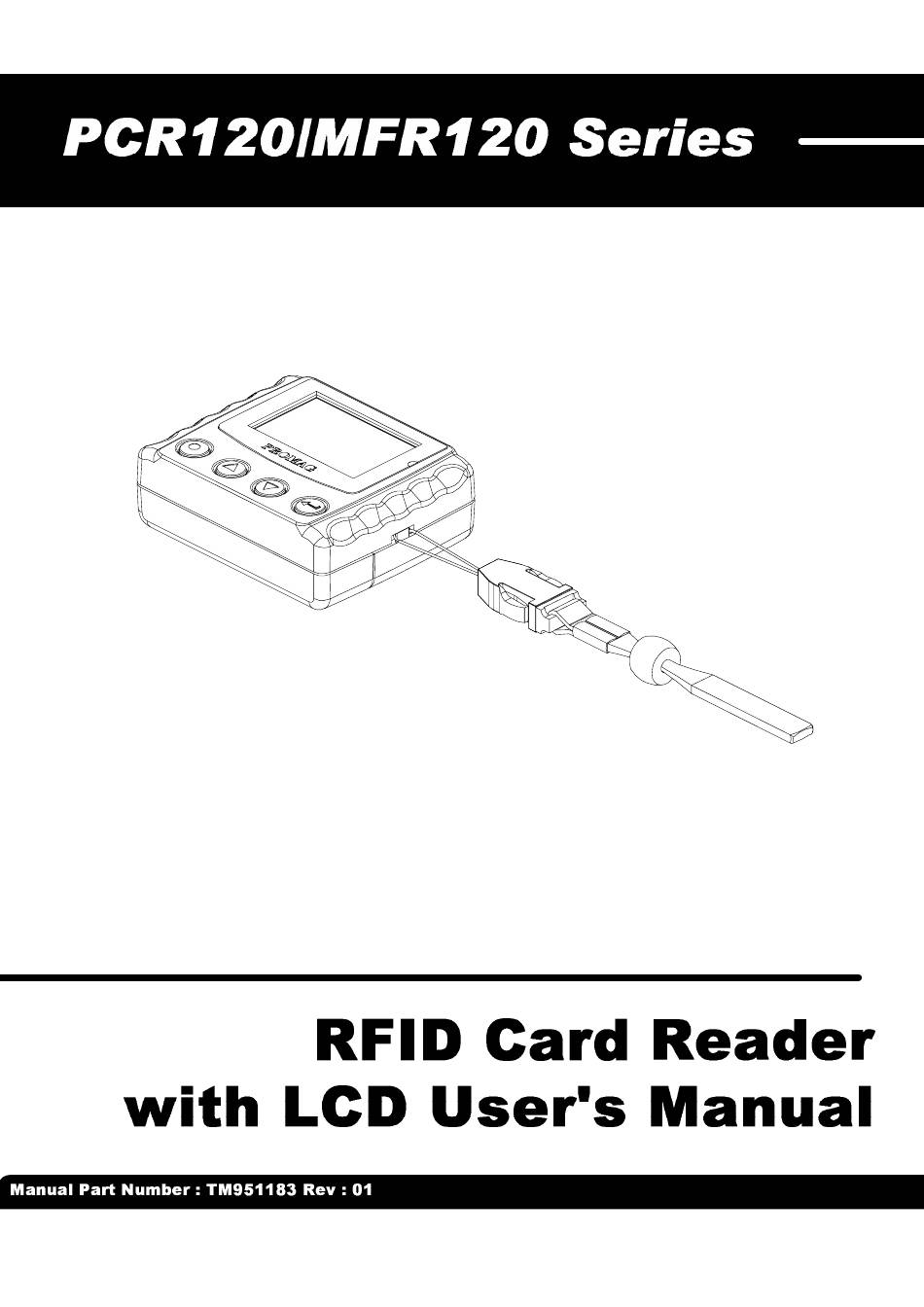

  • Page 1 March 2007 REGISTERED TO ISO 9001:2000 8F, No.31, Lane 169, Kang-Ning St., Hsi-Chih Taipei Hsien, 221 Taiwan Phone: (886) 2-2695-4214 FAX: (886) 2-2695-4213 www.gigatms.com.tw...
  • Page 2 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of GIGA-TMS INC. REVISIONS...
  • Page 3 Contents ....................Information ..........Technical and Operational Description ....................Connections ..................Card Data Format ....................Specifications ..............Communication Protocol FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 Information PCR120 Series 125KHz RFID Reader MACHINE TYPE FUNCTION Muti-Battery F - MEM Single Cell NiHM / NiCd LR03 / AAA 512 KB ALKALINE 125K RS-232 8192 BEEP REC QUEUE AUTO PCR120 VER 1.2 RS232 Interface Muti-Battery F - MEM...
  • Page 5 Information MFR120 Series 13.56MHz RFID Reader MACHINE TYPE FUNCTION Muti-Battery F - MEM Single Cell NiHM / NiCd LR03 / AAA 512 KB ALKALINE 13.56M RS-232 8192 BEEP REC QUEUE AUTO MFR120 VER 1.2 RS232 Interface Muti-Battery F - MEM Single Cell NiHM / NiCd LR03 / AAA...
  • Page 6 Information Standard Package LR03-AAA ALKALINE 1.5V Battery Main unit ( BAT-T0010 ) ( PCR120/MFR120 ) Chain Sling CD-ROM ( TM09F1001 ) RS232 Cable ( WAS-T0017 ) RS232 Cable for PCR120/MFR120 series USB Cable for PCR120U/MFR120U series ( WAS-T0017 ) ( WAS-1571 )
  • Page 7 Technical and Operational Description Front Panel and Operations LCD Main Screen Operation LED Indicator Connector Operate Keypad Chain Sling Hole RFID Card Scan Area Battery Box RFID Card Scan Area Scan the RFID card to reader. Operation LED Indicator When encountering erroneous input, defective card, misread,bad memory or incorrectly encoded data and so on, the device will turn on the ERROR indicator .
  • Page 8 Technical And Operational Description LCD Display Status Function Area Main Display Area Keypad Guidance Area PROMAG Status Function Area 1. Power Status 5. Decode Status Battery Power Supply EM Card Decoded Low Battery Power Supply Mifare 1K Card Decoded External Power Supply Mifare 4K Card Decoded Mifare DESFire Card Decoded 2.
  • Page 9 Technical And Operational Description Function Menu Display Machine ID - 1-1. Machine ID 2 Characters Default : 00 Display User Name - 1-2. User Name 16 Characters Max Display Mode - 1-3. Display Format 1. Profiles ID Number Set View Mode - 1-4.
  • Page 10 Technical and Operational Description Display Information Exceptional Indication LCD Display message Description Counterplot The RTC is malfunctioning Check RTC ! Set Date and Time ( After scan card ) The record already is full. Download Records FLASH Full ! ( After scan card ) and Erase Records The record can’t write into the FLASH memory.
  • Page 11 Technical and Operational Description Operational Description 1. Powered by Battery “ “ For normal use, the unit is powered by battery. Push the Power Switch Button for about 2 seconds to turn on the “ “ unit. Also push the Power Switch Button for about 2 seconds to turn off the unit at Switch Mode.
  • Page 12 Technical and Operational Description Replace Battery Note: 1. Read the instructions on your device before replace new battery. 2. PCR120/MFR120 can used Single-cell alkaline, nickel-cadmium (NiCd), or nickel-metal hydride (NiMH) Battery 1. Power turn off 4. Take new battery 2. Take the cover away 5.
  • Page 13 WAS-T0017 RS232 interface cable DSUB 9P POWER JACK DSUB 9P FEMALE PIN FUNCTION MINI USB 4P VCC +5V No use Connect to PC RS-232 PORT PCR120/MFR120 Personal Computer External power DC +5V Note: 1. When PCR120/MFR120 is connected/disconnected with an external power adapter, it would be turned On/Off automatically.
  • Page 14 Connections WAS-1571 USB interface cable USB 4P FEMALE PIN FUNCTION MINI USB 4P FUNCTION Connect to PC PORT PCR120/MFR120 Personal Computer Note: 1. When PCR120/MFR120 is connected/disconnected with USB port, it would be turned On/Off automatically.
  • Page 15 CARD DATA STRING DATE & TIME WEEK & CARD TYPE & EVENT 8 or 16 CARD ID DATE TIME WEEK CARD TYPE CARD ID DATE & TIME DATE TIME WEEK YYYY/MM/DD HH:MM:SS MM/DD/YYYY HH:MM:SS DD/MM/YYYY HH:MM:SS 1. Date have 3 formats - YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY 2.
  • Page 16 125KHz RFID Card for PCR120 EM compatible64 bits, ASK Manchester coding. Reading distance 10~50mm (depends on card). 13.56MHz RFID Card for MFR120 Compatible ISO 14443A, ISO 18092. Reading distance 10~40mm (depends on card). RS-232 RS232 Interface RS232 , Half-Duplex , 8N1 , 9600 bps USB Interface Ver 1.1 Full compliance with the USB Specification V 1.1...
  • Page 17 Handshaking NACK NACK TIME OUT TIME WAIT NACK NACK PACKET CONTENTS REPLY CONTENTS ITEM Control Key Function Start of Text ASCII ASCII ASCII Command Code CONTENTS ASCII ASCII ASCII Contents Data CHKSUM ASCII ASCII ASCII Check Sum Carriage Return REPLY (78) 65 (4e) 41 (N) A...
  • Page 18 Communication Protocol PCR120/MFR120 Terminal has an extensive list of Commands that allow manipulating its internal database, setting functional parameters and getting data on its current status. There are 2 levels of access to the PCR120/MFR120 : User and Supervisor. Supervisor level is protected by a Password.
  • Page 19 Communication Protocol Access Security Commands LOGIN : (for Supervisor Access Level) PASSWORD A or D or I PASSWORD 4 Characters for Login. 0000=Initial value EXAMPLE 0000 Login password : 0000 Login password command is not executed. Invalid password. LOGOUT : EXAMPLE Logout SET PASSWORD :...
  • Page 20 Communication Protocol EXAMPLE 1234 Set new password : 1234 Set new password is not executed. Invalid password GET NUMBER OF RECORD : NUMBER NUMBER Record Count . 4 Bytes Width ( 0000h ~ 0800h ) EXAMPLE 000C The total of record count : 12 READ RECORD BY NUMBER : DATE TIME DATA...
  • Page 21 Communication Protocol ERASE ALL RECORD : * ( Erase Duration : < 60 seconds ) A or D EXAMPLE Erase all records. Erase command is not executed. ROLLBACK DATABASE READOUT TRANSACTION : A or D EXAMPLE Database is rollback. Command is not executed. RECOVERY ALL DATABASE READOUT TRANSACTION : A or I EXAMPLE...
  • Page 22 Communication Protocol GET PRODUCT VERSION : ROM No. VERSION ROM No. ROM-Txxxx , xxxx : Rom serial number VERSION Vx.xxRm , Vx.xx : Firmware version x.xx , Rm : Modify m times EXAMPLE ROM-T0571 V1.03R0 ROM serial number = ROM-T0571 Firmware version = 1.03 Modify times = 0 SET DATE AND TIME :...
  • Page 23 Communication Protocol GET DATE AND TIME: YYYYMMDDhhmmss EXAMPLE 20001108142031 Get Date : 2000 / 11 / 8 Get Time : 14 : 20 : 31 , Thursday Get Date/Time is not set or invalid. SET MACHINE ID: 00~255 A or I or D EXAMPLE Set Machine ID : 00 Invalid command or data.
  • Page 24 Communication Protocol GET MACHINE : 00~255 EXAMPLE Get Machine ID : 00 Get Identification is not set or otherwise invalid. ENTER FIRMWARE MANAGEMENT MODE : EXAMPLE Enter firmware management mode...
  • Page 25 Communication Protocol SET REGISTER : REGISTER PARAM CHKSUM REGISTER Register Address . 2 Bytes Width ( 00h ~ FFh ) PARAM Set Parameters of Register CHKSUM C + REGISTER + , + PARAM GET REGISTER : REGSTER PARAM CHKSUM REGISTER Register Address .
