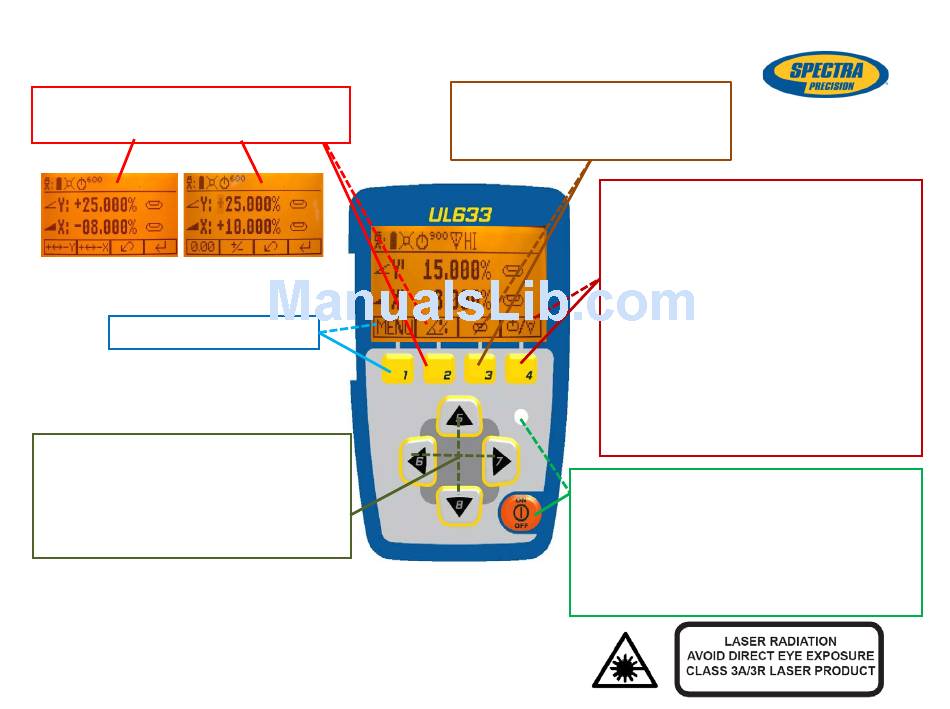

Grade Entering mode

Step and Go or Digit Select (Default)

Starts the MENU entry

5 to 8 Up/Down; Left/Right

Change the Y- /X- slope in manual

mode. Navigate through the menu and

change values.

6 + 7 vertical direction alignment

Spectra Precision Division

8261 State Route 235

Dayton, Ohio 45424-6383 U.S.A.

+1 937 245 5600 Phone

UL633 – Quick Card

Manual Mode On/Off

5 + 8 change Y-slope

6 + 7 change X-slope

Rotation Speed / Scan mode

Quickly press and release to toggle

through the pre-selected rotation

speeds (0, 80, 200, 600, 900 rpm).

Press and hold for three seconds

changes the unit into scan mode.

When in scan mode, quickly press and

release button 4 toggles through the

pre-selected scan sizes (5, 15, 45, 90,

180°).

Press quickly – On

Press and hold 2 seconds-/Off

Bubbles flash during self-leveling.

If a grade value has been dialed in, the unit

starts the temperature- reference check

first - thermometer symbols flash

Need help?

Do you have a question about the UL633 and is the answer not in the manual?

Page 1 UL633 – Quick Card Manual Mode On/Off Grade Entering mode 5 + 8 change Y-slope Step and Go or Digit Select (Default) 6 + 7 change X-slope Rotation Speed / Scan mode Quickly press and release to toggle through the pre-selected rotation speeds (0, 80, 200, 600, 900 rpm).
Page 2 MENU Functions horizontal Press button 1 to enter the menu 5 – 8 scroll through the menu - selected icon will be highlighted 4 opens the submenu OR starts the selected function. 3 changes the unit back to the standard or previous display. Automatic Axis Alignment Automatic PlaneLok Automatic Grade Match...
Page 3 MENU Functions vertical Press button 1 to enter the menu 5 – 8 scroll through the menu - selected icon will be highlighted 4 opens the submenu OR starts the selected function. 3 changes the unit back to the standard or previous display. Menu: Radio - controlled Automatic Spot Align...
Page 4 Settings Enter the MENU with button 1 at the Standard Display and select Settings with button 4. The Setting Menu offers the following functions: Pairing Mask Mode Grade Entry Grade Display Sensitivity HI-alert Information Password Password RF-Channel Select On/Off Language Select Step and Go or Pairing UL with RC + HL750 Select Mask sectors...
