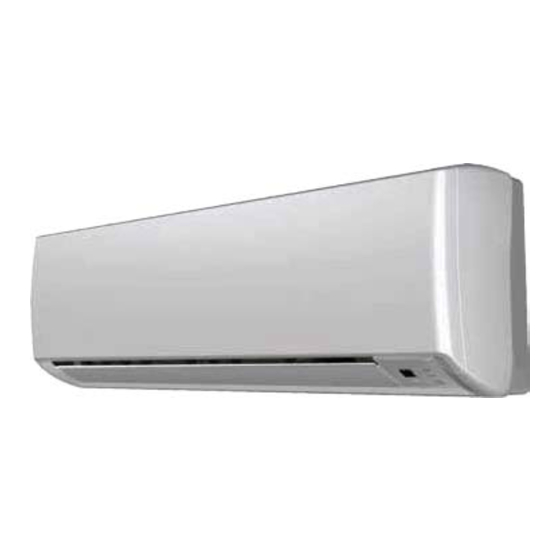

SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
HSU-26HEK03/R2(DB)/I
HSU-35HEK03/R2(DB)/I
HSU-53HEK03/R2(DB)/I
HSU-71HEK03/R2(DB)/I
Please read this operation manual before using the air conditioner.
Keep this operation manual for future reference.
Contents
2
3
6
7
8

Advertisement

Table of Contents
loading

Related Manuals for Haier HSU-26HEK03/R2(DB)/I

Summary of Contents for Haier HSU-26HEK03/R2(DB)/I

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL Contents PARTS AND FUNCTIONS HSU-26HEK03/R2(DB)/I OPERATION HSU-35HEK03/R2(DB)/I MAINTENANCE HSU-53HEK03/R2(DB)/I CAUTIONS TROUBLE SHOOTING HSU-71HEK03/R2(DB)/I Please read this operation manual before using the air conditioner. Keep this operation manual for future reference.

  • Page 2: Parts And Functions

    Parts and functions Indoor Unit Remote controller . QUIET button 10. HEAT button 11. COOL button 12. AUTO button 13. FAN speed button 14. TIMER button 15. HEALTH button 16. LOCK button Used to loc buttons and LCD displa . 17.

  • Page 3: Operation

    Operation Basic Operation direction display positions are shown on the remote controller display as below: Remote controller Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 (Auto swing) 2. To set direction, press the button to enter additional options. Press this button to cycle between the three locations shown below. Choose the swing location that you need, then press the button to Airflow...

  • Page 4: Sleep Operation

    Unit stop (This function is unavailable on some models.) In COOL, DRY mode Haier Peaksmart enabled air-conditioners have a Demand Response Mode display on the indoor unit. 2. In HEAT mode The display could be labelled d1, d2, d3 (wording may differ model to model).

  • Page 5: Important Information Regarding The Refrigerant Used

    Important information regarding the refrigerant used This product contains greenhouse gases covered by the Kyoto Contains fluorinated greenhouse gases Protocol. Do not vent into the atmosphere. covered by the Kyoto Protocol Refrigerant type: R410A R410A GWP* value: 1975 GWP = global warming potential Please in with indelible ink, 1+2=...

  • Page 6: Maintenance

    Maintenance Do not use the following for cleaning Setting of proper room Do not block the air inlet temperature or outlet Proper temperature Spirits, benzene, thinner or cleanser Hot water over 40°C (104°F) may may damage the coating of the unit. cause discoloring or deformation.

  • Page 7: Cautions

    Cautions WARNING Please call Sales/Service Shop for the Installation. Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. This appliance must be installed only by suitably qualified technicians complying with this installation manual and all local, state and national codes.

  • Page 8: Trouble Shooting

    Trouble shooting Phenomenon Cause or check points The system does not restart immediately. The product has a 3 minute time elapse to protect the system due to wear that may occur during the restart cycle. This system will be activated if there is any interruption to the power supply for your air conditioner at any time Noise is heard During unit operation or at stop, a swishing or gurgling noise may be heard.
