Summary of Contents for US Steam Blue Jay

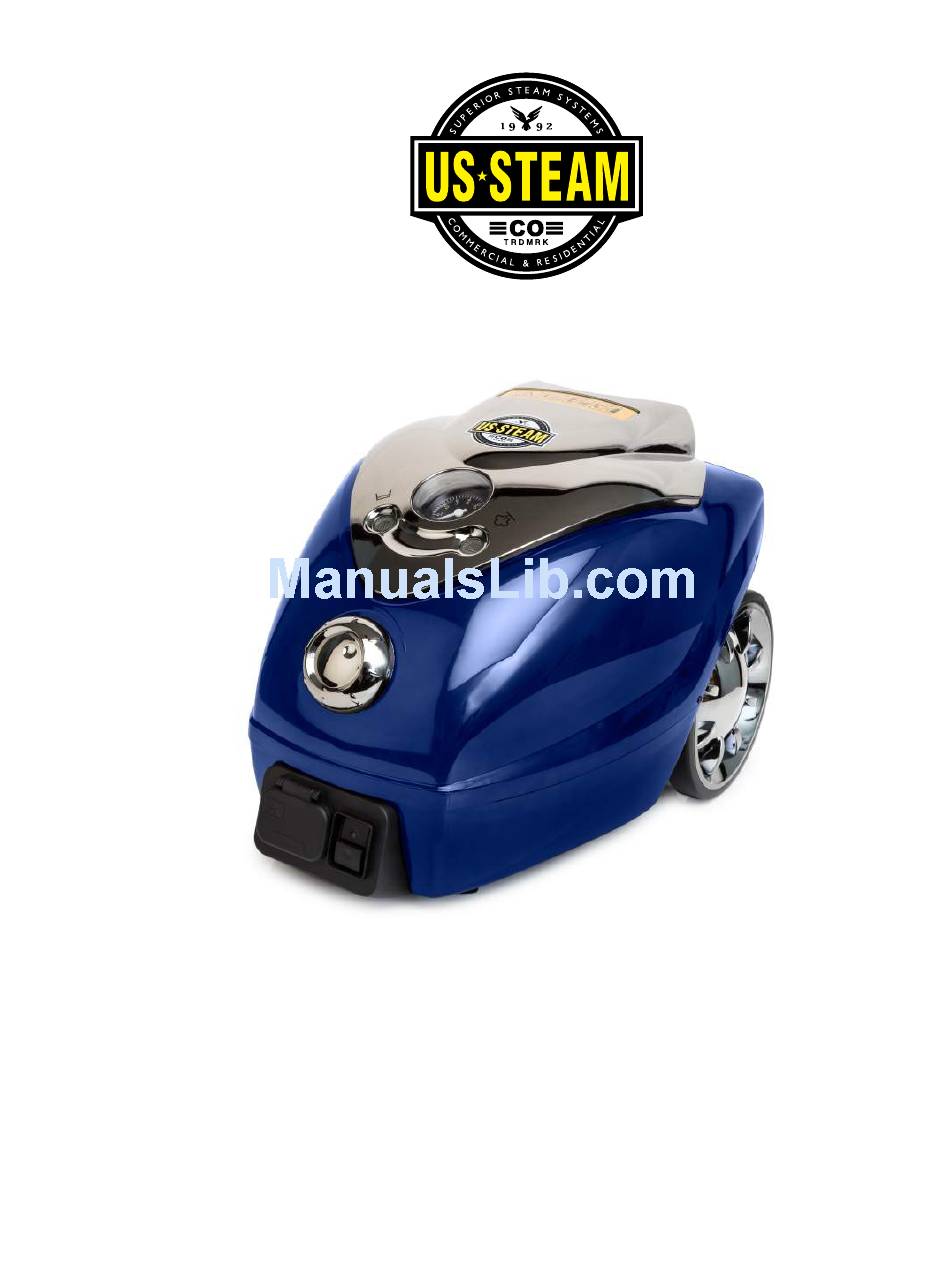

- Page 1 User Manual Blue Jay Steam Cleaner US Steam Corporate Office 7920 Rodeo Trail, Ste 240 Mansfield, TX 76063 (817) 297-7745 V10/2016...
- Page 2 (7) (6) (1) (4) (2) (5) (3) (1) Hose & Small Floor Brush (5) Nozzles (2) Triangle Brush (6) Nozzle & Nylon Brush (3) Large Floor Brush (7) Funnel & Floor Scraper (4) Extension Wands Technical Data Water Tank Capacity: 1.6L Pressure: 4.2 Bars / 61psi Weight (empty): 11lbs (1)
-
Page 3: Table Of Contents
Table of Contents Quick Start Guide .......................... 4 Refilling .............................. 4 Trouble Shooting .......................... 5 Boiler Tank & Accessory Cleaning .................... 5 Work Techniques .......................... 6 Bed Bugs / Dust Mites ........................ 6 How to Clean Floors ........................... 7 Kitchen ..........................7 Bathroom ..........................8 Living and Bedrooms ......................9 Windows ..........................10 Autos ..........................10 Miscellaneous ........................10 Notices and Warnings ........................11 Services, Support, and Returns . -
Page 4: Quick Start Guide
QUICK START GUIDE 1. FILL TANK WITH WATER: Remove the cap and pour tap water into the steamer. DO NOT put cleaning fluids in the steamer. 2. PLUG IN THE STEAM CLEANER: Plug the power cord into an 110V outlet. The steam cleaner should be the only appliance plugged into an outlet. -
Page 5: Trouble Shooting
8. TROUBLE SHOOTING Problem Possible Solution No Power to Unit Check the circuit breaker for tripped breaker. 1) Is there water in the fill tank? 2) Check the hose connection. 3) Let the steamer drain and cool down. No Steam coming from Hose 4) Remove drain plug located on bottom of steamer. -
Page 6: Work Techniques
10. WORK TECHNIQUES The temperature of the steam at the tip of the nozzle is between 312ºF - 285ºF, since the vapor is dry, it cools to 245ºF 4” from the tip and 185ºF 8” inches from the tip. Most bacteria begins to die when exposed to temperatures of 245ºF so keeping the tip of the handle close to the work area is key to successful cleaning. -
Page 7: How To Clean
12. HOW TO CLEAN Floors a. Tile – Vacuum or pre-sweep then use a large floor or triangle brush at low or medium steam. b. Tile Grout – Use the nylon round brush on low or medium steam. c. Vinyl or Wood – Use the large floor brush with a bonnet at low steam volume. NOTE: WHEN STEAMING A WOOD FLOOR, NEVER LET BRUSH STAND IN ONE PLACE WHILE STEAM TRIGGER IS ON. -
Page 8: Bathroom
Cabinet or Drawer Facings Use the large triangular brush with a bonnet at low or medium steam. Corners/Crevices Use the nozzle attached to the hose handle at low or medium steam to blow out dirt. Catch dirt with a spare cotton towel to prevent it from spraying everywhere. Refrigerator –... -
Page 9: Living And Bedrooms
Living & Bed Rooms Walls, painted trim or molding Use the large floor brush with a bonnet on the low steam setting with a bonnet. Pretest an inconspicuous area to be cleaned for paint thickness since it is easy to take paint off walls. Wallpaper a. -
Page 10: Windows
Windows Window Sills and Thresholds Use the 1” nylon brush on medium steam. Window Frame - a. Painted wood and plastic - Use nozzle with nylon brush. b. Aluminum - Use 1” inch brass brush directly on the surface to remove dirt and to polish. Wipe with towel. -
Page 11: Notices And Warnings
1. Read all instructions before using this steam cleaner. Save these instructions for future reference. 2. Use of any replacement parts other than authorized US Steam parts voids all warranties and can cause bodily injury to the operator and damage equipment. -
Page 12: Services, Support, And Returns
US Steam’s responsibility is limited to repair, replacement, credit or refund, any of which may be selected by US Steam at its sole discretion. The Warranty does not cover defects or damage arising from the disassembly or attempted disassembly of your steamer.
