Summary of Contents for US Steam RavenUS2100

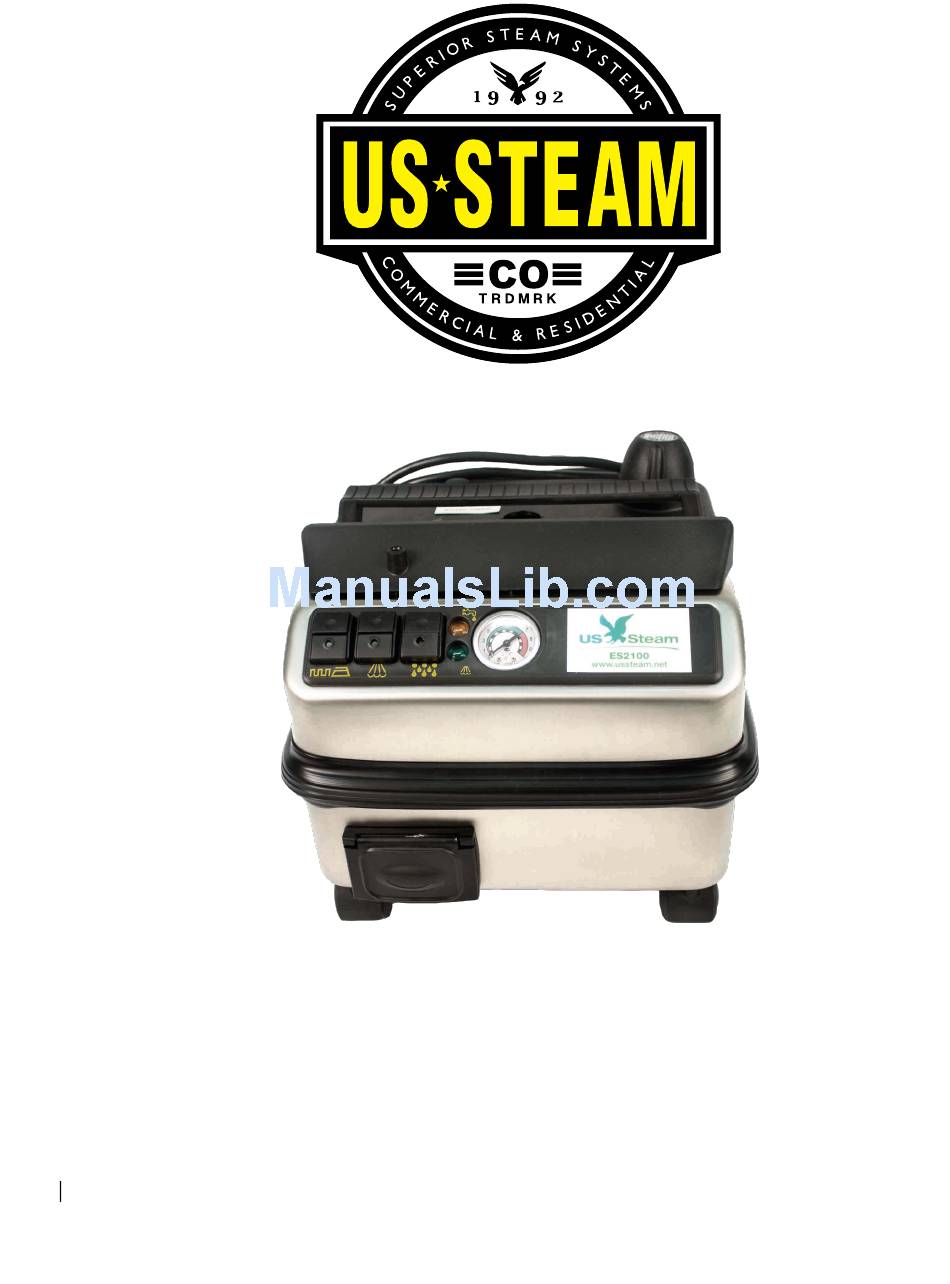

- Page 1 User Manual Raven / US2100 Steam Cleaner US Steam Corporate Office 7920 Rodeo Trail, Ste 240 Mansfield, TX 76063 (817) 297-7745 www.ussteam.net...
- Page 2 !!!!!!!!!!!!!!!!!!!! !! ! !!!!!!! !!!!! !!!!!!!!!!!!!!!!!!!!!$7.95! !!!!!!!!!!!!!!!!!!!!!!$21.50! ...
-
Page 3: Table Of Contents
Table o f C ontents Quick S tart G uide .......................... 4-‐5 Trouble S hooting ............................ 6 Steam C ontrol S ettings .......................... 7 Refilling ... -
Page 4: Quick Start Guide
QUICK START GUIDE DO NOT PLUG IN STEAM CLEANER UNTIL INSTRUCTED TO DO SO CONNECT HOSE TO STEAM CLEANER: Locate the 12 ft. flexible steam hose. Lift the hinged hose socket cover on the front of the steam cleaner and insert the square end of the Steam Hose into the hose socket until you hear a click. - Page 5 PRESS THE STEAM RELEASE BUTTON (to release the steam from the boiler to the hose). The orange light on button should illuminate but no steam will come out yet. LOW$/$MEDIUM$/$HIGH$/$PRESSURE$STEAM$ONLY$ Steam Release Button $Pressure Steam 1)$Left$Button$Down$$$$$$$$$$$$$$$$ 2)$RIGHT$Button$Forward$ 3)$Steam$Setting$ON$ BLEED THE SYSTEM BEFORE USING: Bleed the hose of water by turning on low-pressure steam to shoot excess water from the hose into a towel for about 10 seconds.
-
Page 6: Troubleshooting
Troubleshooting Problem Possible Solution No Power to Unit Check the circuit breaker / circuit panel for tripped breaker. 1) Is the steam release button in the ON position? No steam coming out of hose 2) Check the low water light. If on, refill the unit. - Page 7 LOW$/$MEDIUM$/$HIGH$/$PRESSURE$STEAM$ONLY$ $Pressure Steam 1)$Left$Button$Down$$$$$$$$$$$$$$$$ 2)$RIGHT$Button$Forward$ 3)$Steam$Setting$ON$ MEDIUM $Pressure Steam 1)$Left$Button$Forward$$$$$$$$$$$ 2)$Right$Button$Down$ 3)$Steam$Setting$ON$ HIGH $Pressure Steam$ 1)$Both$Buttons$Forward$ 2)$Steam$Setting$ON$ HIGH$PRESSURE$WATER$PLUS$STEAM$ Water$Only$ Right$Button$Forward$ Left$Button$Down$ Steam:$ Right$Button$Down$ Left$Button$Down$ Steam$Setting$ON$ Water$Setting$On$...
- Page 8 How Do I Refill the Steam Cleaner? When one of the following happens, your steam cleaner is low on water: The Low Water Indicator Light turns on (orange). The pressure drops fast (below 2 bars) and pressure gauge stays low. Amount of steam is very light and moisture content is low.
- Page 9 It is recommended to supply the steam cleaner with clean low mineral content water (distilled water) to help prevent scale build-up. Even though the US Steam System is engineered to minimize scale formation, scale development depends on the hardness of your water and the number of hours the equipment operates.
- Page 10 PRESSURE INSTRUCTIONS AND TOOL USES DIAL TOOL SETTING EXTENSION Use with any nozzle/brush combination WANDS to extend reach for floors, walls and ceilings. Can use up to 3 wands at a time. Two wands come in the standard package. Use the brush with a clipped on towel at low pressure setting for wood and tile Hard floors.
- Page 11 PRESSURE INSTRUCTIONS AND TOOL USES DIAL TOOL SETTING Use at medium pressure for stovetops, 3-INCH ROUND kitchen countertops, refrigerator NYLON BRUSH (5) interior, dishwasher interior, kitchen or Medium bathroom sinks, fiberglass bathtubs, Surfaces and toilets. Wipe up with towel immediately For use with 3-hole nozzle 3-HOLE NOZZLE (6 Combine with the small triangle brush or...
-
Page 12: Work Techniques
Work Techniques The temperature of the steam at the tip of the nozzle is between 312ºF - 285ºF, since the vapor is dry, it cools to 245ºF 4” from the tip less than 185ºF 8” inches from the tip. Most bacteria begins to die when exposed to temperatures of 245ºF so keeping the tip of the handle close to the work area is key to successful cleaning. -
Page 13: Floors
Floors Floors – Pre-vacuum or sweep up large dirt and dust particles. Use the large brush (Item 1) with clipped on bonnet at low/medium steam volume. If you use the extension wands, insert one wand into the other making sure the lengthwise lines on them are all lined up with each other on each piece. Keep a bucket available for dirty bonnets and towels. -
Page 14: Kitchen
Tips for Treating Carpet Stains a. Protein Stain: Dab with towel dampened with a solution of 1 teaspoon white vinegar and 1 quart of cold water. b. Food Dye Stain: Wet stain with a solution of water and lemon juice or white vinegar. c. -
Page 15: Bathroom
c. Door Moldings – Use the 1-inch nylon bristle round brush with the 1-hole nozzle. Use separate towel to mop up loosened dirt. d. Defrosting Freezer – Use the 1-inch nylon bristle round brush with the 1-hole nozzle on low or medium steam. -
Page 16: Bed B Ugs A Nd D Ust M Ites
BED BUGS / DUST MITES To eliminate bed bugs or dust mites, use the large triangle brush (Item 3) or the Bed Bugger (ordered separately) on the low steam setting. Move quickly over the mattress and go over each area more than once to ensure complete and thorough elimination of dust mites. -
Page 17: Windows
Tracks, Moldings a. Tracks - Use one hole nozzle with detail brush on low or medium steam setting. Wipe cleansed area with towel. b. Moldings - Use single-hole nozzle on low or medium setting. Hold the nozzle in one hand and a towel in the other hand. -
Page 18: Autos
AUTO Open the car windows or doors to let the steam escape while you are cleaning. Wheels – Use large triangular brush (Item 3) on medium steam volume and vigorously brush dirt away. Use smaller tools for crevices if needed to finish job. Carpets and Upholstery Pretest an inconspicuous area and work quickly and lightly especially if fabric has Scotch Guard. - Page 19 1. Read all instructions before using this steam cleaner. Save these instructions for future reference. 2. Use of any replacement parts other than authorized US Steam parts voids all warranties and can cause bodily injury to the operator and damage equipment. Service performed by anyone other than factory authorized personnel will void warranty.
-
Page 20: Services A Nd S Upport
During such period if US Steam determines that a part or system is defective in material or workmanship, US Steam, at its option, will provide you with a repaired part or replace any part that is covered by the limited warranty. - Page 21 LIMITATIONS EXCEPT AS SET FORTH HEREIN, US STEAM MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, AND DISCLAIM AND NEGATE ALL OTHER WARRANTIES, INCLUDING WITHOUT LIMITATIONS, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR THE PARTICULAR PURPOSE AND CONFORMITY TO MODELS OR SAMPLES. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THESE LIMITATIONS MAY NOT APPLY TO YOU.
-
Page 22: Warranty Registration
Phone #: ______ - ______ - _____________ E-Mail: __________________________________ Serial #: ______________ Date Purchased: __________ Purchased from: _____________________________________________ How did you hear about the US Steam? TV___WEB ___ Friend ___ Other_______________________________________ If you have any questions or comments, Please contact our Customer Service Department: Email slow@USSTEAM.NET or...
