Genelec 8030C Quick Setup Manual page 5

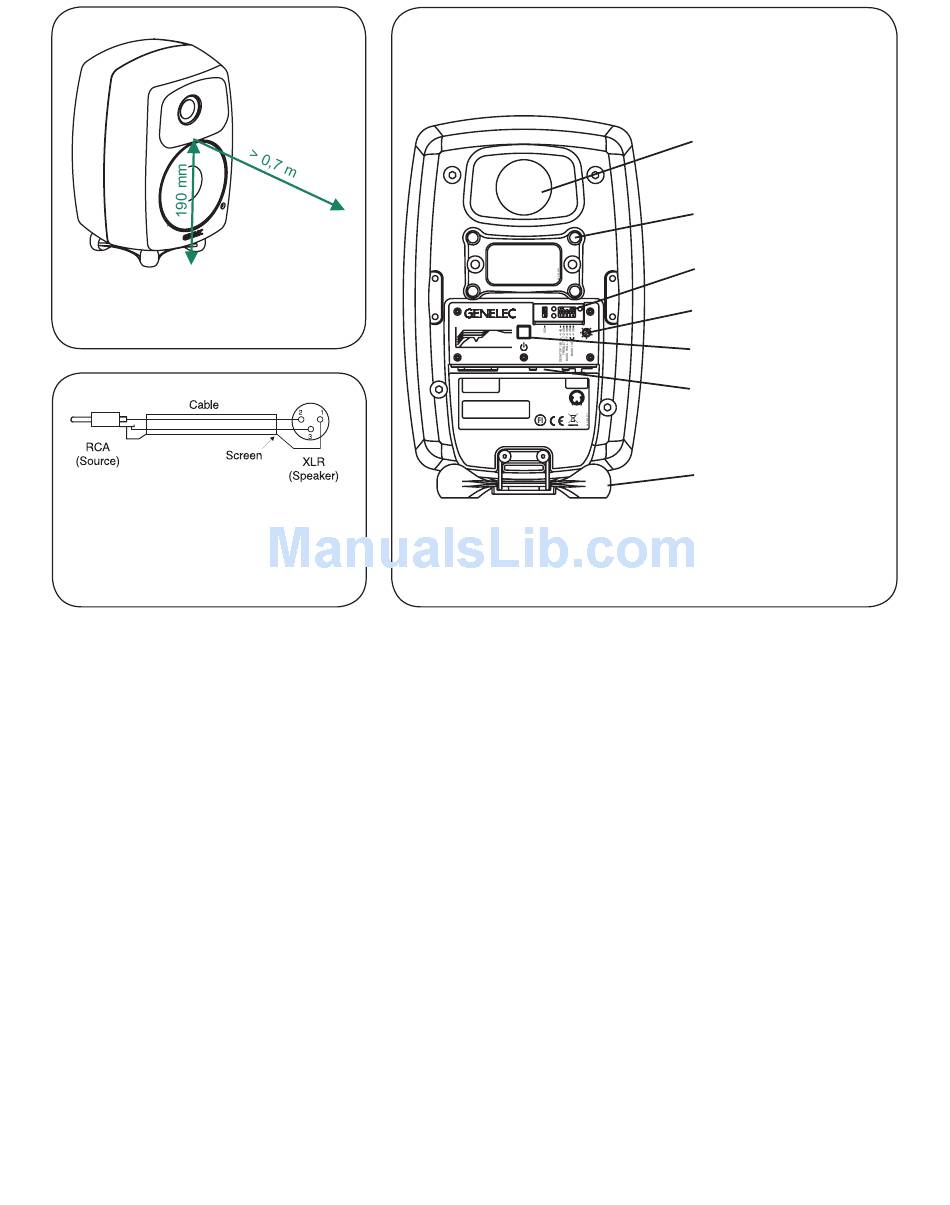

Figure 1: Location of the acoustic
axis
Figure 2: Type of cable needed if
unbalanced source is used (ex-
ample shown is RCA output to the
XLR input)
Setting the tone controls
The frequency response of the 8030C can be
adjusted to match the acoustic environment by
setting the tone control switches on the rear panel.
The controls are "Desktop", "Treble Tilt", "Bass Tilt"
and "Bass Roll-Off". An acoustic measuring system
is recommended for analyzing the effects of the
adjustments, however, careful listening with suitable
test recordings can also lead to good results if a
test system is not available. Table 1 shows some
typical settings in various situations. Figure 4 shows
the effect of the controls on the anechoic response.
Desktop
The desktop low frequency control (Switch 1)
attenuates the bass frequencies around 160 Hz by
ACOUSTIC
AXIS
Figure 3: Control and connector layout on the rear panel
of the 8030C.
WARNING: ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT
SUBJECT TO WATER OR MOISTURE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
USE EARTHED MAINS CONNECTION ONLY.
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS
OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR L'UTILISATEUR.
ADRESSER TOUTE RÉPARATION À UN PERSONNEL QUALIFIÉ.
CET APPAREIL DOIT ÊTRE RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAKOSKETTIMILLA VARUSTETTUUN
PISTORASIAAN.
APPARATET MÅ TILKOPLES JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
ON
OFF
-6 +6
ALL OFF
0
-2 -3
BASS
-4 +4
TILT TREBLE
-6
0
TILT
DESKTOP +2
BASS
ROLL-OFF INPUT dBu
PRODUCING
20 160 1k 3k 20k
100 dB SPL (1 m)
Frequency (Hz)
MAINS INPUT ANALOG
8030C BI-AMPLIFIED
50 / 60 Hz 60 W IN
100 - 240 V~ MONITORING SYSTEM
2 1
www.genelec.com
MADE IN FINLAND
3
SERIAL NUMBER
+ - GND
IN
This device complies with FCC Part 15 and Canadian
ICES-003 radio frequency Class B emission requirements.
Refer to operating manual for full information.
4 dB. This feature is designed to compensate for
the boost often occurring at this frequency range
when the loudspeaker is placed upon a meter
bridge, table or similar reflective surface.
Treble Tilt
Treble Tilt (switch 2) attenuates the treble response
above 4 kHz by 2 dB, which can be used for
smoothening down an excessively bright sounding
system.
Bass Roll-Off
Bass Roll-Off (switch 3) activates a -4 dB filter to
the lowest bass frequencies (55 Hz). This can be
used for compensating excessively heavy bass
reproduction typically caused by loudspeaker
placement near room boundaries.
REFLEX PORT
THREADS FOR
CEILING AND
WALL MOUNTS
TONE CONTROLS
SENSITIVITY ADJUSTMENT
POWER SWITCH
CONNECTOR PANEL
(HORIZONTAL)
Iso-Pod™ TABLE
STAND
