(Refer to Figure 5)
D C M O M C
AISY HAIN ODE WITH NE ASTER ONTROLLER
With this architecture, one master controller lies at the end of one or more main trunks. In all cases, a Model
9522A set in Master Daisy Chain Mode will be used as the master modem. A branch can be configured off the
main trunk by connecting another modem to an unused data port of a modem on the trunk and building a
daisy chain from that modem. Other branches can be then built off that branch and so forth. There is no limit
to the number of branches that can be established.

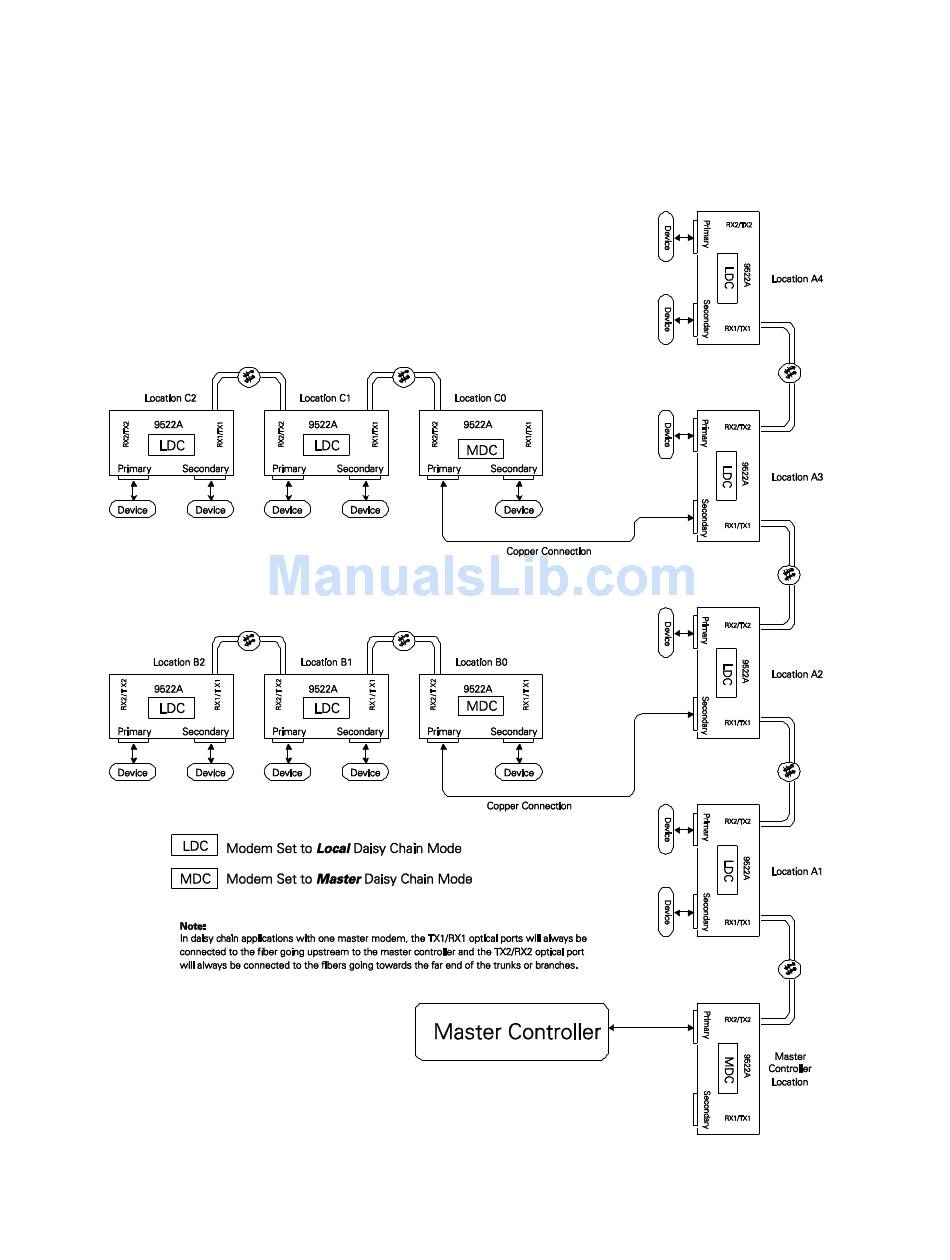

5 — M
F D C T O M C
IGURE ULTIPLE AISY HAIN RUNK WITH NE ASTER ONTROLLER
