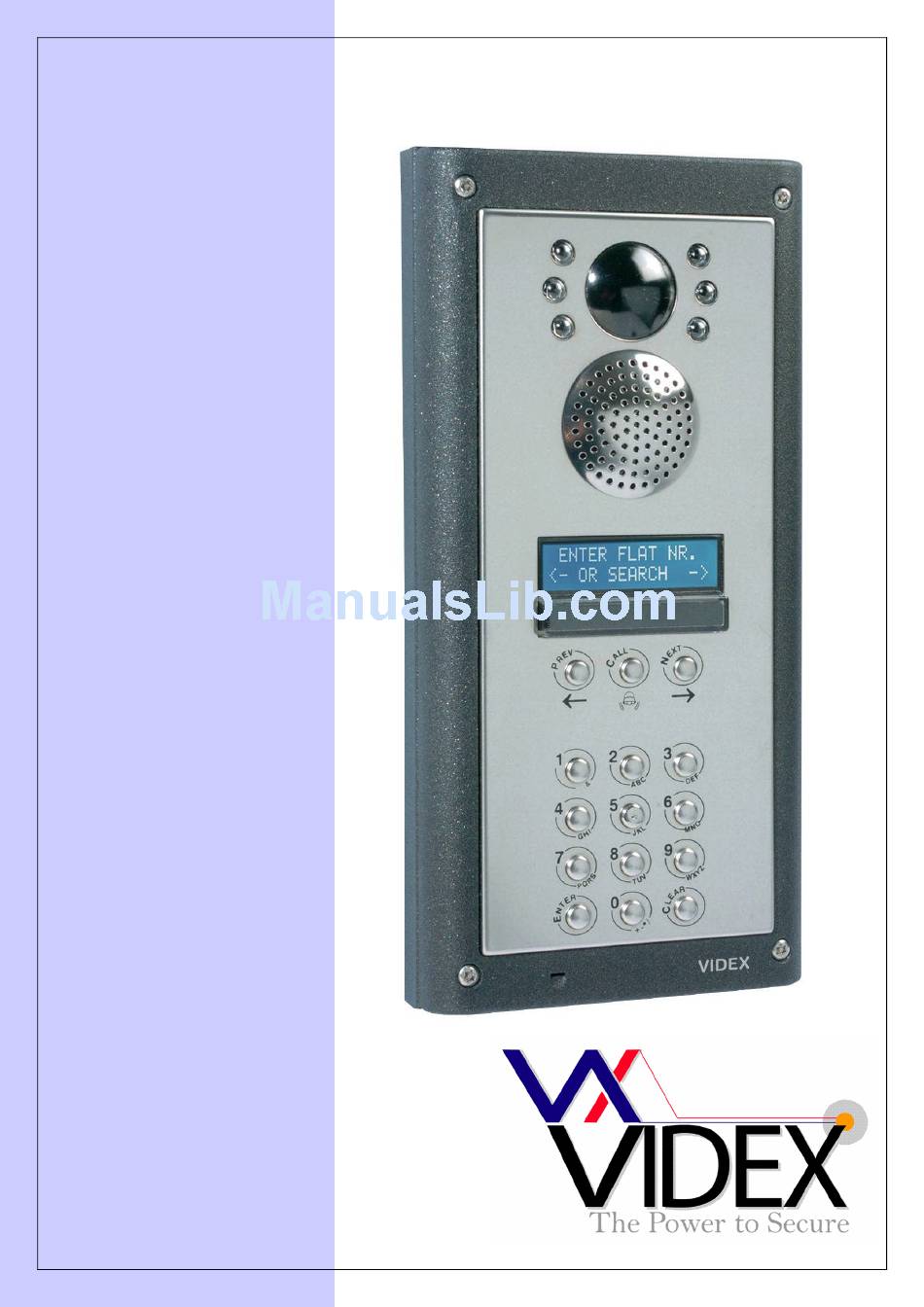

VX2200 DIGITAL
SYSTEM
TECHNICAL MANUAL
EDITION 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videx VX2200

Summary of Contents for Videx VX2200

  • Page 1 VX2200 DIGITAL SYSTEM TECHNICAL MANUAL EDITION 1.6...
  • Page 2 PAGE 2 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 3: Table Of Contents

    Multiple entrance video system Multiple entrance video with concierge Coax video example 2 level video system using the 2206N block exchanger 60-61 Video with 2204N/316I full isolation System components 63-65 EMC Test results PAGE 3 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 4: Manual Introduction

    0191 224 3174 during office hours or via e-mail tech@videx-security.com. SYSTEM INTRODUCTION The VX2200 audio system is based on a “2 wire” BUS for audio systems and a “6 wire” bus for video systems. The digital front panels are available in several versions including the 8000 series design (With either alphanumeric A-H feature or Name scroll feature), 4000 series design (With either alphanumeric A-F feature or Name scroll feature) and vandal resistant with optional alpha buttons A-H.

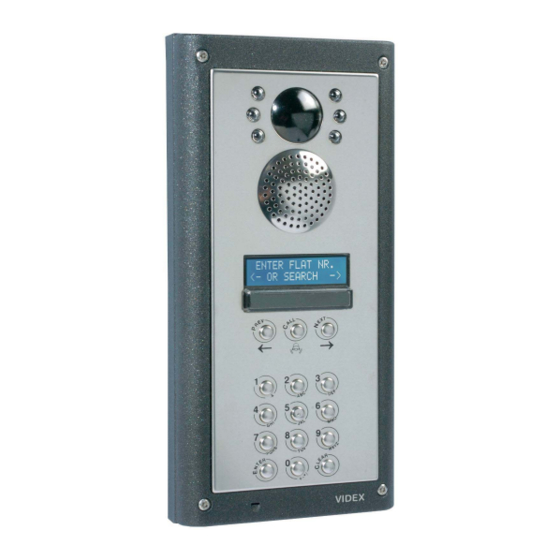

  • Page 5: Digital Door Panels

    When using 3161 or 3162 telephones the jumper’s must be in the ‘B’ (316x) position, for all other telephones, videophones and video monitors the jumper’s 316x should be in the ‘A’ (Others) position. PAGE 5 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 6 ‘CODE’ button, press ‘0’ followed by the code and press ‘Enter’ Technical specifications Memory capacity : 998 users Working voltage : 13 Vdc +/- 10% Max. absorption : about 350 mA Working temperature : -10 +50 C° Relay contacts : 3A@30Vdc, 3A@120Vac PAGE 6 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 7: Digital Door Panel Programming Flow Chart

    (1 to 15) NEW : xx NEW : 1 PRESS ‘ENTER’ BUTTON SET LANGUAGE. 0=ENG 1=IT 2=ESP 0=ENG 1=IT 2=ESP (0 to 5) 3=POR 4=FR 5=GER 3=POR 4=FR 5=GER CONTINUED ON NEXT PAGE PAGE 7 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 8  or C = Forward 1 = .& 2 = ABC 3 = DEF 4 = GHI 5 = JKL 6 = MNO 7 = PQRS 8 = TUV 9 = WXYZ 0 = +-*/ PAGE 8 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 9 “flat number” (Concierge number) with the “ID PHONE” address n.1. When using the door panel in MAIN MODE, the programming of each user will require the address of the 2206N (Block address) for which that user is connected. PAGE 9 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 10: 4000 Series / 8000 Series Functional Door Panels

    NC) or voltage output (Lock connects across GND and NO, NO being a 12Vdc output) and the other two are used to select the video output to be either balanced or composite. PAGE 10 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 11 PAGE 11 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 12 The fourth LED (green), indicates that the door lock has Max. absorption : approx 350 mA been released. It will switch OFF at the end of the “door opening” time. Working temperature : -10 +50 C° Relay contacts : 3A@30Vdc, 3A@120Vac PAGE 12 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 13: Vandal Resistant Functional Door Panels (Amplifier 138)

    VANDAL RESISTANT FUNCTIONAL PANELS This module is used in the VX2200 2 wire audio, 6 wire video functional vandal resistant door panels and includes all features required for audio & video installations. A 13.8Vdc PSU is required to power this system. Up to 23 buttons can be connected to this module.
  • Page 14 5 BEEPS (Device 1) Device 2 Device 3 Device 4 Device 5 6 BEEP 7 BEEPS 8 BEEPS 9 BEEPS 10 BEEPS Device 6 Device 7 Device 8 Device 9 Device 10 PAGE 14 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 15: Cameras

    ‘COAX’ position. Alternatively if the video is a balanced signal using twisted pair cable then ensure the jumpers are all set to NC (Non Coax). PAGE 15 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 16: Video Distribution

    Again on the 894I/316I there is a jumper(s) which should be closed on the last unit instead of fitting a resistor (Labelled EOL on the 894I and End of line on the 316I). PAGE 16 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 17: Control Equipment

    PSU will shut down until the problem is resolved. CONNECTION FUNCTION 0V trigger to activate output +8-30Vdc to activate output 0V output connection 20Vdc output connection 20Vdc output via diode PAGE 17 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 18: Digital Time Clock

    ON/OFF period 2-6 will Not switch off at the off time for that period if manual override is pressed. Trade mode relay time From 1 second to 99 seconds Dimensions 110mm x 70mm x 30mm PAGE 18 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 19 Press the mode button to Monday 15:20 15/01/02 GMT OFF return to standby mode NOTE: To reset the time clock completely, simply power up with the UP button pressed PAGE 19 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 20: Video Switching Pcb

    Bus fault output 4 Spare service button on telephone Output 1 active (Switched 0V) Output 2 active Output 3 active Output 4 active S1 service switch active 12V out fault on one of the outputs PAGE 20 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 21: Isolation Card

    Number of outputs Addressing range : from 0 to 44 Working temperature : -10 +50 C° 12V output current max. : 200mA Standby current : 12mA (With 4 phones connected to L & -) PAGE 21 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 22: Bus Exchange Device

    V2-O V2 of balanced video to apartments (Not used in coax mode) NOTE: When using coax for the video, the screens should all be terminated together (and soldered) in a connection block. PAGE 22 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 23 ON if there are no local entrances connected to the 2206N and set to OFF if there are local entrances connected to it. Technical specifications Working voltage : 13 Vdc +/- 10% Working Temperature : -10 +50 C° PAGE 23 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 24: Concierge Unit

    1. Pick up the handset to start answering the booked calls; 2. The display shows the message “FLAT:XXXXXXCONC” where “XXXXXX” is the flat number of the user who has booked the call; PAGE 24 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 25 Disable alarms. Alarms can instead be processed by one or more Art.512DR if installed in the system and addressed as 255. Note: Power up with 1 pressed to disable door calls in DAY mode. (Display shows ‘NO DOOR CALL’ during start up. PAGE 25 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 26: Concierge Unit Programming Flow Chart

    TECHNICAL SPECIFICATION Memory capacity : 998 memory locations Working voltage : 13 Vdc +/- 10% Max. absorption : about 350 mA Working temperature : -10 +50 C° PAGE 26 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 27: 2280 Bus Interface Device

    VX2200 system. Using this device it is possible to carry out all the functions available on the VX2200. For example, answer a call from the door panel (and if necessary open the door), call the concierge (if present on the system) and intercommunicate with another user (via concierge).

  • Page 28: Audio Telephones

    Number of rings Right =3 Left = 6 3176 FUNCTION 0v connection of door open LED 12Vdc connection of door open LED Local door bell (Switched 0V) Alarm input (Switched 0V) PAGE 28 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 29: Concierge Unit

    Addressing range : from 1 to 180 (BIN code) Working voltage : BUS line Voltage Stand-by absorption : about 0.6 mA Phone max. absorption : about 80mA Working temperature : -10 +50 C° PAGE 29 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 30: Audio Apartment Station Art.5178

    ABS plastic and is a surface mount unit which connects to the VX2200 bus via a 4 wire bus. The apartment station has half duplex speech (Hands free speech) and the facility to switch into simplex speech mode by holding the talk/answer button down during a call.
  • Page 31 TECHNICAL SPECIFICATION Addressing range : from 1 to 180 (BIN code) Working voltage : 12Vdc Stand-by absorption : about 6mA Phone max. absorption : about 50mA Working temperature : -10 +50 C° PAGE 31 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 32: Videophones

    To activate the privacy mode (Art.3376 only) Press the push button labelled , the red “privacy on” LED will switch on. To disable the privacy mode before the configured time expires, press the same push button again. PAGE 32 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 33 Art.402 (black wire to terminal R-, red wire to terminal R+) Notes The voltage is available when the monitor is switched on and is normally only used on coax video systems. Only for monitors with memory board Art.35xx. PAGE 33 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 34 16 hours TECHNICAL SPECIFICATION Addressing range : from 1 to 180 (BIN code) Stand-by absorption : about 0.6mA Videophone max. absorption : about 400mA (20 Volt) Working temperature : -10 +50 C° PAGE 34 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 35: Video Apartment Station Art.5478, 5476, Sl5478

    S2 push button (Shorts to Ground when pressed)   push button (Latching toggle action) +12Vdc output to power video distribution unit (Art. 894) Ground 12VO Regulated 12Vdc output 12VI +12Vdc power supply input PAGE 35 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 36 “ on the SL5478) to listen to the available melodies (9 Available). Once the chosen melody has been reached, wait 5 seconds for a beep and the LED turning OFF.  The new melody will be stored PAGE 36 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 37: Vandal Resistant Apartment Stations Vr5178, Vr5478

    The VR5178 is a vandal resistant flush mount audio apartment station in 12 gauge stainless steel which connects to the VX2200 bus via a 4 wire bus. The apartment station has half duplex speech (Handsfree speech) and the facility to switch into simplex speech mode by holding the talk/answer button down. The VR5478 also included a 3.5”...
  • Page 38  The new value is now stored. VR5178 – Speech volume adjustments  When a conversation is in progress (“speak” LED illuminated), press “ ”: the “privacy” LED starts flashing and the “talk” LED turns OFF. PAGE 38 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 39 : approx 12mA on 12V, 6mA on 20V inputs Phone max. absorption : about 50mA : approx 70mA max on 12Vdc input : approx 250mA max on 20Vdc input Working temperature : -10 +50 C° : -10 +50 C° PAGE 39 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 40: 3600 Series Videophone (3678)

    Balance video (V1 & V2) Note: Switches 3 & 4 are video end of line termination (Both on for end of line termination or both off for no end of line termination PAGE 40 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 41 : approx 12mA on 12V input, 6mA on 20V input Phone max. absorption : approx 70mA max on 12Vdc input : approx 250mA max on 20Vdc input Working temperature : -10 +50 C° PAGE 41 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 42: Extension Sounders And Extension Relays

    In order to synchronize the local apartment call with the telephone, connect the “LB” terminal with the “LB” phone terminal. Technical specifications Addressing range from 1 to 180 Stand-by absorption less than about 0.9mA Call absorption Approx. 15mA Relay contacts (Art.512DR)1A 125Vac max Working temperature -10 +50 C° PAGE 42 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 43: Installation Directions Emi Guidelines And Cable Guide

    The wiring diagrams must always be followed (in case of different applications contact Videx technical) and always use cables as outlined below. It is advisable to separate the Mains lines (lift, electricity, electricity lock, etc.) from the BUS lines (A distance of at least 10 cm) to avoid electrostatic discharge and magnetic influence that could cause problems to the on the system.
  • Page 44 12 Core 0.5mm 12 Core 12 Core 12 Core + RG59 (BC) 0.75mm 1.0mm 1.5mm 12 Core 0.5mm + RG59 (BC) + RG11 (BC) + RG11 (BC) + RG11 (BC) + RG59 (BC) PAGE 44 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 45 Art.893N1 can supply a maximum 2 videophones at the same time.  It is necessary to check that master and slave programming of call panels are correct. PAGE 45 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 46: Dip-Switch Charts

    OFF ON OFF ON ON OFF OFF OFF OFF ON OFF ON ON OFF ON OFF ON ON OFF ON ON OFF OFF OFF ON ON OFF ON ON OFF ON OFF PAGE 46 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 47 ON ON ON ON ON ON OFF OFF ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF ON OFF OFF OFF OFF OFF OFF OFF OFF ON PAGE 47 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 48 ON OFF OFF ON ON OFF OFF ON ON ON OFF OFF ON ON OFF ON OFF ON OFF ON ON OFF OFF ON OFF OFF ON OFF ON ON OFF ON PAGE 48 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 49: Troubleshooting Guide

    Closing resistances are missing at the end Check and in case apply the closing of the BUS video. resistances on the BUS video. Dip-switches or jumpers on monitor or Check dip-switches and jumpers. camera not correctly positioned PAGE 49 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 50 PAGE 50 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 51: One Entrance Audio System With Telephones And Apartment Stations

    PAGE 51 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 52: Multiple Entrance Audio System

    PAGE 52 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 53: Audio With 2204N Full Isolation

    PAGE 53 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 54: Audio System With Concierge

    PAGE 54 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 55: Level Audio System With Main Gate And Multiple Block Entrances

    PAGE 55 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 56: One Entrance Video System

    PAGE 56 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 57: Multiple Entrance Video System

    PAGE 57 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 58: Multiple Entrance Video With Concierge

    PAGE 58 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 59: Coax Video Example

    PAGE 59 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 60: Level Video System Using The 2206N Block Exchanger

    PAGE 60 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 61 PAGE 61 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 62: Video With 2204N/316I Full Isolation

    PAGE 62 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 63: System Components

    One PCB is required for every four handsets. (The L & - terminals are isolated by this PCB). Optional 4 way isolation PCB with full isolation of all signals and bus connection. (2204N) PAGE 63 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 64 Audio telephones (3171, 3172 and 3176) 3000 Series intercoms for the VX2200 Digital System. All 3 intercoms have a door-open/call to concierge button plus an electronic call tone with a 3 level volume control which can be adjusted by the user. The 3171 and 3172 have a dry contact service push button and the 3172 has a slide privacy switch.
  • Page 65 (Audio backup only). Non-Coax Video Distributor (316, 316N) Video splitter for no-coax video systems, One required for every four videophones. Coax Video Distributor (894, 894N) As above but for coax video systems. PAGE 65 of 68 VX2200 TECHNICAL MANUAL VER1.6...

  • Page 66: Emc Test Results

    PAGE 66 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 67 PAGE 67 of 68 VX2200 TECHNICAL MANUAL VER1.6...
  • Page 68 TEL 0870 300 1240 FAX 0191 224 5678 Southern Office 1 Osprey Trinity Park Trinity Way London E4 8TD FAX 0208 523 5825 TECHNICAL SUPPORT tech@videx-security.com TEL 0191 224 3174 FAX 0191 224 4938 http://www.videx-security.com PAGE 68 of 68 VX2200 TECHNICAL MANUAL VER1.6...
