VX2200 Digital System "6 Wire" BUS Video - "2 Wire" BUS Audio
Art. CST2220

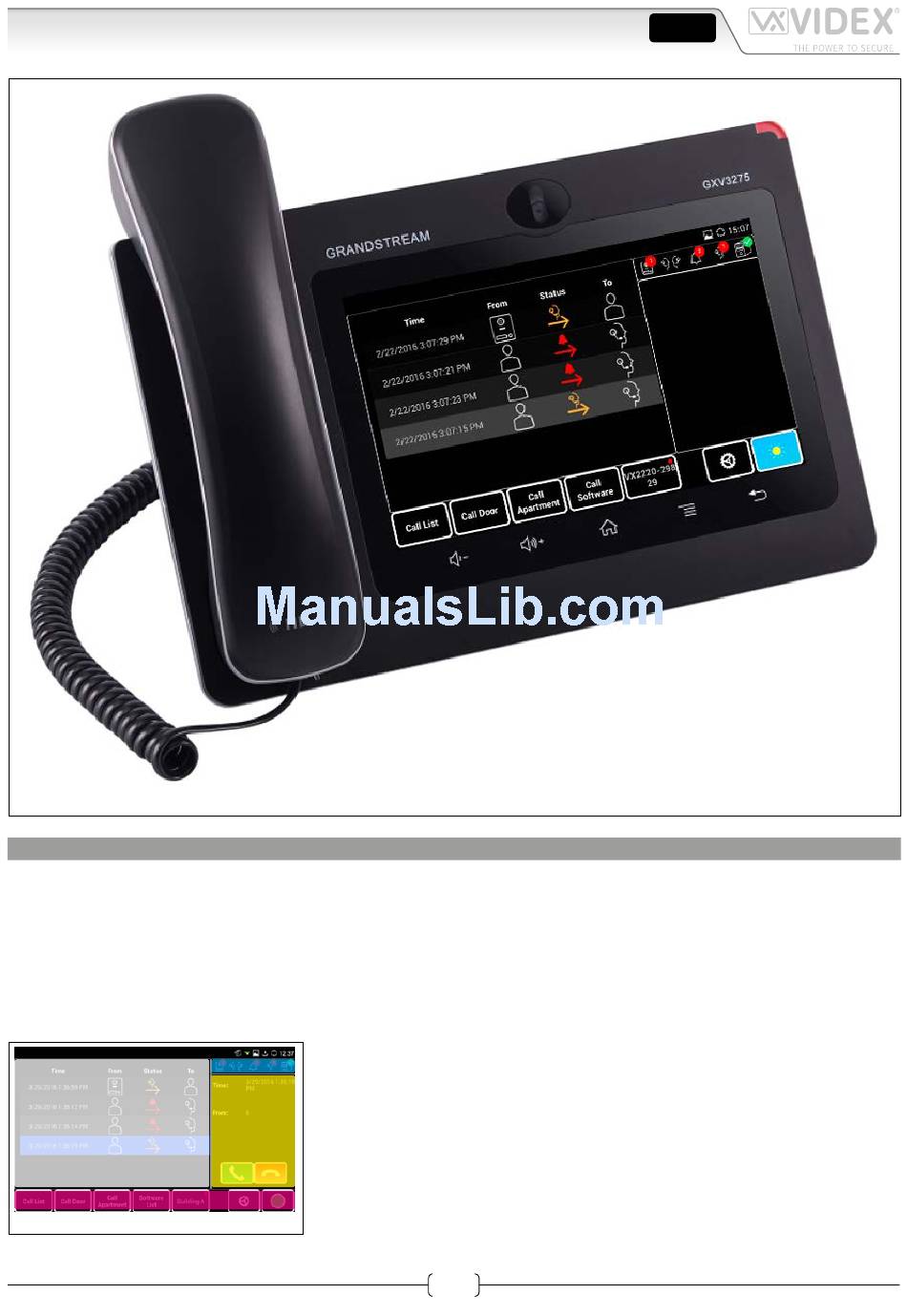

Fig. 1 CST2220 - VX2200 IP Concierge Station
DESCRIPTION
The Art.CST2220 is an IP Concierge station for VX2200 digital systems and is used in conjunction with the Art.2220 IP block interface.
The unit consists of a Voip Android Phone having a 7" Capacitive Touch Display on which is installed the VIDEX concierge applica-
tion. The CST2220 allows the connection to multiple Art.2220 devices, so one station can manage multiple system installations: the
unit receives all the incoming calls from all the systems to which it is connected, each system can then be independently controlled
by the concierge. For those familiar with the Art.2210 concierge the CST2220 includes all the functionality of this device with many
additional features due to the advanced IP technology used in the Art.2220 interface. In a standard installation the CST2220 would
connect to the same LAN as the Art2220 interface whoever it is also possible to configure communication via WAN to enable a re-
mote concierge installation. The Art.CST220 includes the SERVER to elimination the requirement for an external server on small to
medium installations.
Fig. 2 App information areas
Art. CST2220 - Operating Instructions
VX2200 IP Concierge Station GUI instruction sheet
The application can be sub divided into four distinct sections fig.2 : the status section
(cyan), the system management section (white), the action section (yellow) and the
buttons section (magenta).
The status section provide information concerning the system operation, the system
management allows the management of calls (incoming or outgoing depend on the
selection made through the call management buttons), the action section shows the
possible actions on the active call and the buttons section allows the system settings,
the call control (incoming call, outgoing call to apartments or doors) and, once an ac-
tion is established, this area shows the necessary buttons to proceed with the conver-
sation.
1
ENG
66251435-EN - V1.1 - 15/10/16
