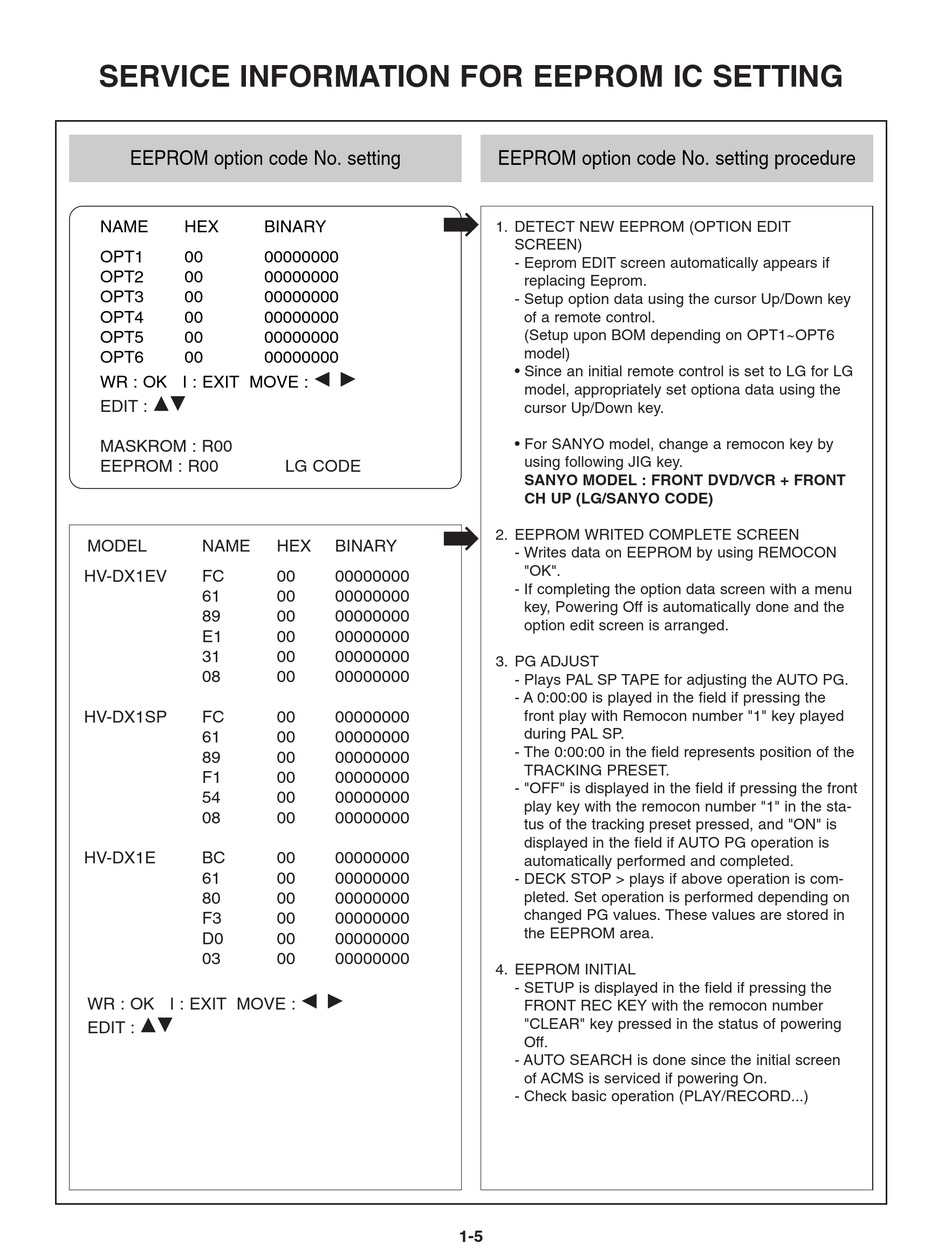

SERVICE INFORMATION FOR EEPROM IC SETTING

EEPROM option code No. setting
NAME HEX
OPT1 00
OPT2 00
OPT3 00
OPT4 00
OPT5 00
OPT6 00
WR : OK I : EXIT MOVE :
EDIT : DE
MASKROM : R00
EEPROM : R00
MODEL NAME
HV-DX1EV FC
61
89
E1
31
08
HV-DX1SP FC
61
89
F1
54
08
HV-DX1E BC
61
80
F3
D0
03
WR : OK I : EXIT MOVE : F G
EDIT : DE
BINARY
00000000
00000000
00000000
00000000
00000000
00000000
F G
LG CODE
HEX BINARY
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
00 00000000
EEPROM option code No. setting procedure
1. DETECT NEW EEPROM (OPTION EDIT
SCREEN)
- Eeprom EDIT screen automatically appears if
replacing Eeprom.
- Setup option data using the cursor Up/Down key
of a remote control.
(Setup upon BOM depending on OPT1~OPT6
model)
• Since an initial remote control is set to LG for LG
model, appropriately set optiona data using the
cursor Up/Down key.
• For SANYO model, change a remocon key by
using following JIG key.
SANYO MODEL : FRONT DVD/VCR + FRONT
CH UP (LG/SANYO CODE)
2. EEPROM WRITED COMPLETE SCREEN
- Writes data on EEPROM by using REMOCON
"OK".
- If completing the option data screen with a menu
key, Powering Off is automatically done and the
option edit screen is arranged.
3. PG ADJUST
- Plays PAL SP TAPE for adjusting the AUTO PG.
- A 0:00:00 is played in the field if pressing the
front play with Remocon number "1" key played
during PAL SP.
- The 0:00:00 in the field represents position of the
TRACKING PRESET.
- "OFF" is displayed in the field if pressing the front
play key with the remocon number "1" in the sta-
tus of the tracking preset pressed, and "ON" is
displayed in the field if AUTO PG operation is
automatically performed and completed.
- DECK STOP > plays if above operation is com-
pleted. Set operation is performed depending on
changed PG values. These values are stored in
the EEPROM area.
4. EEPROM INITIAL
- SETUP is displayed in the field if pressing the
FRONT REC KEY with the remocon number
"CLEAR" key pressed in the status of powering
Off.
- AUTO SEARCH is done since the initial screen
of ACMS is serviced if powering On.
- Check basic operation (PLAY/RECORD...)
1-5
