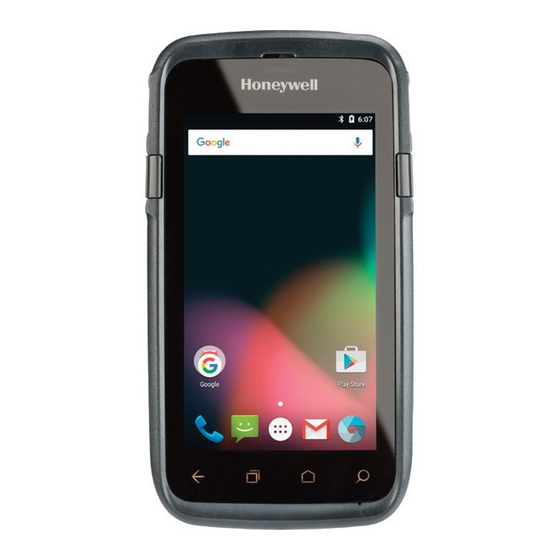

Honeywell DOLPHIN CT-50 Quick Start Manual

With windows embedded 8.1 handheld
Hide thumbs

Advertisement

Dolphin™ CT50
with Windows
Quick Start Guide
*CT50W8-ENUS-QS*
CT50W8-ENUS-QS Rev B
9/15
Embedded 8.1 Handheld
®

Advertisement

loading

  Also See for Honeywell DOLPHIN CT-50

  Related Manuals for Honeywell DOLPHIN CT-50

  Summary of Contents for Honeywell DOLPHIN CT-50

  • Page 1 Dolphin™ CT50 with Windows Embedded 8.1 Handheld ® Quick Start Guide *CT50W8-ENUS-QS* CT50W8-ENUS-QS Rev B 9/15...
  • Page 2: Accessories For The Ct50

    Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with Dolphin mobile computers for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.
  • Page 3: Front Features

    Front Features Power button Speaker Good Read LED Scan buttons Battery status / Notification LED Volume buttons Touch panel Navigation panel Microphone...
  • Page 4: Back Features

    Back Features Camera lens Camera button Battery door latch microSIM and microSD door Battery...
  • Page 5: Install A Microsim Card

    Install a microSIM Card...
  • Page 6: Install A Microsd Card

    Install a microSD Card Note: Format the microSD card before initial use.
  • Page 7: Install The Battery

    Install the Battery The CT50 mobile computers ship with a Li-ion 3.6 VDC, 14.6 watt-hour battery manufactured for Honeywell International Inc.
  • Page 8: Charge The Computer

    Caution: We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty.
  • Page 10: Power On The Ct50 For The First Time

    Power On the CT50 for the First Time To learn about creating custom provisioning XML files, see the Windows Embedded 8.1 Handheld Administrators Guide at https:// technet.microsoft.com/en-us/library/dn499757.aspx. To quickly start the mobile computer for the first time, use one of these options.
  • Page 11: Turn Power On Or Off

    4. Select Consumer setup. The computer restarts and then displays the Welcome back screen. 5. On the Connect to Wi-Fi screen, select a Wi-Fi network from the available network list. 6. Type the appropriate security credentials and then select done. 7.
  • Page 12: About The Home Screen

    About the Home Screen Status bar Start screen...
  • Page 13: Navigation And Function Buttons

    Navigation and Function Buttons Buttons Description Function Back Back to the previous screen. Home Return to the Start screen. Search Start a search on the computer or the Internet. Raise or lower the volume of the active Volume speaker. Note: Additional functionality varies according to the application in use.
  • Page 14: Adjust The Screen Time Out Setting

    Adjust the Screen Time Out Setting To adjust the amount of time before the screen times out after inactivity: 1. Scroll to the bottom of the screen and touch All apps. 2. Scroll down to Settings. 3. Scroll down to lock screen. 4.
  • Page 15: Scan A Bar Code With The Scandemo

    Scan a Bar Code with the ScanDemo Note: For optimum performance, avoid reflections by scanning the bar code at a slight angle. 1. Scroll to the bottom of the screen and touch All apps. 2. Scroll down to ScanDemo. 3. Point the computer at the bar code. 4.
  • Page 16: How To Use The Color Camera

    How to Use the Color Camera 1. Press the Camera button. 2. Select either single photo mode , video mode , or burst mode in the viewfinder. 3. Point the camera lens at the object you want to capture. The camera lens is located on the back of the computer.
  • Page 18 United States and/or other countries. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
