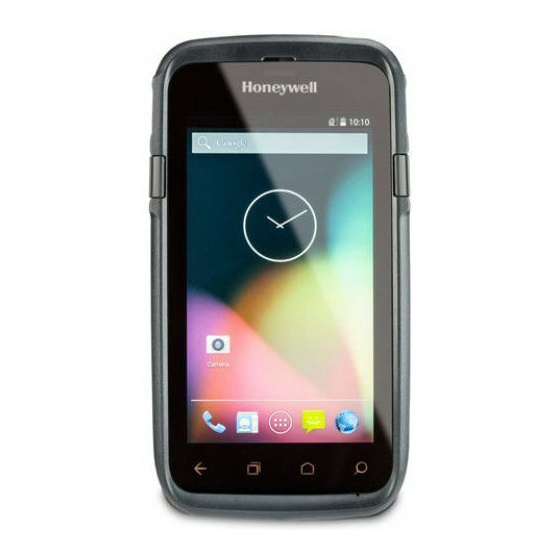

Honeywell DOLPHIN CT50 NON-INCENDIVE Quick Start Manual

Hide thumbs Also See for DOLPHIN CT50 NON-INCENDIVE:


Dolphin™ CT50 Non-Incendive
with Windows
Quick Start Guide
CT50NI-W10-EN-QS Rev A
10 IoT Mobile Enterprise


Table of Contents

Summary of Contents for Honeywell DOLPHIN CT50 NON-INCENDIVE

  • Page 1 Dolphin™ CT50 Non-Incendive with Windows 10 IoT Mobile Enterprise ® Quick Start Guide *CT50NI-W10-EN-QS* CT50NI-W10-EN-QS Rev A 1/17...
  • Page 2 Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with Dolphin mobile computers for maximum performance and durability. Contact a Honeywell sales...
  • Page 3: Accessories For The Dolphin Ct50 Ni

    Accessories for the Dolphin CT50 NI These accessories are available for the CT50: • HomeBase (Model CT50-HB) • Ethernet HomeBase (Model CT50-EB) • ChargeBase (Model CT50-CB) • NetBase (Model CT50-NB) • Quad Battery Charger (Model CT50-QBC) • Vehicle Power Adapter (Model CT50-MC) •...
  • Page 4: Front Features

    Front Features Power button Speaker Good Read LED Scan buttons Battery status / Notification LED Volume buttons Touch panel Navigation panel Microphone...
  • Page 5: Back Features

    Back Features Camera lens Camera button Battery door latch microSIM and microSD door Battery...
  • Page 6: Install A Microsim Card

    Install a microSIM Card...
  • Page 7: Install A Microsd Card

    Install a microSD Card Note: Format the microSD card before initial use.
  • Page 8: Install The Battery

    Install the Battery The Dolphin CT50 NI mobile computers ship with a Li-ion 3.6 VDC, 14.6 watt-hour battery manufactured for Honeywell International Inc.
  • Page 9: Charge The Computer

    Charge the Computer Warning: Explosion Hazard - Batteries must only be changed or charged in an area known to be non-hazardous. Use ONLY Honeywell CT50 NI battery part number 318-055-003. Risque d’explosion - Les batteries doivent uniquement être remplacées ou rechargées dans un endroit non dangereux. Utilisez UNIQUEMENT Honeywell CT50NI batterie P/N 318-055-003.
  • Page 10 Caution: Make sure that all components are dry prior to using the computers and batteries with accessories. Using wet components may cause damage not covered by the warranty. Mise en garde : Assurez-vous que tous les composants sont secs avant de connecter les terminaux/batteries à...
  • Page 11: Set Up The Computer For The First Time

    Set Up the Computer for the First Time 1. Press the Power button. 2. Select your language and then touch Next. 3. Select your region and then touch Next. 4. Touch Cancel to skip the advanced provisioning options. 5. Follow the onscreen prompts to finish setting up the computer. To learn more about what you can do with a Microsoft®...
  • Page 12: About The Start Screen

    About the Start Screen Status bar Start screen...
  • Page 13: Navigation And Function Buttons

    Navigation and Function Buttons Buttons Description Function Back Return to the previous screen. Home Return to the Start screen. Search Start a search on the computer or the Internet. Raise or lower the volume of the active Volume speaker. Note: Additional functionality varies according to the application in use.
  • Page 14: Wake The Computer From Sleep Mode

    Wake the Computer from Sleep Mode Sleep mode automatically turns the touch panel display off and locks the computer to save battery power when the computer is inactive for a programmed period of time. 1. Press and release the Power button to wake the computer. 2.
  • Page 15: Scan A Bar Code With The Scandemo

    Scan a Bar Code with the ScanDemo Note: For optimum performance, avoid reflections by scanning the bar code at a slight angle. 1. Scroll to the bottom of the screen and touch All apps. 2. Scroll down to ScanDemoW10. 3. Point the computer at the bar code. 4.
  • Page 16: Take A Photo Or Video

    Take a Photo or Video 1. Press the Camera button. 2. Select either single photo mode or video mode in the viewfinder. 3. Point the camera lens at the object you want to capture. The camera lens is located on the back of the computer. 4.
  • Page 17: Limited Warranty

    United States and/or other countries. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
