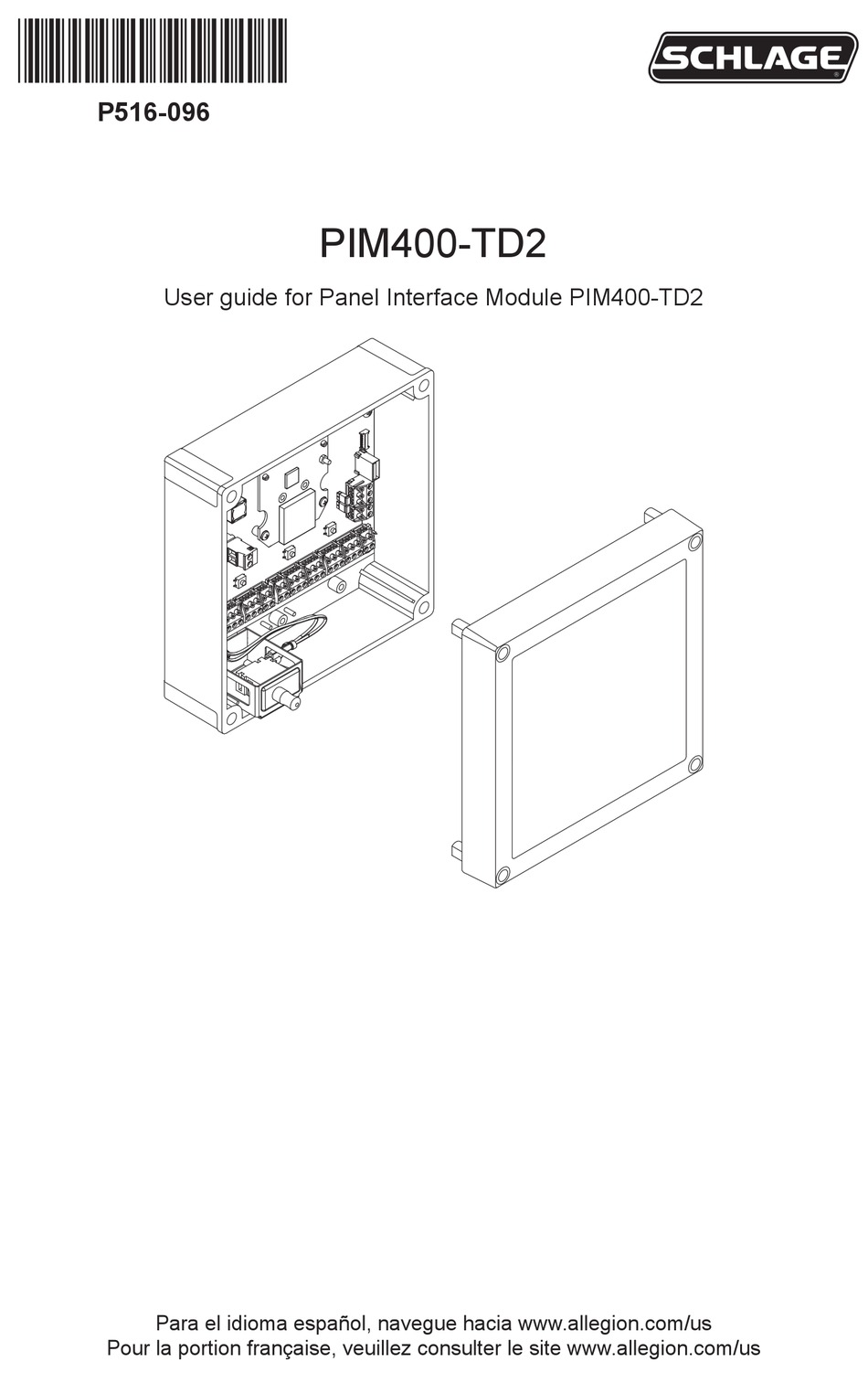

- Page 1 *P516-096* P516-096 PIM400-TD2 User guide for Panel Interface Module PIM400-TD2 Para el idioma español, navegue hacia www.allegion.com/us Pour la portion française, veuillez consulter le site www.allegion.com/us...
-
Page 2: Table Of Contents
Installation ........................7 Mount the PIM400-TD2 ....................7 Wire routing ........................8 Cable/wire specifications ....................8 PIM400-TD2 to ACP connection ..................9 Typical PIM400-TD2 to ACP wiring diagram ..............9 Optional remote antenna ....................12 Link mode ........................12 Schlage Utility Software (SUS) ..................12 Reset to factory defaults ....................12 DC power ........................13... -
Page 3: Overview
Overview This manual describes the operation and interaction of the Schlage PIM400-TD2 with Access Control Panels (ACPs) and Wireless Access Point Modules (WAPMs). The PIM400-TD2 is a product in the AD-400 Wireless Panel Interface Module (WPIM) category. The PIM400-TD2 is wired to the Access Control Panel. -
Page 4: Getting Started
Getting started The following is an overview of the steps required to set up the PIM400-TD2: 1. Install the WAPM (AD-400, WPR400, etc). See the installation guide that came with the WAPM or visit www.allegion.com/us (see Support>Schlage Electronics>Electronic Locks Technical Library) for more information. -
Page 5: Features And Components
The PCB is marked with LED locators D1, D2, D40 and D43. Each access point has clock (CLK) and data (DATA) LEDs that indicate card and keypad data communication from the PIM400-TD2 to the ACP. Press the reset switch (S1) if the PIM400-TD2 does not seem to operate Reset switch properly. -
Page 6: Model Specifications
Do not mount the WAPM(s) and the PIM400-TD2 on different floors. The signal may be degraded and functionality could be severely limited. • Do not mount the PIM400-TD2 on a metal surface. A separation of at least one inch must be maintained in all directions from any metal . •... -
Page 7: Installation
1. If linking occurred successfully, install the PIM400-TD2. Install and link additional WAPMs. 2. If linking was not successful, move the PIM400-TD2 six to ten inches (15.2 to 25.4 cm) in any convenient direction and repeat pre-installation test step 7 (see page 6), until all WAPMs link successfully. -
Page 8: Wire Routing
Drill hole(s) in the PIM400-TD2 enclosure to accommodate the size and number of entry/ exit connectors to be used. Holes in the top of the PIM400-TD2 are for remote antenna installation only. Do not run signal or power wiring through the top of the PIM400-TD2 enclosure. -
Page 9: Pim400-Td2 To Acp Connection
Review Features and components on page 5 before connecting the PIM400-TD2 to an ACP. CAUTION: Disconnect the ACP power and batteries while wiring the PIM400-TD2 to the ACP. WARNING: Because every ACP is different, always check the panel’s instruction manual for appropriate interface wiring. - Page 10 DOOR 1/2 state. STATUS J10/J11 Door Status input Logic polarity is configurable common contact using the SUS. (GND) Output is pulled-up to 3.6 VDC and can sink 50mA. 10 • Schlage • PIM400-TD2 user guide...
- Page 11 Output is pulled-up to 3.6 VDC and can sink 50mA. Common signal ground for the EXIT REQ, DOOR STAT, J8/J7 (5) GND Signal ground TROUBLE, DATA/D0 and CLK/ D1 signals. 11 • Schlage • PIM400-TD2 user guide...
-
Page 12: Optional Remote Antenna
This indicates that the PIM400-TD2 is in link mode. To abort link mode, press the same switch again. 2. When the PIM400-TD2 is powered and in link mode, the system is ready for the WAPM to initiate linking. -
Page 13: Dc Power
DC power This connection is always required regardless of the system application or configuration. Refer to page 7 through page 9 for how to connect DC power to the PIM400-TD2. Complete the installation After all required connections have been made, connect the power and ACP standby batteries (optional) to the panel. -
Page 14: Fcc /Ic Statements
Note: The intended use of this module is not for the general public. It is generally for industry/commercial use only. This transceiver is to be professionally installed in the end product by Allegion, and not by a third party. The Schlage XPB-COMAD400V2 900 MHz Communication Board Module will not be sold to third parties via retail, general public or mail order. - Page 15 To comply with IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. 15 • Schlage • PIM400-TD2 user guide...
- Page 16 Customer Service © Allegion 2015 P516-096 Rev. 12/15-f 1-877-671-7011 www.allegion.com/us...
