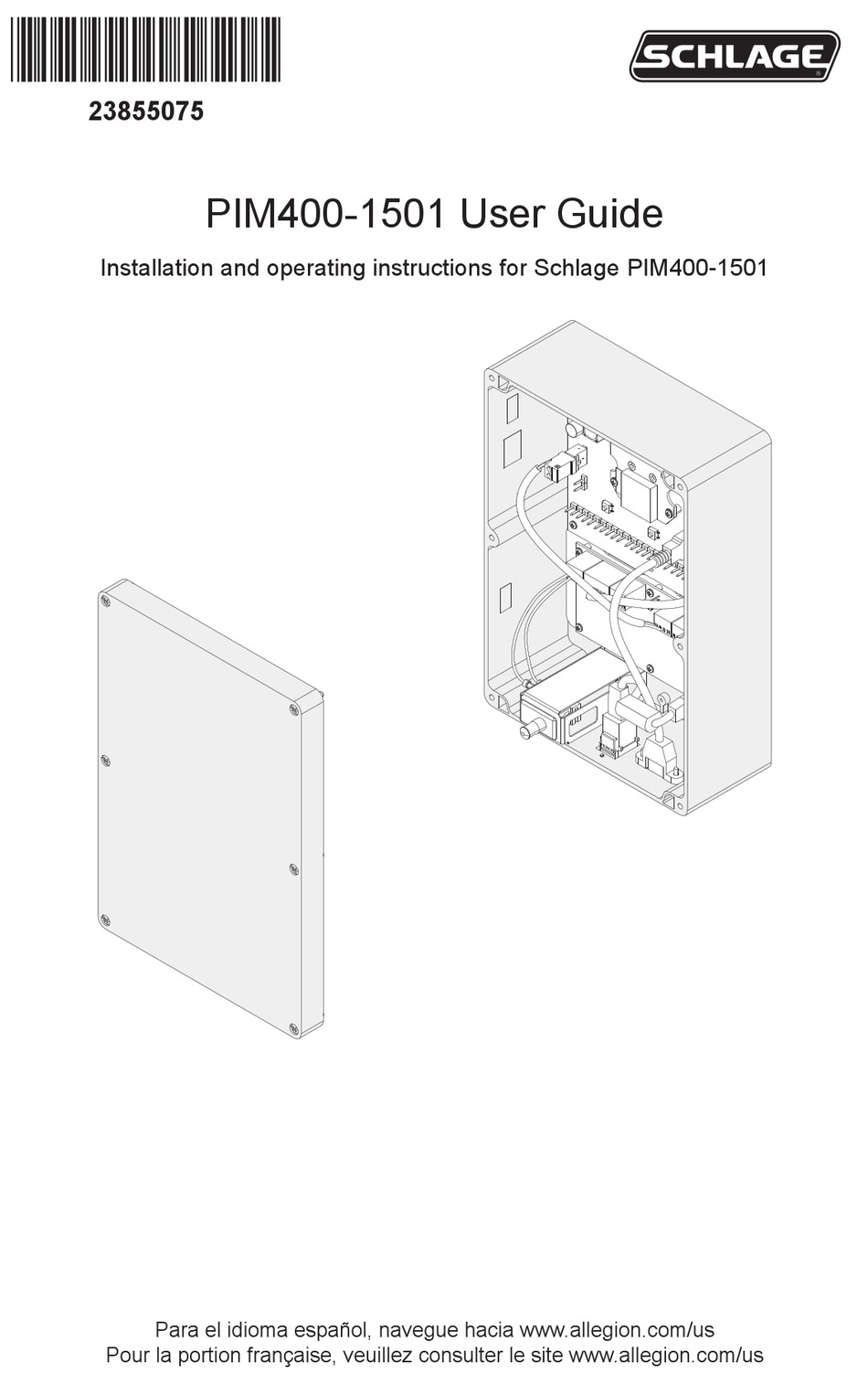

- Page 1 *23855075* 23855075 PIM400-1501 User Guide Installation and operating instructions for Schlage PIM400-1501 Para el idioma español, navegue hacia www.allegion.com/us Pour la portion française, veuillez consulter le site www.allegion.com/us...
-
Page 2: Table Of Contents
Remote antenna (if applicable) ..................10 Antenna location and safety ..................10 Antenna grounding ......................10 Terminate the coax whip at the PIM400-1501 ............. 11 Reset to factory defaults ....................12 Reset the PIM400-485 to factory defaults ..............12 Reset the EP-1501 to factory defaults - bulk erase.............12 Memory backup battery ....................12... -
Page 3: Overview
• The PIM400-1501 is wired to an Ethernet network connection. • The PIM400-1501 is powered externally one of two ways, selected by the power selector jumper, J3: a. Power over Ethernet (PoE), Class 3, fully compliant to IEEE 802.3af, or b. - Page 4 Status LEDs S2, Reset EP1501 Ethernet Input Power Switch Cable J3, PoE/12VDC Selector Jumper S1, Dip Switches USB Cable Tamper Switch Mounting Mounting Hole Hole Ethernet Connector Connector PIM400-1501 Printed Circuit Board Assembly 4 • Schlage • PIM400-1501 user guide...
-
Page 5: Getting Started
To initiate linking, place the PIM400-1501 in link mode first, then place the desired WAPM in link mode. 1. Place the PIM400-1501 into link mode. Refer to the SUS user guide for detailed Link instructions. 2. Place the desired WAPM into link mode. Refer to instructions in the “Linking” section of the user guide for the WAPM. -
Page 6: Install The Pim400-1501
2. Temporarily mount the PIM400-1501 in the exact location and orientation it will be mounted. 3. Power the PIM400-1501 with a 12 VDC supply capable of delivering 400 mA or PoE, Class 3, 12.95W, fully compliant to IEEE 802.3af. For UL installations, PoE powered devices shall not be used. Power for these... -
Page 7: Installation
1. If linking was successful, install the PIM400-1501. Install and link additional WAPMs. 2. If linking was unsuccessful, move the PIM400-1501 six to ten inches in any convenient direction and repeat steps 4 through 6 of the Pre-Installation Test (see page 6) until all WAPMs link successfully. -
Page 8: Wiring Connections
Set the PoE/12 VDC power selector jumper (J3) to “12V”. PoE Input Power • If powering the PIM400-1501 with PoE, there is no need for a hole to be drilled in the PIM400-1501 enclosure to accommodate power. Power is delivered through the Ethernet cable. -
Page 9: Network Connection
Network connection Ethernet connection Connect a live Ethernet connection to the Ethernet port on the PIM400-1501. The green LED on the PCBA Ethernet port will light up when a live network connection is present. The PIM400-1501 is shipped with the factory default network settings shown below. -
Page 10: Remote Antenna (If Applicable)
Antenna location and safety • Locate within 15 cable feet (4.5 meters) of the PIM400-1501. • Locate for best RF line-of-sight path between the PIM400-1501 and WAPM(s). • Ensure the antenna and WAPM(s) are located on the same floor of a building. •... -
Page 11: Terminate The Coax Whip At The Pim400-1501
Only applicable to installations using an optional remote antenna. 1. Drill a B\,” (16 mm) hole in the top of the PIM400-1501 enclosure as shown to accommodate the mounting of the coax whip to be connected to the PIM400-1501 radio board. -
Page 12: Reset To Factory Defaults
1. Set S1 switches to 1 and 2 ON, and 3 and 4 OFF. 2. Cycle power to the PIM400-1501, or press the S2 reset button on the EP-1501. 3. The EP-1501 is now in a 10 second reset window. LEDs 1, 2 and 3, 4 will blink alternately. -
Page 13: Pim400-1501 Led Reference
PIM400-1501 LED reference 13 • Schlage • PIM400-1501 user guide... -
Page 14: Fcc /Ic Statements
Note: The intended use of this module is not for the general public. It is generally for industry/commercial use only. This transceiver is to be professionally installed in the end product by Allegion, and not by a third party. The Schlage XPB-COMAD400V2 900 MHz Communication Board Module will not be sold to third parties via retail, general public or mail order. - Page 15 To comply with IC RF exposure limits for general population/uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. 15 • Schlage • PIM400-1501 user guide...
- Page 16 Customer Service © Allegion 2018 Printed in U.S.A. 1-877-671-7011 www.allegion.com/us 23855075 Rev. 04/18-e...
