Steamist TC-110 Installation And Operating Instructions

Installation and Operating Instructions
WARNING: Elderly persons, pregnant women, or those suffering from heart disease, high blood
!
pressure, diabetes, or who are otherwise not in good health, do not use this device unless
directed to do so by a physician. Also, do not use steambath while under the influence of alcohol.
IMPORTANT: The TC-110 Control will only function with one of the following Steamist Generator models:
SM-46, SM-79, SM-4, SM-5, SM-7, SM-8, SM-11, SM-12, and SM-15. (It will not work with Models:
System-18, System-24, & System-30 unless used in cunjuction with a Steamist thermostatic controller, such
as Model# TC-135 or DSC-425).
START
1
STOP
TC-110
Timer and Start/Stop Switch
1. Pre-Installation - Control Location
a)
The TC-110 control may be installed inside or
outside the steam room.
recommended height from the floor is four feet.
Provide a 1" hole in the wall at this location (see
Figure 1).
IMPORTANT: Multi-conductor cable must be
installed so that the end will not be buried inside the
wall. The unit will not operate unless the control is
installed.
2. Electrical Rough-in
a) Remove the multi-conductor cable from the control
packing box. Carefully route the multi-conductor
control cable from the Steambath Generator to the
TC-110 located either inside or outside the
steamroom (see Figure 2). Route multi-conductor
cable though a ¾" conduit to protect the cable from
damage and to facilitate replacement if necessary.
07/07
Control Features
2

Installation Instructions

For convenience the
- 1 -
Steambath Control
NOTE: This control may be installed inside or outside the
steam room for operation of the system.
1. Start/Stop Key Pad: Press key pad and generator will
begin producing steam in minutes. The generator will
remain on for 30 minutes when used with the model
SM-46, SM-79 SM-4, SM-5, SM-7, or SM-8 steam
generators and 60 minutes for larger generators.
Pressing the key pad a second time will stop the
Steam Generator.
2. Start/Stop Light: Indicates the Steam Generator is
activated.
Cleaning Instructions: Use a damp cloth and mild soap.
Do NOT use abrasive cleaners which might scratch the
surface or the base of the control.
IMPORTANT: Run the
Control Cable through a
¾" conduit.
1" Hole
located four feet
from the floor
Double-sided
Adhesive Pad
TC-110 Timer and
Start/Stop Switch
Model: TC-110
C
LISTED 995C

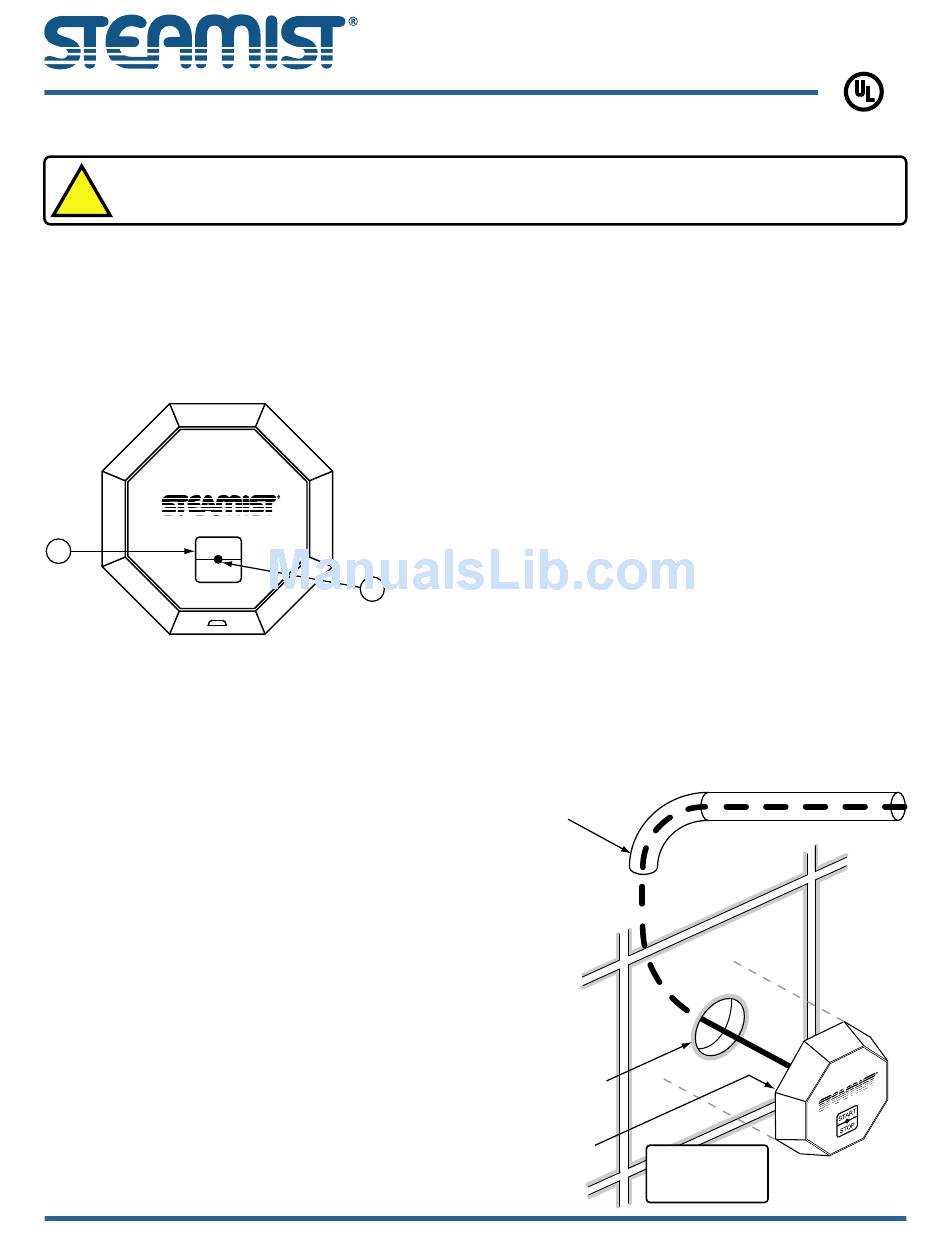

Figure 1
Pub. No. 526-D
US
®
