Steambath control

Advertisement

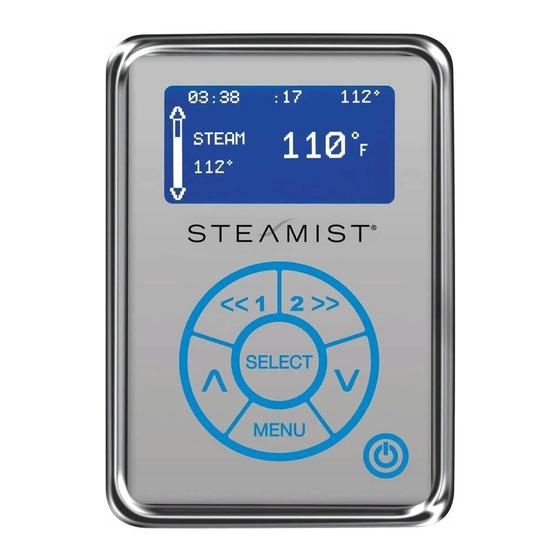

Steambath Control
Control Features
1.
Set Point: Indicates steamroom setpoint temperature.
2.
Temperature Display: Indicates ambient room temperature.
3.
ON/OFF Keypad: Press keypad to start the system as a
guest user. Press the Keypad any time the system is on to
turn it off.
4.
Navigation Keys: UP/Down Arrows, Menu, and Select.
5.
User 1 / User 2: Press to select Pre-Set user settings.
6.
Clock: Displays current time.
7.
Duration: Remaining time of the system cycle.
IMPORTANT: Control must be installed inside the steam- room
for proper operation of the system.
Cleaning Instructions: Use a damp cloth and mild soap. Do
NOT use abrasive cleaners which might scratch the surface or
the base of the control.
Installation Instructions
1.
Pre-Installation - Control Location
The TSC Control must be installed inside the steam- room.
For convenience the recommended height from the floor is
four feet. Provide a 1½" hole in the wall at this location (see
Figure 1).
IMPORTANT: Multi-conductor cable must be installed so
that the end will not be buried inside the wall. The unit will
not operate unless the control is installed.
2.
Electrical Rough-in
Remove the multi-conductor cable from the control packing
box. Carefully route the multi-conductor control cable from
the steam generator to the TSC located inside the steam-
room (see Figure 1). Route multi-conductor cable through a
¾" conduit to protect the cable from damage and to facilitate
replacement if necessary.
WARNING: Elderly persons, pregnant women, or those suffering from heart disease, high blood pressure, diabetes, or
!
who are otherwise not in good health, do not use this device unless directed to do so by a physician. Also, do not use
steambath while under the influence of alcohol.
IMPORTANT: The TSC Control will only function with one of the following Steamist Generator models: TSG-7, TSG-10 or TSG-15
steam generators.
02/09
®
Total Sense Digital Control
6
5
4
Figure 1
IMPORTANT: Run the
Control Cable through
a ¾" conduit.
1½" Hole
located four feet
from the floor
- 1 -
Installation Instructions
C
LISTED 995C
Model: TSC
7
03 : 38
: 17
112
°
110
°
STEAM
F
112
°
®
1
2
SELECT
^
MENU
To Steam Generator
Coupler
Double-Sided
Adhesive Pad
Pub. No. 202-A
US
®
1
2
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steamist TSC

  • Page 1 Also, do not use steambath while under the influence of alcohol. IMPORTANT: The TSC Control will only function with one of the following Steamist Generator models: TSG-7, TSG-10 or TSG-15 steam generators.
  • Page 2 After the control is in place, apply silicone (supplied) around the control to form a watertight seal. IMPORTANT: The adhesive on the back of the TSC control will NOT seal this control. It is the responsibility of the installer to seal this control to the wall with the supplied silicone.
  • Page 3 Installation Instructions Installation Instructions Model: TSC Installation Instructions for Steamhead & Figure 6 - Center Hub Installation Center Hub IMPORTANT: Make sure the 3/4" nipple protrudes beyond the tile Install top first approximately 1/2" (see Figure 5). Wrap the nipple with pipe sealant tape.
  • Page 4 Installation Instructions Installation Instructions Model: TSC The Total Sense Control (TSC) has a built in temperature sensor and therefore requires the TSC control to be installed inside the steam room. Max Temperature setting: 120°F Max Time setting: 60 Minutes Figure 7 - Installation Suggestions Required Inside Installation TSC Control.
  • Page 5: Operation

    MENU Power ON/OFF button and Menu navigation keys Guest Setting The Total Sense Control (TSC) has a built in temperature sensor and therefore MUST be installed inside the steam room. Operation Model: TSC Programming the User Settings Press the Select button and the remaining cycle time is shown.
  • Page 6 B. Music A is the 3.5 mm phone jack input on the left side of setting which is selected by pressing the power button when the TSC control module. Music B is the RCA jacks on the side the control is off and indicated by no user icons in the display of the TSC control module (Figure 7).
  • Page 7 Model: TSC Programming the System Settings Figure 12 Power on TSC control by pressing either USER 1, USER 2 or the power button. Press and hold the MENU button to enter AudioSense Input the setup window. You will see the Cycle timer that was programmed earlier and the "System Settings."...
  • Page 8: Lcd Contrast

    Programming and Operating Instructions Programming the Control Settings Model: TSC Press the MENU button twice to enter the setup window. Press MENU to return to the previous display. The next control Highlight Control Settings and press the select button (Figure setting is the display contrast.
  • Page 9: Installation Notes

    Surface Mount - 1½" hole required. Strain Relief Clamp Mounts inside the steam room. Steamist recommends that the multi-conductor cable be run through ¾" conduit to protect cable from damage and to facilitate easy replacement. Mount control near seating area and not above steamhead.
  • Page 10: Specifications

    Specifications Wiring Layout Standard Speaker Wire Control Cable Special Light Cable Standard Speaker Wire TSS-CL Invisible Speakers TSC Digital 120V Control Module TSS-CL Category 5 Cable ® ® START START iPod Classic STOP Cradle Speaker 03 : 38 : 17 °...
