Steamist TC-150 Installation And Operating Instructions

Installation and Operating Instructions
WARNING: Elderly persons, pregnant women, or those suffering from heart disease, high blood
!
pressure, diabetes, or who are otherwise not in good health, do not use this device unless
directed to do so by a physician. Also, do not use steambath while under the influence of alcohol.
IMPORTANT: the TC-150 Control will only function with one of the following Steamist steam generator
models: SM-46, SM-79, SM-4, SM-5, SM-7, SM-8, SM-11, SM-12, SM-15, System-18, System-24,
System-30, and all InstaMist Generators.
IMPORTANT: This control must be installed inside the
steam room for proper operation of the system.
4
TC-150
Digital Temperature Control

1. Pre-Installation - Control Location

a)
The TC-150 control must be installed inside the
steam room. For convenience the recommended
height from the floor is four feet. Provide a 1½" hole
in the wall at this location (see Figure 1).
IMPORTANT: Multi-conductor cable must be
installed so that the end will not be buried inside the
wall. The unit will not operate unless the control is
installed.

2. Electrical Rough-in

a) Remove the multi-conductor cable from the control
packing box. Carefully route the multi-conductor
control cable from the steam generator to the
TC-150 located inside the steamroom (see Figure
2). Route multi-conductor cable through a ¾"
conduit to protect the cable from damage and to
facilitate replacement if necessary.
07/07

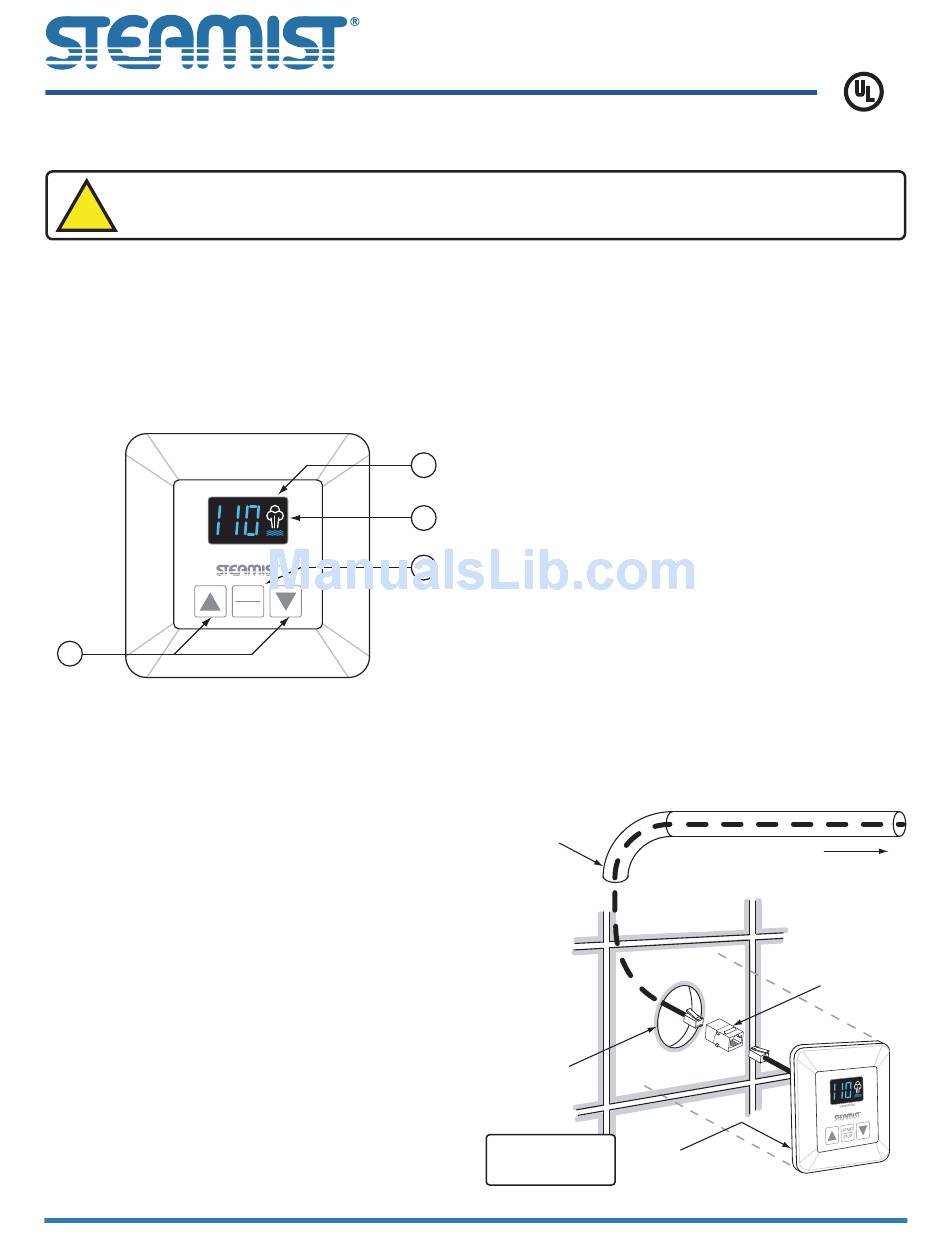

Control Features

TEMPERATURE
START
STOP

Installation Instructions

1. Temperature Display: Indicates steam room or set
point temperature.
2. Start/Stop Key Pad: Press key pad and generator
will begin producing steam in a few minutes. The
generator will remain on for 30 minutes when used
1
with the models SM-46, SM-79, SM-4, SM-5, SM-7,
or SM-8 steam generators and 60 minutes for larger
generators. Pressing the key pad a second time will
3
stop the steam generator.
3. Steam Icon: Indicates the generator is producing
steam when illuminated. The heater in the generator
2
and the steam icon will cycle on and off as the
temperature is maintained automatically in the steam
room.
4. Up/Down Key Pads: Press to adjust the temperature
set point.
Cleaning Instructions: Use a damp cloth and mild soap.
Do NOT use abrasive cleaners which might scratch the
surface or the base of the control.
IMPORTANT: Run the
Control Cable through
a ¾" conduit.
1½" Hole
located four feet
from the floor
Figure 1
TC-150 Digital
Temperature Control
- 1 -
Steambath Control
Model: TC-150
To steam generator
Double-sided
Adhesive Pad
Pub. No. 122-A
C US
®
LISTED 995C
Coupler
