Det-Tronics X9800 Instructions Manual

Ir flame detector with pulse output
Hide thumbs Also See for X9800:
Table of Contents

Advertisement

Quick Links

Download this manual

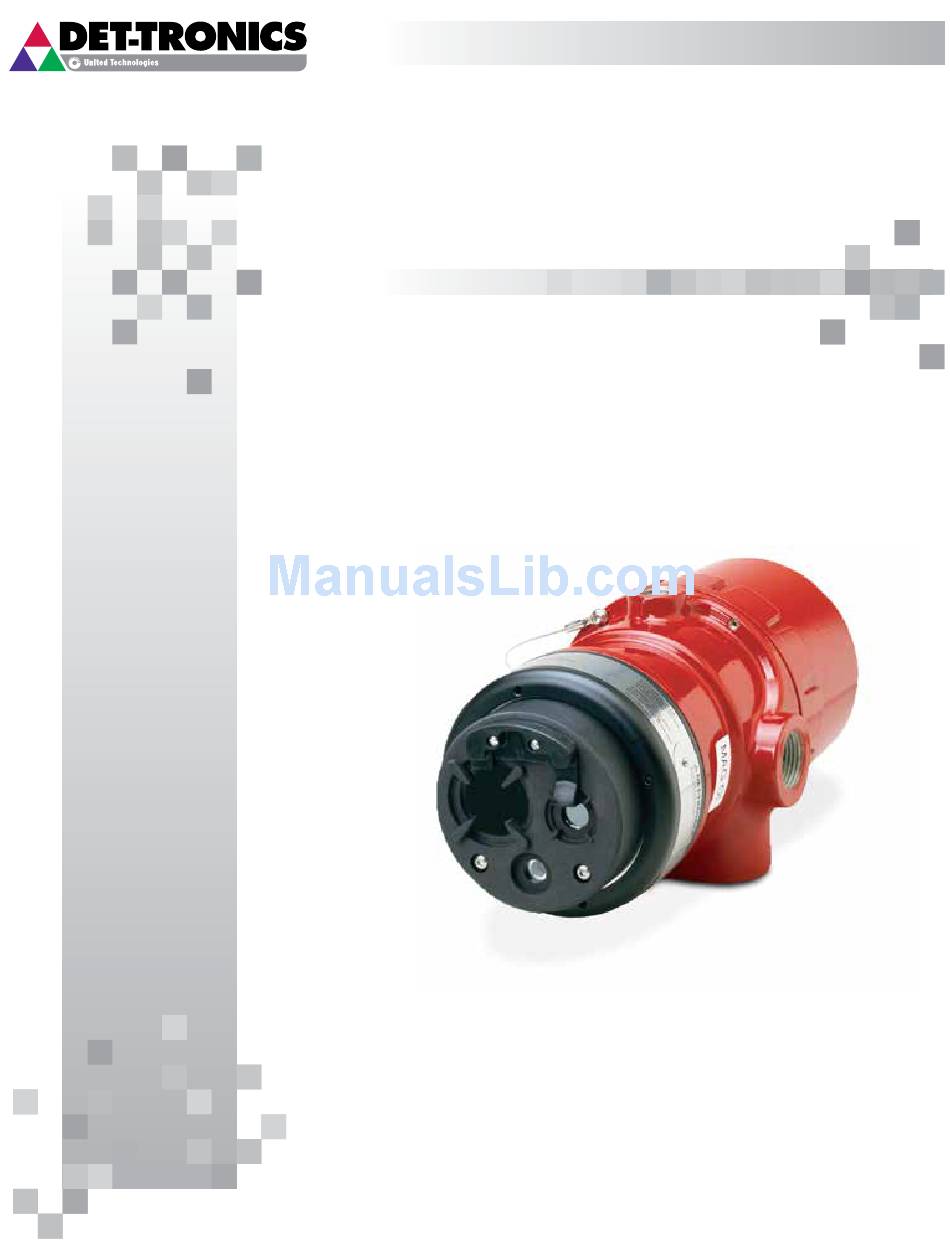

Instructions
95-8555
IR Flame Detector with Pulse Output
X9800
5.1
Rev: 6/13
95-8555

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X9800 and is the answer not in the manual?

Questions and answers

Related Manuals for Det-Tronics X9800

Summary of Contents for Det-Tronics X9800

  • Page 1 Instructions 95-8555 IR Flame Detector with Pulse Output X9800 Rev: 6/13 95-8555...

  • Page 2: Table Of Contents

    ......20 X9800 model matrix ..... . 21 Detector Positioning .

  • Page 3: Description

    The X9800 includes the Automatic o i ® (Optical Integrity) feature — a calibrated performance test that is automatically performed once per minute to verify complete detector operation capabilities.

  • Page 4: Outputs

    ( OpTICaL INTEgRITy ) Table 1—Detector Status Indicator automatic o i Detector Status LED Indicator The X9800 includes the Automatic o i feature — a Power On/Normal Auto calibrated performance test that is automatically Green (no fault or fire alarm)

  • Page 5: Communication

    The X9800 features signal processing options. These the TEsT position. options determine the type of logic that the detector will use for processing fire signals to customize the X9800 During the entire test, the detector gives no indication to the application. Two signal processing options are of alarm.

  • Page 6: General Application Information

    X9800. Welding rods with clay binders actuations, certain combinations of ambient radiation do not burn and will not be detected by the X9800. must be avoided. For example, if IR radiation with an However, system bypass is always recommended, since...

  • Page 7: Factors Inhibiting Detector Response

    Doing so could disturb critical optical Det-Tronics for recommendations regarding window alignment and calibration parameters, possibly materials that will not attenuate radiation. causing serious damage. This type of damage...

  • Page 8: Installation

    The Refer to Figure 2 and ensure that the o i plate will be following factors should also be taken into consideration: oriented as shown when the X9800 is mounted and • Identify all high risk fire ignition sources.

  • Page 9: Protection Against Moisture Damage

    Wires should be stripped the X9800. 3/8 inch (9 mm). In some cases where the X9800 is replacing existing pulse output detectors, the wiring 1. Make field connections following local ordinances and power supplies may not be adequate. Consult the and guidelines in this manual.
  • Page 10 (See Figure 1 for Correct Detector Orientation.) Figures 11 and 12 provide examples of typical 2. Check all field wiring to be sure that the proper installations with a X9800 wired to a fire alarm connections have been made. panel.
  • Page 11 NOTE: DO NOT CONNECT THE X9800 "A" LEAD (#2/12) TO TERMINAL J1-3 (290 VDC). R7404 CONTROLLER ZONE OUTPUT 1 10 TO 38 VDC – – ZONE OUTPUT 2 X9800 (A) +290 VDC ZONE OUTPUT 3 B - INPUT 1 ZONE OUTPUT 4...
  • Page 12 2/12 DC+ ("A" LEAD) SIGNAL ("B" LEAD) NOTE: DETECTOR/CONTROLLER CIRCUITS MEET CLASS B, STYLE 0.5 REQUIREMENTS (SIGNALING LINES A AND C). GROUND FAULT PROTECTED SYSTEMS ("D" LEAD) Figure 7—a Typical System, X9800 Detectors Wired to R7404 Star Logic Controller 95-8555...
  • Page 13 DC– ("C" LEAD) 2/12 DC+ ("A" LEAD) SIGNAL ("B" LEAD) NOTE: DETECTOR/CONTROLLER CIRCUITS MEET CLASS B, STYLE 0.5 REQUIREMENTS (SIGNALING LINES A AND C). ("D" LEAD) GROUND FAULT PROTECTED SYSTEMS Figure 8—a Typical System, X9800 Detectors Wired to R7494 Controller 95-8555...
  • Page 14 DC– ("C" LEAD) 2/12 DC+ ("A" LEAD) NOTE: DETECTOR/CONTROLLER CIRCUITS MEET CLASS B, STYLE SIGNAL ("B" LEAD) 0.5 REQUIREMENTS (SIGNALING LINES A AND C). ("D" LEAD) GROUND FAULT PROTECTED SYSTEMS Figure 9—a Typical System, X9800 Detectors Wired to R7495 Controller 95-8555...
  • Page 15 NOTE: DO NOT CONNECT THE X9800 "A" LEAD (#2/12) TO TERMINAL J2-34 (290 VDC). R7405 CONTROLLER (NOT FM APPROVED) +24 VDC GROUND – X9800 DETECTOR 1 X9800 J2-44 J2-36 DETECTOR 2 X9800 +290 VDC J2-45 J2-37 DETECTOR 3 X9800 J2-46...
  • Page 16 X9800 DETECTOR FIRE ALARM PANEL SPARE PULSE OUT SPARE COM FIRE 2 N.O. FIRE 2 N.C. FIRE 2 END OF LINE DEVICE 4 ALARM COM FAULT 1 RS-485 A N.O. FAULT 1 RS-485 B 24 VDC + MAN O i 24 VDC 24 VDC –...

  • Page 17: Eol Resistors

    STaRTUP PROCEDURE EOL RESISTORS To ensure that the insulating material of the wiring terminal When installation of the equipment is complete, apply block will not be affected by the heat generated by EOL power and allow 20 to 30 minutes for the detector’s resistors, observe the following guidelines when installing heated optics to reach equilibrium.

  • Page 18: Fire Alarm Test (Pulse Output To Fire Alarm Panel)

    5. Verify that all detectors in the system are properly If none of these actions corrects the problem, return the aimed at the area to be protected. (Det-Tronics’ detector to the factory for repair. Q1201C Laser Aimer is recommended for this purpose.)

  • Page 19: Maintenance

    To clean the windows and o i plate, use Det-Tronics’ window cleaner (p/n 001680-001) and a soft cloth, cotton CaUtIon swab or tissue and refer to the following procedure: Do not replace the o i reflector plate without also recalibrating the o i system.

  • Page 20: Features

    fEaTURES SPECIfICaTIONS • Responds to a fire in the presence of modulated OPERaTINg VOLTagE— blackbody radiation (i.e. heaters, ovens, turbines) 24 Vdc nominal (18 Vdc minimum, 30 Vdc maximum). without false alarm. Maximum ripple is 2 volts peak-to-peak. • High speed capability — 30 milliseconds. For CSA compliance, the power source must •...
  • Page 21 ThREaD SIZE— 100% REPRESENTS THE MAXIMUM DETECTION DISTANCE FOR A GIVEN FIRE. THE SENSITIVITY INCREASES AS THE ANGLE OF Conduit connection: Four entries, 3/4 inch NPT or M25. INCIDENCE DECREASES. Conduit seal not required. VIEWING ANGLE 0° ShIPPINg WEIghT (approximate)— 15°...

  • Page 22: Replacement Parts

    X9800 IR Flame Detector with Pulse Output section. If it is determined that the problem is caused by Refer to the X9800 Model Matrix below for details an electronic defect, the device must be returned to the Q9033 Mounting Arm is required: factory for repair.

  • Page 23: X9800 Model Matrix

    X9800 MODEL MaTRIX MODEL DESCRIpTION X9800 Single Frequency IR Flame Detector TypE MaTERIaL Aluminum Stainless Steel (316) TypE THREaD TypE 4 PORT, METRIC M25 4 PORT, 3/4" NPT TypE OUTpUTS Relay and Pulse TypE appROVaLS VNIIPO/VNIIFTRI (Russia) FM/CSA/ATEX/CE/IECEx TypE CLaSSIFICaTION...

  • Page 24: Appendix A - Fm Approval And Performance Report

    Zone 21 - AEx tb T80°C Tamb –40°C to +75°C Degree of protection provided by Enclosure IP66/67, Hazardous Locations for use in the U.S. The following accessories are FM approved for use with the X9800 Flame Detector: part Number Description 102740-002...
  • Page 25 FM approval Description and performance Report – Continued RESpONSE CHaRaCTERISTICS Very High Sensitivity Distance Typical Response Time Fuel Size / Flow Rate TDSa Quick Fire feet (m) (seconds) n-Heptane 1 x 1 foot 85 (25.9) Methane 32 inch plume 60 (18.3) Propane Torch 2 (0.6)
  • Page 26 FM approval Description and performance Report – Continued FaLSE aLaRM IMMUNITy High Sensitivity, TDSa On, Quick Fire Off Distance feet False alarm Souce Modulated Response Unmodulated Response Sunlight, direct, reflected — No alarm No alarm Vibration No alarm No alarm Arc welding 15 (4.6) No alarm...

  • Page 27: Appendix Bcsa Approval

    Class I, Division 2, Groups A, B, C, and D (T3); Class II, Division 2, Groups F and G (T3); Class III; Enclosure Type 4X; Infrared Flame Detector/Controller X9800 series, rated 18-30 Vdc, 2.1 Watts to 16.5 Watts. Relay contacts rated 5 Amps @ 30 Vdc.

  • Page 28: Appendix C - Atex / Ce Approval

    EOL resistors must be ceramic, wirewound type, rated 5 watts minimum, with actual power dissipation not to exceed 2.5 watts. The Infrared (IR) flame detector type X9800 is to be installed in places where there is a low risk of mechanical damage. 95-8555...
  • Page 29 IP66/IP67 for the apparatus. Unused conduit entries shall be closed with suitable blanking elements. NOTE For ATEX installations, the X9800 detector housing must be electrically connected to earth ground. The following accessories are ATEX approved for use with the X9800 Flame Detector: part Number...

  • Page 30: Appendix Diecex Approval

    EOL resistors must be ceramic, wirewound type, rated 5 watts minimum, with actual power dissipation not to exceed 2.5 watts. The Infrared (IR) flame detector type X9800 is to be installed in places where there is a low risk of mechanical damage. The following accessories are IECEx approved for use with the X9800 Flame Detector:...

  • Page 31: Appendix Een54 Approvals

    The installation shall take into account, that the orientation arrow on the flame detector is directed upwards, as the view angle in this direction is <90°. The IR-flame detector corresponds to class 1. The following accessories are EN54-10 and EN54-17 approved for use with the X9800 Flame Detector: part Number Description...
  • Page 32 GT3000 Toxic Gas Detector Safety System Det-Tronics and o i (Optical Integrity) are registered trademarks or trademarks of Detector Electronics Corporation in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
