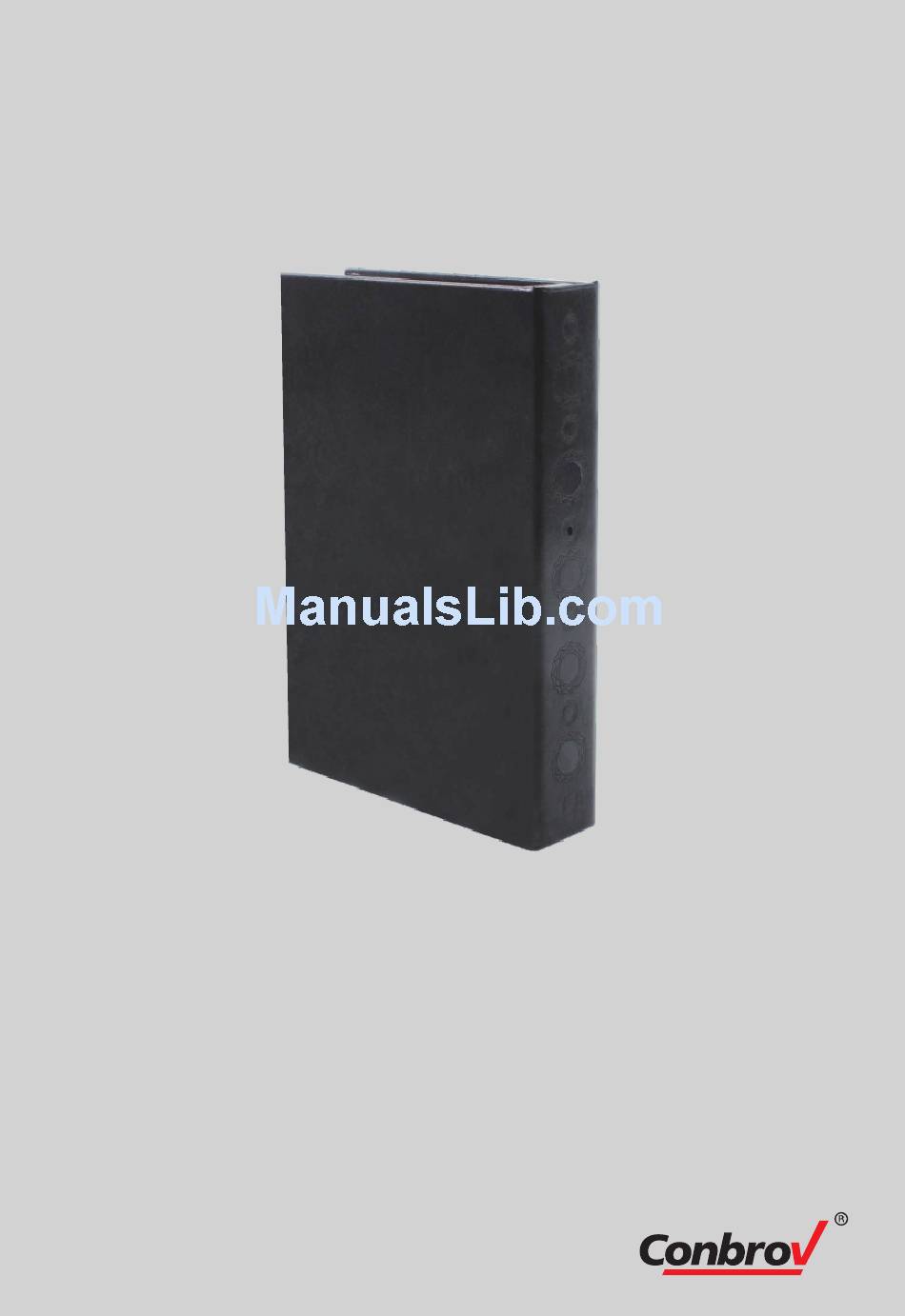

User Manual
HD book camera
Huge battery camera series
-
Please ensure that you read the complete user manual carefully
before using any part of the product.
- Keep this copy safe for future reference in case of operational
difficulties.
- Please test the position/angle, playback the video in advance, to
make sure it could catch what you want
- Please do not use this camera for illegal purpose. It is important
to follow the laws in your country/state
MODEL NO: DV9
USER MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Conbrov DV9
Summary of Contents for Conbrov DV9
-
Page 1: User Manual
HD book camera Huge battery camera series MODEL NO: DV9 USER MANUAL Please ensure that you read the complete user manual carefully before using any part of the product. - Keep this copy safe for future reference in case of operational difficulties. -
Page 2: Safety Instructions
Safety instructions Please read the following instructions before using the camera: - Ensure that the camera is tested for the first time use and confirm that it suits the intended purpose. - We are not responsible for any missing video information due to wrong operation,Micro-SD malfunctioning or camera angle limit etc. -
Page 3: Product Accessories
Manual Camera USB cable It is important to note that: If there is anything missing in your product package and it is not included in the above list of accessories, contact us as soon as possible at: support@conbrov.com... -
Page 4: Product Structure
Product structure Camera lens Audio(on/off) Indicator Reset Micro-SD... - Page 5 Detection ability Camera angle PIR Detection angle 15-25feet(5-8meters) Important Notice: - Please use the camera in a perpendicular direction and camera lens on the top as the above photo shown and do not use the camera upside down or lay down - Avoid using the camera in hot or extreme temperatures that will reduce the motion detection accuracy - When the camera is in motion detection mode,there's a 2...
-
Page 6: Charging Information
Charging information Important Notice: - It is suggested to charge it by a 1A USB powr adaptor using the provided USB cable from the package. - It is suggested to slide the power switch to be OFF at the center during charging the camera. - Page 7 How to install and remove micro-sd card Install Micro-SD card Remove Micro-SD Important notice: - The camera has the ability to record video only when Micro-SD is inserted. - Please avoid by all means to insert or remove Micro-SD when the camera is either powered ON or connected to the computer.
-
Page 8: Time And Date Setting
Time and date setting Time modification It will automatically create a time file named as YW_TIME.txt. document after the camera is switched on. The time will be amended to the current time when you open the document and save it. Exit the portable disk and restart the camera and record, new recording videos will automatically synchronize with the current time. - Page 9 Operation guide Important Note: 1.If you didn't find the YW_TIME.txt. file when you open the micro sd card from your computer,Pls record a video clip using the camera to activate the card and then try to set the date and time again. 2.The amended date and time will not change unless the battery is running out for long time.
-
Page 10: Detailed Parameters
Detailed parameters Item Parameter size 21*15*4CM Product net weight 415g Battery 10000mAh Stand-by power consumption 10uA PIR detection angle 60 degrees PIR detection distance 5-8 meters Camera angle about 75 degrees Max PIR stand-by time 2 years Day time recording power consumption 220mA Max day time recoridng time a b out 30 hours... - Page 11 Indicator status and meanings The blue flash 3 times and goes off, Switch to REC it will record continuously by 2 minutes video each The red and blue flash once, then Switch to MD the red flash 3 times and goes off The red&blue flash once and red will flash 3 times and goes off.
- Page 12 Email: Support@conbrov.com Website: www.conbrov.com...
