Summary of Contents for Conbrov WF91
-

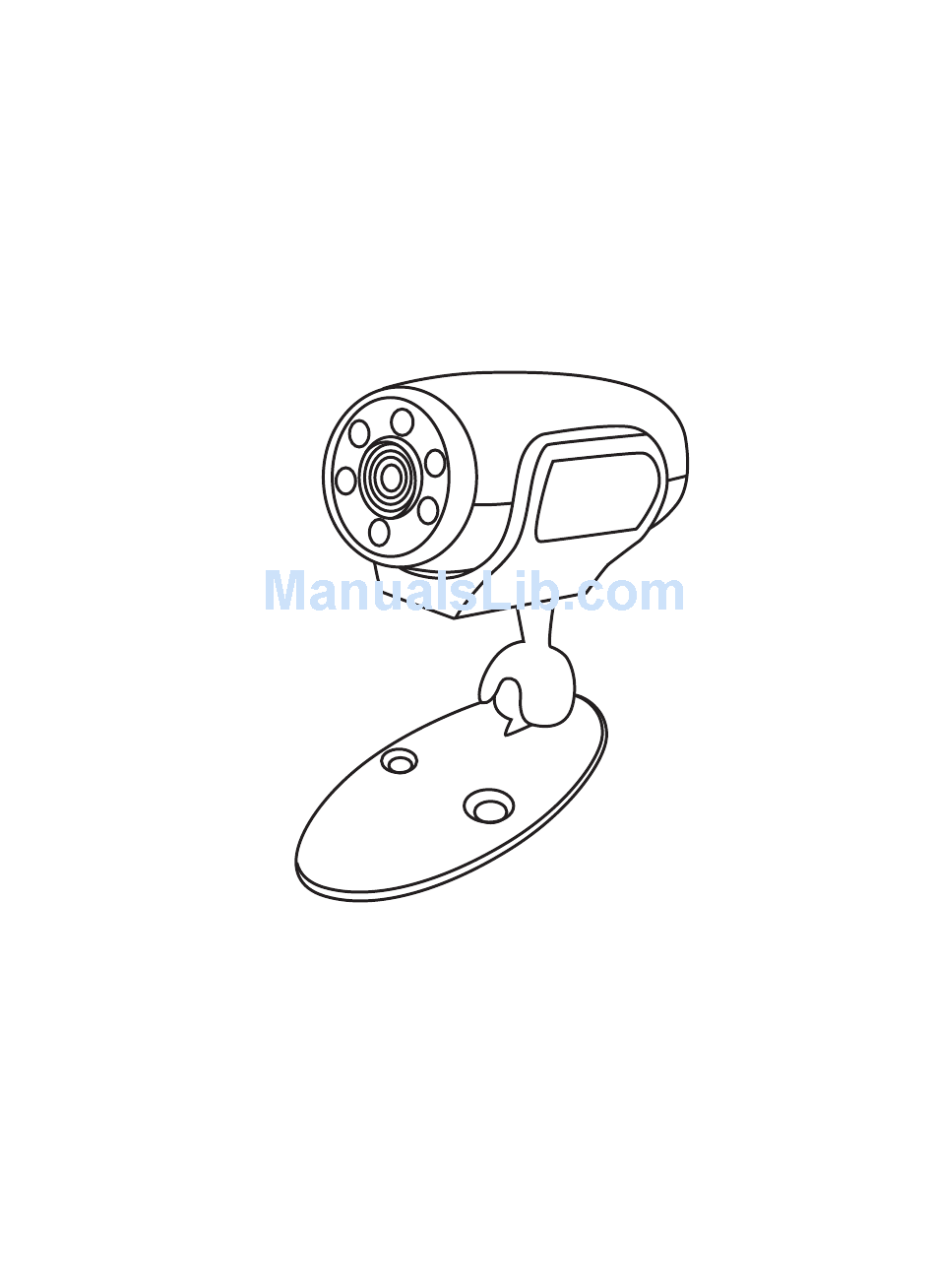

Page 1: User Manual
Smallest HD WiFi Camera User Manual... -
Page 2: Table Of Contents
Content introduction Instructions Product accessories Structure App download Camera hardware installation APP installation quick guide APP menu explanation Trouble shooting Product specification Indicators status... -
Page 3: Introduction
introduction Welcome! Thank you for choosing our product. It is a camera that could see your next room directly/locally. And once connected with your WiFi network (router), you could see it from anywhere in the world with internet access. To help the users we especially creat a installation video demo in the disk included in the package. -
Page 4: Instructions
Safety instructions Please read these instructions before using the product. Since this product is controlled by a microcomputer chip, it is normal that system halt may occur if users operate it incorrectly. In this case, re-start the device. This product is neither waterproof nor dust proof, and therefore it can not be used outdoors or in adverse environment. - Page 5 Safety instructions Unauthorized dismantlement of the device or replacement of device parts is forbidden. The manufacturer will not be responsible for any loss arising from such actions. Do not put the device into fire, oven or microwave oven, in order to avoid explosion.
-
Page 6: Product Accessories
Product accessories Cam*1 Adapter*1 Screws*2 User manual*1 Micro SD card Installation (Optional) demo cd*1 5m DC cable (Optional) -
Page 7: Structure
Structure Night lights Lens LUX sensor Universal shaft Screw hole The magnet bracket Power supply Switch OFF Micro SD slot Hang buckle Reset: Put a toothpick into it, hold on for a few seconds and camera will restart. Reset... - Page 8 Bracket structure...
-
Page 9: App Download
App download please search in Google Play or App store for ”Mini WiFi cam”, which is something as belowing. Mini WiFi Cam Android... -
Page 10: Camera Hardware Installation 1
Camera hardware installation 1. Fasten the mounting brackets with the supplied screws, and place the unit into the mounting brackets.The magnet bracket could be easily installed onto any iron surface The magnet iron a.Screw to install on b.Built-in magnet adsorption the wall 2. -
Page 11: App Installation Quick Guide 1
APP installation quick guide Step 1(App download): Download APP ”Mini WiFi Cam”onto your device. Mini WiFi Cam Step 2(Change Smartphone's WiFi to the camera): Change your Wifi connection to “IPCAM_XXXXXX”, (XXXXXX are 6 digits of letters and numbers”... - Page 12 APP installation quick guide Android or IOS...
- Page 13 APP installation quick guide Step 3(Install local : Open the App “Mini WiFi Cam” and choose “click here to add camera”, “Auto search”, “Camera found”. And if you do not have WiFi network, installation is done. And you could see the next room directly. Click here to add camera Android or IOS...
- Page 14 APP installation quick guide Auto search Manually add Android or IOS...
- Page 15 APP installation quick guide IPC-E8ABFA2E8062 RCAM-007250-NZCZS Android or IOS...
- Page 16 APP installation quick guide IPC-E8ABFA2E8062 RCAM-007250-NZCZS Android or IOS Through WiFi hotspot...
- Page 17 APP installation quick guide Step 4(Connect with your router for network viewing): Click the GEAR and choose settings, WiFi Settings and choose your WiFi name. Input the password (The correct password is important) to choose ”save”, and the camera will reboot. After 1-2 minutes the installation is totally finished.
- Page 18 APP installation quick guide Android or IOS...
- Page 19 APP installation quick guide User Settings Wifi Settings Mail Settings Alarm Settings Restore default Android or IOS...
- Page 20 APP installation quick guide Chose your own wifi Android or IOS...
- Page 21 APP installation quick guide Android or IOS...
- Page 22 APP installation quick guide Android or IOS...
- Page 23 APP installation quick guide Android or IOS...
- Page 24 APP installation quick guide Android or IOS...
- Page 25 APP installation quick guide Android or IOS...
- Page 26 APP installation quick guide Android or IOS See it from worldwild...
-
Page 27: App Menu Explanation
APP menu explanation Add new camera Camera added Settings All cameras added Recorded files System Settings... - Page 28 APP menu explanation Snapshot Video recording TV mode/resolution Two-way talking (not applicable) Audio from camera...
- Page 29 APP menu explanation enter settings Set camera time same as mobile Edit camera information delete present camera...
- Page 30 APP menu explanation Set user account and password Set WiFi network Set email alarm User Settings upon motion Wifi Settings Motion alarm settings Mail Settings Alarm Settings Restore default Restore default...
-
Page 31: Trouble Shooting 3
Trouble shooting 1. What is the wifi range? So can I view while i m at work from my phone? My work is 20miles away. No problem for 20 miles!Once installed it as network camera, you could see it from anywhere in the world. - Page 32 Trouble shooting 4. How if I can’t install it successfully, or there is some problem of my camera? It is suggested to reset the camera, delete it from APP and re-install it. And do the samething as the installation video is also important. 5.
- Page 33 Trouble shooting 6. Does the cam support RTSP or onvif? This cam doesn't support RSTP or Onvif.
-
Page 34: Product Specification
Product specification Install Wi-Fi Camera SPECIFICATIONS Sensor Type 1/4" CMOS Display Resolution 1.0 Mega Pixels(1280*720) Image User need to choose the suitable solution, and keep it as default. 25fps Frame Rate 0Lux(With IR Illuminator) Minimum Illumination Lens Type Pinhole Lens Diagonal Angle of View Night Vision MAX 6-10m... - Page 35 Product specification Install Wi-Fi Camera SPECIFICATIONS UPnP Built-in DDNS Server Software Browser Supported IE7-IE10 Features OS Supported Windows,iOS Infrared Mode Automatic Day/Night One Way Audio Built-in Microphone External Microphone Input Audio Built-in Speaker External Speaker Output Waterproof Dimensions(mm) 64*31*63 Net Weight Power Adapter Power Consumption <5W...
-
Page 36: Indicators Status
Indicators status Install Wi-Fi Camera Led color Status Meaning Charging battery Full charged Not recording Blue In recording Good internet connection Yellow No internet connection flasing...
