Summary of Contents for Soundstream MTR-25-10W-RGBW
-

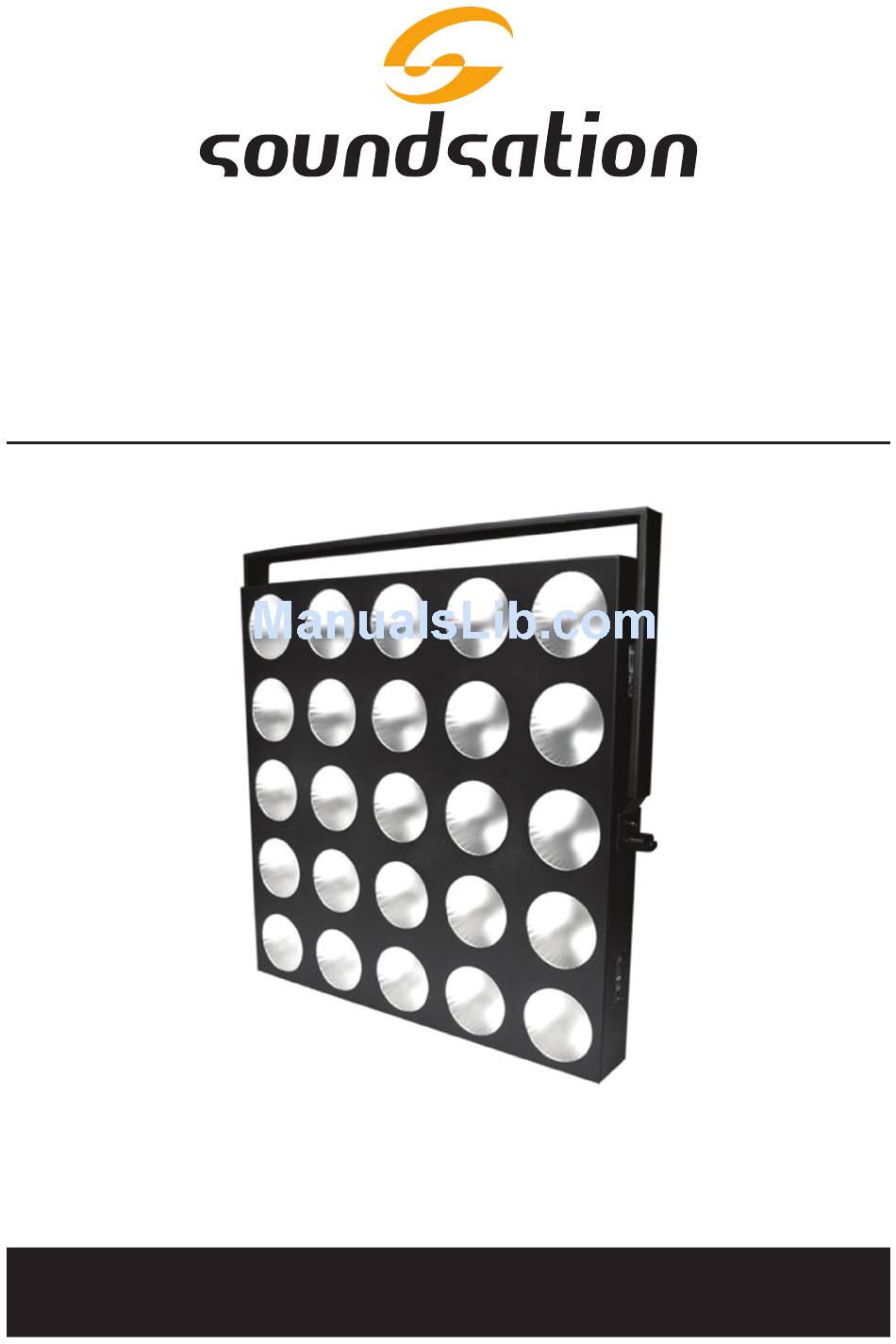

Page 1: User Manual
MTR-25-10W-RGBW 25 X 10W RGBW 4IN1 LED Slim MA TRIX BLINDER USER MANUAL Please read this manual carefully and proper take care of this manual... - Page 2 ENGLISH...
- Page 3 ENGLISH Dear customer, First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument and professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible improvements to introduce in the next future.
-
Page 4: Important Safety Instructions
ENGLISH IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating condi- tions, which may be sufficient to constitute the risk of electric shock or death. The symbol is used in the service documentation to indicate that spe- cific component shall be replaced only by the component specified in that documentation for safety reasons. -
Page 5: Power Supply
ENGLISH adjacent surfaces. Be sure that no ventilation slots are blocked. Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety. Power Cord and Plug Protect the power cord from being walked on or pinched particularly at plugs, conve- nience receptacles, and the point where they exit from the apparatus. -
Page 6: Table Of Contents
ENGLISH MTR-25-10W-RGBW User manual TABLE OF CONTENTS 1. PRODUCT SPECIFICATION ..................7 2. SETUP ........................8 2.1. Installation ..........................8 2.2. Module Mechanical Connection ....................9 2.3. Connections ........................11 3. LED DISPLAY ......................13 3.1. LED display function......................13 3.2. Display function description....................15 4. DEVICE USE AND SETTING .................17 4.1. -
Page 7: Product Specification
ENGLISH MTR-25-10W-RGBW User manual PRODUCT SPECIFICATION f Light source: 25 x 10W RGBW 4in1 High Brightness LED f Pixel by pixel control, delivering versatile effects f Coupling system cabinet to create structures with more units (max 4x4 = 16 units) -
Page 8: Setup
ENGLISH MTR-25-10W-RGBW User manual 2. SETUP 2.1. Installation Pay attention to safety! Please respectively consider the EN 60598-2-17 and the national standard during the installation. The authorized dealer must only carry out the installation. The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming demolition. -
Page 9: Module Mechanical Connection
ENGLISH MTR-25-10W-RGBW User manual inflammable material (decoration articles, etc.) within a distance of minimum 0.5 meter. 2.2. Module Mechanical Connection Each module can be used either individually or in blocks of several modules. In the case of Master/Slave mode, the maximum number is 16; in the case of external com-... - Page 10 ENGLISH MTR-25-10W-RGBW User manual Multiple Module Use Each module, in addition, is equipped with 4 rotatable hooks (1 to 4 in the figure) which can be hooked to 4 pins (5 to 8). Bracket In this way, each module can be easily fixed to another by simply turning the 4 hooks with a hex key.
-
Page 11: Connections
ENGLISH MTR-25-10W-RGBW User manual 2.3. Connections 3.2.1 Mains Connections Connect the device to the mains with the power-plug. The wire correspondence is as follow: Cable International Brown Live Blue Neutral Yellow/Green Earth The earth must to be connected! Pay attention to safety! In case of a large number of units, it is advisable to use a three-phase mains connec- tion and distribute the modules in equal parts on the three lines. - Page 12 ENGLISH MTR-25-10W-RGBW User manual If you are using a DMX controller, you can connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain. 3.2.3. Building a Serial DMX Chain Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture.
-
Page 13: Led Display
ENGLISH MTR-25-10W-RGBW User manual 3. LED DISPLA Y DISPLA Y SLAV E SOUND MASTER menu enter Item Display Function MENU Enter the menu DOWN Next the menu Button: Previous menu ENTER Enter the select function DMX mode,If received the DMX signal,... - Page 14 ENGLISH MTR-25-10W-RGBW User manual...
-
Page 15: Display Function Description
ENGLISH MTR-25-10W-RGBW User manual 3.2. Display function description - DMX512 Address Setting Chose , press ENTER button to confirm. Press UP/DOWN button to initial ad- dress, and press ENTER button to save, Wait 10seconds or press MENU long time to return to main menu. - Page 16 ENGLISH MTR-25-10W-RGBW User manual Wait 10seconds or press MENU long time to return to main menu. - LED display Choose , press ENTER button to confirm. Press UP/DOWN button to choose (light on) or (light off) mode. After chosen, press ENTER button to save.
-
Page 17: Device Use And Setting
ENGLISH MTR-25-10W-RGBW User manual 4. DEVICE USE AND SETTING 4.1. 1pc use and display settings Press MENU button to (master/slave mode), choose and confirm (master mode), then press MENU button to (show mode), choose and confirm (1 or 2pc device show mode). After 10 seconds or press MENU long time to return to main menu. -
Page 18: 16Pcs Use And Display Settings
ENGLISH MTR-25-10W-RGBW User manual long time to return to main menu. Second device setting: press MENU button to (master/slave mode), choose and confirm (slave2 mode). After 10seconds or press MENU long time to return to main menu. Third device setting: press MENU button to... -
Page 19: Led Operation
In the case of large-scale performances with ledwalls composed of many SOUNDSA- TION MTR-25-10W-RGBW units where you are willing to control each pixel, you must have a DMX controller or a DMX Lighting Control Software (not included) able to man- age a large number of channels simultaneously. - Page 20 - consult with the software seller). Connect the control box to mains. Connect the DMX outputs to all MTR-25-10W-RGBW according to the number of de- vices and the following instructions: f Set all modules We take 75CH channel mode as shown in “2.
- Page 21 76, and so on. How to install the device and how many piece should to use, is according your need. In the case of 8 DMX512 outputs you can use maximum 48pcs of MTR-25-10W-RGBW modules with 75CH setting and create excellent graphic effects!
-
Page 22: Channel Modes
ENGLISH MTR-25-10W-RGBW User manual 5. CHANNEL MODES 5.1. 1CH Mode Channel Value Value Function Function Show 9 000-007 128-142 008-022 Show 1 143-157 Show 10 023-037 Show 2 158-172 Show 11 038-052 Show 3 173-187 Show 12 053-067 Show 4... -
Page 23: 25Ch Mode
ENGLISH MTR-25-10W-RGBW User manual 000-009 130-139 010-019 140-149 020-029 150-159 030-039 160-169 040-049 170-179 050-059 180-189 Letter 128-187 show 060-069 190-199 Start mode 070-079 200-209 080-089 210-219 090-099 220-229 100-109 230-239 110-119 240-249 120-129 250-255 000-016 Effect 1 136-152 Effect 9... -
Page 24: 75Ch Mode
ENGLISH MTR-25-10W-RGBW User manual CH15 000-255 Fifteenth LED color choose CH16 000-255 Sixteenth LED color choose CH17 000-255 Seventeenth LED color choose CH18 000-255 Eighteenth LED color choose CH19 000-255 Nineteenth LED color choose CH20 000-255 Twentieth LED color choose... -
Page 25: Warranty And Service
ENGLISH MTR-25-10W-RGBW User manual 6. W ARRANTY AND SERVICE All SOUNDSATION products feature a limited two-year warranty. This two-year warranty is specif- ic to the date of purchase as shown on your purchase receipt. The following cases/components are not covered from the above warranty: •... -
Page 26: Warning
7. W ARNING PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only This symbol indicates that this product is not to be disposed of with your household waste, accord- ing to the WEEE Directive (2202/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one- for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (WEEE). - Page 27 ENGLISH This product is imported in EU by Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation®...
- Page 28 www.soundsa tionmusic.com Ver 1.0 - Oct. 2016...
