Display/Hide Data in Radar View

Use the instructions in this section to select how much data is displayed on the Radar View.
Open the Presentation Menu
1. Radar X-Press Menu: With a Radar View displayed on the screen, press the MENU key.
2. Select Presentation.
3. Use the Cursor Control key to select On (visible) or Off (hidden) for the menus shown below.
Range Rings
Bearing Scale
Heading Vector
Gain Gauge
presentation
menu options
Display or hide range rings, which show the estimated range to a target. The displayed range
rings are determined by the selected transmission range setting. To set the transmission range,
see Configure the Radar Settings.
Display or hide the bearing scale, which provides the compass direction from the vessel to a
target.
Display or hide the heading line.
Display or hide the selected Gain settings.

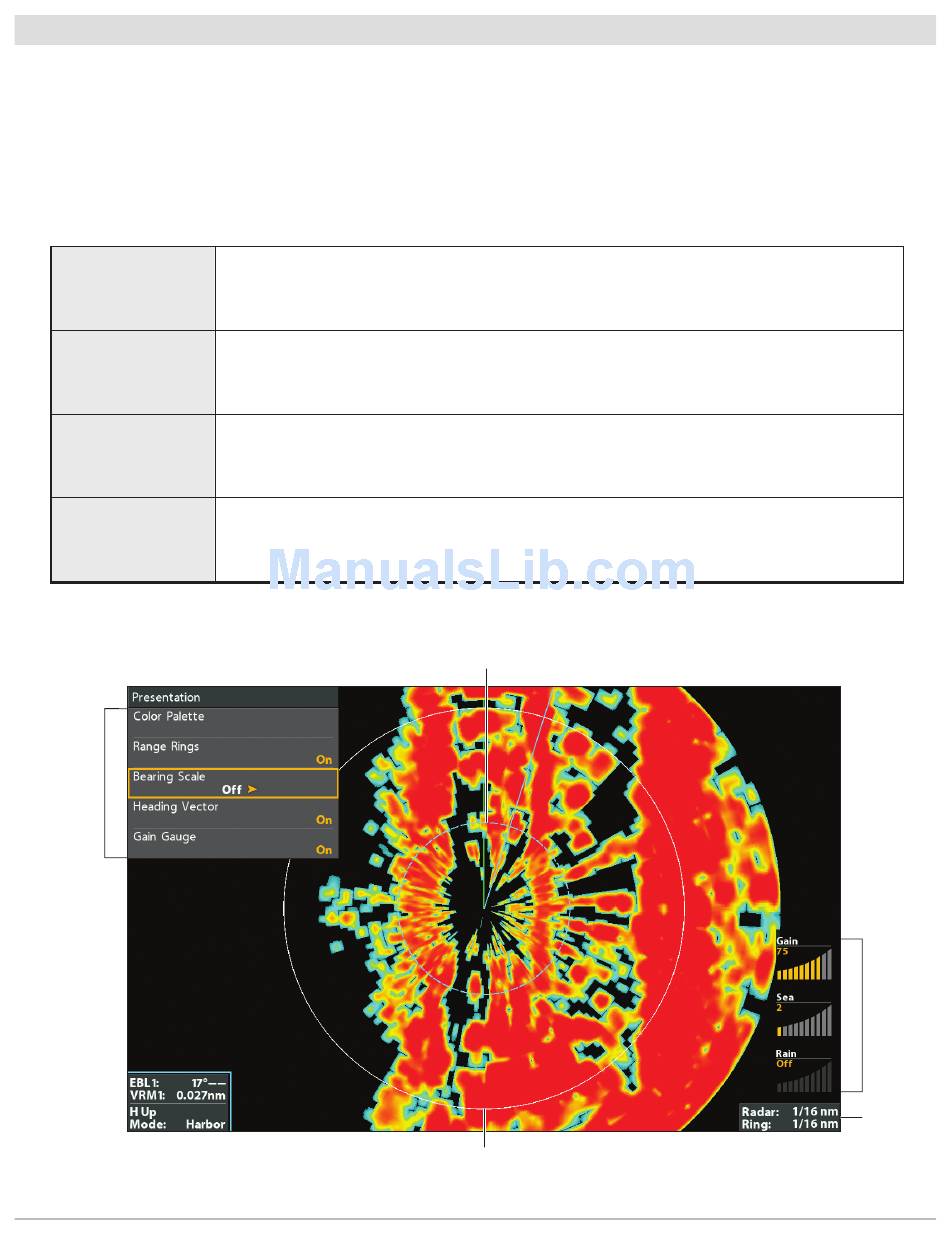

Changing the Radar View Display Settings
range rings
bearing scale set to hidden
17 Customize the Radar Display Settings
gain gauge
radar range
