Page 1: Installation Guide
Installation guide Invisible Loudspeakers ® THE INVISIBLE SPEAKER CO. V0.3 June 2016... -
Page 2: Table Of Contents
Distortion at higher volume levels ............13 Specifications ......................14 Mobius series - Plaster over products ........... 14 Amina Edge series - Plaster up to products ........14 Evolution series ....................15 iQ series ........................ 15 Warranty information ..................16 Copyright information .................. -
Page 3: Caution
When making an intrusion into an internal wall or ceiling to install an Amina loudspeaker be sure to check the appropriate regulations pertaining to the required fire rating. Depending on the location of the intrusion and the applicable... -
Page 4: Environmental
Environmental • Before installing, ensure that the building is environmentally sealed, de- humidified and at a stable temperature of at least 16 degrees centigrade (61 degrees Fahrenheit) • This product should not be used with single thick coat plaster solutions or with other finishing methods that take days (rather than hours) to dry out. -
Page 5: Message From The Managing Director
‘clutter’ from your audio system. incredible aesthetic quality, but for its’ absolute ability to reproduce sensationally At the heart of an Amina loudspeaker is our clear audio across any space. Amina high performance vibrational panel driver, has created the very best discrete audio... -
Page 6: Introduction
Please retain it in supplied with your mounting accessory. the unlikely event you need to return the product to your dealer or to Amina. Please recycle the packaging should you wish to dispose of it. The outer carton is made up of 80%... -
Page 7: Overview

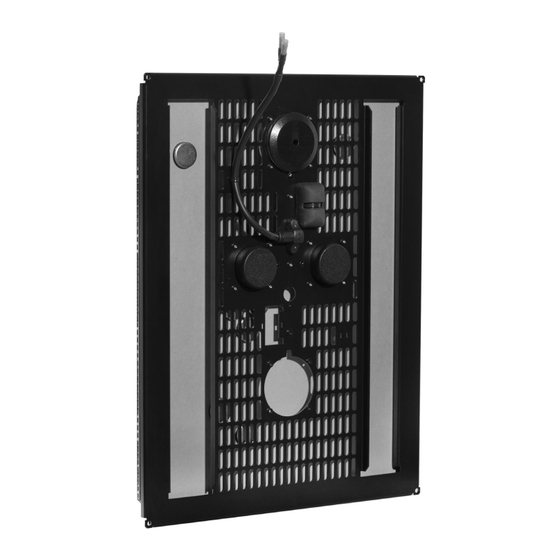

Overview Electrical connection (to an amplifier) 2. High power neodymium magnet structures 3. Active panel surface 4. Aluminium chassis The Overview image shows a Mobius7 loudspeaker with triple magnet structures. Other models may feature different numbers of magnet structures and electrical connectors. -
Page 8: Installation
IMPORTANT: Read this section carefully before attempting to install an Amina speaker. To avoid any possible damage to Amina invisible loudspeakers they must be mounted and connected using the correct accessories, supplied by Amina. The tables to follow list these accessories. -
Page 9: Speaker Protectors
An Amina speaker protector should be wired in-line with each Amina speaker, preferably in an accessible place, allowing this device to be replaced as necessary. -
Page 10: Setup Tips
In addition to the above characteristics, into adjacent rooms/properties (see inside the radiating surface of an Amina speaker front cover). is very stiff and undergoes very small Wall or Ceiling Placement amounts of movement in order to generate high sound pressure levels. - Page 11 This can be useful adjacent rooms needs to be minimised. when no additional bass enhancement unit Please talk to the Amina technical team for (e.g.. ALF40) or subwoofer (e.g. ALF80 or advice on reducing sound transmission as a ALF120) is used.
-
Page 12: Maintenance And Cleaning
If the product needs repairing, please return it to your supplier or Amina Technologies Ltd again leaving as much plaster on the panel surface as possible. Once repaired, the product can be refixed into position following appropriate installation steps detailed earlier within the manual. -
Page 13: Accessories
ALF120 Amina have developed an astonishing subwoofer technology dubbed ‘distributed transmission line’ (DTL), which allows the design of a subwooder thin enough to be... -
Page 14: Troubleshooting
If so, the product may need rattles at appropriate levels. Using test to be returned to Amina for repair or discs or music, confirm that all channels replacement. are in-phase. -
Page 15: Distortion, Buzzing Or Rattles At Modest Volumes
This may indicate the speaker has been are tight. over driven and subsequently damaged. The speaker will need to be sent to Amina • If the rattle persists, remove the for repair. speaker from the wall and check your wiring to the product. -
Page 16: Specifications
87dB (@1m/2.83Vrms) APUi50 APUi70 In-line protection unit (single channel) In-line protection unit APU-RS8i/ APU-RS16i (multi-channel) Fixing requirement Amina BackboxCV345 / BackboxSW345 / Basic fixing kit Power handling (continuous) 100W 150W Power handling (peak) Operating temperature 16°C - 40°C range Manufacturer warranty... -
Page 17: Evolution Series
In-line protection unit APUi10 APUi10 APUi30 (single channel) In-line protection unit APU-RS8i/ APU-RS16i (multi-channel) Fixing requirement Amina BackboxCV300 / BackboxSW300 / Firehood 2 x 15W Power handling (continuous) Power handling 2 x 30W (peak) Operating temperature 16°C - 40°C range... -
Page 18: Warranty Information
At the end of the speaker’s useful life and in compliance with the European directive on waste electrical and electronic equipment (WEEE), this product is to be returned to your supplier, or directly to Amina for recycling. If you have any questions please contact Amina Technologies Ltd. -
Page 19: Contact Information
Contact information Amina Technologies Ltd North America Cirrus House, Glebe Road Direct 503.256.2600 Huntingdon, Cambs, PE29 7DL England Toll free 1-800.666.6316 T: +44 1480 354390 503.256.5966 E: inspired@amina.co.uk E: salesna@amina.co.uk W: www.amina.co.uk... - Page 20 ® THE INVISIBLE SPEAKER CO. Amina Technologies Ltd Cirrus House, Glebe Road Huntingdon, Cambs, PE29 7DL England T: +44 1480 354390 W: www.amina.co.uk / E: inspired@amina.co.uk Copyright 2016 Loudspeakers V0.3...
