Summary of Contents for Montarbo W22As

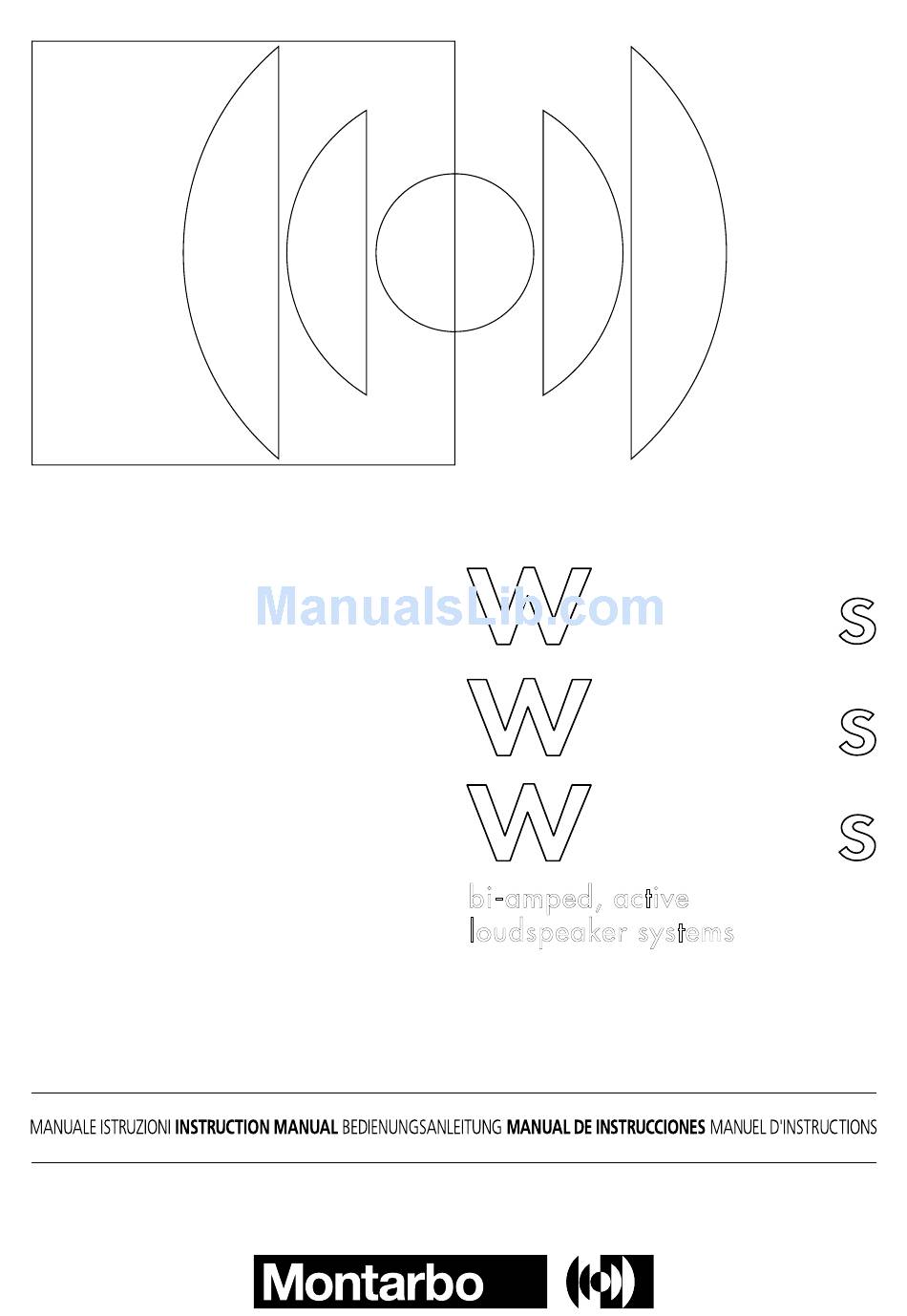

- Page 1 bi-amped, active loudspeaker systems...
- Page 2 Connettore PowerCon ® Per qualsiasi intervento di manutenzione o riparazione, rivolgetevi alla Elettronica Montarbo srl e/o a personale altamente qualificato specificamente segnalato da questa. Cavo XLR - XLR (per collegamento al mixer) ...
- Page 3 2" in neodimio; bobina mobile Pratiche maniglie laterali per il trasporto. (da 4" per W28As, da 3" per W24As e W22As ) in piattina di Pannello controlli e connessioni. alluminio, centratore in kapton, diaframma in titanio.
- Page 4 Pannello controlli e connessioni Il pannello controlli e connessioni è uguale per tutti e tre i modelli. 1 I sistemi acustici W28As, W24As e W22As sono dotati di prese XLR maschio (OUT) e femmina (IN) collegate in parallelo: ciò semplifica il collegamento di più...
- Page 5 XLR bilanciati. tipiche, prestare la massima attenzione alla collocazione dell'apparec- Se il mixer ha uscite sbilanciate XLR e non è un Montarbo: è bene chio onde evitare che il pubblico, i musicisti, i tecnici o chicchessia accertarsi che le uscite XLR del mixer siano sbilanciate a norme IEC 268 e possa poggiarvi sopra bicchieri, tazze, contenitori di cibo o di bevande, cioé...
- Page 6 VU-meter non oltrepassi mai il livello della sensibilità di ingresso della cassa amplificata o del finale di potenza. Nel caso dei modelli W28As, W24As e W22As la sensibilità di ingresso è 0dB .
- Page 7 bi-amped, active loudspeaker systems Importante ! Cablaggio del cavo di alimentazione sul 20 mm connettore PowerCon (fornito con l'apparecchio). ® 8 mm Spelare il cavo per una lunghezza di 20 mm ed ogni singolo filo per una lunghezza di 8 mm. Consigliamo l'utilizzo di un cavo di alimentazione con conduttori aventi sezione di almeno 1,5 ÷...
-
Page 8: Table Of Contents
remove the rear panel. For maintenance and servicing always PowerCon ® connector refer to the official Montarbo Distributor in your Country or to qualified personnel specifically authorised by the Distributor. XLR to XLR cable (for connection to the mixer) ... -
Page 9: Introduction
W24As 800 + 250 W continuous, 1100 + 350 W peak W22As 600 + 250 W continuous, 850 + 350 W peak Each system is equipped with: Two independent processors optimize the dynamic range ... -
Page 10: Control And Connection Panel
ìpower amplifiers to adapt them to the output level of the mixer. 3 High frequencies level control (H.F.). Note: if you are using a Montarbo mixer (or any mixer having an output level of 0dB) for optimum performance it is advisable to set both controls fully clockwise (to their maximum settings). -
Page 11: Important
If the mixer has XLR unbalanced outputs: in this case, unless using enclosure. a Montarbo mixer, make sure that the XLR outputs on the mixer are • Always leave the protective grid mounted on the enclosure. unbalanced to IEC 268 standard 1 = GND, 2 = HOT, 3 = GND. - Page 12 VU-meter. stressful, adverse conditions. In models W28As, W24As and W22As the input sensitivity is 0dB. Always consider the effect of additional loads (for example, the wind in case of outdoor installations).
- Page 13 bi-amped, active loudspeaker systems Important ! Wiring of the power cable for the PowerCon 20 mm ® connector (supplied with the unit). 8 mm Strip the cable for 20 mm of length and strip each wire for 8 mm of length.
-
Page 14: Appendix
bi-amped, active loudspeaker systems APPENDIX __________________________________________ Technical Specifications Dati tecnici, Technische Daten, Spécifications techniques, Datos técnicos __________________________________________ Response curve Curva di risposta, Frequenzkurve, Courbe de réponse, Curva de respuesta __________________________________________ Block diagram Schema a blocchi, Blockdiagramm, Schéma, Esquema de bloques __________________________________________ Connectors Connettori, Anschlüße,... -
Page 15: Specifications
Specifications Speaker system W28As: 2-way bass reflex W24As: 2-way bass reflex W22As: 2-way bass reflex • Components: custom designed to Montarbo specs custom designed to Montarbo specs custom designed to Montarbo specs - bass frequencies 2 x 15" neodymium magnet woofers 2 x 12"... -
Page 16: Response Curve
Response curve W28As W24As W22As APPENDIX... - Page 17 bi-amped, active loudspeaker systems Connectors balanced Male connectoR 1 GND Ground balanced FeMale Cold socket (IEC 268 standard) LINK VOL. PUSH PUSH XLR BAL. NEUTRIK NEUTRIK 1 = GND balanced 2 = HOT Male socket 3 = COLD ( 10K 0,775V RMS ) balanced FeMale...
-
Page 18: Connection Examples
Parallel connection (W28As, W24As, W22As) Mixer ‘L/R’ outputs ➟ W28As or W24As or W22As inputs W28As or W24As or W22As outputs ➟ W28As or W24As or W22As inputs W28As or W24As or W22As OUT W28As or W24As or W22As IN... - Page 19 W24As or W22As + two BX182 active subwoofers Mixer ‘L/R’ outputs ➟ 'R/mono' inputs of two BX182 'R' x-over output of each BX182 ➟ input of one W24As or W22As output of one W24As or W22As ➟ input of another W24As or W22As...
- Page 20 bi-amped, active loudspeaker systems Connection examples two W28As or W24As + two BX182 active subwoofers Mixer ‘L/R’ outputs ➟ 'R/mono' inputs of two BX182 'R' x-over output of each BX182 ➟ input of one W28As or W24As LINK VOL. H.F. PUSH XLR BAL.
-
Page 21: Spare Parts
bi-amped, active loudspeaker systems Spare parts W28As B01W242 A300212 Recessed ring Constant directivity, high frequency horn A300599 2" neodymium driver B01W240 / B01W241 Fly-track suspension system D52W280 Amplifier chassis: D00S28J A300A16 Pre-amp 15" neodymium magnet woofer D10W28W Filter D00W18F A088675 / A088677 Power amp. - Page 22 bi-amped, active loudspeaker systems Spare parts W24As B01W242 Recessed ring A300212 Constant directivity, high A300602 frequency horn 2" neodymium driver B01W240 / B01W241 D52W240 Fly-track suspension system Amplifier chassis: D00S24J Pre-amp A300080 12" neodymium magnet D10W24W woofer Filter D00W18F A088675 / A088677 Power amp.
- Page 23 B010023 B005148 Speaker stand adaptor Power transformer W22As - Parti di Ricambio, Ersatzteile, Piéces de rechange, Piezas de Repuesto: A300598: D52W220: Driver da 2" in neodimio / 2" Neodymium-Treiber / Driver de 2" en Telaio amplificatore / Verstärkerchassis / Châssis d’amplificateur neodyme / Driver de 2"...
- Page 24 Elettronica Montarbo srl no puede ser La Elettronica Montarbo srl non può essere Elettronica Montarbo srl ne peut être considerada responsable de daños que ritenuta responsabile per danni o incidenti a consideré...
