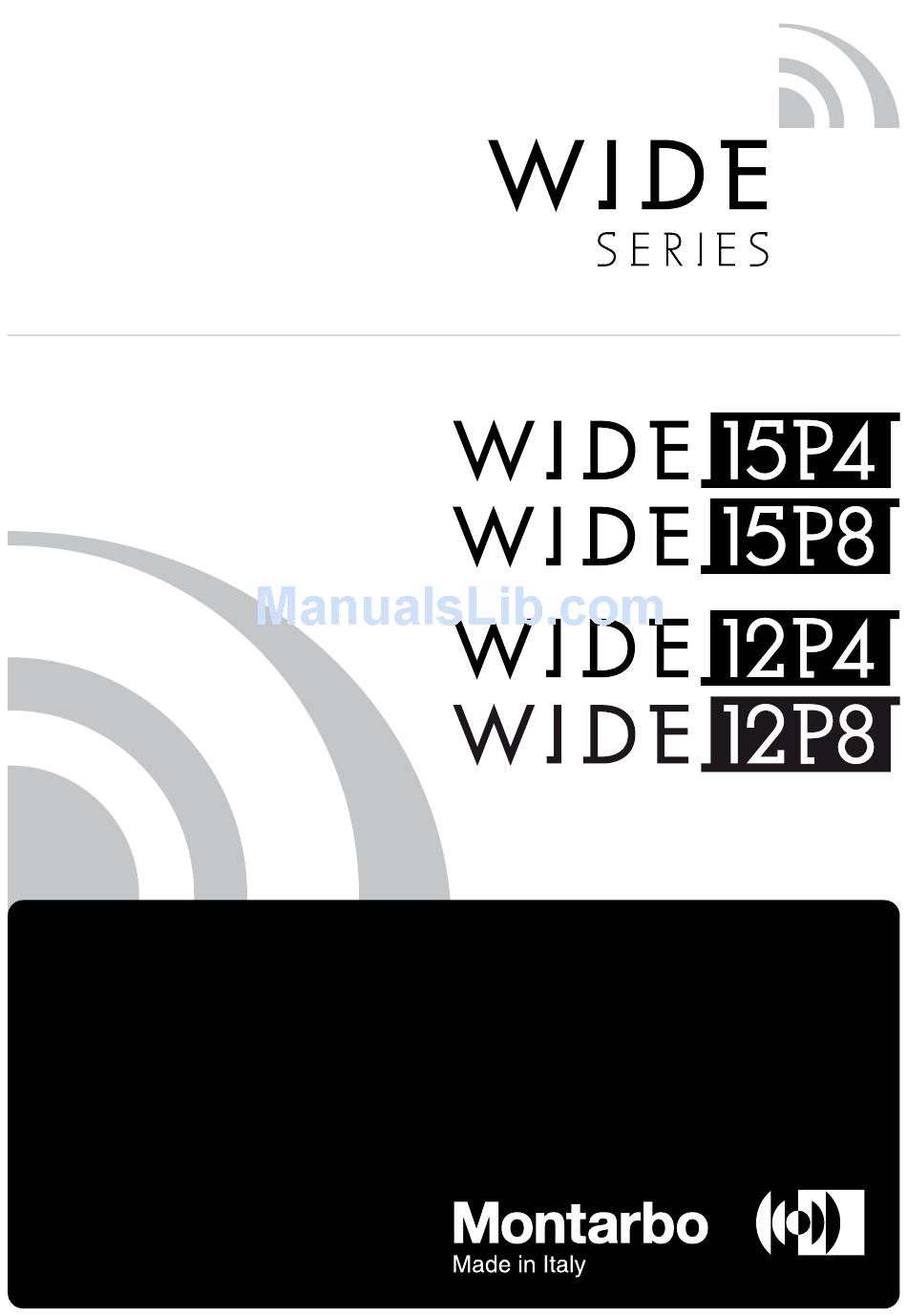

- Page 1 PROFESSIONAL LOUDSPEAKER SYSTEM manuale utente - user's manual...
- Page 2 To prevent fire and/or electrical shock, never disassemble it or remove the rear panel. For maintenance and servicing always refer - WIDE15P4/WIDE15P8 or WIDE12P4 /WIDE12P8 to the official Montarbo Distributor in your Country or - Owner’s manual to qualified personnel specifically authorised by the Distributor.
-
Page 3: Introduction And Applications
WIDE12P4) or eight 8-ohm systems (WIDE15P8 or WIDE15P8). The factory presets of the internal controller include those designed for the WIDE series speaker systems in a variety of different applications (front-of-house or stage monitor) and configurations (stereo system or 4 independent channels). -
Page 4: System's Description

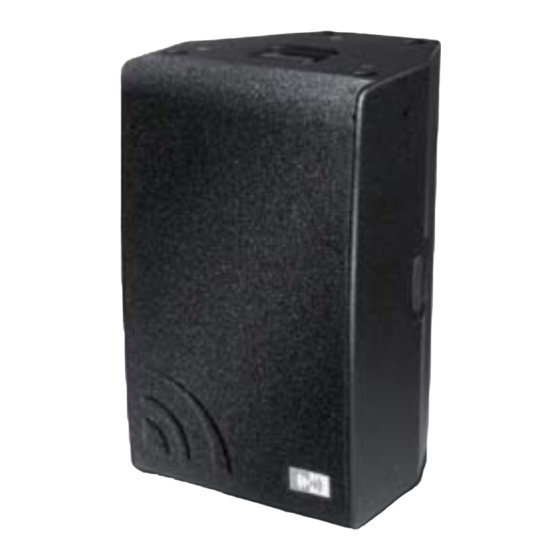

user's manual 2 - SYSTEM'S DESCRIPTION a - WIDE15P: compression driver (1.4" throat, 2.5" voice coil) featuring a neodymium magnet and titanium diaphragm and loaded by a 80°x 60° wave-guide horn. WIDE12P: compression driver (1" throat, 2.5" voice coil) featuring a neodymium magnet and titanium diaphragm and loaded by a a 80°x 60°... -
Page 5: Installation And Wiring
user's manual 3 - INSTALLATION AND WIRING 3.1 - INSTALLATION Make sure that the installation position is a protected one so that the cables cannot be trampled or tripped on. Make sure that the shape and load rating of the mounting surface are suitable for a safe installation. -
Page 6: Product Care And Maintenance
• Always leave the protective grille mounted on the that is within the allowed range for all power amplifiers enclosure. and powered mixers manufactured by Montarbo and by most other manufacturers. For 3 parallel connected • Take care of your connecting cables. -
Page 7: Technical Data
Information on Disposal for Professional Users In the European Union: If the product is used for business purposes and you want to discard it: please contact your Montarbo dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. - Page 8 user's manual 6 - APPLICATIONS EXAMPLE 1: MBR12FXP Powerd mixer and 2 WIDE15P4 / WIDE12P4 systems INS L INS R LEFT RIGHT STEREO RET FT SW TAPE IN TAPE OUT CTRL ROOM TAPE PHONES STEREO RET CTRL ROOM FX1/FX2 LOAD SELECTION S E R I E S MASTER...
- Page 9 user's manual EXAMPLE 3: STAGE MONITOR system with PLM3000 powered processor and 4 WIDE 15P4 / 12P4 systems (PLM3000 preset # 5) PLM3000 EXAMPLE 4: stereo F.O.H system with PLM3000 powered processor and 4 WIDE 15P4 / 12P4 systems (PLM3000 preset # 6) PLM3000...
- Page 10 Siamo a vostra disposizione per fornirvi eventuali ulteriori informazioni e consigli. La Elettronica Montarbo srl non può essere ritenuta responsabile per danni o incidenti a cose o persone, causati o connessi all’utilizzazione o malfunzionamento dell’apparecchio.
