107B3 Product Information
• Relative humidity
* Resolution 1024 x 768, standard size, contrast max., brightness 50%, 9300
* These information are subject to change without notice.

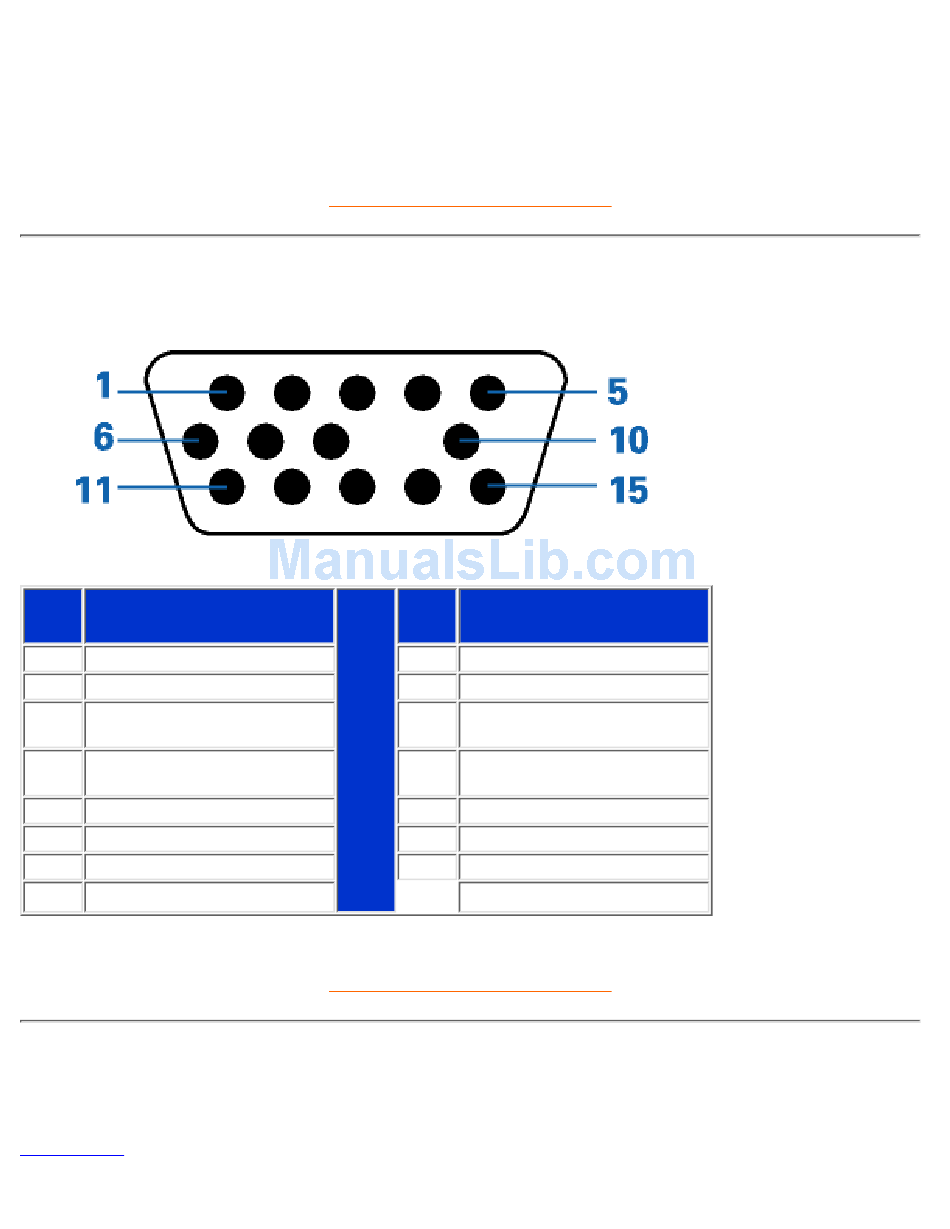

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
Assignment
No.
1
Red video input
2
Green video input
3
Blue video input
Identical output - connected
4
to pin 10
5
Ground
6
Red video ground
7
Green video ground
8
Blue video ground
Views
Follow the links to see various views of the monitor and its components.

Front View

file:///D|/rita/LF2/LF2/LFa1/multi_manual/english/107B3/PRODUCT/PRODUCT.HTM (11 of 12) [8/29/2001 2:47:29 PM]
5% to 95%
°
, full white pattern.
RETURN TO TOP OF THE PAGE
Pin
Assignment
No.
9
No pin
10
Logic ground
Identical output - connected
11
to pin 10
12
Serial data line (SDA)
13
H. Sync / H+V
14
V. Sync (VCLK for DDC)
15
Data clock line (SCL)
RETURN TO TOP OF THE PAGE
