trk100/trk100d/trk200 Installation Manual
Item
AUDIO OUT
(RCA)
Grounding
Terminal
trk200 Back Panel
2.2.2.2

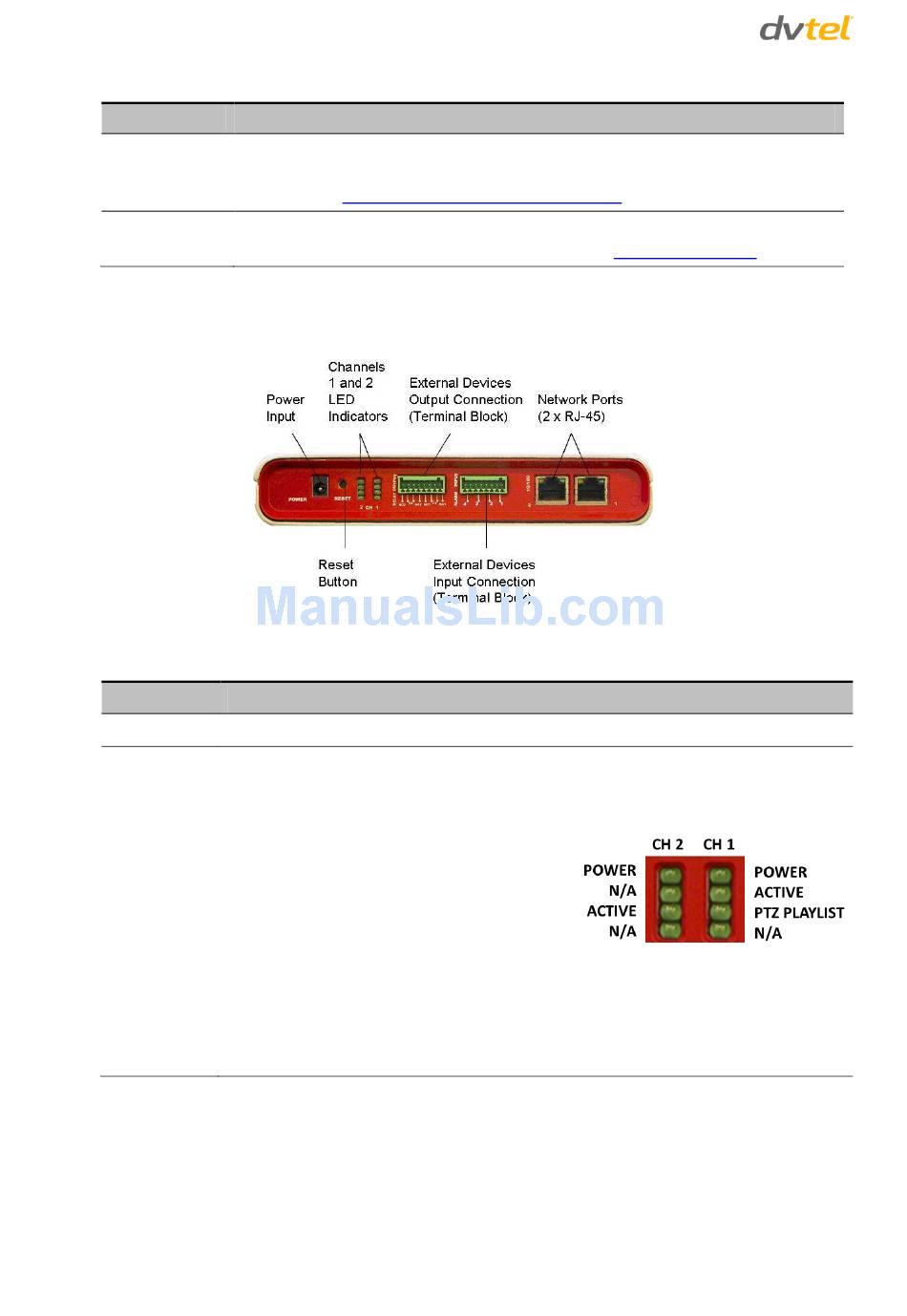

The following image shows the back panel of the trk200 unit.
The back panel of the unit includes the following connections:
Item
POWER
LED
Indicators
6
Description
Used for talking through a loudspeaker connected to the unit to people located
near the camera being monitored. One RCA connector is provided for each
channel. See Connecting a Loudspeaker to the Unit
For connecting the unit to the protective ground (earth) according to local
regulations and codes. For more information, see
Figure 7: trk200 Back Panel
Description
For powering the unit from a 12VDC power source.
The unit includes 4 LEDs per channel. Only the POWER, ACTIVE and PTZ PLAYLIST
LEDs are used on Channel 1. Only the POWER and ACTIVE LEDs are used on
Channel 2.
POWER Steady green LED
indicates power is on.
ACTIVE Flashing green LED
indicates the unit is
working properly on
the network.
PTZ PLAYLIST Flashing green LED if
(Channel 1) a PTZ playlist is
running (default is
OFF).
(page 14).
Grounding the Unit (page 10).
