trk100/trk100d/trk200 Installation Manual
trk100/trk100d Back Panel
2.2.1.2

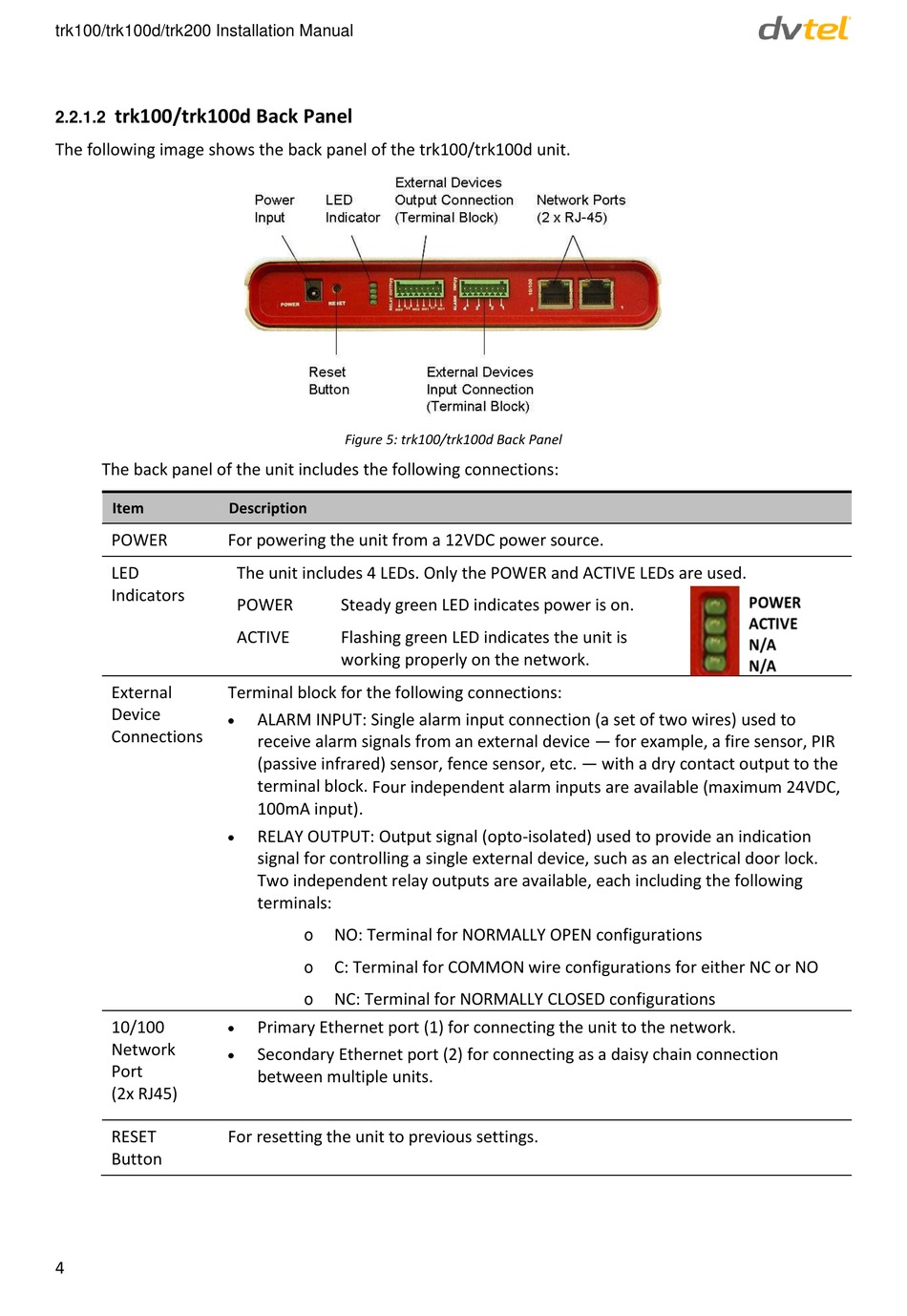

The following image shows the back panel of the trk100/trk100d unit.
The back panel of the unit includes the following connections:
Item
POWER
LED
Indicators
External
Device
Connections
10/100
Network
Port
(2x RJ45)
RESET
Button
4
Figure 5: trk100/trk100d Back Panel
Description
For powering the unit from a 12VDC power source.
The unit includes 4 LEDs. Only the POWER and ACTIVE LEDs are used.
POWER Steady green LED indicates power is on.
ACTIVE Flashing green LED indicates the unit is
working properly on the network.
Terminal block for the following connections:

ALARM INPUT: Single alarm input connection (a set of two wires) used to
receive alarm signals from an external device — for example, a fire sensor, PIR
(passive infrared) sensor, fence sensor, etc. — with a dry contact output to the
terminal block. Four independent alarm inputs are available (maximum 24VDC,
100mA input).

RELAY OUTPUT: Output signal (opto-isolated) used to provide an indication
signal for controlling a single external device, such as an electrical door lock.
Two independent relay outputs are available, each including the following
terminals:
NO: Terminal for NORMALLY OPEN configurations
o
C: Terminal for COMMON wire configurations for either NC or NO
o
NC: Terminal for NORMALLY CLOSED configurations
o

Primary Ethernet port (1) for connecting the unit to the network.

Secondary Ethernet port (2) for connecting as a daisy chain connection
between multiple units.
For resetting the unit to previous settings.
