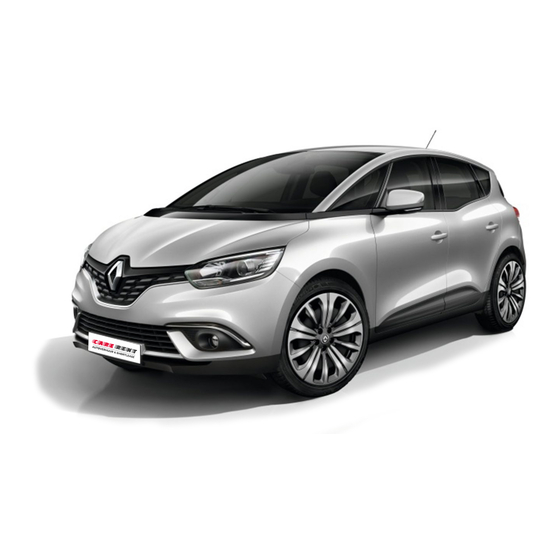

Page 1 Renault SCENIC Driver’s handbook...
Page 2 Renault cars. Lasting protection and optimum performance for your engine – guaranteed. Whether changing the oil or simply topping up, to find the approved ELF lubricant best suited to your vehicle, ask your Renault dealer for a recommendation or consult your vehi- cle maintenance handbook.
Page 3 This handbook may also contain information about items of equipment to be introduced later in the model year. Throughout the manual, the “approved Dealer” is your RENAULT Dealer. Enjoy driving your new vehicle.
Page 5 Sections Getting to know your vehicle ....... Driving ..............Your comfort ............Maintenance ............Practical advice ............ Technical specifications ........Alphabetical index ..........
Page 7: Table Of Contents
The RENAULT card: general information and use ........
Page 8: Key, Radio Frequency Remote Control: General Information, Use
KEY, RADIO FREQUENCY REMOTE CONTROL: general information (1/2) Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone on your vehicle, even for a short time. They may pose a risk to themselves or to others by starting the engine, 1 Locks all the opening elements.
Page 9 KEY, RADIO FREQUENCY REMOTE CONTROL: general information (2/2) Radio frequency remote control operating range This varies according to the surround- ings: take care not to lock or unlock the doors by inadvertently pressing the but- tons on the remote control. Replacement and additional keys or remote controls.
Page 10: Locking The Doors
RADIO FREQUENCY REMOTE CONTROL UNIT: use Note: The remote control A can be used to lock or unlock the doors and boot. With the engine running, the ignition It is powered by a battery which must switched on (refer to the information on be replaced (refer to the information on “Ignition switch: vehicles with a key”...
Page 11 RADIO FREQUENCY REMOTE CONTROL UNIT: deadlocking If the vehicle is equipped with a dead- locking function, this allows you to lock the opening elements and to prevent the doors from being unlocked using the interior handles (for example, by breaking the window and then trying to open the door from the inside).
Page 12: Battery Life
“Keycard battery low” appears on the instrument panel (refer to the informa- tion on the “RENAULT card: battery” in section 5). When the battery is flat, you can still lock/unlock and start your vehi- cle.
Page 13 (2/2) Advice Avoid leaving the card in hot, cold or humid areas. Do not keep the RENAULT card in a place where it could be bent or damaged accidentally, such as in a Driver’s responsibility back pocket of a garment.
Page 14 There are two ways to unlock/lock the vehicle: – the RENAULT card in “Hands-free” mode; – the RENAULT card in remote con- trol mode. Driver’s responsibility Never leave an animal, child or adult who is not self-sufficient alone in your Using the card in “hands-...
Page 15 Remote “Hands-free” locking proximately three seconds before it can be unlocked again. During these three With the RENAULT card in zone 1, With the RENAULT card on you, and seconds, the door handles can be tried place your hand on a door handle 2: the...
Page 16 Using the card as a remote ing lights and the side indicator lights system (continued) control will not flash. If the RENAULT card has been within Unlocking with the card RENAULT range for approximately 15 minutes, Press button 6. remote locking is disabled.
Page 17 RENAULT “HANDS-FREE” CARD: usage (4/4) Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone in your vehicle, even for a short time. They may pose a risk to themselves...
Page 18 RENAULT CARD: deadlocking If the vehicle is equipped with a dead- locking function, this allows you to lock the opening elements and to prevent the doors from being unlocked using the interior handles (for example, by breaking the window and then trying to open the door from the inside).
Page 19 If the remote control or, depending on the vehicle, the RENAULT card does not work In some cases, the radio frequency remote control or the RENAULT card may not work: – RENAULT card/radio frequency remote control battery worn or run flat, vehicle battery flat, etc.
Page 20 – Insert the key 2 into the lock and lock from the inside or by using the key in or unlock the front left-hand door. the front left-hand door. Once you are inside the vehicle, put the key back in its casing in the RENAULT card. 1.14...
Page 21 Unlocking the vehicle from the outside is only possible with the RENAULT card in the vehicle’s access zone or using Interior locking/unlocking the key.
Page 22: Opening And Closing The Doors
Pull on the handle 2. At a standstill, warning light 3 lights up on the instrument panel alongside With the doors unlocked or RENAULT warning light 4, indicating the opening card on you, hold handle 1 and pull it Lights-on reminder buzzer element(s) (door, boot) open or incor- towards you.
Page 23: Child Safety
OPENING AND CLOSING THE DOORS (2/2) Driver’s responsibility when parking or stopping the vehicle Never leave an animal, child or adult who is not self-suffi- cient alone on your vehicle, even for a short time. They may pose a risk to themselves or to others by starting the engine, Child safety activating equipment such as the...
Page 24: Automatic Locking When Driving
AUTOMATIC LOCKING WHEN DRIVING Activating/deactivating the Operating faults function If you experience an operating fault (no To switch it on: with the vehicle at a automatic locking, the indicator light in- standstill and the engine running, press corporated in switch 2 does not light up switch 2 until a beep sounds.
Page 25: Front Headrests
FRONT HEADRESTS To adjust side supports B Depending on the vehicle, sections B can be adjusted independently to the desired position. To remove the headrest Raise it to its highest position (tilt the seatback backwards if necessary). Press button 2 and lift the headrest to release it.
Page 26 FRONT SEATS WITH MANUAL CONTROL (1/3) To tilt the seatback Lift handle 3 and tilt the seatback to the desired position. Release the handle at the desired position and make sure that it is locked. Settings To move the seat forwards or back For safety reasons, make Lift and hold the handle 1 to unlock the these adjustments only...
Page 27 FRONT SEATS WITH MANUAL CONTROL (2/3) To adjust the seat’s lumbar position Heated seats Lower handle 4 to increase the support With the ignition on: and lift it to decrease it. – pressing the switch 5 on the required seat for the first time activates the heating system at maximum power.
Page 28 FRONT SEATS WITH MANUAL CONTROL (3/3) Repositioning the seat When using the passenger seat in table position, you must not use the two rear Make sure that nothing prevents the seats immediately behind it. seat from moving. It is essential to pull the handle 7 to raise the seatback.
Page 29: Adjusting The Lumbar Support
DRIVER’S SEAT WITH ELECTRIC CONTROLS (1/2) Adjusting the seatback To tilt the seatback, move the top of switch 2 forwards or backwards. Adjusting the lumbar support on the driver’s seat Move the switch 3 forwards, back- wards, up or down. For safety reasons, carry On equipped vehicles, switch 1 grants out any adjustments when...
Page 30: Heated Seats
DRIVER’S SEAT WITH ELECTRIC CONTROLS (2/2) Heated seats With the ignition on: – pressing the switch 6 on the rele- vant seat for the first time activates the heating system on high. Both in- tegrated switch warning lights come on. The system automatically de- cides whether or not the heating is needed;...
Page 31 FRONT SEATS: Functions (1/3) Browse menu “Driver” or “Passenger” Massage Driver Passenger – select the type of massage (Tonic, Massage Relaxing or Lumbar); – adjust the intensity (+ or -); – adjust the speed (+ or -); Relaxing Lumbar Tonic –...
Page 32 FRONT SEATS: Functions (2/3) Easy driver and passenger access Press “ON” or “OFF” to activate or de- Easy access driver activate this function. Easy access passenger When this function is activated, the seat moves backwards automatically as the Courtesy for passenger driver or passenger leaves the vehicle.
Page 33 The driving position includes all the electric settings for the seat base and seatback. The driving position can be stored and recalled by pressing the buttons: – RENAULT hands-free card detected; – when the driver’s door is opened. Recall Save Storing your driving position Recalling the driving position –...
Page 34: Seat Belts
SEAT BELTS (1/3) Always wear your seat belt when trav- Before starting, first adjust your driv- elling in your vehicle. You must also ing position, then ask all occupants comply with the legislation of the par- to adjust their seat belts to ensure ticular country you are in.
Page 35 SEAT BELTS (2/3) Driver’s seat belt reminder ß and, depending on the vehi- cle, front passenger seat belt re- minder This lights up on the interior rear-view mirror, or, depending on the vehicle, on the central display when the engine is started then, if the driver’s or the front passenger’s seat belt (if this seat is oc- cupied) is not fastened and the vehicle...
Page 36 SEAT BELTS (3/3) – No modification may be made to the component parts of the originally fitted restraint system: belts, seats and their mountings. For special op- erations (e.g. fitting child seats) contact an authorised dealer. – Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too loosely may cause injury in the event of an accident.
Page 37: Rear Seat Belts
REAR SEAT BELTS Second row rear side seats Second row centre rear seat Third row rear seats (7-seater versions) Slowly unwind belt 1. Unwind belt 5 slowly from its housing 4. Slowly unwind the strap 10. Click the sliding buckle 2 into the corre- Click buckle 9 into black catch 8.
Page 38 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/4) Depending on the vehicle, they are – Have the entire restraint composed of: system checked following – seat belt inertia reel pretension- an accident. ers; – No operation whatso- –...
Page 39: Methods Of Restraint In Addition To The Front Seat Belts
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/4) Load limiter Airbags for driver and front passenger Above a certain severity of impact, this mechanism is used to limit the force of Fitted to the driver and passenger side. the belt against the body so that it is at The presence of this equipment is indi- an acceptable level.
Page 40 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/4) Operating faults å This warning light comes on when the engine is started and then goes out after approximately three sec- onds. If it does not come on when the ignition is switched on or if it stays on, there is a fault in the system.
Page 41 METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/4) All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent the risk of serious injuries caused by items which may be dislodged when it inflates. Warnings concerning the driver’s airbag –...
Page 42 METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS Force limiter It is fitted to the rear side seats in the second row. Above a certain severity of impact, this mechanism is used to limit the force of the belt against the body so that it is at an acceptable level.
Page 43 SIDE PROTECTION DEVICES Side Airbags This airbag is fitted to the front seats, activated at the sides of the seats (door side) to protect the occupants in the event of a severe side impact. Curtain Airbags These are airbag fitted along the sides of the vehicle in the ceiling which trigger along the front and rear door side win- dows to protect the passengers in case...
Page 44: Additional Methods Of Restraint
ADDITIONAL METHODS OF RESTRAINT All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent the risk of serious injuries caused by items which may be dislodged when it inflates. The airbag is designed to complement the action of the seat belt.
Page 45: Child Safety: General Information
CHILD SAFETY: General information (1/2) Carrying children Please ensure that you comply with the legislation of your country. Children, and adults, must be correctly seated and strapped in for all journeys. The children being carried in your vehi- cle are your responsibility. Driver’s responsibility A child is not a miniature adult.
Page 46 CHILD SAFETY: General information (2/2) Using a child seat Set a good example by always fas- The level of protection offered by the tening your seat belt and teaching child seat depends on its ability to re- your child: strain your child and on its installation. –...
Page 47 CHILD SAFETY: choosing a child seat Rear-facing child seats Forward-facing child seats Booster cushions A baby’s head is, proportionally, heavier The child’s head and abdomen need to From 15 kg or 4 years, the child can than that of an adult and its neck is very be protected as a priority.
Page 48: Choosing A Child Seat Mounting
CHILD SAFETY: choosing a child seat mounting (1/3) There are two ways of attaching child Attachment via the seat belt seats: via the seat belt or using the The seat belt must be adjusted to ISOFIX system. ensure that it is effective in the event of harsh braking or an impact.
Page 49 CHILD SAFETY: choosing a child seat mounting (2/3) Attachment using the ISOFIX Attach the child seat with the ISOFIX system locks, if these are provided. The ISOFIX system allows quick, easy, safe fitting. Approved child seats ISOFIX are stand- ardised in accordance with current reg- The ISOFIX system consists of 2 rings ulations if any of the four cases below and, in some cases, a third ring.
Page 50 CHILD SAFETY: choosing a child seat mounting (3/3) Attachment using the ISOFIX Rear side seats system (continued) The third ring 2 or 3 is used to attach The two rings 1 are located between the upper strap on some seats ISOFIX. the seatback and the seat base of the The rings are located on the rear seat- seat and are identified by a marking.
Page 51: Fitting A Child Seat, General Information
CHILD SAFETY: fitting a child seat, general information (1/2) Some seats are not suitable for fitting The types of child seats indicated may After installing the child seat, if neces- child seats. The diagram on the follow- not be available. Before using a differ- sary, the seat may be advanced (so as ing page shows you how to attach a ent child seat, check with the manufac-...
Page 52 CHILD SAFETY: fitting a child seat, general information (2/2) In the rear seat For 7-seater vehicles, the second row rear seats must be pushed forward A carrycot can be installed across the before a child is seated in the third row vehicle and will take up at least two rear seats.
Page 53 CHILD SEATS: attachment by seat belt (1/6) Visual installation of the five-seater version ³ Check the status of the airbag before fitting a child seat or allowing a passenger to use the seat. Seat not suitable for fitting ² child seats. ¬...
Page 54 CHILD SEATS: attachment by seat belt (2/6) The table below summarises the information already shown on the diagram on the previous page, to ensure the applica- ble regulations are respected. Five-seater version Front passenger seat (1) (5) Weight of Type of child seat Rear side seats Rear centre seat Without airbag...
Page 55 CHILD SEATS: attachment by seat belt (3/6) X = Seat not suitable for fitting child seats of this type. U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted. (2) A carrycot can be installed across the vehicle and will take up at least two seats.
Page 56 CHILD SEATS: attachment by seat belt (4/6) The table below summarises the information already shown in the diagram on the following pages, to ensure the appli- cable regulations are respected. Seven-seat version Front passenger seat (1) (6) Row 3 rear Row 2 rear Row 2 rear Type of child seat...
Page 57 CHILD SEATS: attachment by seat belt (5/6) X = Seat not suitable for fitting child seats of this type. U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted. (2) A carrycot can be installed across the vehicle and will take up at least two seats.
Page 58 CHILD SEATS: attachment by seat belt (6/6) Installation diagram, 7-seater version ³ Check the status of the airbag before fitting a child seat or allowing a passenger to use the seat. Seat not suitable for fitting ² child seats. ¬ Seat which allows a child seat with “Universal”...
Page 59 CHILD SEATS: attachment using the ISOFIX system (1/6) Visual installation of the five-seater version  Seat which allows an ISOFIX child seat to be fitted. ± The rear seats are fitted with an anchorage point which allows a forward-facing ISOFIX child seat with universal approval to be attached.
Page 60 CHILD SEATS: attachment using the ISOFIX system (2/6) The table below summarises the information already shown on the diagram on the previous page, to ensure the regula- tions in force are respected. Five-seater version Passenger front seat (4) (1) Weight of Seat size Rear side Rear centre...
Page 61 CHILD SEATS: attachment using the ISOFIX system (3/6) X = Seat not suitable for fitting child seats ISOFIX. IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at- tached using the ISOFIX system; check that it can be fitted. i-U = Suitable for the i-Size restraint devices in the “universal”...
Page 62 CHILD SEATS: attachment using the isofix system (4/6) The table below summarises the information already shown in the diagram on the following pages, to ensure the appli- cable regulations are respected. Seven-seat version Passenger front seat (4) (1) Row 3 rear Weight of Seat size Row 2 rear...
Page 63 CHILD SEATS: attachment using the isofix system (5/6) X = Seat not suitable for fitting child seats ISOFIX. IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at- tached using the ISOFIX system; check that it can be fitted. i-U = Suitable for the i-Size restraint devices in the “universal”...
Page 64 CHILD SEATS: attachment using the isofix system (6/6) Visual installation of seven-seater version  Seat which allows an ISOFIX child seat to be fitted. ± The rear seats are fitted with an anchorage point which allows a forward-facing ISOFIX child seat with universal approval to be attached.
Page 65: Passenger Airbag
CHILD SAFETY: deactivating/activating front passenger AIRBAG (1/3) The front passenger airbag must only be activated or deactivated when the vehi- cle is stationary. If it is interfered with when the ve- hicle is being driven, indicator lights å © will come on. Switch the ignition off then on again to reset the airbag in accordance with the lock position.
Page 66 CHILD SAFETY: deactivating/activating front passenger AIRBAG (2/3) The markings on the dashboard and labels A on each side of the passen- ger sun visor 4 (example: label shown above) remind you of these instruc- tions. DANGER Since operation of the front passenger airbag is not compatible with the po- sition of a rear-facing child seat,...
Page 67: Deactivating/Activating The Front Passenger Airbag
CHILD SAFETY: deactivating/activating front passenger AIRBAG (3/3) Operating faults It is forbidden to fit a rear-facing child seat to the front passenger seat if the airbags activation/deactivation system is faulty. Allowing any other passenger to sit in that seat is not recommended. Contact your approved dealer as soon as possible.
Page 68 DRIVER’S POSITION, LEFT-HAND DRIVE (1/2) 1.62...
Page 69: Instrument Panel
22 Handbrake. 7 Controls for: 23 Engine start/stop button (vehicles – on-board computer information 13 Passenger Airbag location. with RENAULT card). read-out and vehicle settings cus- 24 Ignition switch (vehicles with key). tomisation menu, 14 glove box or storage drawer.
Page 70 DRIVING POSITION: RIGHT-HAND DRIVE (1/2) 11 12 1.64...
Page 71 – direction indicator lights; 17 Control for adjusting steering wheel height and reach. – exterior lights; 18 Engine start/stop button (vehicles 28 Bonnet release control. – rear fog lights. with RENAULT card). 9 Cruise control/speed limiter and adaptive cruise control controls. 1.65...
Page 72 WARNING LIGHTS (1/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Side light warning light š Main beam headlight tell- á tale Dipped beam headlight tell- tale Rear fog lights tell-tale Automatic main beam head- ...
Page 73 WARNING LIGHTS (2/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Low fuel level warning light Brake circuit fault warning Oil pressure warning light À It lights up orange when the ig- light It lights up when the ignition or nition or the engine is switched on then, This lights up when the ignition is the engine is switched on and goes off...
Page 74: Warning Lights
WARNING LIGHTS (3/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Variable power-assisted Toxic Fume Filter System Anti-lock braking warning Ä steering warning light Warning Light light It lights up when the ignition or the On vehicles which are equipped with it, It lights up when the ignition or the engine is switched on and goes off after...
Page 75 WARNING LIGHTS (4/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Preheating warning light Indicator lightAirbag Brake pedal warning light É å Ó (diesel version) This warning light will be dis- This lights up when the brake played on the instrument panel when This should come on when the igni- pedal should be depressed.
Page 76 WARNING LIGHTS (5/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Engine standby warning Rear seat belt reminder (depending Assisted parking brake fault   light on vehicle) light ß Please see information in the para- Please refer to the information on the Warning light comes on, accom-...
Page 77 WARNING LIGHTS (6/6) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Driver’s seat belt reminder ß and, depending on the vehi- cle, front passenger seat belt re- minder. This lights up when the ignition is switched on if the driver's or front pas- senger's seat belt (if the passenger seat is occupied) is not fastened and...
Page 78: Trip Computer And Warning System
DISPLAYS AND INDICATORS (1/6) Driving style indicator 3 Please refer to the information on “ECO-driving” in Section 2. Trip computer and warning system Refer to the information on the “Trip computer and warning system” in Section 1. Instrument panel A Rev counter 1 (graduations x 1000) lights up when the driver’s door is...
Page 79 DISPLAYS AND INDICATORS (2/6) Coolant temperature indicator 4 Fuel gauge 5 If the level is at the minimum, warn- ing light integrated in the indica- tor comes on orange, accompanied by a beep. Fill up as soon as possible. 1.73...
Page 80 DISPLAYS AND INDICATORS (3/6) Instrument panel B Rev counter 6 Driving style indicator 8 (graduations x 1000) Please refer to the information on lights up when the driver’s door is “ECO-driving” in Section 2. opened. In some cases, the appear- Speedometer 7 ance of a warning light is accompanied This is displayed differently according...
Page 81 DISPLAYS AND INDICATORS (4/6) Instrument panel in miles (option to switch to km/h) Vehicles not fitted with a navigation 12 13 system – With the ignition off, press the OK button 12 and the engine start/stop button 14; – using control 13, select “Settings”, “Instrument panel”, then the unit;...
Page 82: Driving Position
DISPLAYS AND INDICATORS (5/6) You can adjust certain settings from the multifunction screen: with the engine running, access menu “System”, “Display” then “Head-up display”. Adjusting the display information height Depending on your driving position, you can raise or lower the information on the display.
Page 83 DISPLAYS AND INDICATORS (6/6) Operating faults In the event of a malfunction (the dis- play fails to open when the engine is started, or the display retracts, with the engine running, following an object im- pacting the display): – stop and restart the engine; –...
Page 84 TRIP COMPUTER: general information (1/2) Display selection keys 2 Scroll through the following information by repeated short presses on button 2 (the display depends on the vehicle equipment and country): a) total mileage and trip mileage re- corder; b) journey parameters: –...
Page 85 ON-BOARD COMPUTER: general information (2/2) Interpreting some of the values displayed after resetting The values showing average fuel con- sumption and average speed will become more stable and reliable the further you have travelled since the last time the Reset button was pressed. The average fuel consumption may de- crease when: –...
Page 86 ON-BOARD COMPUTER: trip settings (1/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected 101778 km 112.4 km a) Total mileage and trip mileage recorder. Middle b) Journey parameters: Average fuel consumption.
Page 87 ON-BOARD COMPUTER: trip settings (2/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected Range b) Journey parameters (continued): Estimated range with remaining fuel. 541 km The value is displayed after driving 400 metres. Distance Distance travelled since last reset.
Page 88 ON-BOARD COMPUTER: trip settings (3/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected On-board computer with mileage- before-service message d) Mileage before service or oil change. Mileage before service Service in With the ignition switched on, the engine not running and Service Intervals...
Page 89 TRIP COMPUTER: trip settings (4/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected On-board computer with distance before next service message (cntd.) d) Mileage before service or oil change. Mileage before service Oil change in With the ignition on, the engine not running and the display...
Page 90 ON-BOARD COMPUTER: trip settings (5/5) The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY. Examples of selections Interpreting the display selected e) Reset the tyre pressure. Refer to the information on the “Tyre pressure Tyre pressure monitoring system”...
Page 91 TRIP COMPUTER AND WARNING SYSTEM: information messages These can help in the vehicle starting phase, or give information about a selection or a driving status. Examples of information messages are given in the following pages. Examples of messages Interpreting the display selected «...
Page 92 TRIP COMPUTER AND WARNING SYSTEM: operating fault messages © These appear with the warning light and mean that you should drive very carefully to an authorised dealer as soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle. They disappear when the display selection key is pressed or after several seconds and are stored in the computer log.
Page 93 TRIP COMPUTER AND WARNING SYSTEM: warning message ® These appear with the warning light and require you to stop immediately, for your own safety, as soon as traf- fic conditions allow. Stop your engine and do not restart it. Contact an approved Dealer. Some examples of warning messages are given below.
Page 94: Vehicle Settings Customisation Menu
VEHICLE SETTINGS CUSTOMISATION MENU (1/2) Adjusting the settings Select the function to modify: a) Unlock driver door only b) Auto door lock while driving ; c) Use handsfree card: open/close ; d) Indicator sound volume ; e) Internal welcome sound ; f) External welcome ;...
Page 95: Navigation System
VEHICLE SETTINGS CUSTOMISATION MENU (2/2) Adjusting the settings Once a line has been selected, press the switch 3 OK to adjust the function. Browse using the control 4 to select the function to adjust: If you select either “PARKING ASSIST VOLUME”...
Page 96: Clock And Exterior Temperature
CLOCK AND EXTERIOR TEMPERATURE External temperature indicator Special note: When the exterior temperature is - 3 °C to + 3 °C, the °C characters flash (sig- nalling a risk of ice on the road). The time and/or external tempera- ture are displayed on the multifunc- tion screen 1 Refer to the handbook for the equip- ment.
Page 97: Steering Wheel/Power-Assisted Steering
STEERING WHEEL/POWER-ASSISTED STEERING Power-assisted steering NB: power-assisted steering depends on the mode selected in the “Multi- Variable power-assisted steering Sense” menu (please refer to the infor- mation in “Multi-Sense” in Section 3). The variable power assisted steering system is equipped with an electronic control system which alters the level of assistance to suit the vehicle speed.
Page 98: Door Mirrors
(function deactivated); – press and hold the 4 OK switch to then use button 1 to adjust it to the de- – upon detecting the RENAULT card access the settings menu. Then sired position. or upon unlocking the vehicle (func- browse using control 5 to select the tion activated).
Page 99: Rear View Mirrors
DOOR MIRRORS (2/2) Special feature: Interior rear view mirror When the rear-view mirror has been Rear view mirror with lever 6 manually deployed or folded back, it is possible to reset it to a usage position. When driving at night, to avoid being To do this, position the switch 3 to C.
Page 100: Audible And Visual Signals
AUDIBLE AND VISUAL SIGNALS Direction indicators Move stalk 1 parallel to the steering wheel and in the direction you are going to turn it. One-touch mode When driving, it is possible that the steering wheel may not be turned suf- ficiently to return the stalk automatically to its starting position.
Page 101: Exterior Lighting And Signals
EXTERIOR LIGHTING AND SIGNALS (1/6) Dipped beam headlights Manual operation Turn ring 3 until the symbol is opposite mark 2. This indicator light on the in- strument panel comes on. Automatic operation Turn ring 3 until the AUTO symbol is op- posite mark 2: with the engine running, the dipped beam headlights switch on or off automatically depending on the...
Page 102 EXTERIOR LIGHTING AND SIGNALS (2/6) Automatic main beam  headlights Depending on the vehicle, this system switches the main beam headlights on and off automatically. It uses a camera located behind the interior rear-view mirror to detect vehicles that are being followed and those coming in the oppo- site direction.
Page 103 EXTERIOR LIGHTING AND SIGNALS (3/6) – repeatedly press control 6 up or down until you reach the “Automaticmain beam lights” menu, then press the OK switch 5; – press the OK switch 5 again to acti- vate or deactivate the function. Activation/deactivation To activate automatic main beam headlights:...
Page 104: Daytime Running Lights
EXTERIOR LIGHTING AND SIGNALS (4/6) Automatic main beam Operating faults  headlights (continued) When the message “Check lighting” © with warning light is displayed Operating faults When the message “Check auto li- and warning light flashes on the ghting” appears on the instrument instrument panel, this indicates that panel, the system is deactivated.
Page 105 With the engine and lights switched vehicle or when opening a door. ing the RENAULT card or when the ve- off and the ring 3 in position 0 or hicle is unlocked. They switch off automatically:...
Page 106: Rear Fog Lights
EXTERIOR LIGHTING AND SIGNALS (6/6) Rear fog lights Switching off the lights Turn centre ring 7 on the stalk Turn the ring 7 again until the mark 2 until the symbol faces mark 2, then re- is opposite the symbol for the fog light lease it.
Page 107: Headlight Beam Adjustment
HEADLIGHT BEAM ADJUSTMENT For manual settings Examples of positions for adjusting control A according to the load Driver alone or with front passenger Driver with one front passenger and two or three rear passengers On vehicles fitted with this function, control A allows you to adjust the height Do not use of the beams according to the load.
Page 108: Windscreen Wash/Wipe
WINDSCREEN WASH/WIPE (1/6) Check the condition of the wiper blades. You are responsible for their service life: Vehicle fitted with intermittent Special note – they must remain clean: clean When driving the vehicle, the wiping windscreen wipers the blades, windscreen and speed slows down whenever the ve- rear screen regularly with soapy hicle stops.
Page 109 WINDSCREEN WASH/WIPE (2/6) When activating automatic wiping or when increasing sensitivity, one sweep of the blades is performed. Note: – the rain sensor is only intended as a driving aid. In the event of reduced visibility, the driver should manually activate the wipers.
Page 110 WINDSCREEN WASH/WIPE (3/6) Operating fault Special note In the event of a malfunction of the au- When driving the vehicle, the wiping tomatic wiping, the wiper is set to inter- speed slows down whenever the vehi- mittent wiping. Contact an authorised cle stops.
Page 111: Service Position
WINDSCREEN WASH/WIPE (4/6) Specific front wiper position Note: (service position) Once the wipers have been switched off, at least 1 minute after locking the This position enables the blades to be vehicle, it is possible to manually move lifted to remove them from the winds- the blades.
Page 112: Windscreen Washer
WINDSCREEN WASH/WIPE (5/6) Note: In temperatures below zero, the washer liquid risks freezing to the windscreen, thereby reducing visibility. Heat the windscreen using the demister control before cleaning. Windscreen washer With the ignition on, pull stalk 1 then release. A brief pull will trigger a single sweep of the wipers, in addition to the wind- screen washer.
Page 113: Headlight Washers
WINDSCREEN WASH/WIPE (6/6) Note: To ensure the headlight washers op- erate correctly in winter, remove snow from the jet trims and de-ice the jet trims using an aerosol de-icer. You are recommended to regularly remove dirt encrusted on the headlight glass.
Page 114: Rear Screen Wiper
REAR SCREEN WASH/WIPE (1/2) To stop operation, twist the ring 3 again to the off position. Note: When washing using a roller type car wash, return the ring 3 on the stalk 1 to the stop position to deactivate auto- matic wiping.
Page 115 REAR SCREEN WASH/WIPE (2/2) Activation/deactivation of the rear In the event of obstacles present on the screen wiper rear window (dirt, snow, etc.), the wiper will try to sweep away all the obstacles. Engaging reverse gear triggers inter- If an obstacle prevents the blade from mittent wiping (if the front wipers are in moving, it can be stopped.
Page 116: Fuel Tank (Filling With Fuel)
FUEL TANK (1/3) Diesel versions Only use diesel fuel which complies with the information on the label located inside the cover 1. Petrol versions It is essential to use unleaded petrol. The octane rating (RON) must comply with the information given on the label on the cover 1.
Page 117 FUEL TANK (2/3) Filling with fuel Insert the nozzle to open the valve 2 and insert it fully before turning it on to fill the fuel tank (risk of splashing). Keep the nozzle in this position through- out the entire filling operation. When the pump cuts out automatically at the end of the filling procedure, a maximum of two further filling attempts...
Page 118 – If the engine does not start after sev- eral attempts, please contact an au- Vehicles with RENAULT card thorised dealer. With the card RENAULT in the pas- Persistent smell of senger compartment, press the start fuel button 3 without pressing any of the pedals.
Page 119 Section 2: Driving (Advice on use relating to fuel economy and the environment) Running in ..............Ignition switch .
Page 120: Running In
RUNNING IN Petrol version Diesel version Up to 600 miles (1 000 km), do not For the first 900 miles (1 500 km), do exceed 78 mph (130 km/h) in top gear not exceed 2,500 rpm. After complet- or 3,000 to 3,500 rpm. ing this mileage you may drive faster, however, it is only after approximately You may only expect top performance...
Page 121: Ignition Switch
IGNITION SWITCH: vehicle with key “Ignition” position ON 2 The ignition is switched on: Any acces- sories (radio etc.) can be used. “Start” position START 3 If the engine fails to start at the first attempt, the key must be turned back before the starter can be activated again.
Page 122: Starting, Stopping The Engine
STARTING, STOPPING THE ENGINE: vehicle with key Diesel versions É – Turn the ignition key to the “ON” position 2 and hold this position until the engine preheating light goes off; – turn the key to the start position “START” 3 without pressing the Driver’s responsibility accelerator;...
Page 123 STARTING, STOPPING THE ENGINE: vehicle with RENAULT card (1/3) “Hands-free” starting with the tailgate open In this case, the RENAULT card should not be located in the boot, to avoid any risk of loss. Driver’s responsibility when parking or stopping...
Page 124 STARTING, STOPPING THE ENGINE: vehicle with RENAULT card (2/3) Depress the brake or clutch pedal, then place the RENAULT 3 card (logo side) in contact with the start button 2 for around 2 seconds. Press the 2 button to start the vehicle. The message goes out.
Page 125 STARTING, STOPPING THE ENGINE: vehicle with RENAULT card (3/3) If the RENAULT card is no longer in the When you leave your vehi- passenger compartment when you try cle, especially if you have to switch the engine off, the message your RENAULT card with “No keycard Press and hold”...
Page 126 FUNCTION STOP AND START (1/4) This system enables a reduced fuel For manual gearboxes: Before leaving the vehicle, consumption and lower greenhouse – the gearbox is in neutral; the engine must be stopped gas emissions. – and the clutch pedal is released. If and not put on standby The system is activated automati- ...
Page 127 FUNCTION STOP AND START (2/4) Preventing the engine from Conditions for coming out of Special note: depending on the vehi- cle, if you switch off the ignition when standing by engine standby the engine is on standby, the warning In certain situations, such as negotiat- For automatic gearboxes: Ä...
Page 128 Special case for vehicles with – for vehicles with automatic gear- boxes, the gradient is steeper than standby of the engine a RENAULT card approximately 12%; Certain conditions prevent the system With the engine on standby (traffic jam, – the “Clear View” function is activated from using the engine standby function, traffic lights, etc.), if the driver unfas-...
Page 129 FUNCTION STOP AND START (4/4) Special feature of the automatic The system is automatically reacti- engine re-start vated each time the vehicle is started (see “Starting, stopping the engine” in Under certain conditions, the engine Section 2). can restart on its own in order to guar- antee your safety and comfort.
Page 130: Special Features Of Petrol Versions
SPECIAL FEATURES OF PETROL VERSIONS The following operating conditions If you notice any of the above operating should be avoided: faults, have the necessary repairs car- ried out as soon as possible by an ap- – driving for long periods when the low proved dealer.
Page 131: Special Features Of Diesel Versions
SPECIAL FEATURES OF DIESEL VERSIONS Diesel engine speed Precautions to be taken in winter Diesel engines are fitted with injection equipment which prevents the engine To avoid any faults in icy weather: speed being exceeded irrespective of – ensure that the battery is always fully the gear selected.
Page 132 “HYBRID ASSIST" SYSTEM: introduction (1/5) 5 Seater version (short or long chassis) 1 48 V traction battery 2 Orange electrical power cables 3 Voltage converter 4 Electric motor 5 Combustion engine with secondary 12 V battery 2.14...
Page 133 “HYBRID ASSIST" SYSTEM: introduction (2/5) 7-seater version 1 48 V traction battery 2 Orange electrical power cables 3 Voltage converter 4 Electric motor 5 Combustion engine with secondary 12 V battery 2.15...
Page 134: The Hybrid Assist System
“HYBRID ASSIST" SYSTEM: introduction (3/5) The “Hybrid Assist” system uses an Secondary 12V battery electric motor to improve performance The 12 V battery supplies the energy of the combustion engine (acceleration, required to operate vehicle equipment starting on a slope etc.). The vehicle (lights, windscreen wipers, ABS etc).
Page 135 “HYBRID ASSIST" SYSTEM: introduction (4/5) Indicator of power “Energy recovery” zone A “Assistance” zone B The 48 volt traction battery supplies the consumption/recovery When driving, if you lift your foot off the electrical energy required for the motor accelerator pedal or apply the brake, The indicator 6 allows you to find the to reduce fuel consumption.
Page 136 “HYBRID ASSIST" SYSTEM: introduction (5/5) Operating faults  – If the warning light on the in- strument panel comes on, this indi- cates that an operating fault has oc- curred in the system. The operation of the vehicle is still maintained; Ú...
Page 137 “HYBRID ASSIST” SYSTEM: important recommendations Please read these instructions carefully. Failure to follow these instructions may lead to a risk of fire, serious injury or electric shocks. In the event of an accident or impact Never touch the “48 volt” components or orange cables which are exposed and visible inside or outside the vehicle. Risk of electric shock.
Page 138: Gear Lever/Handbrake
GEAR LEVER/HANDBRAKE Note: depending on the vehicle, if the To apply: dipped beam headlights are on, the Pull lever 3 upwards. Check that the front fog lights come on simultaneously vehicle is immobilised. The warning when reverse gear is selected. light on the instrument panel will come on.
Page 139: Electronic Parking Brake
ELECTRONIC PARKING BRAKE (1/3) Note: To indicate that the electronic parking brake is released, a beep sounds and the message “Apply parking brake” ap- pears on the instrument panel: – with the engine running: when the driver’s door is opened; –...
Page 140: Manual Operation
ELECTRONIC PARKING BRAKE (2/3) Special cases To park on a slope or while towing a trailer, for example, pull switch 3 for a few seconds to gain the maximum braking. To park the vehicle without applying the electronic parking brake (if there is a risk of freezing, for example): –...
Page 141 ELECTRONIC PARKING BRAKE (3/3) Versions with an automatic Operating faults gearbox © – If there is a fault, the warning light illuminates on the instrument For safety reasons, automatic release panel accompanied by the “Check is deactivated when the driver’s door parking brake”...
Page 142: Driving Advice, Eco-Driving
DRIVING ADVICE, ECO DRIVING (1/6) Fuel consumption is accredited in ac- cordance with a standard regulatory method. Identical for all manufactur- ers, this enables vehicles to be com- pared with one another. Consumption in real time depends on vehicle usage conditions, the equipment fitted and the user’s driving style.
Page 143 DRIVING ADVICE, ECO-DRIVING (2/6) Gear change indicator 2 Special feature on vehicles equipped with the “Hybrid Assist” system To obtain optimum consumption levels, a warning light on the instrument panel The most suitable gear 3 is displayed lets you know the best time to move up on the instrument panel.
Page 144 DRIVING ADVICE, ECO-DRIVING (3/6) This indicates: – average fuel consumption; – number of miles/kilometres travelled; – number of miles/kilometres saved. This corresponds to driving without fuel consumption (deceleration and/ or foot off the accelerator pedal). An overall rating from 0 to 100 is dis- played to let you assess your eco driv- ing performance.
Page 145 DRIVING ADVICE, ECO-DRIVING (4/6) ECO mode ECO mode is a function which opti- mises fuel consumption. It acts upon certain power consuming systems in the vehicle (heating, air conditioning, power-assisted steering etc.) and on certain driving actions (acceleration, gear changing, cruise control, deceler- ation etc.).
Page 146 DRIVING ADVICE, ECO-DRIVING (5/6) – Do not overrev the engine in the in- – Bad weather, flooded roads: termediate gears. You should always use the highest Do not drive through gear possible. floods if the water is – Avoid sudden acceleration. above the lower edge of –...
Page 147 DRIVING ADVICE, ECO-DRIVING (6/6) – In vehicles fitted with air condi- tioning, it is normal to observe an increase in fuel consumption (espe- cially in urban conditions) when it is used. For vehicles fitted with manual air conditioning, switch off the system when it is not required.
Page 148: Maintenance And Antipollution Advice
MAINTENANCE AND ANTIPOLLUTION ADVICE Your vehicle complies with criteria for In addition, replacing engine, fuel – Air filter, fuel filter: a choked ele- recycling and recovering vehicles at the supply system and exhaust compo- ment will reduce efficiency. It must end of their service life which will come nents with parts other than those origi- be replaced.
Page 149: Environment
– In all cases, comply with local legis- use, and therefore to consume less fuel This commitment is illustrated by the lation. (eg. 140 g/km, equivalent to 5.3 l/100 Renault eco² signature. km for a diesel vehicle). Recycling Our vehicles are also equipped with a Manufacture...
Page 150: Tyre Pressure Monitoring System
TYRE PRESSURE MONITORING SYSTEM (1/3) Resetting the standard level Resetting procedure for the tyre pressures With the ignition on: – repeatedly and briefly press the con- This should be done: trol 2 to select the tyre pressure dis- – when the standard tyre pressure play and, depending on the vehicle, needs to be changed to adapt to the “Tyre pressure”...
Page 151 TYRE PRESSURE MONITORING SYSTEM (2/3) “Puncture” A wheel B is shown, depending on the vehicle, in red or white accompanied  by the warning light 4 fixed, the message “Puncture” and a beep. This message appears along with the ® warning light.
Page 152 Because the valves are specially de- or more wheels have been fitted with Please see the information on “Tyres” signed, only use equipment approved sensors not recognised by Renault. in Section 5. by the approved network. Please refer Contact an approved Dealer to fit new to “Tyre inflation kit”...
Page 153: Driver Correction Devices/Aids
DRIVER CORRECTION DEVICES AND AIDS (1/5) ABS (anti-lock braking – ABS (anti-lock braking system) ; system) – ESC (electronic stability control) Under heavy braking, the ABS prevents with understeer control and trac- the wheels from locking, allowing the tion control; stopping distance to be managed and –...
Page 154 DRIVER CORRECTION DEVICES AND AIDS (2/5) Operating faults: © – lit up on the in- strument panel accompanied by the messages “Check ABS”, “Check braking system” and “Check ESC”: this indicates that the ABS, the ESC and the emergency brake assist are disabled.
Page 155: Electronic Stability Control
DRIVER CORRECTION DEVICES AND AIDS (3/5) Electronic stability control Understeer control Operating faults ESC with understeer control This system optimises the action of the When the system detects an operat- and traction control ESC in the case of pronounced under- ing fault the message “Check ESC”...
Page 156: Emergency Brake Assist
DRIVER CORRECTION DEVICES AND AIDS (4/5) Emergency brake assist Braking anticipation Depending on the vehicle, when you This system supplements the ABS rapidly release the accelerator, the and helps reduce vehicle stopping dis- system anticipates the braking ma- tances. noeuvre in order to reduce stopping Operating principle distances.
Page 157 DRIVER CORRECTION DEVICES AND AIDS (5/5) Hill start assistance Depending on the gradient of the in- cline, this system assists the driver when starting on a hill. It prevents the vehicle from rolling backwards by au- tomatically applying the brakes when the driver lifts his/her foot off the brake pedal to depress the accelerator pedal.
Page 158: Active Emergency Braking
ACTIVE EMERGENCY BRAKING (1/7) This system can apply maximum braking to the vehicle until it is completely stationary if necessary. For safety reasons, always wear your seat belt when travelling in your vehicle and make sure that it Using information from the radar-cam- is loaded so that no items can be era 1, the system calculates the dis- thrown forward and hit the occu-...
Page 159 ACTIVE EMERGENCY BRAKING (2/7) Detection of vehicles Special features When the vehicle speed: Operation – is less than 27.9 mph (45 km/h) ap- When driving (speed between about proximately, the warning and brak- 4.34 and 99.2 mph (7 and 160 km/h)), if ing are activated at the same time;...
Page 160 ACTIVE EMERGENCY BRAKING (3/7) Detection of pedestrians Operation When driving (speed between about 4.2 mph (7 km/h) and 36 mph (60 km/h), when there is a risk of impact with a pe- destrian:  – the warning light is displayed in red on the instrument panel, ac- companied by a beep;...
Page 161 ACTIVE EMERGENCY BRAKING (4/7) Press the switch 6 OK again to activate or deactivate the function: function activated < function deactivated  The warning light is displayed on the instrument panel when the system is deactivated. Activating or deactivating the For vehicle not fitted with a navigation system system...
Page 162 ACTIVE EMERGENCY BRAKING (5/7) Conditions for non-activation Temporarily not available Operating faults of the system When the system detects a tempo- When the system detects an operating   The system cannot be activated: rary unavailability, the warning fault, the warning light lights up –...
Page 163 ACTIVE EMERGENCY BRAKING (6/7) Active emergency braking This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The triggering of this function may be delayed or prevented when the system detects clear signs of control of the vehicle by the driver (action on the steer- ing wheel, pedals etc.).
Page 164 ACTIVE EMERGENCY BRAKING (7/7) Limitation of the system operation – A vehicle travelling in the opposite direction will not trigger any alert or any action on the system operation. – The radar-camera area on the windscreen should be kept clean and free of any modifications in order to ensure the proper operation of the system.
Page 165: Lane Departure Warning
LANE DEPARTURE WARNING (1/4) Activation/deactivation Vehicles not fitted with the “Lane keeping assist” function From the multifunction screen 2: select “Vehicle”, “Driving assistance”, “Lane departure warning”, then choose “ON” or “OFF”. Vehicles fitted with the “Lane keeping assist” function From the multifunction screen 2: select “Vehicle”, “Driving assistance”, “Lane ...
Page 166 LANE DEPARTURE WARNING (2/4) Conditions in which the The function is set to notify the driver if: function is not available – speed is between about 43.4 mph – Indicators activated or having been (70 km/h) and 124 mph (200 km/h); activated approximately four sec- onds prior to departing from the lane;...
Page 167 LANE DEPARTURE WARNING (3/4) Operating faults – “Sensitivity”: adjust the sensitivity level for line detection. To do this, In the event of a malfunction, the left select: and right line indicators or, depending – “Low”: line detected when cross-  ing;...
Page 168 LANE DEPARTURE WARNING (4/4) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...
Page 169: Lane Keeping Assist
LANE KEEPING ASSIST (1/4) Note: make sure the windscreen is not obscured (dirt, mud, snow, condensa- tion etc.). Using information from the camera 1, the function is triggered if a contin- uous or broken line is crossed without activating the direction indicator lights, with corrective action on the steering system of the vehicle.
Page 170 LANE KEEPING ASSIST (2/4) Operation When the function is activated, the cor- rection indicators 3 for the left and right lines are displayed in grey on the instru- ment panel. The function is set to react if: – speed is between about 43.4 mph (70 km/h) and 99.2 mph (160 km/h);...
Page 171 LANE KEEPING ASSIST (3/4) Adjustment Special case When the function is set to react or it From the multifunction screen 1, reacts and cannot detect any further select “Vehicle”, “Driving assistance”, action from the driver on the steering “SETTINGS”: wheel: “Sensitivity”: adjust the sensitivity –...
Page 172 LANE KEEPING ASSIST (4/4) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...
Page 173: Blind Spot Warning
BLIND SPOT WARNING (1/4) This function is an addi- tional aid which indicates other vehicles in the blind spot area. This system alerts the driver to other Special feature It can never in any case be a sub- vehicles in the detection zone A. Make sure that the sensors are not ob- stitute for care nor for the driver’s scured (by dirt, mud, snow, etc.).
Page 174 BLIND SPOT WARNING (2/4) – repeatedly press the control 5 up or down until you reach the Blind spot alert menu, then press the switch 4 OK . – press the 4 OK switch again to acti- vate or deactivate the function. Activation/deactivation Vehicles not fitted with a navigation system...
Page 175 BLIND SPOT WARNING (3/4) Display B The function is activated and has not detected any vehicles. Display C First warning: the indicator 6 means that a vehicle has been detected in the blind spot. Display D When the direction indicator is acti- vated, the indicator light 6 flashes when a vehicle is detected in the blind spot on the side towards which you are about to...
Page 176 BLIND SPOT WARNING (4/4) Operating faults If the system detects a fault, the mes- sage “Check blind spot alert” is dis- played on the instrument panel. Consult an approved dealer. Note: when the engine is started, the indicator light 6, display B, flashes three times.
Page 177: Safe Distance Alert
SAFE DISTANCE ALERT (1/3) Using the information from the radar- Activating/deactivating the camera 1, this function informs the function driver of the time interval between him From the multifunction screen 2, select and the vehicle in front so that a safe menu “Vehicle”, “Driving assistance”, stopping distance between the two ve- “Distance warning”...
Page 178 SAFE DISTANCE ALERT (2/3) – C (orange): the time interval falls between around 1 and 2 seconds (in- sufficient distance between the two vehicles); – D (red): the time interval is less than or equal to around one second (very insufficient distance between the two vehicles).
Page 179 SAFE DISTANCE ALERT (3/3) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. System servicing/repairs –...
Page 180: Fatigue Detection Warning
FATIGUE DETECTION WARNING (1/2) This function analyses the behaviour of the driver at the steering wheel and warns him of the risk of fatigue. Activation/deactivation Vehicles fitted with a navigation system From the multifunction screen 1: select “Vehicle”, “Driving assistance”, “Fatigue This function is an addi- detection warn.”, then choose “ON”...
Page 181 FATIGUE DETECTION WARNING (2/2) – repeatedly press the control 5 up or Note: down until you reach the Fatigue de- – if the warning is not deleted by press- tection warn. menu, then press the ing switch 4 OK, the beep repeats; switch 4 OK.
Page 182 OVERSPEED ALERT (1/3) Operating principle For vehicles equipped with a navigation system and if the vehicle is travelling in The system detects speed limit signs a country where the speed units differ on the side of the road and displays the from those of the vehicle, the system speed limit.
Page 183 OVERSPEED ALERT (2/3) – repeatedly press the control 6 up or down until you reach the Speed alert menu, then press the switch 5 OK. – press OK to turn the function on or off. Varying the limit speed If the speed limiter notification differs from the detected speed value, press and hold the switch 4: –...
Page 184 OVERSPEED ALERT (3/3) Operating fault This function is an additional driving aid. This function is not under any The system cannot detect the speed circumstances intended to replace the due care and attention of the limit if: driver, who should at all times be in control of the vehicle. –...
Page 185: Speed Limiter/Cruise Control
SPEED LIMITER (1/3) Switching on  Press switch 1 on side . The indica-  tor light comes on, lit orange, and the message “Speed limiter” appears on the instrument panel, accompanied by dashes to indicate that the speed limiter function is activated and waiting to store a limited speed.
Page 186 SPEED LIMITER (2/3) Varying the limit speed Exceeding the limit speed The speed limiter can be changed by It is possible to exceed the limit speed repeatedly pressing the switch 2: at any time. To do this: press the accel- erator pedal firmly and fully (beyond –...
Page 187 SPEED LIMITER (3/3) Recalling the limit speed If a speed has been saved, it can be re- called by pressing switch 3 (R). Putting the function on Switching off the function standby The speed limiter function is deac- tivated if you press switch 1: in this The speed limiter function is sus- case a speed is no longer stored.
Page 188 CRUISE CONTROL (1/4) This function is an addi- tional driving aid. The func- tion does not take the place of the driver. Therefore, it The cruise control function helps you to Controls can under no circumstances replace maintain your driving speed at a speed the driver’s responsibility to respect 1 Main “On/Off”...
Page 189 CRUISE CONTROL (2/4) Activating cruise control At a steady speed (above approxi- mately 18.6 mph (30 km/h)) press switch 2 side a (+): the function is acti- vated and the current speed is memo- rised. The cruising speed replaces the dashes and cruise control is confirmed by the appearance of the message “Check cruise control”...
Page 190 CRUISE CONTROL (3/4) Exceeding the cruising speed The cruising speed may be exceeded at any time by depressing the accelera- tor pedal. While overtaking, the cruis- ing speed flashes red on the instrument panel. Then, release the accelerator: after a few seconds, the vehicle will automati- cally return to its set cruising speed.
Page 191 CRUISE CONTROL (4/4) Returning to the cruising speed If a speed is stored, it can be recalled, once you are sure that the road con- ditions are suitable (traffic, road sur- face, weather conditions, etc.). Press switch 3 (R) if the vehicle speed is above 20 mph (30 km/h).
Page 192: Adaptive Cruise Control
ADAPTIVE CRUISE CONTROL (1/8) The adaptive cruise control is a func- tion which gives you the option, when traffic conditions permit (large free-flow- ing road or motorway), of maintaining a chosen speed, known as the cruising speed, while keeping a safe distance from the vehicle in front in the same lane.
Page 193 ADAPTIVE CRUISE CONTROL (2/8) Controls Switching on The cruising speed replaces the dashes and cruise control is confirmed by the Press switch 5 on the side showing  5 Main “On/Off” switch. appearance of the message “Adaptive Warning light comes on, lit green, ...
Page 194 ADAPTIVE CRUISE CONTROL (3/8) Driving Varying the following distance Once a cruising speed is memorised and the cruise control function is active, You can vary the following distance you may lift your foot off the accelera- from the vehicle in front at any time by tor pedal.
Page 195 ADAPTIVE CRUISE CONTROL (4/8) Putting the function on Returning to the cruising speed standby If a speed is stored, it can be recalled, once you are sure that the road con- The function is set to standby if: ditions are suitable (traffic, road sur- –...
Page 196 ADAPTIVE CRUISE CONTROL (5/8) Note: if the speed previously stored is much higher than the current speed, the vehicle will accelerate to reach this threshold. Under certain conditions (coming up behind a vehicle moving more slowly, rapid change of lane of vehicles in front etc.), the system may not have time to respond and may emit a beep along- side the alert A when the situation re-...
Page 197 ADAPTIVE CRUISE CONTROL (6/8) Operating faults When the system detects an operating fault the message “Check cruise con- trol” appears on the instrument panel. There are two possibilities: – the system is temporarily disrupted (for example: radar obscured by dirt, mud, snow etc.). In this case, park the vehicle and switch off the engine.
Page 198 ADAPTIVE CRUISE CONTROL (7/8) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. The driver should always adapt their speed to the traffic conditions, regardless of the system indications.
Page 199 ADAPTIVE CRUISE CONTROL (8/8) Limitation of the system operation – A vehicle travelling in the opposite direction will not trigger any alert or any action on the system operation. – The radar-camera should be kept clean and free of any modifications in order to ensure the proper operation of the system.
Page 200: Parking Distance Control
PARKING DISTANCE CONTROL (1/5) Operating principle Ultrasonic sensors in the rear bumper measure the distance between the ve- hicle and an obstacle. This measurement is indicated by beeps which become more frequent the closer you come to the obstacle, until they become a continuous beep when the vehicle is approximately 20 to This function is an addi-...
Page 201 PARKING DISTANCE CONTROL (2/5) Note: the display 2 shows the vehicle Operation surroundings and emits beeps. Most objects located less near the It is necessary to travel a few metres front, rear and sides of the vehicle are before the side detection is activated. detected.
Page 202 PARKING DISTANCE CONTROL (3/5) If a side obstacle is detected: – the beeps become faster and then sound continuously as the obstacle gets nearer. Green, orange and red zones will be displayed on the dis- play D; – if there is no risk of collision, no beep will sound when approaching the ob- stacle.
Page 203 PARKING DISTANCE CONTROL (4/5) System sound Enables the system sound to be chosen. Deactivating the system sound Activate or deactivate the parking dis- tance control sound. Note: if you deactivate the sound, you will no longer be notified with beeps when approaching an obstacle.
Page 204 PARKING DISTANCE CONTROL (5/5) Automatic deactivation of the Operating faults parking distance control When the system detects an operating fault, a beep sounds for approximately The system deactivates: 3 seconds each time reverse gear is – when the vehicle speed is above ap- selected and is accompanied by the proximately 6 mph (10 km/h);...
Page 205: Reversing Camera
REVERSING CAMERA (1/2) Operation Fixed gauge 3 4 moving guide line: The fixed clearance gauge comprises This is shown in blue on the multifunc- When you change to reverse gear, the coloured markers A, B and C, indicat- tion screen 2. It indicates the vehicle camera 1 located on the tailgate pro- ing the distance behind the vehicle: trajectory according to the position of...
Page 206 REVERSING CAMERA (2/2) You can also adjust the camera image settings (brightness, contrast, etc.) The screen shows a reverse mirror Activating, deactivating the image. This function is an additional reversing camera The frames are a representation aid. It cannot, therefore, projected on a flat surface.
Page 207: Assisted Parking
ASSISTED PARKING (1/4) This function assists with parking ma- Switching on Special features noeuvres. With the vehicle at a standstill or driving Ensure that the ultrasonic sensors indi- Take your hands off the steering wheel. at less than approximately 18.6 mph cated by arrows 3 are not obscured (by You only control the pedals and the (30 km/h), press switch 1.
Page 208 ASSISTED PARKING (2/4) Choice of manoeuvre Operation Your speed should not exceed around 4 mph (7 km/h). The system can perform four types of Parking  manoeuvres: Once the warning light on the As long as the vehicle speed is less –...
Page 209 ASSISTED PARKING (3/4) Your speed should not exceed around In this case, the reason for suspending 4 mph (7 km/h). the manoeuvre will be displayed on the Once in position to exit the space, the multifunction screen. system will notify you of the end of the Make sure: manoeuvre.
Page 210 ASSISTED PARKING (4/4) This function is an additional driving aid. This function is not under any circumstances intended to replace the due care and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies with the applicable traffic regulations at your location. –...
Page 211: Automatic Gearbox
AUTOMATIC GEARBOX (1/3) Driving in automatic mode Put lever 1 into position D. In most road conditions you will en- counter, you will not need to touch your lever again: the gears will change au- tomatically at the right time and at the most suitable engine speed because the automatic system takes into ac- count the vehicle load and road contour...
Page 212 AUTOMATIC GEARBOX (2/3) Special circumstances The gear selected is displayed on the instrument panel. – If the bends and road surface do not allow you to stay in automatic Special cases mode (e.g. in the mountains), we In certain driving conditions (result- recommend that you change to manual mode.
Page 213 AUTOMATIC GEARBOX (3/3) Parking the vehicle Operating faults When the vehicle is stopped, move – when driving, if the message the lever to position P while keeping "CHECK AUTO GEARBOX" ap- your foot on the brake pedal: the drive pears on the instrument panel, it in- wheels are mechanically locked by the dicates a failure.
Page 214 2.96...
Page 215 Section 3: Your comfort multi-Sense ..............Air Vents .
Page 216: Multi-Sense
MULTI-SENSE (1/2) Mode Eco The Multi-Sense system enables once Multi-Sense of five modes to be selected which, de- Mode Eco is geared towards saving Sport pending on the vehicle, affect the drive, energy and the environment. The the light environment, the comfort and Neutral Comfort Perso...
Page 217: Sport Mode
MULTI-SENSE (2/2) Sport mode This mode enables an increased re- sponsiveness from the engine and the gearbox. The steering is firmer. Mode Perso This mode enables you to manually configure the drive, light environment and, depending on the vehicle, the comfort and engine noise.
Page 218: Air Vents
AIR VENTS: air outlets (1/2) 1 side window demister outlets 2 side air vents 3 windscreen demister outlet 4 centre air vents 5 passenger footwell heater outlets 6 multifunction screen 7 rear air vents...
Page 219: Front Seats
AIR VENTS: air outlets (2/2) Front seats To remove bad odours from your ve- 2nd row rear seats hicles, only use the systems designed Direction for this purpose. Consult an approved Output/direction Dealer. Up/down: lower or raise tabs 8. Move the cursor 10: –...
Page 220: Manual Air Conditioning/Heating System
MANUAL AIR CONDITIONING (1/3) 9 10 11 The controls Indicators Switching air conditioning on or off 1 Adjusting the air temperature. The following indicators are displayed on the multimedia screen A: The air conditioning is switched on (in- 2 De-icing/demisting of the rear screen dicator light on) or off (indicator light off) and, depending on the vehicle, the 8 Air temperature.
Page 221: Passenger Compartment
MANUAL AIR CONDITIONING (2/3) Distribution of air in the passenger compartment There are five air distribution options. Turn control 5 to choose the distribution option. The air distribution is displayed on the multimedia screen. The air flow is directed to the õ...
Page 222 MANUAL AIR CONDITIONING (3/3) Rear screen de-icing/ demisting With the engine running, press the control 2. The operating tell-tale comes This function permits rapid demisting/ de-icing of the rear screen and de-icing of the door mirrors (on equipped vehi- cles). To exit this function, press the con- trol 2 again.
Page 223: Automatic Climate Control
AUTOMATIC CLIMATE CONTROL: Controls A (1/5) Automatic mode Climate The automatic climate control system guarantees comfort in the passen- ger compartment and good visibility (except in the event of extreme condi- tions), while optimising consumption. The system controls the ventilation speed, air distribution, air recirculation, and starting and stopping the air condi- tioning and air temperature.
Page 224 AUTOMATIC CLIMATE CONTROL: Controls A (2/5) Note: the air conditioning configura- Climate tion depends on the mode selected in the “Multi-Sense” menu (please refer to the information on “Multi-Sense” in Section 3). The displayed temperature values Varying the ventilation speed Temperature adjustment show a comfort level.
Page 225 AUTOMATIC CLIMATE CONTROL: Controls A (3/5) To exit this function, press either: Climate – button 4; – again button 6; – on button 8, 9 or 10. Clear View function Press button 6 – the integrated indica- tor light comes on. This function quickly demists and de- Press button 3 to stop the heated rear ices the windscreen, the rear screen,...
Page 226 AUTOMATIC CLIMATE CONTROL: Controls A (4/5) Rear screen de-icing/ Climate demisting Press button 3 – the integrated indica- tor light comes on. This function en- ables rapid demisting or de-icing of the rear screen and de-icing of the door mirrors (on equipped vehicles). To exit this function, press button 3 again.
Page 227 AUTOMATIC CLIMATE CONTROL: Controls A (5/5) Automatic usage Climate Press button 16 (a warning light comes on in zone 14). Manual use Press button 5 to force air recirculation. Prolonged use of this position may lead to odours, caused by non-renewal of air, and the formation of condensation on the windows.
Page 228 AUTOMATIC CLIMATE CONTROL: Controls B and C (1/5) Automatic mode The automatic climate control system guarantees comfort in the passen- ger compartment and good visibility (except in the event of extreme condi- tions), while optimising consumption. The system controls the ventilation speed, air distribution, air recirculation, and starting and stopping the air condi- 18 5...
Page 229 AUTOMATIC CLIMATE CONTROL: Controls B and C (2/5) Note: the air conditioning configura- tion depends on the mode selected in the “Multi-Sense” menu (please refer to the information on “Multi-Sense” in Section 3). 18 5 18 5 The displayed temperature values Varying the ventilation speed Temperature adjustment show a comfort level.
Page 230 AUTOMATIC CLIMATE CONTROL: Controls B and C (3/5) To exit this function, press either: – again button 10; – one of the buttons 14, 15 or 16. 14 15 14 15 Clear View function Press button 10 – the integrated indica- tor light comes on.
Page 231 AUTOMATIC CLIMATE CONTROL: Controls B and C (4/5) Rear screen de-icing/ demisting Press button 6 – the integrated indica- tor light comes on. This function en- ables rapid demisting or de-icing of the rear screen and de-icing of the door mirrors (on equipped vehicles).
Page 232 AUTOMATIC CLIMATE CONTROL: Controls B and C (5/5) Automatic usage Press button 8 (a warning light comes on in zone 1). Manual use Press button 9 to force air recirculation. Prolonged use of this position may lead to odours, caused by non-renewal of air, and the formation of condensation on the windows.
Page 233: Air Conditioning: Information And Advice On Use
AIR CONDITIONING: information and advice on use Advice on use Fuel consumption Operating faults In some situations, (air conditioning You will normally notice an increase in As a general rule, contact your ap- off, air recirculation activated, ventila- fuel consumption (especially in town) proved dealer in the event of an oper- tion speed at zero or low, etc.) you may when the air conditioning is operating.
Page 234: Outside Air Quality And Deodorisation Function
OUTSIDE AIR QUALITY AND DEODORISATION FUNCTION Take care Deodorization cycle With the air conditioning switched Deodorisation function on, from the screen A, select Menu, This reduces unpleasant odours in the Vehicle, Take care. passenger compartment. Outside air quality Deodorization cycle –...
Page 235: Multimedia Equipment
MULTIMEDIA EQUIPMENT (1/2) Multimedia systems Hands-free telephone integrated control The location and operation of equip- ment may vary according to the vehicle. For equipped vehicles, use the steering wheel controls 3. 1 Multimedia touchscreen display; 2 Steering column controls; 3 Steering wheel controls; 4 or 5 microphone.
Page 236 MULTIMEDIA EQUIPMENT (2/2) Multimedia sockets 7 Sockets USB can only recharge acces- sories with a maximum power rating of 12 Watts (voltage: 5V) per socket, which have been approved by our Technical Department. The JACK socket enables the radio to be used with an auxiliary cable.
Page 237: Electric Windows
4. A confirmation message is displayed on the instrument panel. Driver’s responsibility Never leave your vehicle with the RENAULT card or key inside, and never leave a child, adult who is not self-sufficient or a pet, even for a short while. They may pose a risk to themselves or to others by starting the engine or activating equip- ment (such as the gear lever or electric windows).
Page 238 ELECTRIC WINDOWS (2/2) Remote control window Operating faults One-touch mode closing This mode works in addition to the ope- In case of a fault when closing a (vehicles with 4 one-touch electric win- ration of the electric windows described window, the system reverts to normal dows).
Page 239: Fixed Glass Roof
FIXED GLASS ROOF Driver’s responsibility Never leave your vehicle with the RENAULT card or key inside, and never leave a child, adult who is not self-suffi- cient or a pet, even for a short while. To slide the curtain 1...
Page 240: Interior Lighting
INTERIOR LIGHTING (1/2) Map reading lights Footwell lights Press switch 1 to get: The lights 2 come on when the doors – permanent lighting; are opened. – immediate switching off. Note: for vehicles fitted with a multi- function screen, you can use the mul- tifunction screen to deactivate/acti- vate the courtesy lights which come on when the doors or luggage compart-...
Page 241 INTERIOR LIGHTING (2/2) Centre console storage Glove box light 4 Boot lights compartment light Light 4 comes on when the cover is Light 5 comes on when the luggage opened. compartment is opened. The light 3 comes on when the storage compartment is opened.
Page 242: Sun Visor/Blinds
SUN VISOR, BLINDS Front sun visors (depending on vehicle) Slide the blind 3. This allows you to block out the sun in the area above the interior rear-view mirror. Note: do not use the front sun blind when the sun visor is placed against the side window.
Page 243 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/8) Door pockets 1 Dashboard storage Passenger storage drawer 3 compartment 2 To open, move your fingers into area 4 - It can hold a bottle. it will open by itself. If on a steep slope, assist the drawer opening by pulling the handle 5.
Page 244: Passenger Compartment Storage/Fittings
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/8) Passenger storage Cup holders 7 Central storage compartment compartment 8 Pull handle 6 to open it. Slide the curtain 9 to open the storage compartment. The glove box can hold A4-size docu- ments, a large bottle of water, etc. The storage compartment is ventilated and refrigerated.
Page 245 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/8) Storage drawer under Central armrest 11 Central storage driver’s seat 10 compartment 12 This drawer can hold a road atlas, the Lift up the armrest 11. vehicle documentation etc. Nothing should be placed on the floor area in front of the driver as such objects may slide under the pedal...
Page 246 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/8) Centre console 13 In cases of intensive use, a protective system will prevent it from operating for To move the centre console forward a few minutes. or backward (movement B), press the In any case, the load must not button 14 and slide the console.
Page 247 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (5/8) Storage compartment 15 Front and rear underfloor storage 17 Cup holders 16 These compartments can hold road maps, manuals, cloths, etc. This can be used for storing a mobile ashtray, cup holder, etc. Nothing should be placed on the floor area in front of the driver as such objects...
Page 248 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (6/8) Rear armrest with cup holder Cup holders 19 Lower armrest 18. When turning corners, accelerating or braking, ensure that the recepta- cle being held by the cup holder is not dislodged. There is a risk of burning if hot liquid escapes.
Page 249 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (7/8) Rear door storage Storage drawer 21 under the Front seat storage pockets 22 compartment 20 centre console Nothing should be placed Ensure that no hard, heavy on the floor area in front of or pointed objects are the driver as such objects placed in the “open”...
Page 250 PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (8/8) Rear parcel shelf 23 For a multimedia tablet Grab handle 26 Attach the upper section of the parcel This offers support and can be held shelf using the straps 24 and place the Retaining straps 24 when the vehicle is being driven.
Page 251: Accessories Socket
ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET Cigarette lighter 1 Accessories sockets With the ignition on, push in cigar You can use the one of the sockets 1 lighter 1. It will spring back with a click or 3. They are provided for connecting when it is ready.
Page 252: Rear Headrests
REAR HEADRESTS Position for use To adjust the angle of the When the headrest is set at the lowest position, this is for storage Lift the headrest fully until it locks. headrest only. It should not be in this position Depending on the vehicle, move sec- when a seat is occupied.
Page 253: Rear Seats
REAR SEATS (1/6) To move the seats forwards To fold down the seatback To raise the seatback or backwards (flat-floor position) Be sure to position the seat belt cor- rectly, hold the seatback, lift and ensure Lift lever 1 to unlock the seat. Once in Lower the headrest 3 and lift the that it is correctly locked.
Page 254 REAR SEATS (2/6) When refitting the seat- back, make sure it is cor- rectly locked in place. If seat covers are fitted, make sure these do not prevent the seatback latch from locking in. Make sure that the seat belts are positioned correctly.
Page 255: Luggage Compartment
REAR SEATS (3/6) To get out of the third row Note: If the lever 8 does not work, pull To fold down a third row seat the emergency exit strap 9. rear seats manually – Lift the lever 8; – From the luggage compartment, lower the headrest;...
Page 256 REAR SEATS (4/6) Disabling the function – With the engine running, a buckled seat belt prevents the movement of the relevant seat. – Once the vehicle is moving the two controls are deactivated. To raise the seats manually Raise each seat as described on the previous pages.
Page 257 REAR SEATS (5/6) Encountering an obstacle While being moved, if a seat encoun- ters an obstacle, the movement stops of its own accord. You will then have to manually fold back the seat after re- moving the obstacle. Operating fault If all user conditions have been ful- filled and the folding action still fails to operate, please contact an authorised...
Page 258 REAR SEATS (6/6) Special feature Use restriction For vehicles fitted with the “Hybrid It is not permitted to drive with a second Assist" system: if it is present, take row rear seatback or seat folded down care not to obstruct the vent 14 (refer when there is a passenger occupying a to the information on the “Hybrid Assist third row rear seat.
Page 259 TAILGATE Manual controls Opening the doors manually from the inside To open If it is impossible to unlock the tailgate, Press button 1 and lift the tailgate. it can be done manually from inside: – access the luggage compartment by To close folding forward the seatback(s) of Lower the boot lid using the handle...
Page 260: Rear Parcel Shelf
REAR PARCEL SHELF Removal – Unhook the two cords 1. – Lift the parcel shelf 2 upwards, then pull it towards you. To refit it, proceed in reverse order to removal. Do not place any heavy or solid objects on the parcel shelf.
Page 261: Luggage Cover
LUGGAGE COMPARTMENT COVER To remove the flexible Removing the luggage cover Luggage compartment cover section of the luggage cover storage Slide the button 2 (movement B) and lift the right-hand side of the roller at the Pull handle 1 gently to release the pins Lift up the rear of luggage compartment same time (movement C).
Page 262: Luggage Compartment Storage Space And Fittings
LUGGAGE COMPARTMENT FITTINGS AND STORAGE (1/2) Mobile floor 1 Intermediate position Storage position (depending on vehicle) This allows for more space to store Depending on the vehicle, the mobile In the blocked position, it allows you to things in the boot. floor is reversible.
Page 263 LUGGAGE COMPARTMENT FITTINGS AND STORAGE (2/2) Hook 4 Anchorage points Side storage compartment 6 You can use this to secure a bag. Attachment points 5. Depending on the vehicle, this may be used to hold the tyre inflation kit. Please refer to “Tyre inflation kit” in Section 5.
Page 264 TRANSPORTING OBJECTS IN THE BOOT Always place the objects to be trans- ported so that their largest side rests against the back of the rear seat for normal loads (e.g.: A), or against the Always position the heavi- back of the front seats B when the rear est items directly on the seatbacks are folded down.
Page 265: Transporting Objects Towbar
TRANSPORTING OBJECTS towbar A: 866 mm (short chassis). A: 1,023 mm (long chassis). Permissible nose weight, maxi- mum permissible towing weight, braked and unbraked: refer to the information on “Weights” in Section 6. Choice and fitting of towing equipment Maximum weight of towing equip- ment: 38 kg For fitting and conditions of use, If the towbar ball obscures the regis-...
Page 266: Luggage Net
LUGGAGE NET (1/2) Depending on the vehicle, this may be Fitting the luggage net – attach the two hooks 5 for the net used when transporting animals or lug- straps 3 to the anchoring points 4 behind the front seats gage to isolate them from the passen- –...
Page 267 LUGGAGE NET (2/2) Fitting the luggage net – attach the hook 10 of the luggage strap to the anchor points 9 closest behind the rear seats to the position of the mobile floor (behind the second row rear seats) (please refer to the information in Inside the vehicle on each side: “Passenger Compartment Storage, boot storage”, section 3);...
Page 268: Roof Bars
ROOF BARS User precautions Handling the tailgate Before operating the tailgate, check the objects and/or accessories (bike rack, roof box, etc.) fitted on the roof bars: these must be correctly positioned and secured, and must not prevent the tail- gate from operating correctly. Access to the mounting points Open the doors to access the mount-...
Page 269 Section 4: Maintenance Bonnet ............... . Engine oil level: general information .
Page 270: Bonnet
BONNET (1/2) To open, pull handle 1, located on the Unlocking the bonnet catch left-hand side of the dashboard. To unlock, push tab 3 at the same time When working in the engine as opening the bonnet. compartment, ensure that the windscreen wiper stalk Opening the bonnet is in the park position.
Page 271: Closing The Bonnet
BONNET (2/2) Closing the bonnet Check that nothing has been left in the engine compartment. To close the bonnet again, hold the bonnet in the middle and lower it to 30 cm above the closed position, then release it. It will latch automatically under its own weight.
Page 272: Engine Oil Level: General Information
ENGINE OIL LEVEL: general information It is normal for an engine to use oil for lubrication and cooling of moving parts and it is normal to top up the level be- tween oil changes. However, contact your approved Dealer if more than 0.5 litres is being In order to prevent splashing, it is consumed every 600 miles (1,000 km) recommended that a funnel be used...
Page 273: Engine Oil Level: Topping Up/Filling
ENGINE OIL LEVEL: topping up, filling (1/2) Topping up/Filling – Unscrew cap 1; – top up the level (as a guide, the ca- The vehicle must be parked on level pacity between the “MINI” and the ground and the engine should be cold “MAXI”...
Page 274: Oil Change
ENGINE OIL LEVEL: topping up, filling OIL CHANGE (2/2)/ Oil change Engine oil grade Service interval: refer Refer to the Maintenance Service Maintenance Service Booklet for your Booklet for your vehicle. vehicle. Oil change capacity Filling: take care when Please refer to the maintenance docu- topping up the oil that ment for your vehicle, or contact an au- no oil drips onto engine...
Page 275: Levels
LEVELS (1/3) Checking intervals Replacement intervals Check the coolant level regularly Refer to the Maintenance Document for (very severe damage is likely to be your vehicle. caused to the engine if it runs out of coolant). If the level needs to be topped up, only use products approved by our Technical Department which ensure: –...
Page 276: Brake Fluid Level
LEVELS (2/3) Level 2 Topping up It is normal for the level to drop as After any operation on the hydraulic cir- the linings become worn, but it should cuit, a specialist must replace the fluid. never drop below the “MINI” warning Only use fluids approved by our line.
Page 277: Windscreen/Headlight Washer Reservoir
LEVELS /FILTERS (3/3) Filters Liquid Windscreen washer fluid. In winter, use The replacement of filter elements (air anti-freeze product. Use products rec- filter, passenger compartment filter, ommended by an authorised dealer. diesel filter, etc.) is scheduled in the maintenance operations for your vehi- Note: do not use pure water (risk of cle.
Page 278: Volt Battery
12 VOLT BATTERY (1/2) Depending on the vehicle, a system continuously checks the battery charge status. If this decreases, the message “Battery low start engine” is displayed on the instrument panel. In this case, start the engine and the message on the instrument panel will disappear.
Page 279 12 VOLT BATTERY (2/2) Replacing the battery As this operation is complex, we advise you to contact an approved Dealer. Label A Observe the indications on the battery: – 2 Naked flames and smoking are for- bidden; – 3 eye protection required; –...
Page 280: Tyre Pressure
TYRE PRESSURE (1/2) Vehicle fitted with a tyre pressure monitoring system If under-inflated (puncture etc.), the  warning light lights up on the in- strument panel; please refer to the in- formation on the “Tyre pressure moni- toring system” in Section 2. Label A B: size of the tyres fitted to the vehicle.
Page 281 TYRE PRESSURES (2/2) Tyre safety and use of snow chains: Refer to the information on “Tyres” in Section 5 for the servicing conditions and, depending on the version, the use of chains. For your safety, please re- spect the speed limit. When they need to be re- placed, only tyres of the same make, size, type and profile...
Page 282: Bodywork Maintenance
BODYWORK MAINTENANCE (1/2) What you should not do You should A well-maintained vehicle will last longer. It is therefore recommended to Do not degrease or clean mechani- Wash your car frequently, with the maintain the exterior of the vehicle reg- cal components (e.g.
Page 283 BODYWORK MAINTENANCE (2/2) Vehicles with a matte paint Using a roller type car wash Respect local regulations about wash- ing vehicles (e.g. do not wash your ve- finish Return the windscreen wiper stalk to hicle on a public highway). the Park position (refer to the informa- This type of paint requires certain pre- Observe the vehicle stopping distances tion on the “Windscreen washer, wiper”...
Page 284: Interior Trim Maintenance
INTERIOR TRIM MAINTENANCE (1/2) Glass instrument panel Textiles (seats, door trim, etc) A well-maintained vehicle will last longer. It is therefore recommended to (e.g.: instrument panel, clock, exterior Vacuum-clean the textiles regularly. maintain the interior of the vehicle regu- temperature display, radio display, mul- larly.
Page 285 INTERIOR TRIM MAINTENANCE (2/2) Removal/replacing removable You should not: equipment originally fitted in You are strongly advised not to po- the vehicle sition objects such as deodorants, scents, etc. near air vents, as this could If you need to remove equipment in damage your dashboard trim.
Page 286 4.18...
Page 287 RENAULT card: battery ........
Page 288: Puncture/Emergency Spare Wheel
PUNCTURE/EMERGENCY SPARE WHEEL (1/3) In case of puncture Depending on the vehicle, a tyre infla- tion kit or emergency spare wheel is provided (refer to the following pages). Special note The Tyre Pressure Monitor function does not check the emergency spare wheel (the wheel replaced by the emer- gency spare wheel disappears from the instrument panel display).
Page 289 PUNCTURE/EMERGENCY SPARE WHEEL (2/3) Emergency spare wheel A Emergency spare wheel C – remove blanking cover; – only use the wheel brace 6 (using This is located in the luggage compart- It is located under the vehicle. a different tool could damage the ment: From the boot: mechanism) to unroll the retaining...
Page 290 PUNCTURE/EMERGENCY SPARE WHEEL (3/3) From the exterior of the vehicle, stand From the luggage compartment, tighten Reposition the blanking cover then the the wheel up, pass the cable and the the bolt fully in order to wind the retain- cover 7. component 8 through the wheel rim and ing cable, ensuring that the wheel re- For vehicles fitted with a servo, replace...
Page 291 TYRE INFLATION KIT (1/4) Do not attempt to use the The kit is only approved for inflation kit if the tyre has inflating the tyres of the ve- been damaged as a result hicle originally equipped of driving with a puncture. with the kit.
Page 292 TYRE INFLATION KIT (2/4) – press the switch 4 to inflate the tyre to the recommended pressure (please refer to the information about “Tyre Pressures” in Section 4); – after a maximum of 15 minutes, stop inflating and read the pressure (on pressure gauge 5).
Page 293 TYRE INFLATION KIT (3/4) Once the tyre is correctly inflated, – Start immediately and drive at a remove the kit: slowly unscrew the in- speed of 12.4 to 37.2 mph (20 to flation end piece of the container 2 to 60 km/h) in order to distribute the prevent any product spatter and store product evenly in the tyre;...
Page 294: Tyre Inflation Kit
TYRE INFLATION KIT (4/4) Precautions when using the The kit should not be operated for more than 15 consecutive minutes. The container must be replaced after the first use even if liquid remains inside. Following repair with the kit, do not travel further than 120 miles (200 km).
Page 295: Tools
TOOLS (1/2) Hubcap tool 3 This tool is used to remove the wheel trims. Screw guide 4 For tightening/loosening wheel bolts on vehicles fitted with alloy wheels Towing hitch 5 Do not leave the tools un- Refer to the information on “Towing” in secured inside the vehicle Section 5.
Page 296 TOOLS (2/2) 5-seater version 7-seater version Lift the boot carpet and secure it with Lift the third row rear right-hand seat, the hook. pull back the strap 8 and take out the The tools are in the bag 7 held in place bag containing the tools.
Page 297: Wheel Trim
WHEEL TRIM To refit it, align it with the valve 1 and the wheel bolts 2. Push in the centre of the wheel trim to clip the centre section around the wheel bolts. Push in the re- taining hooks located around the edge of the trim.
Page 298: Changing A Wheel
CHANGING A WHEEL (1/2) Vehicles equipped with a jack Offer up the jack 1 horizontally; the jack head must be lined up with the and wheelbrace sill, closest to the wheel concerned, as If necessary, remove the wheel trim. shown by arrow 2. Use the wheelbrace 3 to slacken off the Start cranking the jack up by hand to wheel bolts.
Page 299 CHANGING A WHEEL (2/2) Undo the bolts and take off the wheel. Fit the emergency spare wheel onto the hub and rotate it until the mounting holes in the wheel coincide with those of the hub. Tighten the bolts, checking that the wheel is correctly positioned on its hub and unscrew the jack.
Page 300: Tyres (Tyre And Wheel Safety, Use In Winter)
TYRES (1/3) The tyres are the only contact between When the tread has worn down to the the vehicle and the road, so it is essen- wear warning strips, these strips will tial to keep them in good condition. become visible 2: it is then necessary to replace your tyres because the tread You must make sure that your tyres rubber is now only 1.6 mm deep at...
Page 301: Tyre Pressures
TYRES (2/3) Tyre pressures The pressures should be checked cold: Vehicle fitted with a tyre pressure ignore higher pressures which may be monitoring system Adhere to the tyre pressures (including reached in hot weather or following a In cases of under-inflation (puncture, the emergency spare wheel).
Page 302 TYRES (3/3) Fitting new tyres Use in winter Studded tyres This type of equipment may only be Chains used for a limited period and as laid For safety reasons, this op- For safety reasons, fitting snow down by local legislation. It is neces- eration must be carried out chains to the rear axle is strictly for- sary to observe the speed specified by...
Page 303: Headlights: Changing Bulbs
HEADLIGHTS: changing bulbs (1/2) Direction indicator lights Halogen dipped beam Halogen main beam headlight headlight Turn bulb holder 1 a quarter of a turn To change the bulb: and take out the bulb. – remove cover B; To change the bulb: –...
Page 304 FRONT HEADLIGHTS: replacing the bulbs (2/2) Front fog lights6 Additional lights – Access the bulb holder via the un- If you wish to fit fog lights to your ve- derneath of the vehicle; hicle, please see an authorised dealer. – unclip the flap; –...
Page 305 REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/5) Refitting To refit, proceed in the reverse order, taking care not to damage the wiring. Direction indicator lights/ Unclip the bulb holder a quarter of a turn. brake and side lights Replace the bulb.
Page 306 REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/5) Direction indicator lights/ Open the luggage compartment, Direction indicator light 8 remove the cover 6 to access the brake and side lights Bulb type: PY21W. screw 7 and undo it. (continued) Brake light 9 Remove the rear lights unit.
Page 307: Reversing Lights
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/5) Reversing lights Unclip the bulb holder 11 a quarter of a turn. From the luggage compartment, unclip Bulb type: W16W. the cover 10 on the interior trim of the luggage compartment lid. Refitting To refit, proceed in the reverse order, taking care not to damage the wiring.
Page 308: Led Lighting
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (4/5) LED lighting The lights are equipped with an LED lighting system as soon as the side lights are switched on. Consult an approved Dealer to replace the LEDs. This lighting does not replace a faulty side light.
Page 309: Indicator Lights (Changing Bulbs)
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (5/5) Number plate lights 14 Indicator lights 15 Unclip the light 14 by sliding the light to Consult an approved Dealer. the right (movement A). Remove the light cover to gain access to the bulb.
Page 310 INTERIOR LIGHTING: changing bulbs (1/3) Map reading lights 1 Ambient lighting Please consult an authorised dealer. Please consult an authorised dealer. 5.24...
Page 311 INTERIOR LIGHTING: changing bulbs (2/3) Footwell lights 2 Centre console storage compartment light 3 Please consult an authorised dealer. Unclip the light 3 by hand by pulling for- wards then pull the bulb downwards. Bulb type: W5W. 5.25...
Page 312 INTERIOR LIGHTING: changing bulbs (3/3) Glove box light 4 Boot lights 5 Using a flat-blade screwdriver or simi- Using a flat-blade screwdriver or simi- lar, unclip the light 4 by pressing the lar, unclip the light 5 by pressing the tab located on one side of the light to tab located on one side of the light to access the bulb.
Page 313: Fuses
FUSES (1/2) Use the fuse allocation label in storage compartment A to identify the fuses. Certain fuses should only be replaced by a qualified professional. These fuses are not listed on the label. Only change the fuses represented on the label. Fuse box Tweezers 2 If any electrical component does not...
Page 314 FUSES (2/2) Allocation of fuses (the presence of certain fuses depends on the vehicle equipment level) Symbol Allocation Symbol Allocation Windscreen washer “Hybrid Assist” system  Third row accessories socket, boot accessories Towbar socket ë Ý socket Front cigarette lighter, front and rear second row Diagnostic socket, audio alarm Æ...
Page 315: Connecting A Battery Charger
12 VOLT BATTERY: troubleshooting (1/2) To avoid all risk of sparks: Connecting a battery charger – Ensure that any consumers (cour- The battery charger must be com- tesy lights, etc.) are switched off patible with a battery with nominal before disconnecting or reconnect- voltage of 12 volts.
Page 316 12 VOLT BATTERY: troubleshooting (2/2) Starting the vehicle using the battery from another vehicle If you have to use the battery from an- other vehicle to start, obtain suitable jump leads (with a large cross section) from an approved dealer or, if you al- ready have jump leads, ensure that they are in perfect condition.
Page 317: Renault Card: Battery
RENAULT lock/unlock the vehicle (please refer to Note: it is not advisable to touch the card: the information on “Locking/unlocking...
Page 318: Radio Frequency Remote Control: Batteries
RADIO FREQUENCY REMOTE CONTROL: batteries Replacing the battery Note: It is not advisable to touch the Operating faults electronic circuit in the key cover when Open the case at slot 1 using a flat- If the battery is too weak to ensure cor- replacing the battery.
Page 319: Accessories
ACCESSORIES Electrical and electronic accessories Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po- sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer. Connect accessories with a maximum power of 120 Watts only.
Page 320: Windscreen Wiper Blades
WINDSCREEN WIPER BLADES: replacement (1/2) With the ignition on, return the wind- screen wiper stalk to the stop position. The blade on the driver’s side must always be above the passenger blade. If this is not the case, a quick sweep of the windscreen wipers should be per- formed once the vehicle is travelling at over 4 mph (7 km/h).
Page 321 WINDSCREEN WIPER BLADES: replacement (2/2) To refit To refit the wiper blade, proceed in re- verse order to removal. Make sure that the blade is correctly locked in position. Rear screen wiper blade 4 Stalk in stop position (deactivated): – lift the wiper arm 5; –...
Page 322: Towing: Breakdown
Insert the key into the ignition or, de- automatic gearbox pending on the vehicle, with the Transport the vehicle on a trailer or tow RENAULT card on you, press the it with the front wheels off the ground. engine start button for approximately 2 seconds.
Page 323 TOWING : breakdown (2/2) Use the towing hitch 5 only (refer to the information on “Tools” in Section 5). – Use a rigid towing bar. If a rope or cable is used (where the law allows this), the vehicle being towed must be able to brake.
Page 324: Operating Faults
OPERATING FAULTS (1/7) Using the RENAULT card POSSIBLE CAUSES WHAT TO DO The RENAULT card does not lock or Card battery is flat. Replace the battery. You can still lock/ unlock the doors. unlock and start your vehicle (refer to the information on “Locking/unlocking the...
Page 325 OPERATING FAULTS (2/7) The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact an approved dealer as soon as possible. Using the remote control POSSIBLE CAUSES ACTION REQUIRED The remote control does not lock or The remote control battery is flat.
Page 326 Starting conditions are not ful- Please refer to the information on “Starting, stopping filled. the engine” in Section 2. The RENAULT “hands-free” card Please refer to the information on “Starting, stopping does not work. the engine” in Section 2. The engine cannot be switched off.
Page 327 OPERATING FAULTS (4/7) On the road POSSIBLE CAUSES WHAT TO DO Vibrations. Tyres not inflated to correct pres- Check the tyre pressures: if this is not the sures, incorrectly balanced or dam- problem, have them checked by an ap- aged. proved Dealer.
Page 328 OPERATING FAULTS (5/7) On the road POSSIBLE CAUSES WHAT TO DO Steering becomes heavy. Assistance overheating. Consult an approved dealer. The engine is overheating. The cool- Engine cooling fan not working. Stop the vehicle, switch off the engine and ant temperature indicator is in the contact an approved dealer.
Page 329 OPERATING FAULTS (6/7) Electrical equipment POSSIBLE CAUSES WHAT TO DO The wipers do not work. Wiper blades stuck. Free the blades before using the wipers. Faulty electrical circuit. Consult an approved dealer. Fuse damaged. Replace the fuse, refer to the information on “Fuses”.
Page 330 OPERATING FAULTS (7/7) Electrical equipment POSSIBLE CAUSES WHAT TO DO Traces of condensation in the lights. Traces of condensation may be a nat- ural phenomenon caused by varia- tions in temperature. In this case, the traces will disappear slowly once the lights are switched The front seat belt reminder light An object is stuck between the floor Remove all objects from underneath the...
Page 331 Section 6: Technical specifications Vehicle identification plates ............Engine identification plates .
Page 332: Vehicle Identification Plates
VEHICLE IDENTIFICATION PLATES The information shown on the ve- 4 MMAC (Maximum permissible hicle identification plate should be all-up weight). quoted on all correspondence or 5 MTR (Gross train weight: vehicle orders. fully loaded, with trailer). 6 MMTA (Maximum Permissible The presence and location of the in- Weight) front axle.
Page 333: Engine Identification Plates
ENGINE IDENTIFICATION PLATES Please quote the information on the engine plate or label A in all corre- spondence or orders. (Location varies depending on engine) 1 Engine type. 2 Engine suffix. 3 Engine number.
Page 334: Dimensions
DIMENSIONS (in metres) (1/2) Short chassis 0,934 2,734 0,739 1,600 4,407 1,653* 1,597 2,128 * Unladen...
Page 335 DIMENSIONS (in metres) (2/2) Long chassis 0,934 2,804 0,897 1,600 4,635 1,660* 1,597 2,128 * Unladen...
Page 336: Engine Specifications
ENGINE SPECIFICATIONS Versions 1.2 TCe 1.5 dCi 1.6 dCi Engine type H5F Turbo (see engine plate) Cubic capacity (cc) 1197 1 461 1598 Diesel The label located in the fuel filler flap indicates authorised fuels. It is essential that you use unleaded Type of fuel petrol of the octane rating stated on Octane rating...
Page 337: Weights
WEIGHTS (in kg) The weights indicated are for a basic vehicle without options: they may vary depending on your vehicle’s equipment. Consult an approved Dealer. Maximum Permissible All-Up Weight (MMAC) Weights are indicated on the vehicle identification plate (refer Gross Train Weight (MTR) to the information on “Vehicle identification plates”...
Page 338: Replacement Parts And Repairs
REPLACEMENT PARTS AND REPAIRS Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same level of quality as the parts fitted originally. If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the repair order.
Page 339: Service Sheets
SERVICE SHEETS (1/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 340 SERVICE SHEETS (2/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 341 SERVICE SHEETS (3/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 342 SERVICE SHEETS (4/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 343 SERVICE SHEETS (5/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 344 SERVICE SHEETS (6/6) VIN: .................. Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □ ........Anti-corrosion check: OK □ Not OK* □ *See specific page Date: Miles (Km): Invoice number: Comments/miscellaneous Type of operation: Stamp □ Service □...
Page 345: Anticorrosion Check
ANTICORROSION CHECK (1/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.15...
Page 346 ANTICORROSION CHECK (2/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.16...
Page 347 ANTICORROSION CHECK (3/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.17...
Page 348 ANTICORROSION CHECK (4/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.18...
Page 349 ANTICORROSION CHECK (5/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.19...
Page 350 ANTICORROSION CHECK (6/6) If the continuation of the warranty is subject to repair, it is indicated below. VIN: ............Corrosion repair operation to be carried Stamp out: Date of repair: Repair to be carried out: Stamp Date of repair: Repair to be carried out: Stamp Date of repair: 6.20...
Page 351 ALPHABETICAL INDEX (1/6) blind spot warning signal ........2.55 → 2.58 ABS ...............2.35 → 2.39 blind spot: warning signal ........2.55 → 2.58 accessories................ 5.33 bonnet................. 4.2 – 4.3 accessories socket ........... 3.22, 3.37 brake fluid ................4.8 adaptive cruise control...........2.74 → 2.81 bulbs additional methods of restraint .....1.32 →...
Page 352 ALPHABETICAL INDEX (2/6) engine oil ..............4.4 → 4.6 deadlocking the doors ..........1.5, 1.12 demisting engine oil level ............4.5 – 4.6 rear screen ............3.6 → 3.8 engine specifications ............6.6 windscreen ............3.6 → 3.8 engine start/stop button ..........2.5 → 2.7 dimensions ..............
Page 353: Maintenance
ALPHABETICAL INDEX (3/6) fuel consumption ...........2.24 → 2.29 indicators: fuel economy ............2.24 → 2.29 direction indicators ..........1.94, 5.19 fuel level ................1.72 exterior temperature indicator ........1.90 instrument panel ..........1.66 → 1.79 fuel repriming ..............1.111 instrument panel ...........1.66 → 1.87, 1.95 fuel tank capacity ............
Page 354 ............... 5.32 multimedia equipment ..........3.21 – 3.22 remote control door locking unit ........1.2 → 1.4 Multi-Sense..............3.2 – 3.3 RENAULT ANTI-INTRUDER DEVICE (RAID) ....1.18 RENAULT card battery ................5.31 navigation ............... 3.21 – 3.22 use ..............1.6 → 1.12...
Page 355: Technical Specifications
ALPHABETICAL INDEX (5/6) storage compartments ........3.29 → 3.36, 3.48 RENAULT card battery ............5.31 replacement parts ..............6.8 sun blinds ................3.28 reverse gear sun visor ................3.28 selecting ..........2.20, 2.93 → 2.95 switching on the vehicle ignition ........2.3, 2.6 reversing sensor ............2.82 →...
Page 356: Alphabetical Index
ALPHABETICAL INDEX (6/6) tyres ....2.29, 2.32 → 2.34, 4.12 – 4.13, 5.14 → 5.16 unlocking the doors ..........1.13 → 1.15 vehicle detection ............2.40 → 2.46 ventilation ............3.6 → 3.13, 3.19 warning buzzer ..........1.16, 1.94, 1.98 warning lights........1.66 → 1.71, 1.78 → 1.87 washing ..............
Page 358 à999100919Rê ê û ä SS RENAULT S.A.S. SOCIÉTÉ PAR ACTIONS SIMPLIFIÉE AU CAPITAL DE 533 941 113 € / 13-15, QUAI LE GALLO 92100 BOULOGNE-BILLANCOURT R.C.S. NANTERRE 780 129 987 — SIRET 780 129 987 03591 / TÉL. : 0810 40 50 60...

Renault SCENIC Driver's Handbook Manual

Section 1: Getting to Know Your Vehicle

Section 2: Driving

Section 3: Your Comfort

Section 4: Maintenance

Section 5: Practical Advice

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renault SCENIC

Summary of Contents for Renault SCENIC

Table of Contents
