Vitalograph micro Quick Start Manual

Vitalograph
Using this guide it will take you just a few minutes to produce your first spirometry test report using the
Vitalograph micro. If you need further instruction details, you will find the User Manual on the CD provided.
If you need more help contact your supplier or visit Technical Support on:

... system components

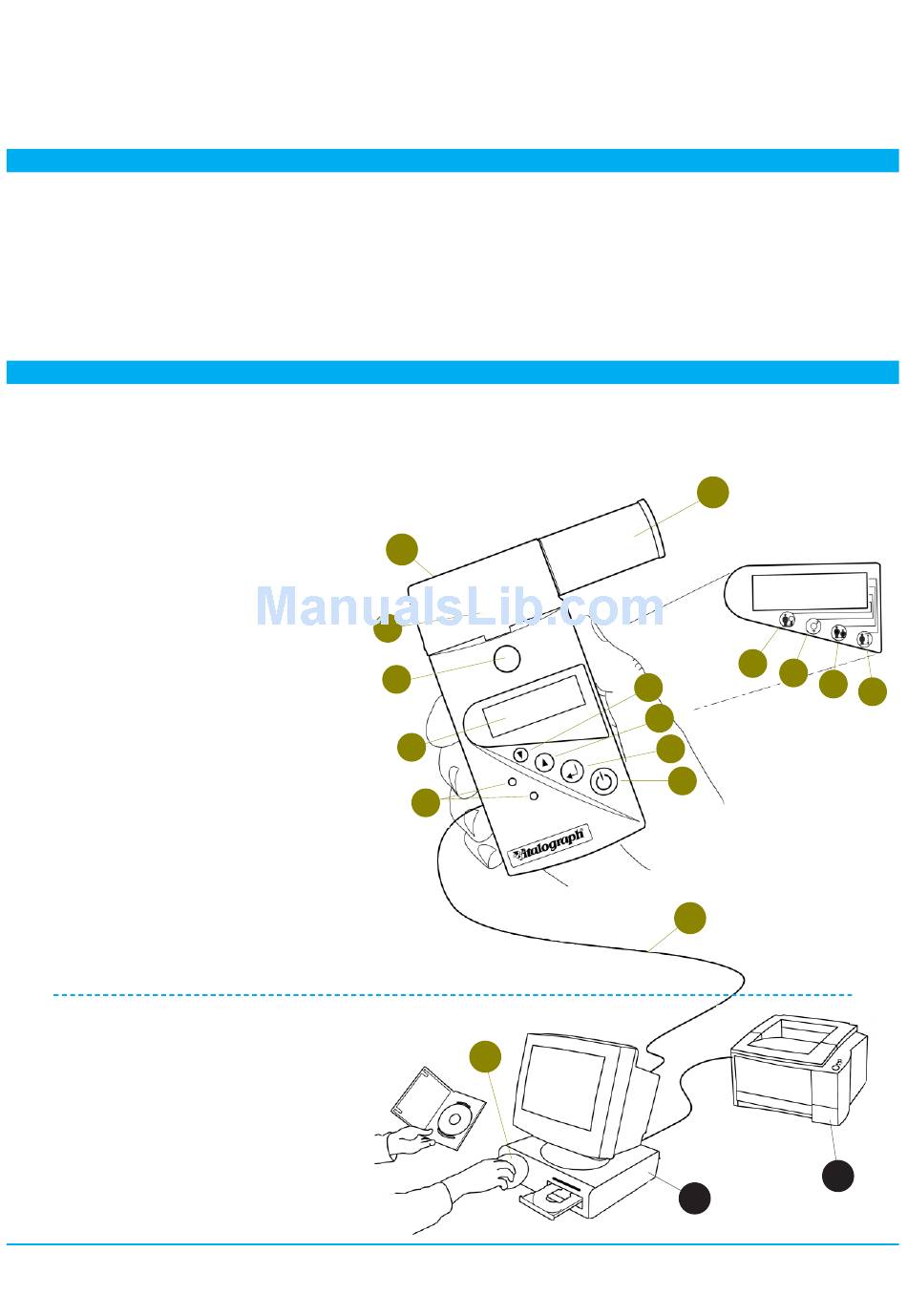

Items listed in colour are shipped with the Vitalograph micro:
1 Vitalograph micro Quick Start Guide
2 Vitalograph micro device
a. Flowhead
b. Flowhead Release button
c. LCD Display
d. Recess buttons
e. Down button
f. Up button
g. Enter button
h. On/Off button
i. Weight
j. Gender
k. Age
l. Height
3 Firmware Description
4 Sample SafeTway mouthpieces
5 Vitalograph micro – serial cable
6 Adaptor for fitting Precision Syringe or BVF
7 Serial Spirometry Record Card samples
(optional) micro -> Vitalograph Reports Utility
8 Vitalograph Reports Utility
(PC software INSTALL FIRST)
9 Vitalograph Reports Utility
Quick Start Guide
10 Your PC
11 Your Printer
Quick Start Guide
www.vitalograph.co.uk
(this document, not shown)
