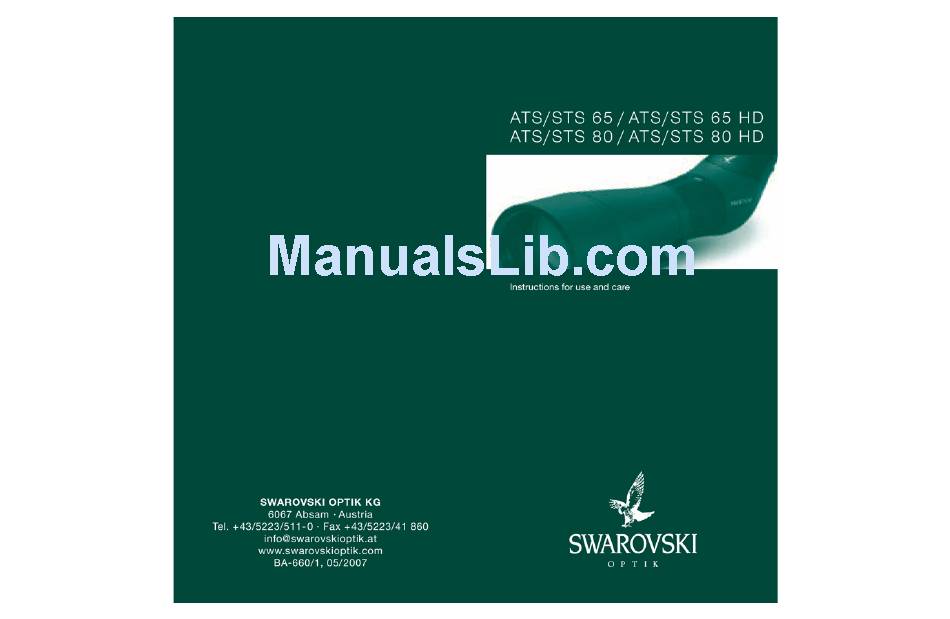

Summary of Contents for Swarovski Optik ATS 65
- Page 2 For your safety! We are very pleased that you decided to pur- chase this product from Swarovski Optik . If ▲ WARNING! you have any questions, please consult your Never look at the sun with specialist dealer or contact us directly at www.swarovskioptik.com.
- Page 3 Other tripods Aiming aid The tripod base has a con- The mounted ai- necting thread of 3/8˝ UNC. ming aid is desi- The inserted bush reduces gned to help you the connecting thread to align the tele- 1/4˝. The observation teles- scope with the cope thus fits on any standard tripod.
- Page 4 • Align the marking on the Use of the 20-60x zoom eyepiece eyepiece with the marking To change magnification: on the bayonet fitting. Turning the adjustment ring • Insert the eyepiece and to the right (clockwise) turn it to the right (clock- decreases magnification wise)
- Page 5 Changing the viewing angle Disassembly of the protective cap for the eyepiece • Turn the locking screw to The protective cap for the the left (anti-clockwise) to eyepiece is attached to the unlock the tripod ring in eyepiece with a cord. By position.
- Page 6 Cleaning During longer stays in tropical regions with a high degree of humidity the best place to store the We have designed all elements and surfaces to instrument in is an air-tight receptacle along with a require little care. To ensure the long-lasting opti- moisture-absorbing agent (e.g.
