HT-RC440
Ref. No. 4395
072012
AV RECEIVER
HT-RC440(B)
MODEL
RC-834M
Black model
B MDC
120V AC, 60Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-RC440(B) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo HT-RC440(B)

Summary of Contents for Onkyo HT-RC440(B)

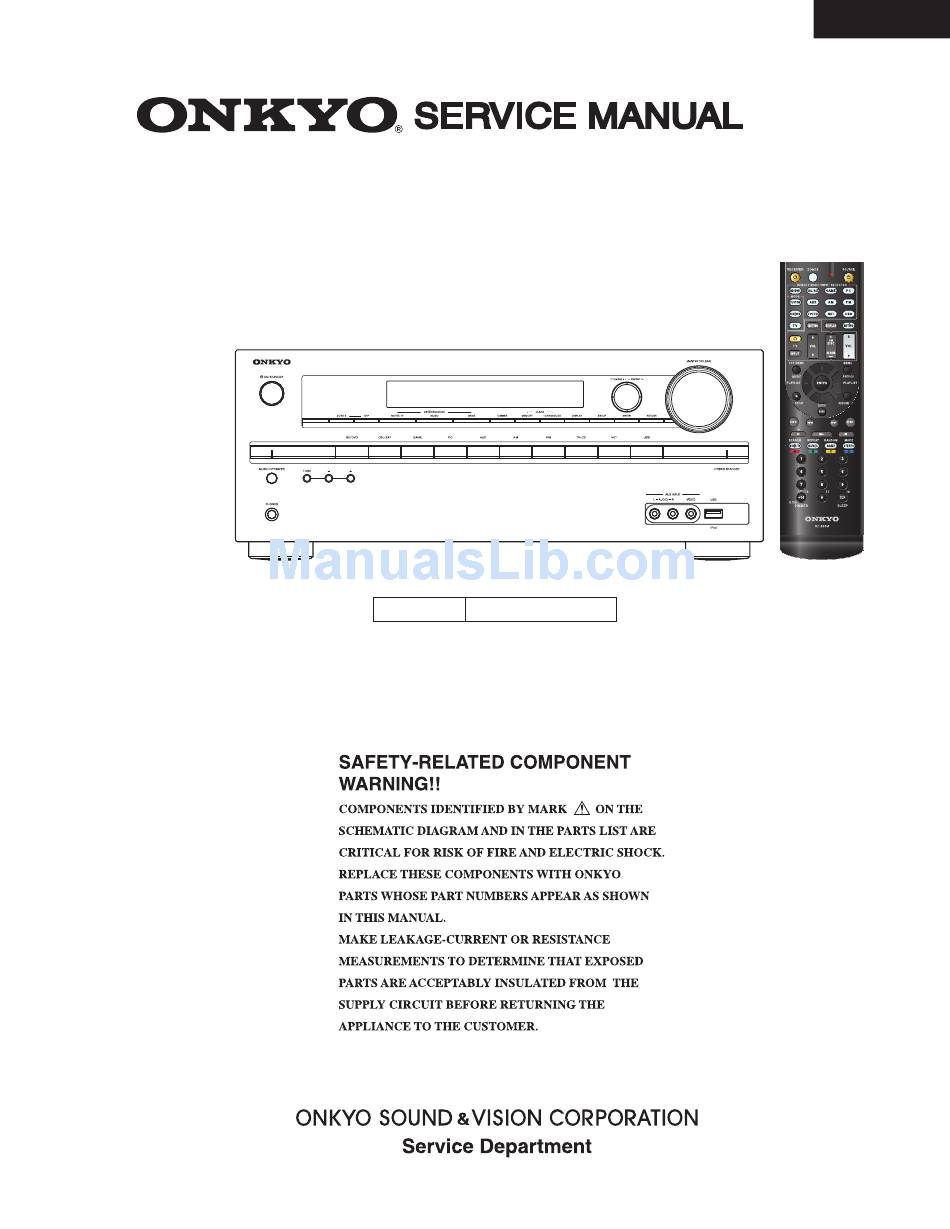

  • Page 1 HT-RC440 Ref. No. 4395 072012 AV RECEIVER HT-RC440(B) MODEL RC-834M Black model B MDC 120V AC, 60Hz...

  • Page 2: Service Procedure

    HT-RC440 SERVICE PROCEDURE-1 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is slow operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to the marking adjacent to the symbol. Ce symbole indique que le fusible utilise est e lent.
  • Page 3 HT-RC440 SERVICE PROCEDURE-2 4. To check version of each Firmware 1. Press ON/STANDBY (Power On) 2. Press DISPLAY + ON/STANDBY. e.g. Version of displayed Main Microprocessor M 1 .0 9 /1 2 6 1 2 A L N only for 3 seconds. 3.
  • Page 4 HT-RC440 SERVICE PROCEDURE-3 5. Notes on repairs (Power supply board) Some parts on BAPS-1120 may remain high voltages even after the power cord is disconnected from AC power source. Before starting repair and any other work , please discharge C9002 by connecting resistors between its terminals. See the figure below (recommended resistor spec: 5 k ohms/ 10W) It is dangerous to touch the "HIGH VOLTAGE PRIMARY"...

  • Page 5: Debug Mode

    TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-1 AUDIO DEBUG MODE-1/6 The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode. This information will help to analysing digital audio no sound trouble. To set in Debug mode 1.
  • Page 6 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-2 AUDIO DEBUG MODE-2/6 Contents of Display FL Display Display area STEP-1 e.g. 0A0002: __: 00 _ _ blank 1.st_srd.lmd 2.st_srd.extdec C_LM_LAST C_EXTDEC_OFF C_LM_PURE C_EXTDEC_20_PLII C_LM_DIRECT C_EXTDEC_20_PLIIX C_LM_STEREO C_EXTDEC_20_PLIIZ C_LM_MONO C_EXTDEC_20_NEO6 C_LM_SURR C_EXTDEC_51_MTR C_LM_THX_MUSIC C_EXTDEC_51_DSC...
  • Page 7 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-3 AUDIO DEBUG MODE-3/6 STEP-2 e.g. AN A:o :N ON :C:_ _ blank 9.Display inhibit frag 7.DSP decode 6.Audio input channel : DSP Detect OK : display_inhibit SET : Analog × : DSP No Detect : display_inhibit CLR : Coaxial : Optical...
  • Page 8 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-4 AUDIO DEBUG MODE-4/6 STEP-4 e.g. 2/ 0. 0:_ 2.0: 3/4 14.Information of the input channels 16.Channel information for the FL display for listening mode transition four-digit string "10.2" "5.1" "1 +1" : C_FMT_UNKNOWN : C_FMT_42H 17.Number of channels after decoding...
  • Page 9 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-5 AUDIO DEBUG MODE-5/6 STEP-6 e.g. _0 0:x : F: O FF_ _ _ blank blank 21.Dialog norm 23.Return value of DIR busy or free 24.emphasis of information Dialog Norm value from 0 to 31 Request_dir (DDC_BUSY) : Free : Busy...
  • Page 10 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-6 AUDIO DEBUG MODE-6/6 STEP-8 e.g. _4 8 4 8 2 5 6 STB_ _ blank 33. Information of the input FS of DA830 35. Information of the input MCLK of DA830 : C_FS_UNKNOWN : AUD_MCLK_64Fs : C_FS_08...
  • Page 11 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-7 HDMI DEBUG MODE-1/6 HDMI-related operations can be checked to some extent by displaying HDMI debug mode. To enter this mode Hold down DISPLAY button for 3 seconds. Information display will last for about 8 seconds. Content of Display Resolution display Input resolution...
  • Page 12 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-8 HDMI DEBUG MODE-2/6 Display of Input resolution DVI input signal 4 8 0 I / 6 0 4 8 0 P / 6 0 i / p will be capitalized. VGA input signal V G A Display the ”...
  • Page 13 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-9 HDMI DEBUG MODE-3/6 4K Upscaling Display of input resolution 1 0 8 0 i / 6 0 Display of Output resolution If the three-digit numbers are refrate List of resolution 3 8 4 0 x 2 1 6 0 p / 3 0 3 8 4 0 x 2 1 6 0 p / 2 5 3 8 4 0 x 2 1 6 0 p / 2 4 4 0 9 6 x 2 1 6 0 p / 2 4...
  • Page 14 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-10 HDMI DEBUG MODE-4/6 ( 3 D ) 1 0 8 0 p / 2 4 Resolution display H D M I 4 4 4 3 6 b i Status Display F r a m k i n g 3D format I N :...
  • Page 15 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-11 HDMI DEBUG MODE-5/6 3D format Frame Packing F r a m _ P a k i n g Field alternative F _ a l e r n t i v e Line alternative L _ a l e r n...
  • Page 16 TX-NR414/ 515/ 515AE/ 616/ 616AE/ HT-R758/791/ HT-RC440/460/470 DEBUG MODE-12 HDMI DEBUG MODE-6/6 PC resolution 1 0 2 4 x p / 6 0 Input Resolution 1 0 2 4 x p / 6 0 Output Resolution Display of Input resolution Horizontal resolution Vertical resolution Referat...
  • Page 17 TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-1 1.OPERATION CHECK(1/2) 1-1. OPERATIONS OF VOLTAGE-DETECTION PROTECTORS. See “OPERATION CHECK-3, -5” for TEST MODE operation. NOTE: Don't connect load nor short speaker terminals. a. Change the state to "TEST-4-21". b. It tests by being automatic in order of TEST4-21(FL+) → 22(FR-) → 23(C+) → 24(SL-) →...
  • Page 18 TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-2 1.OPERATION CHECK(2/2) 1-7. CONFIRMATION OF HDMI MAIN OUTPUT OSD(ON SCREEN DISPLAY) OPERATION a. When SETUP button is pushed, confirm that setup menu is displayed in HDMI Out. b. Confirm that specified operations for ENTER(with 4-cursor) buttons are made. 1-8.

  • Page 19: Operation Check

    TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-3 2.TEST MODE(1/4) 2-1.TEST MODE FOR MODEL, DESTINATION AND FL DISPLAY NOTE: If VOL value is not 25(initial setting), test mode cannot be set. a. Push ON/STANDBY key while pushing down TV/CD button button to display "TEST-". b.
  • Page 20 TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-4 2.TEST MODE(2/4) 2-2. TEST MODE FOR OPERATION(Continue) e. Test mode is as follows. TEST Analog Input Listening Mode/ VIDEO Compo- HDMI Digital Input Config. Master Vol. Speaker etc. [Rec Sel] Input Format Input nent V Trigger /Output /Z2 Vol...
  • Page 21 TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-5 2.TEST MODE(3/4) 2-2. TEST MODE FOR OPERATION(Continue) Auto Measurement Mode TEST DSP Output ch DSP Output Config. Master Vol. Speaker etc. Frequency Output Relay Voltage 4-00 1kHz -20dBFS Y/L/L/L/L 64(-16dB) F/CS/SB DSP Gain 4-01 30Hz -20dBFS Y/L/L/L/L...
  • Page 22 TX-SR313/ NR414/ HT-R391/358/558/591/758/ RC430/440 OPERATION CHECK-6 2.TEST MODE(4/4) 2-2. TEST MODE FOR OPERATION(Continue) VIDEO & HDMI TEST MODE TEST Input selector DIGITAL COMPONENT Volume HDMI MODE INPUT 5-00 BD/DVD HDMI 5-01 BD/DVD HDMI 5-02 BD/DVD HDMI 5-03 BD/DVD HDMI 5-04 Only NR414 5-05 BD/DVD...
  • Page 23 HT-RC440 EXPLODED VIEWS-1 To U0040 U0032 (P3101) OVERALL U0050 Refer to P8001 P901 EXPLODED VIEWS-2 To U0040 (P701) A340 P8004 P2800 A017 A073 x 3 pcs. A056 U0041 A360 U0020 U010 A071 A069 A021 P101 x 2 pcs. To U0040 (P703) A270 x 4 pcs.

  • Page 24: Exploded Views

    HT-RC440 EXPLODED VIEWS-2 HEAT SINK / REAR PANEL SECTION A032 A030 HEAT SINK SECTION A036 Front x 4 pcs. A050 x 10 pcs. Q6062 Q6052 Q6060 Q6050 Q6061 Q6051 Q6063 Q6050A Q6053 x 2 pcs. Q6064 A101 Front Q6054 A102 A034 Q6050B x 4 pcs.

  • Page 25: Front Section

    HT-RC440 EXPLODED VIEWS-3 To U0032 To U0050 To U0050 FRONT SECTION P3101 P703 P701 A225 x 22 pcs. A212 A219 A242 U0014 A201 A216 U0040 A217 A273 A321 x 2 pcs. U0042 A212 A215 A211 A213 A207 A202 Front A260 x 4 pcs.
  • Page 26 HT-R591/ 758/ 791/ TX-NR414/ 515/ HT-RC440/ 460/ DTR-20.4 SCHEMATIC DIAGRAMS-1 (PART-1) BLOCK DIAGRAM AUDIO SECTION BADIS0654 1/3 AUX IN BADIS0654 2/3 HT-R591 Q4001 BADIS1093 1/3 BADIS1093 2/3 (FRONT IN) BADIS1101 2/3 TX-NR414 R2S15211FP TX-NR515 BADIS1101 1/3 FRONT LEFT HEADPHONES DTR-20.4 (FR) MIC AMP FRONT BOARD...
  • Page 27 TX-NR414/ 515/ 616/ HT-R758/ 791/ HT-RC440/ 460/ 470/ DTR-20.4/ 30.4 SCHEMATIC DIAGRAMS-2 (PART-2) BLOCK DIAGRAM VIDEO SECTION TX-NR610,TX-NR710, HT-R791, HT-RC460, HT-RC470, DTR-20.4, DTR-30.4 TX-NR510,HT-R691 Q8200 DE2755 Video Q8101 Processor SII9573 AUDIO AUDIO ARC0 KYOTOG2H DELAY TMDS TMDS SPDIF Q8161 HDMI AUDIO OUT TMDS TMDS...
  • Page 28 TX-NR414/ HT-R758/ HT-RC440 SCHEMATIC DIAGRAMS-3 (PART-3) BLOCK DIAGRAM (DIGITAL AUDIO) SECTION BGC_RST 16Mbit SFI flash 256Mbit 133MHz x2pcs DA83_RST HOST uCom SDRAM SPI flash 24MHz ACP_RST DA83_RST ResetGen. I2C0 DA83_RST Apple ACP WiFi Dongle Reg1.2V +1.2V DA830_CS +3.3V SPI0 USB 2.0 JTAG DA830 Serial Console...
  • Page 29 HT-R591/ 758/ 791/ TX-NR414/ 515/ HT-RC440/ 460/ DTR-20.4 HT-R591/ 758/ 791/ TX-NR414/ 515/ HT-RC440/ 460/ DTR-20.4 SCHEMATIC DIAGRAMS-4 (PART-4) ASP SECTION CONVERSION CONVERSION CONVERSION T5/ H46 T5 /H46 T5/ H46 TUNER PACK H79/ D2 H79/ D2 H79/ D2 FROM BAETC-1099(PART 9) FROM BAETC-1099(PART 9) LIST : 0ohm LIST : 0ohm...
  • Page 30 TX-NR414/ 515/ HT-R591/ 758/ 791/ HT-RC440/ 460/ DTR-20.4 TX-NR414/ 515/ HT-R591/ 758/ 791/ HT-RC440/ 460/ DTR-20.4 SCHEMATIC DIAGRAMS-5 (PART-5) AMP. SECTION P6401B P6402B (RED) (WHI) BAAF-1070(2/2) T4/H75 T4/H75 T5/H46 T5 +B1C +56.2V +B1SL +56.2V AV=29dB AV=29dB U0010 US/EU US/EU US/EU US/EX AUDIO PC BOARD R6082...
  • Page 31 TX-SR313/ 414/ 515/ 515AE/ HT-R358/ 391/ 558/ 591/ 758/ 791/ HT-RC430/ 440/ 460/ DTR-20.4 SCHEMATIC DIAGRAMS-6 (PART-6) 54.4V +B1SL R5183 R6023 (1/4W) (1/4W) 1.1V Q6033 +BSL AMP.(CLASS-A) SECTION 2SC5171 BACLA-1130 0.6V U0020 NFSL ADJUSTMENT OF IDLING CURRENT APLIFIER PC BOARD +B1SL CLASS-A R5033...
  • Page 32 TX-NR414/ 515/ 616/ HT-R758/ 791/ HT-RC440/ 460/ 470/ DTR-20.4/ 30.4 SCHEMATIC DIAGRAMS-8 (PART-8) VIDEO SECTION BAVD-1094 U0041 T5/H69 ONLY For no Upcon(C2017) DIS-1093-1A/B T5/T6/H46/H79/R47/D2/D3 For Upcon ONLY (For HDMI Upcon) BAVD-1102 VIDEO PC BOARD DIS-1093-1C/D/E DIS-1101-1 For Bias 600mV(6.8K and 56K) Upcon Area CirNo.2200 - R2210 NC R2213 0...
  • Page 33 TX-NR414/ 515/ 616/ HT-R591/ 758/ 791/ HT-RC440/ 460/ 470/ DTR-20.4/ 30.4 SCHEMATIC DIAGRAMS-9 (PART-9) HDMI SPEAKER OUT SECTION TO BAHDM-1126(PART-19) TO BAHDM-1108(PART-19) NSCT-29P2447 BATRM-1089 BAETC-1092 SPRLCS P8001A U0033 SC-0.8X5.5X18.5T L6602 SP TERMINAL Q6601 C6602 KRC105S CONNECTOR PC BOARD RS1/2WB-10 102J SPRLF R6602 RL662...
  • Page 34 TX-NR414/ 515/ 616/ HT-R758/ 791/ HT-RC440/ 460/ 470 SCHEMATIC DIAGRAMS-10 (PART-10) DISPLAY SECTION BADIS-1093 *Reference No. Allocation:7500-7999 DISPLAY Q7502 16-BT-168GNK U0040 DISPLAY PC BOARD FLDCLK FLAC2 FLDSDO FLDCS KEYINT0 C7511 Ek(+8.2V) C7510 C7512 223K FLDRST 223K 223K KEYINT1 R7508 220 REMIN R7507 +3.3S...

  • Page 35: Power Supply Section

    TX-NR414/ 515/ 616/ HT-R758/ 791/ HT-RC440/ 460/ 470/ DTR-20.4 /30.4 SCHEMATIC DIAGRAMS-11 (PART-11) POWER SUPPLY SECTION U0080 BAPS-1120 POWER SUPPLY PC BOARD DE1E3KX102MB4BL01 R9021 C9007 C9021 L9005 BLM18PG181SN1D R9020 C9002 L9004 BLM18PG181SN1D S1WB(A)60B D/J : 100/200 STPOWER 471J L9002 R9019 D9001 P/M : 47/400 D9004...
  • Page 36 TX-NR414/ HT-R758/ HT-RC440 TX-NR414/ HT-R758/ HT-RC440 SCHEMATIC DIAGRAMS-14 (PART-14) NSCT-9P2472 P751A NSCT-9P2472 P752A MPU SECTION BAHDM-1108 (1/5) UPGRADE MAIN_J-TAG U0050 HDMI PC BOARD MAIN MICOM Initial Setting R662 R663 SPRLF R664 SPRLCS Q153 SPRLSB (NC) R665 R152 BR25S640FJ R666 SPRLZ2 (NC) R667 HPDET R151...
  • Page 37 TX-NR414/ HT-R758/ HT-RC440 SCHEMATIC DIAGRAMS-16 (PART-16) HDMI SECTION BAHDM-1108 (2/5) C8651 HDMI IN 6 U0050 102K RXE_2+ P8661 HDMI PC BOARD D2 Shield Shield Shield RXE_2- RXE_1+ D1 Shield RXE_1- RXE_0+ D0 Shield RXE_0- TP663 D8661 R8663 R8661 RXE_C+ #IMSA-6802-01 POWER SUPPLY For HDMI CK Shield D8662...
  • Page 38 TX-NR414/ HT-R758/HT-RC440 TX-NR414/ HT-R758/HT-RC440 SCHEMATIC DIAGRAMS-19 (PART-19) DSP/ DIR/ DAC SECTION BAETC-1092(PART-9) TO BAETC-1091 (PART-9) P8003A 1mm FFC CABLE P8001B BAHDM-1108 (3/5) GND_LPF U0050 HDMI PC BOARD VOLH IPROTECT VPROTECT VOLCLK MPU PART VOLDATA TU_SDA PART-14 TU_SCL TU_RST AMUT SEC1H MIC_MUT Z2MUT HDMI_FLR...
  • Page 39 TX-NR414/ HT-R758/ HT-RC440 SCHEMATIC DIAGRAMS-20 (PART-20) DSP MEMORY SECTION BAHDM-1108 (4/5) U0050 HDMI PC BOARD GND_ARM +3.3VNET GND_ARM GNDHD C3070 C3071 VDD_MPU3.3V 226M 226M Q3070 C3001 105K PA_12 MB_A12 +3.3V R3009 L3001 PBA_0 MB_BA0 BLM18PG121SN1D PA_0 MB_A0 R3070 GND_ARM PA_1 MB_A1 C3002 105K C3003...
  • Page 40 TX-NR414/ HT-R758/ HT-RC440 SCHEMATIC DIAGRAMS-21 (PART-21) for Debugging Boot Opt. NAND UART1 SPI0 BOOT7 +5.2VHD R3115 or R3116 BOOT2 NET/ USB SECTION BOOT1 +5.2V R3111 or R3112 BOOT5 NC_TPD2E001DRLR BOOT0 R3109 or R3110 BOOT6 BOOT3 BOOT2 C3100 R3107 or R3108 BOOT7 102K BAHDM-1108 (5/5)

  • Page 41: Exploded View Parts List

    1/67 PAGE HT-RC440 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
  • Page 42 2/67 PAGE Q6060 or 2SA1695-O ( 1) 2202513 Q6060 or 2SA1695-P ( 1) 2202516 Q6060 or 2SA1941-R ( 1) 2203052 Q6061 2SA1941-O 2203053 Q6061 or 2SA1695-O ( 1) 2202513 Q6061 or 2SA1695-P ( 1) 2202516 Q6061 or 2SA1941-R ( 1) 2203052 Q6062 2SA1941-O...
  • Page 43 27124474 A102 CUSHION 28141799 A103 SCREW 3P+6FN(3BC) 82143006GR A105 SCREW 3TTB+8B(3BC) 838430088GR A112 TAPE TAPE(CLOTH-8U) 29110082 [CABINET] A201 F PANEL HT-RC440(B)DC 27213629A A202 CLEAR PLT TXNR414(B)DC 28192378 A207 BADGE 28135317 A211 KNOB (TONE)(B) 28326918 A212 FACET 28200054 A213 KNOB (INP)(B)
  • Page 44 (B) (Bent) 28210087B A340 COVER (B) (Not Bent) 28210087BZ A342 SCREW 3TTB+8B(3BC) 838430088GR A360 LABEL (COVER) 29390767 A362 LABEL HOOKUP-ONKYO 29363194 [TRANS COIL] T901 P TRANS NPT-1604D 2302012 [SW TRM] F6401 FUSE 10A-UL/T-233 252330GR F6401 or FUSE 10A-T/UL-ST2 ( 1)
  • Page 45 TAPE (SEROHAN)NITTO NO.29 29110149 A608 SHEET 29095906 A611 TAPE (SEROHAN)NITTO NO.29 29110149 A677 TAPE (SEROHAN)NITTO NO.29 29110149 A701 CARTON HT-RC440(B)DC 29055397 A704A UPC LABEL HT-RC440(B)MDC 29392158 A760 PP TAPE W50 SBT-70 29110200 [ACCESSARY] A674 POLY BAG D250xd300xW300(t0.04) 29100256A A676 TAPE (SEROHAN)NITTO NO.29...

  • Page 46: Pc Board Parts List

    292191 A861 BATTERY R6/AA(UM-3) 3010194 A861 or BATTERY R6/AA(UM-3) ( 2) 3010054 A871 INST SHEET U9(AppleTV-Preset) 29355879 A891 WRNTY CARD (ONKYO) 29365135 A901 INST SHEET U12(IR-SERVICE)ONK 29355881 A901 INS MANDSK U3(HTRC430~470) 29500008B A921 INS MANUAL QSG_En(HTRC440) 29401295 A923 INS MANUAL...
  • Page 47 7/67 PAGE D4174 or ZENER D UDZS6.8B ( 1) 224550680R2 D4207 C-DIODE DA2J10100 223303R2 D4207 or C-DIODE 1SS352 ( 1) 223234R2 D4207 or C-DIODE 1SS355 ( 1) 223269R2 D4207 or C-DIODE MA2J111 ( 1) 223279R2 D4207 or C-DIODE KDS4148U ( 1) 223283R2 D4217 C-DIODE...
  • Page 48 8/67 PAGE D6002 or C-DIODE KDS4148U ( 1) 223283R2 D6003 C-DIODE DA2J10100 223303R2 D6003 or C-DIODE 1SS352 ( 1) 223234R2 D6003 or C-DIODE 1SS355 ( 1) 223269R2 D6003 or C-DIODE MA2J111 ( 1) 223279R2 D6003 or C-DIODE KDS4148U ( 1) 223283R2 D6004 C-DIODE...
  • Page 49 9/67 PAGE Q4101 RN1441 2215410R2 Q4101 or RTAN430C-T112-1 ( 1) 2217780R2 Q4102 RN1441 2215410R2 Q4102 or RTAN430C-T112-1 ( 1) 2217780R2 Q4103 RN1441 2215410R2 Q4103 or RTAN430C-T112-1 ( 1) 2217780R2 Q4104 RN1441 2215410R2 Q4104 or RTAN430C-T112-1 ( 1) 2217780R2 Q4107 RN1441 2215410R2 Q4107 or RTAN430C-T112-1...
  • Page 50 10/67 PAGE Q6070 2SC2229-Y(TPE6_F) 2211634T Q6070 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q6071 2SC2229-Y(TPE6_F) 2211634T Q6071 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q6072 2SC2229-Y(TPE6_F) 2211634T Q6072 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q6073 2SC2229-Y(TPE6_F) 2211634T Q6073 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q6074 2SC2229-Y(TPE6_F) 2211634T Q6074 or 2SC2229-O(TPE6_F)
  • Page 51 11/67 PAGE C4051 UTSP C CE04W25V-47M(UTSP) 397554707AT C4052 UTSP C CE04W25V-47M(UTSP) 397554707AT C4053 UTSP C CE04W25V-47M(UTSP) 397554707AT C4054 UTSP C CE04W25V-47M(UTSP) 397554707AT C4055 UTSP C CE04W25V-47M(UTSP) 397554707AT C4056 UTSP C CE04W25V-47M(UTSP) 397554707AT C4057 UTSP C CE04W25V-47M(UTSP) 397554707AT C4060 UTSP C CE04W50V 47M(UTSP) 397584707T C4061...
  • Page 52 12/67 PAGE C4132 TF C ECQ-V50V-103J 374721034T C4166 UTSP C CE04W25V-220M(UTSP) 397552217T C4167 UTSP C CE04W25V-220M(UTSP) 397552217T C4170 UTSP C CE04W50V-10M(UTSP) 397581007T C4171 UTSP C CE04W50V-10M(UTSP) 397581007T C4172 UTSP C CE04W25V-220M(UTSP) 397552217T C4173 UTSP C CE04W25V-220M(UTSP) 397552217T C4174 UTSP C CE04W16V-470M(UTSP) 397544717T C4175...
  • Page 53 13/67 PAGE C4439 C-CERA C CC725CH1H-151J1 342101514R1 C4522 UTSP C CE04W25V-47M(UTSP) 397554707AT C4527 UTSP C CE04W25V-47M(UTSP) 397554707AT C4528 UTSP C CE04W25V-47M(UTSP) 397554707AT C4529 UTSP C CE04W25V-47M(UTSP) 397554707AT C6050 TF C ECQ-V50V-103J 374721034T C6051 TF C ECQ-V50V-103J 374721034T C6052 TF C ECQ-V50V-103J 374721034T C6053...
  • Page 54 14/67 PAGE R4030 C-CARBON R RN72K1J-101JE 435031014R1 R4031 C-CARBON R RN72K1J-101JE 435031014R1 R4036 C-CARBON R RN72K1J-101JE 435031014R1 R4043 C-CARBON R RN72K1J-104JE 435031044R1 R4044 C-CARBON R RN72K1J-104JE 435031044R1 R4053 C-CARBON R RN72K1J-104JE 435031044R1 R4054 C-CARBON R RN72K1J-104JE 435031044R1 R4055 C-CARBON R RN72K1J-104JE 435031044R1 R4056...
  • Page 55 15/67 PAGE R4104 C-CARBON R RN72K1J-224JE 435032244R1 R4107 C-CARBON R RN72K1J-224JE 435032244R1 R4110 C-CARBON R RN72K1J-222JE 435032224R1 R4111 C-CARBON R RN72K1J-222JE 435032224R1 R4112 C-CARBON R RN72K1J-222JE 435032224R1 R4113 C-CARBON R RN72K1J-222JE 435032224R1 R4114 C-CARBON R RN72K1J-222JE 435032224R1 R4117 C-CARBON R RN72K1J-271JE 435032714R1 R4118...
  • Page 56 16/67 PAGE R4294 C-CARBON R RN72K1J-224JE 435032244R1 R4295 C-CARBON R RN72K1J-224JE 435032244R1 R4296 C-CARBON R RN72K1J-224JE 435032244R1 R4301 C-CARBON R RN72K1J-000JE 435030004R1 R4302 C-CARBON R RN72K1J-000JE 435030004R1 R4400 C-CARBON R RN72K1J-102JE 435031024R1 R4401 C-CARBON R RN72K1J-102JE 435031024R1 R4402 C-CARBON R RN72K1J-104JE 435031044R1 R4403...
  • Page 57 17/67 PAGE R4452 C-CARBON R RN72K1J-561JE 435035614R1 R4453 C-CARBON R RN72K1J-561JE 435035614R1 R4454 C-CARBON R RN72K1J-561JE 435035614R1 R4457 C-CARBON R RN72K1J-561JE 435035614R1 R4458 C-CARBON R RN72K1J-562JE 435035624R1 R4459 C-CARBON R RN72K1J-562JE 435035624R1 R4522 C-CARBON R RN72K1J-104JE 435031044R1 R4527 C-CARBON R RN72K1J-104JE 435031044R1 R4528...
  • Page 58 18/67 PAGE R6154 C-CARBON R RN72K1J-103JE 435031034R1 R6160 CARBON R R16J-33K 417343334T R6161 CARBON R R16J-33K 417343334T R6162 CARBON R R16J-33K 417343334T R6163 CARBON R R16J-33K 417343334T R6164 CARBON R R16J-33K 417343334T R6170 CARBON R R16J-47K 417344734T R6171 CARBON R R16J-47K 417344734T R6172...
  • Page 59 19/67 PAGE R6453 C-CARBON R RN72K1J-223JE 435032234R1 R6454 C-CARBON R RN72K1J-473JE 435034734R1 R6455 C-CARBON R RN72K1J-103JE 435031034R1 R6456 C-CARBON R RN72K1J-223JE 435032234R1 R6457 C-CARBON R RN72K1J-223JE 435032234R1 R6458 C-CARBON R RN72K1J-562JE 435035624R1 R6459 C-CARBON R RN72K1J-562JE 435035624R1 R6460 C-CARBON R RN72K1J-473JE 435034734R1 R950...
  • Page 60 20/67 PAGE P5504B PLUG NPLG-13P0968 25056018 P5507A NTM-1P232(M1700) 25060301 P5508 TRM-423(SCREW) NEJITANSI ST3 25060495 P5509A NTM-1P232(M1700) 25060301 P5510B NTM-1P232(M1700) 25060301 P6000B PLUG NPLG-9P0964 25056014 P6001B PLUG NPLG-9P0964 25056014 P6002B PLUG NPLG-9P0964 25056014 P6003B PLUG NPLG-3P0958 25056008 P6004B PLUG NPLG-9P0964 25056014 P6010A NTM-1P232(M1700) 25060301...
  • Page 61 21/67 PAGE CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR] D5000 ZENER D HZS6A3 224860560T D5000 or ZENER D MTZJ5.6B ( 1) 224470562T D5001 ZENER D HZS6A3 224860560T D5001 or ZENER D MTZJ5.6B ( 1) 224470562T D5002 ZENER D HZS6A3...
  • Page 62 22/67 PAGE Q5041 2SC2229-Y(TPE6_F) 2211634T Q5041 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q5042 2SC2229-Y(TPE6_F) 2211634T Q5042 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q5043 2SC2229-Y(TPE6_F) 2211634T Q5043 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q5044 2SC2229-Y(TPE6_F) 2211634T Q5044 or 2SC2229-O(TPE6_F) ( 1) 2211633T Q5050 2N5551C 2217920T Q5051 2N5551C...
  • Page 63 23/67 PAGE C5010 UTSP C CE04W50V 47M(UTSP) 397584707T C5010 or UTSP C CE04W50V 47M(UTSP) ( 1) 397584707AT C5011 UTSP C CE04W50V 47M(UTSP) 397584707T C5011 or UTSP C CE04W50V 47M(UTSP) ( 1) 397584707AT C5012 UTSP C CE04W50V 47M(UTSP) 397584707T C5012 or UTSP C CE04W50V 47M(UTSP) ( 1)
  • Page 64 24/67 PAGE C5084 CERA C CC45SL50V-040C 345020401T C5090 UPZ C 2AUPZTF101JE 376331014T C5091 UPZ C 2AUPZTF101JE 376331014T C5092 UPZ C 2AUPZTF101JE 376331014T C5093 UPZ C 2AUPZTF101JE 376331014T C5094 UPZ C 2AUPZTF101JE 376331014T C5100 VR C CE04W100V-22M(VR) 394692207T C5101 VR C CE04W100V-22M(VR) 394692207T C5102...
  • Page 65 25/67 PAGE R5022 CARBON R R16J-330 417343314T R5023 CARBON R R16J-330 417343314T R5024 CARBON R R16J-330 417343314T R5030 CARBON R R16J-120K 417341244T R5031 CARBON R R16J-120K 417341244T R5032 CARBON R R16J-120K 417341244T R5033 CARBON R R16J-120K 417341244T R5034 CARBON R R16J-120K 417341244T R5040...
  • Page 66 26/67 PAGE R5111 CARBON R R16J-1K 417341024T R5112 CARBON R R16J-1K 417341024T R5113 CARBON R R16J-1K 417341024T R5114 CARBON R R16J-1K 417341024T R5130 CARBON R R16J-18K 417341834T R5131 CARBON R R16J-18K 417341834T R5132 CARBON R R16J-18K 417341834T R5133 CARBON R R16J-18K 417341834T R5134...
  • Page 67 27/67 PAGE R5300 CARBON R R16J-22 417342204T R5301 CARBON R R16J-22 417342204T R5302 CARBON R R16J-22 417342204T R5303 CARBON R R16J-22 417342204T R5304 CARBON R R16J-22 417342204T R5310 CARBON R R16J-22 417342204T R5311 CARBON R R16J-22 417342204T R5312 CARBON R R16J-22 417342204T R5313...
  • Page 68 28/67 PAGE P6001 SOCKET NSCT-9P2189 25052292 P6002 SOCKET NSCT-9P2189 25052292 P6003 SOCKET NSCT-3P2183 25052286 P6004 SOCKET NSCT-9P2189 25052292 P6013A SOCKET NSCT-7P2187 25052290 U003 U0030 ～ ～ ～ ～ U 0034 x 2 pcs. BATRM-1089-1H * U0030 SPEAKER TERMINAL PC BOARD ASS'Y BATRM-1089-1H U0032 TERMINAL(DIGITAL) PC BOARD ASS'Y...
  • Page 69 29/67 PAGE [TRANS COIL] L1000 CHOKE COIL LBC2518T2R2M 231364M022R2 L1001 CHOKE COIL LBC2518T2R2M 231364M022R2 L1002 CHOKE COIL LBC2518T2R2M 231364M022R2 L1003 CHOKE COIL LBC2518T470M 231364M470R2 L1004 CHOKE COIL LBC2518T470M 231364M470R2 L1005 EMIFIL BK1608HS102-T 230955R2 L1006 EMIFIL BK1608HS102-T 230955R2 [CAPACITOR] C1000 C-CERA C CK725F1E-104Z1 332161040R1 C1001...
  • Page 70 30/67 PAGE R1003 C-CARBON R RN72K1J-100JE 435031004R1 R1004 C-CARBON R RN72K1J-100JE 435031004R1 R1005 C-CARBON R RN72K1J-224JE 435032244R1 R1006 C-CARBON R RN72K1J-224JE 435032244R1 R1007 C-CARBON R RN72K1J-103JE 435031034R1 R1008 C-CARBON R RN72K1J-103JE 435031034R1 R1009 C-CARBON R RN72K1J-823JE 435038234R1 R1010 C-CARBON R RN72K1J-823JE 435038234R1 R1011...
  • Page 71 31/67 PAGE P703B SOCKET NSCT-7P2425 25052528 P8001A SOCKET NSCT-29P2447 25052550 P8003B PLUG NPLG-9P0964 25056014 P8004A SOCKET NSCT-7P2398 25052501 RL660 RELAY NRL-2P5A-DC24-129 25065563A RL660 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590 RL660 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703 RL660 or RELAY NRL-2P8A-DC24-201 ( 1) 25065718 RL662...
  • Page 72 32/67 PAGE D203 or C-DIODE MA2J111 ( 1) 223279R2 D204 ZENER D UDZS6.2B 224550620R2 D2101 C-DIODE KDS4148U 223283R2 D2101 or C-DIODE 1SS352 ( 1) 223234R2 D2101 or C-DIODE 1SS355 ( 1) 223269R2 D2101 or C-DIODE MA2J111 ( 1) 223279R2 D2102 C-DIODE KDS4148U 223283R2...
  • Page 73 33/67 PAGE D7902 or C-DIODE KDS4148U ( 1) 223283R2 D7903 C-DIODE DA2J10100 223303R2 D7903 or C-DIODE 1SS352 ( 1) 223234R2 D7903 or C-DIODE 1SS355 ( 1) 223269R2 D7903 or C-DIODE MA2J111 ( 1) 223279R2 D7903 or C-DIODE KDS4148U ( 1) 223283R2 D7904 C-DIODE...
  • Page 74 34/67 PAGE C2001 C-CERA C CK725F1E-104Z1 332161040R1 C2002 VR C CE04W50V-2.2M(VR) 394680227T C2002 or JAMICON CE04W50V-2.2M ( 1) 398580227T C2004 C-CERA C CK725F1E-104Z1 332161040R1 C2005 C-CERA C CK725F1A-105Z1 332181050R1 C2006 C-CERA C CK725F1A-105Z1 332181050R1 C2007 C-CERA C CK725F1A-105Z1 332181050R1 C2008 C-CERA C CK725F1E-104Z1 332161040R1...
  • Page 75 35/67 PAGE C2106 VR C CE04W50V-2.2M(VR) 394680227T C2106 or JAMICON CE04W50V-2.2M ( 1) 398580227T C2107 VR C CE04W6.3V-470M(VR) 394624717T C2107 or JAMICON CE04W6.3V-470M ( 1) 398524717T C2108 VR C CE04W6.3V-470M(VR) 394624717T C2108 or JAMICON CE04W6.3V-470M ( 1) 398524717T C2109 VR C CE04W6.3V-470M(VR) 394624717T C2109 or...
  • Page 76 36/67 PAGE C7521 C-CERA C CK725B1H-103K1 332101035R1 C7522 C-CERA C CK725B1H-103K1 332101035R1 C7523 C-CERA C CC725CH1H-390J1 342103904R1 C7531 C-CERA C CK725B1H-223K1 332102235R1 C7532 C-CERA C CK725B1H-223K1 332102235R1 C7533 ELECT C CE04W16V-10M(S) 353741009T C7541 ELECT C CE04W16V-10M(S) 353741009T C7542 C-CERA C CC725CH1H-102J1 342101024R1 C7543...
  • Page 77 37/67 PAGE R2102 C-CARBON R RN72K1J-750JE 435037504R1 R2103 C-CARBON R RN72K1J-750JE 435037504R1 R2105 C-CARBON R RN72K1J-750JE 435037504R1 R2106 C-CARBON R RN72K1J-750JE 435037504R1 R2107 C-CARBON R RN72K1J-750JE 435037504R1 R2108 C-CARBON R RN72K1J-750JE 435037504R1 R2109 C-CARBON R RN72K1J-750JE 435037504R1 R2110 C-CARBON R RN72K1J-750JE 435037504R1 R2111...
  • Page 78 38/67 PAGE R7602 C-CARBON R RN72K1J-331JE 435033314R1 R7603 C-CARBON R RN72K1J-471JE 435034714R1 R7604 C-CARBON R RN72K1J-561JE 435035614R1 R7605 C-CARBON R RN72K1J-821JE 435038214R1 R7606 C-CARBON R RN72K1J-271JE 435032714R1 R7607 C-CARBON R RN72K1J-331JE 435033314R1 R7608 C-CARBON R RN72K1J-471JE 435034714R1 R7609 C-CARBON R RN72K1J-561JE 435035614R1 R7610...
  • Page 79 39/67 PAGE JL702A WIRE HOL NSCT-7P878 25051091 JL702B WIRE TRAP NPLG-7P590 25055628 JL801A WIRE HOL NSCT-3P894 25051107 JL952B SOCKET NSCT-3P95 25050267 JL953A WIRE HOL NSCT-5P876 25051089 P2201 PIN JACK NPJ-3PDYYY560 25045778 P2202 PIN JACK NPJ-2PDYY679 25045911 P2203 PIN JACK NPJ-9PDGLRGLRGLR563 25045781 P2800A SOCKET...
  • Page 80 40/67 PAGE S7650 PUSH SW NPS-111-S681 25035718T S7652 PUSH SW NPS-111-S681 25035718T S7654 PUSH SW NPS-111-S681 25035718T S7656 PUSH SW NPS-111-S681 25035718T S7658 PUSH SW NPS-111-S681 25035718T S7660 PUSH SW NPS-111-S681 25035718T S7662 PUSH SW NPS-111-S681 25035718T S7664 PUSH SW NPS-111-S681 25035718T [TUNER UNIT]...
  • Page 81 41/67 PAGE D603 or C-DIODE 1SS352 ( 1) 223234R2 D603 or C-DIODE 1SS355 ( 1) 223269R2 D603 or C-DIODE MA2J111 ( 1) 223279R2 D603 or C-DIODE KDS4148U ( 1) 223283R2 D702 C-DIODE DA2J10100 223303R2 D702 or C-DIODE 1SS352 ( 1) 223234R2 D702 or C-DIODE...
  • Page 82 42/67 PAGE Q3002 IC(DSP) TC58DVM92A5TA10B3H(0542) 222W0125R305426 Q3003 A3V56S40FTP-G6 22242764R2 Q3003 or IS42S16160C-7TL ( 1) 22242592R3 Q3004 A3V56S40FTP-G6 22242764R2 Q3004 or IS42S16160C-7TL ( 1) 22242592R3 Q3005 TC7W32FU 22241162R2 Q3006 S-80127CNMC-JKM-T2 22241642R2 Q3007 S-1172B50-U5T1G 22242765R2 Q3008 BU33TD3WG-TR 22242715R2 Q301 PCM9211PTR 22242703R2 Q304 PCM1754DBQR 22242598R2 Q3070...
  • Page 83 43/67 PAGE Q7026 KRC104S 2216210R2 Q7026 or RN1404 ( 1) 2214490R2 Q7027 KRC104S 2216210R2 Q7027 or RN1404 ( 1) 2214490R2 Q703 S-812C56AUA-C3K 22242207R2 Q704 SN74CB3Q3305PWR 22242258R2 Q751 KRC104S 2216210R2 Q751 or RN1404 ( 1) 2214490R2 Q752 KRA102S 2216220R2 Q752 or RN2402 ( 1) 2214530R2...
  • Page 84 44/67 PAGE L3001 CORE BLM18PG121SN1D 2350006R1 L3002 CORE BLM18PG121SN1D 2350006R1 L3003 CORE BLM18PG121SN1D 2350006R1 L3004 CORE BLM18PG121SN1D 2350006R1 L3005 CORE BLM18PG121SN1D 2350006R1 L3007 CORE BLM18PG181SN1D 2350005R1 L3008 CORE BLM18PG181SN1D 2350005R1 L301 EMIFIL BK1608LL241-T 230959R1 L303 CHOKE COIL LBC2518T4R7M 231364M047R2 L304 CHOKE COIL LBC2518T4R7M 231364M047R2...
  • Page 85 45/67 PAGE L8305 CORE BLM18PG181SN1D 2350005R1 L8306 CORE BLM18PG181SN1D 2350005R1 L8307 CORE BLM18PG181SN1D 2350005R1 L8308 CORE BLM18PG181SN1D 2350005R1 L8309 EMIFIL BK1608LL241-T 230959R1 L8931 CHOKE COIL 1264EY-100M=P3 231447M100R2 L8932 CORE BLM18PG181SN1D 2350005R1 L8933 CORE BLM18PG181SN1D 2350005R1 L8934 CORE BLM18PG181SN1D 2350005R1 L8951 CHOKE COIL 1264EY-100M=P3 231447M100R2...
  • Page 86 46/67 PAGE C3014 C-CERA C CK725B1H-102K0 332031025R1 C3015 C-CERA C CK725B1H-102K0 332031025R1 C3016 C-CERA C CK725B1A-105K0 332001055R1 C3017 C-CERA C CK725B1A-105K0 332001055R1 C3018 C-CERA C CK725B1A-105K0 332001055R1 C3019 C-CERA C CK725B1H-102K0 332031025R1 C3020 C-CERA C CK725B1A-105K0 332001055R1 C3021 C-CERA C CK725B1A-105K0 332001055R1 C3022...
  • Page 87 47/67 PAGE C3071 C-CERA C CK725B0J-226M 332092267R2 C3100 C-CERA C CK725B1H-102K0 332031025R1 C3101 C-CERA C CK732B16V-106K 332071065R2 C3103 C-CERA C CK725B1H-102K0 332031025R1 C3104 C-CERA C CK725B0J-226M 332092267R2 C3105 C-CERA C CK725B1A-105K0 332001055R1 C3106 C-CERA C CK732B16V-106K 332071065R2 C3107 C-CERA C CK725B1A-105K0 332001055R1 C3108...
  • Page 88 48/67 PAGE C3139 C-CERA C CK725B1A-105K0 332001055R1 C314 CHIP ELECT C CEWX4V-220M 3981G2217R2 C3140 C-CERA C CK725B1A-105K0 332001055R1 C3141 C-CERA C CK725B1C-104K0 332011045R1 C3142 C-CERA C CK725B1A-105K0 332001055R1 C3143 C-CERA C CK725B1A-105K0 332001055R1 C3144 C-CERA C CK725B1A-105K0 332001055R1 C3145 C-CERA C CK732B16V-106K 332071065R2 C3148...
  • Page 89 49/67 PAGE C356 CHIP ELECT C CEWX16V-47M 398144707R2 C370 C-CERA C CK732B16V-106K 332071065R2 C371 C-CERA C CK725B1C-104K0 332011045R1 C372 C-CERA C CK725B1C-104K0 332011045R1 C373 C-CERA C CK732B16V-106K 332071065R2 C503 C-CERA C CK725B1C-104K0 332011045R1 C504 C-CERA C CK725B1C-104K0 332011045R1 C505 C-CERA C CK725B1C-104K0 332011045R1 C508...
  • Page 90 50/67 PAGE C771 C-CERA C CK725B1A-105K0 332001055R1 C772 C-CERA C CK732B1C-474K 337394745R1 C804 C-CERA C CK725B1C-104K0 332011045R1 C8100 C-CERA C CK725B1H-102K0 332031025R1 C8103 C-CERA C CK725B1A-105K0 332001055R1 C8104 C-CERA C CK725B0J-226M 332092267R2 C8117 C-CERA C CK725B1H-102K0 332031025R1 C8118 C-CERA C CK725B1H-102K0 332031025R1 C8139...
  • Page 91 51/67 PAGE C8326 C-CERA C CK725B1H-102K0 332031025R1 C8327 C-CERA C CK725B1H-102K0 332031025R1 C8328 C-CERA C CK725B1C-104K0 332011045R1 C8329 C-CERA C CK725B1H-102K0 332031025R1 C8330 C-CERA C CK725B1C-104K0 332011045R1 C8331 C-CERA C CK725B1C-104K0 332011045R1 C8332 C-CERA C CK725B1A-105K0 332001055R1 C8333 C-CERA C CK725B1H-102K0 332031025R1 C8334...
  • Page 92 52/67 PAGE C8651 C-CERA C CK725B1H-102K0 332031025R1 C8652 C-CERA C CK725B1H-102K0 332031025R1 C8661 C-CERA C CK725B1H-102K0 332031025R1 C8662 C-CERA C CK725B1H-102K0 332031025R1 C8902 C-CERA C CK732B16V-106K 332071065R2 C8928 C-CERA C CK725B1E-223K0 332022235R1 C8931 C-CERA C CK725B1E-106K 332221065R2 C8932 C-CERA C CK725B1E-106K 332221065R2 C8933...
  • Page 93 53/67 PAGE R1039 C-CARBON R RN72K1J-330JE 435033304R1 R110 C-CARBON R RN72K1J-103JE 435031034R1 R151 C-CARBON R RN72K1J-103JE 435031034R1 R152 C-CARBON R RN72K1J-103JE 435031034R1 R153 C-CARBON R RN72K1J-103JE 435031034R1 R3007 C-CARBON R RN72K1J-470JE 435034704R1 R3009 C-CARBON R RN72K1J-330JE 435033304R1 R301 C-CARBON R RN72K1J-470JE 435034704R1 R3010...
  • Page 94 54/67 PAGE R3034 C-CARBON R RN72K1J-470JE 435034704R1 R3035 C-CARBON R RN72K1J-470JE 435034704R1 R3036 C-CARBON R RN72K1J-470JE 435034704R1 R3037 C-CARBON R RN72K1J-470JE 435034704R1 R3038 C-CARBON R RN72K1J-470JE 435034704R1 R3039 C-CARBON R RN72K1J-470JE 435034704R1 R304 C-CARBON R RN72K1J-221JE 435032214R1 R3040 C-CARBON R RN72K1J-103JE 435031034R1 R3041...
  • Page 95 55/67 PAGE R3113 C-CARBON R RN72K1J-103JE 435031034R1 R3115 C-CARBON R RN72K1J-332JE 435033324R1 R3117 C-CARBON R RN72K1J-332JE 435033324R1 R3119 C-CARBON R RN72K1J-332JE 435033324R1 R312 C-CARBON R RN72K1J-470JE 435034704R1 R3122 C-CARBON R RN72K1J-102JE 435031024R1 R3123 C-CERA C CK725F1E-104Z1 332161040R1 R3124 C-CARBON R RN72K1J-331JE 435033314R1 R3125...
  • Page 96 56/67 PAGE R316 C-CARBON R RN72K1J-470JE 435034704R1 R3162 C-CARBON R RN72K1J-390JE 435033904R1 R3163 C-CARBON R RN72K1J-220JE 435032204R1 R3164 C-CARBON R RN72K1J-472JE 435034724R1 R3168 C-CARBON R RN72K1J-220JE 435032204R1 R3169 C-CARBON R RN72K1J-220JE 435032204R1 R317 C-CARBON R RN72K1J-331JE 435033314R1 R3170 C-CARBON R RN72K1J-391FE 435033912R1 R3171...
  • Page 97 57/67 PAGE R3230 C-CARBON R RN72K1J-221JE 435032214R1 R3232 C-CARBON R RN72K1J-221JE 435032214R1 R3234 C-CARBON R RN72K1J-470JE 435034704R1 R3237 C-CARBON R RN72K1J-221JE 435032214R1 R3238 C-CARBON R RN72K1J-470JE 435034704R1 R3239 C-CARBON R RN72K1J-221JE 435032214R1 R324 C-CARBON R RN72K1J-331JE 435033314R1 R3241 C-CARBON R RN72K1J-221JE 435032214R1 R3242...
  • Page 98 58/67 PAGE R355 C-CARBON R RN72K1J-220JE 435032204R1 R356 C-CARBON R RN72K1J-220JE 435032204R1 R357 C-CARBON R RN72K1J-220JE 435032204R1 R359 C-CARBON R RN72K1J-220JE 435032204R1 R360 C-CARBON R RN72K1J-220JE 435032204R1 R361 C-CARBON R RN72K1J-331JE 435033314R1 R362 C-CARBON R RN72K1J-000JE 435030004R1 R371 C-CARBON R RN72K1J-331JE 435033314R1 R372...
  • Page 99 59/67 PAGE R559 C-CARBON R RN72K1J-103JE 435031034R1 R566 C-CARBON R RN72K1J-103JE 435031034R1 R568 C-CARBON R RN72K1J-103JE 435031034R1 R570 C-CARBON R RN72K1J-273JE 435032734R1 R573 C-CARBON R RN72K1J-221JE 435032214R1 R574 C-R NET RM7LJ470X04 43484747004R2 R574 or C-R NET YCN104-470-JK ( 1) 43464C47004R1 R575 C-R NET RM7LJ470X04...
  • Page 100 60/67 PAGE R621 C-CARBON R RN72K1J-221JE 435032214R1 R622 C-CARBON R RN72K1J-470JE 435034704R1 R623 C-CARBON R RN72K1J-103JE 435031034R1 R624 C-CARBON R RN72K1J-221JE 435032214R1 R625 C-CARBON R RN72K1J-470JE 435034704R1 R626 C-CARBON R RN72K1J-103JE 435031034R1 R627 C-CARBON R RN72K1J-470JE 435034704R1 R628 C-CARBON R RN72K1J-470JE 435034704R1 R629...
  • Page 101 61/67 PAGE R673 C-CARBON R RN72K1J-272JE 435032724R1 R674 C-CARBON R RN72K1J-472JE 435034724R1 R675 C-CARBON R RN72K1J-272JE 435032724R1 R676 C-CARBON R RN72K1J-472JE 435034724R1 R677 C-CARBON R RN72K1J-272JE 435032724R1 R678 C-CARBON R RN72K1J-224JE 435032244R1 R681 C-CARBON R RN72K1J-473JE 435034734R1 R682 C-CARBON R RN72K1J-103JE 435031034R1 R693...
  • Page 102 62/67 PAGE R8170 C-CARBON R RN72K1J-473JE 435034734R1 R8301 C-CARBON R RN72K1J-332JE 435033324R1 R8302 C-CARBON R RN72K1J-124JE 435031244R1 R8303 C-CARBON R RN72K1J-562JE 435035624R1 R8304 C-CARBON R RN72K1J-000JE 435030004R1 R8305 C-CARBON R RN72K1J-562JE 435035624R1 R8306 C-CARBON R RN72K1J-562JE 435035624R1 R8307 C-CARBON R RN72K1J-472JE 435034724R1 R8308...
  • Page 103 63/67 PAGE R8341 C-CARBON R RN72K1J-472JE 435034724R1 R8350 C-CARBON R RN72K1J-100JE 435031004R1 R8351 C-CARBON R RN72K1J-100JE 435031004R1 R8352 C-CARBON R RN72K1J-100JE 435031004R1 R8353 C-CARBON R RN72K1J-100JE 435031004R1 R8354 C-CARBON R RN72K1J-100JE 435031004R1 R8355 C-CARBON R RN72K1J-100JE 435031004R1 R8360 C-CARBON R RN72K1J-102JE 435031024R1 R8361...
  • Page 104 64/67 PAGE R8958 C-CARBON R RN72K1J-104JE 435031044R1 R8971 C-CARBON R RN72K1J-102JE 435031024R1 R8973 C-CARBON R RN72K1J-273FE 435032732R1 R8974 C-CARBON R RN72K1J-273FE 435032732R1 R8975 C-CARBON R RN72K1J-103FE 435031032R1 R8976 C-CARBON R RN72K1J-562JE 435035624R1 [SW TRM] JL501B WIRE TRAP NPLG-3P586 25055624 JL801B SOCKET NSCT-3P95 25050267...
  • Page 105 65/67 PAGE P8661 or SOCKET HDMI(47266-4101) ( 1) 25053389R3 P8901 SOCKET NSCT-8P2471 25052574R2 U008 U0080 x 4 pcs. BAPS-1120-1A * U0080 POWER SUPPLY PC BOARD ASS'Y BAPS-1120-1A CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR] D9001 DIODE S1WB(A)60B-7062 22380377R2...
  • Page 106 66/67 PAGE T9001 P TRANS NPT-1621S 2302054A [CAPACITOR] C9001 IS C LE104-MX-C3.5 3800049S C9002 ELECT C CE04W200V-100M(KXJ) 3500233S C9003 PW C CE04W50V-10M(PW) 393781007T C9004 PW C CE04W25V-1000M(PW) 393751027S C9006 PW C CE04W25V-470M(PW) 393754717T C9007 IS C DE1E3KX102MB4BL01 3300066S C9008 C-CERA C CK725F1A-105Z1 332181050R1 C9009...
  • Page 107 67/67 PAGE R9023 C-CARBON R KTR18EZPF6803 435236842R1 R9024 C-CARBON R KTR18EZPF6803 435236842R1 R9025 C-CARBON R KTR18EZPF6803 435236842R1 [SW TRM] E9001 TRM-423(SCREW) NEJITANSI ST3 25060495 E9002 RETAINER (TRM-PS) 27142287 F9001 FUSE 1A-SEUL-TL250V 252397T F9002C FUSE HOL NSCT-1P2031 25052133T F9002D FUSE HOL NSCT-1P2031 25052133T JL901A...
