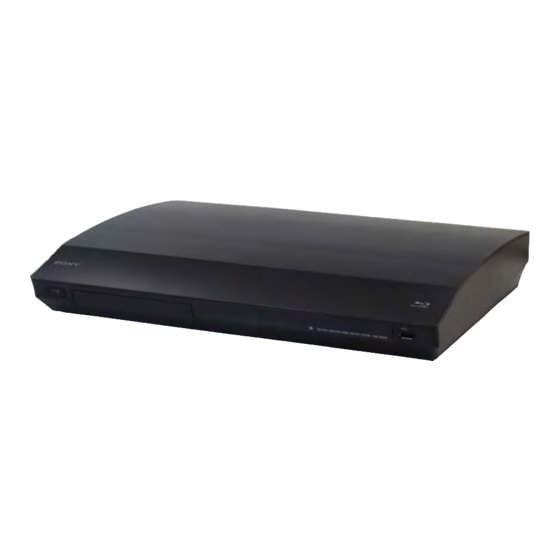

Sony HBD-E980W Service Manual

Sony HBD-E980W Service Manual

Blu-ray disc/dvd receiver
Table of Contents

Advertisement

BDV-E780W/E980W/E985W
MANUAL DE SERVIÇO
Ver. 1.2 2011.05
• BDV-E780W/E980W/E985W are composed of following models.
As service manuals are issued for each component model,
please refer to them.
BLU-RAY DISC/DVD receiver
Front speaker
Center speaker
Surround speaker
Subwoofer
Surround amplifi er
Wireless transceiver
Dock for iPod/iPhone
Note 1: As for EZW-RT50 and TDM-iP30, the part number has been described to this service manual.
Note 2: TDM-iP30 for BDV-E985W is attached only to Singapore and Thai models.
SPECIFICATIONS
General
Power requirements
US, Canadian models:
120 V AC, 60 Hz
120 V AC, 50/60 Hz
Taiwan model:
Other models:
220 V - 240 V AC,
50/60 Hz
Power consumption
On: 125 W (BDV-E985W)
On: 130 W
(BDV-E780W/E980W)
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.)
430 mm × 75 mm × 320
mm (17 in × 3 in ×
5
12
/
in) (w/h/d) incl.
8
projecting parts
430 mm × 75 mm × 333
mm (17 in × 3 in ×
1
13
/
in) (w/h/d) (with the
8
wireless transceiver
inserted)
Mass (approx.)
4.1 kg (9 lb 1 oz)
Wireless transceiver (EZW-RT50)
Communication system
Wireless sound
Specification version 1.0
Frequency band
US, Canadian models:
5.736 GHz - 5.814 GHz
Other models:
5.725 GHz - 5.875 GHz
Modulation method
DSSS
Power requirements
DC 3.3 V, 300 mA
Dimensions (approx.)
30 mm × 9 mm × 60 mm
(1
3
3
3
/
in ×
/
in × 2
16
8
(w/h/d)
1
Mass (approx.)
10 g (
/
oz)
2
Design and specifications are subject to change
without notice.
US, Canadian models:
Standby power consumption 0.3W (main unit),
0.13W (surround amplifier).
Over 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
Other models:
Standby power consumption 0.3W (main unit),
0.18W (surround amplifier).
Over 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
9-893-131-03
Sony Corporation
2011E05-1
Published by Sony Techno Create Corporation
©
2011.05
BDV-E780W
BDV-E980W
HBD-E780W
HBD-E980W
SS-TSB107
SS-TSB108
SS-CTB103
SS-CTB103
SS-TSB106
SS-TSB109
SS-WSB105
SS-WSB105
TA-SA300WR
TA-SA300WR
EZW-RT50
EZW-RT50
TDM-iP30
TDM-iP30
Unpacking
• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• Subwoofer (1)
• Speaker cords (3, green/gray/blue) (BDV-E780W)
• Speaker cords (5, red/white/green/gray/blue) (BDV-E980W/E985W)
• Speaker-bottom covers (4) (BDV-E980W/E985W only)
• Bases (4) (BDV-E980W/E985W only)
• Lower parts of the front speakers (4) (BDV-E980W/E985W only)
• Screws (silver) (4) (BDV-E980W/E985W only)
• Screws (black) (12) (BDV-E980W/E985W only)
• FM wire antenna (aerial) (1)
• Video cord (1)
• Remote commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• High Speed HDMI cable (1) (BDV-E985W only)
• Dock for iPod/iPhone (TDM-iP30) (1) (Except Saudi Arabian and Taiwan models)
• USB cable (1) (Except Saudi Arabian and Taiwan models)
• Surround amplif er (1)
• Wireless transceivers (4)
• Operating Instructions
• Quick Setup Guide
• Speaker Installation Guide
/
in)
8
• Software Licence Information
• Easy Setup Disc (DVD) (US, Canadian models only)
• Wireless Product Compliance Information (AEP, Italian, UK models only)
BLU-RAY DISC/DVD HOME THEATRE SYSTEM
BDV-E985W
Saudi Arabia Model
HBD-E985W
SS-TSB108
SS-CTB103
SS-TSB109
SS-WSB105
iPhone, iPod, iPod classic, iPod
TA-SA300WR
nano, and iPod touch are
EZW-RT50
trademarks of Apple Inc.,
registered in the U.S. and other
TDM-iP30
countries.
– Refer to next page for accessories list –
US Model
UK Model
BDV-E780W
Canadian Model
Australian Model
BDV-E980W
AEP Model
BDV-E780W/E980W
Singapore Model
Taiwan Model
Thai Model
BDV-E985W
