Summary of Contents for JBL MBB-3

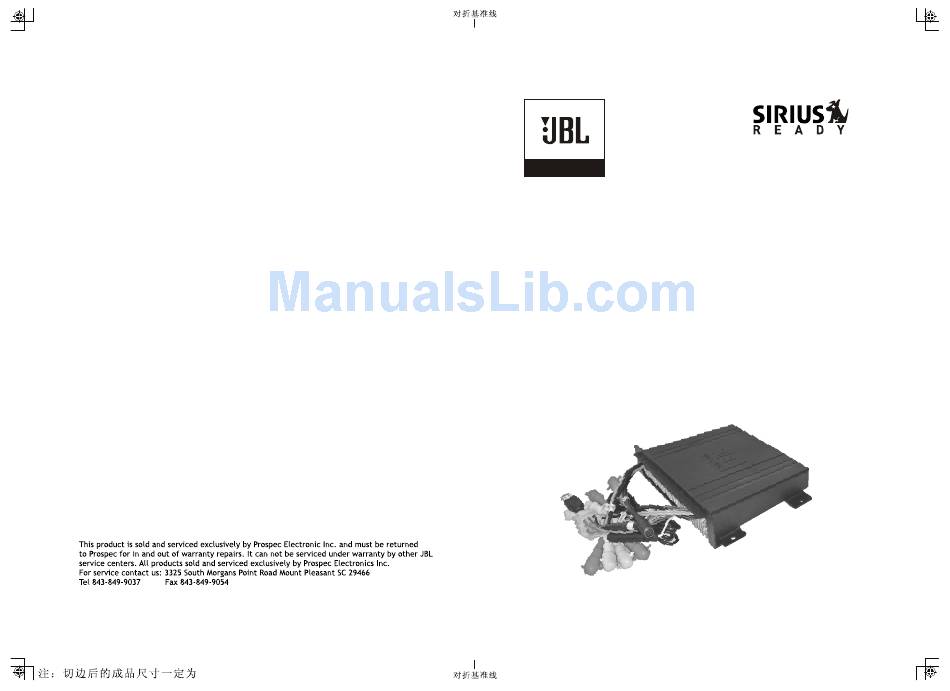

- Page 1 MARINE Operation Manual Model No.: MBB-3 Effective from 31 / May / 07 145x210mm...
-
Page 2: Mounting The Black Box
Mounting the Black Box 1. Precautions Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the boat. Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight or hot air, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Important Notes
These front panels can also be combined for control from multiple locations. your boat or preferably to the negative (-) terminal of the boat battery. In order to receive Sirius Satellite Radio broadcast, you must install JBL SIR2.5 as well as a satellite antenna (both sold separately). -
Page 4: Wiring Identification
Wiring identification Controls USB & NAND (internal memory) Operation ( SIRIUS control ) ( AUX-IN ) 1. MODE button (3) Pressing MODE button repeatedly will display the following: ( Line out) RADIO USB or NAND SIRIUS (USB) (CD changer socket) (Remote Control) Note: USB mode defaults first, then you can simply press BAND button to choose (ANT. -
Page 5: Identification Of Controls And Functions
Identification of controls and functions Controls Remote Control (Option): 2. Manual Station store: Select the desired band and tune to a radio station to be memorized. Choose the preset button memory location1-6 into which the station is to be stored and press and hold that preset button for 2 seconds. The station will now be entered into the preset memory. - Page 6 Controls Controls 1. POWER ON/OFF button (1) 3.Volume control Push the PWR button (1) to turn on the unit. Push the button again to turn off the unit. Press the VOL up/down button to increase or decrease the volume level. - Bass control 2.
