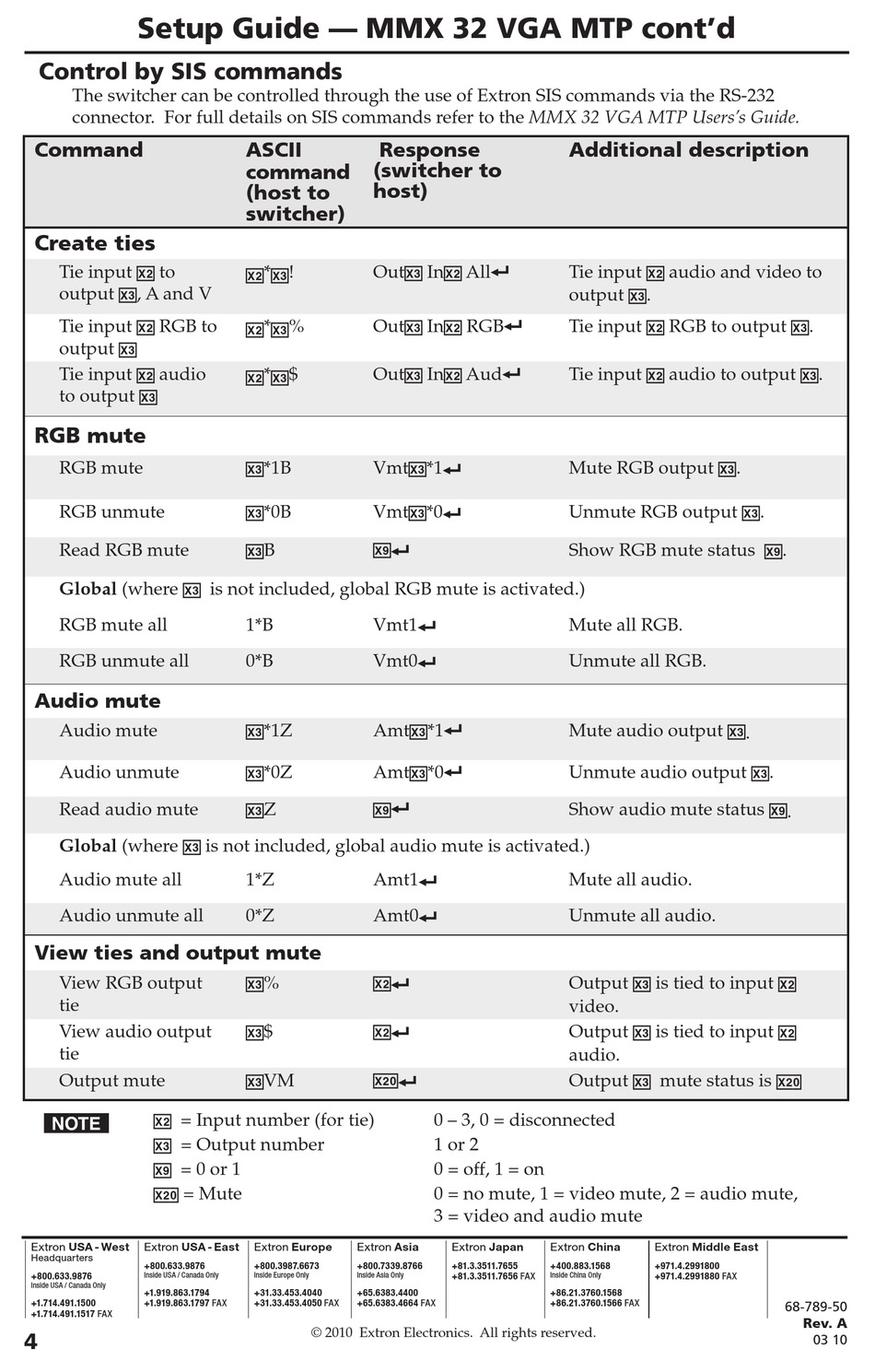

Setup Guide — MMX 32 VGA MTP cont'd
Control by SIS commands
The switcher can be controlled through the use of Extron SIS commands via the RS-232
connector. For full details on SIS commands refer to the MMX 32 VGA MTP Users's Guide.
Command
Create ties
Tie input X@ to
output X#, A and V
Tie input X@ RGB to
output X#
Tie input X@ audio
to output X#
RGB mute
RGB mute
RGB unmute
Read RGB mute
Global (where X# is not included, global RGB mute is activated.)
RGB mute all
RGB unmute all
Audio mute
Audio mute
Audio unmute
Read audio mute
Global (where X# is not included, global audio mute is activated.)
Audio mute all
Audio unmute all
View ties and output mute
View RGB output
tie
View audio output
tie
Output mute
X@ = Input number (for tie)
N
X# = Output number
X( = 0 or 1
X2) = Mute
