Extron electronics MMX 32 VGA MTP Setup Manual

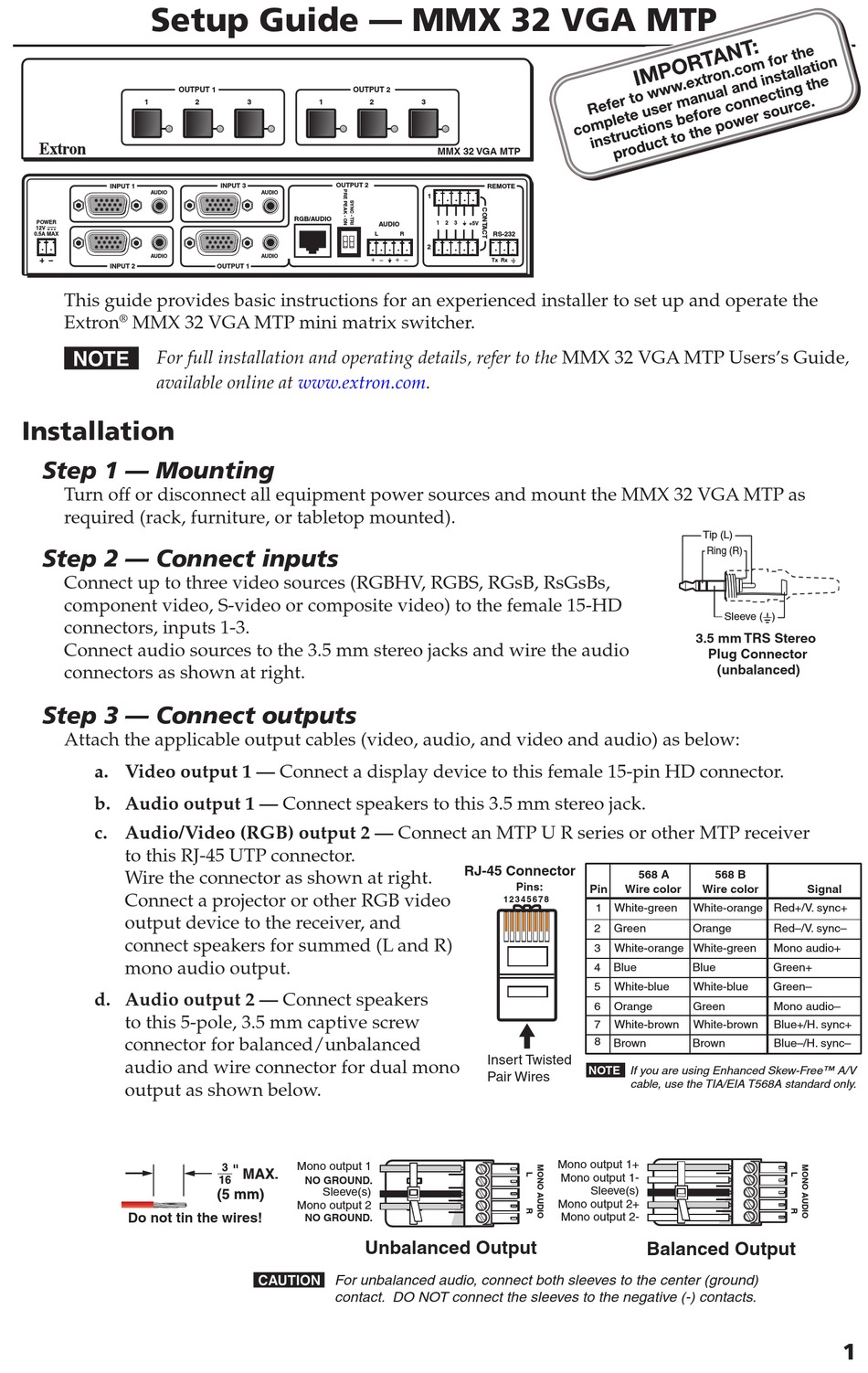

Setup Guide — MMX 32 VGA MTP
OUTPUT 1
1
INPUT 1
AUDIO
POWER
12V
0.5A MAX
AUDIO
INPUT 2
This guide provides basic instructions for an experienced installer to set up and operate the
Extron MMX 32 VGA MTP mini matrix switcher.
®
For full installation and operating details, refer to the MMX 32 VGA MTP Users's Guide,
N
available online at www.extron.com.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the MMX 32 VGA MTP as
required (rack, furniture, or tabletop mounted).
Step 2 — Connect inputs
Connect up to three video sources (RGBHV, RGBS, RGsB, RsGsBs,
component video, S-video or composite video) to the female 15-HD
connectors, inputs 1-3.
Connect audio sources to the 3.5 mm stereo jacks and wire the audio
connectors as shown at right.
Step 3 — Connect outputs
Attach the applicable output cables (video, audio, and video and audio) as below:
a. Video output 1 — Connect a display device to this female 15-pin HD connector.
b. Audio output 1 — Connect speakers to this 3.5 mm stereo jack.
c. Audio/Video (RGB) output 2 — Connect an MTP U R series or other MTP receiver
to this RJ-45 UTP connector.
Wire the connector as shown at right.
Connect a projector or other RGB video
output device to the receiver, and
connect speakers for summed (L and R)
mono audio output.
d. Audio output 2 — Connect speakers
to this 5-pole, 3.5 mm captive screw
connector for balanced/unbalanced
audio and wire connector for dual mono
output as shown below.
Do not tin the wires!
OUTPUT 2
2 3 1
OUTPUT 2
INPUT 3
AUDIO
RGB/AUDIO
AUDIO
OUTPUT 1
Mono output 1
NO GROUND.
Sleeve(s)
Mono output 2
NO GROUND.
C For unbalanced audio, connect both sleeves to the center (ground)
contact. DO NOT connect the sleeves to the negative (-) contacts.
2 3
MMX 32 VGA MTP
REMOTE
1
AUDIO 1 2 3 +5V
L R RS-232
2
Tx Rx
RJ-45 Connector
Pins:
1 2 3 4 5 6 7 8
Insert Twisted
Pair Wires
Unbalanced Output
Tip (L)
Ring (R)
3.5 mm TRS Stereo
Plug Connector
(unbalanced)
568 A 568 B
Pin Wire color Wire color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8
Brown Brown
NOTE
If you are using Enhanced Skew-Free™ A/V
cable, use the TIA/EIA T568A standard only.
Mono output 1+
Mono output 1-
Sleeve(s)
Mono output 2+
Mono output 2-
Balanced Output
Sleeve ( )
Signal
Red+/V. sync+
Red–/V. sync–
Mono audio+
Green+
Green–
Mono audio–
Blue+/H. sync+
Blue–/H. sync–
1
