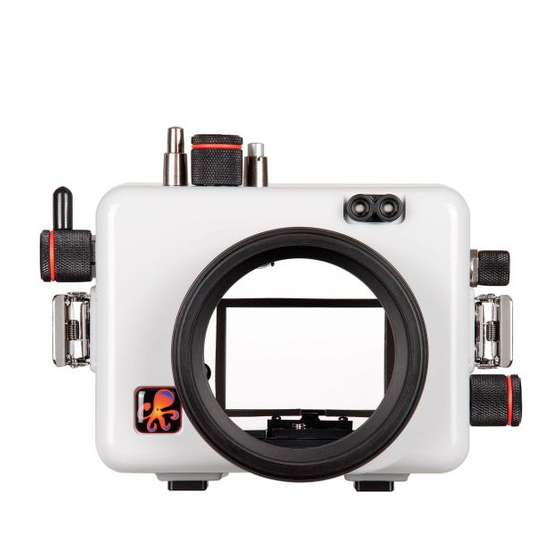

Underwater Housing for Canon EOS M10
Product Number 6973.10
Product Registration
Please register your product at ikelite.com within 15 days of purchase. Our
product registration database is the best way for us to contact you in the
event of a product update or recall.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the m10 and is the answer not in the manual?

Questions and answers

Related Manuals for Ikelite m10

Summary of Contents for Ikelite m10

  • Page 1 Underwater Housing for Canon EOS M10 Product Number 6973.10 Product Registration Please register your product at ikelite.com within 15 days of purchase. Our product registration database is the best way for us to contact you in the event of a product update or recall.

  • Page 2: Table Of Contents

    Table of Contents PREPARATION ...............P. 3 SPECIFICATIONS - no camera installed ........P. 4 INCLUDED in the BOX ............P. 4 Parts of the Housing - Front View ..........P. 5 Parts of the Housing - Back View ..........P. 6 HOUSING and CAMERA SETUP STEPS ......P. 7 STEP 1 - Camera Setup ............P.

  • Page 3: Preparation

    Table of Contents - continued Lubricant ..................P. 17 Housing Maintenance ..............P. 17 - 18 Control Maintenance ...............P. 19 - 22 PHOTO TIPS ................P. 23 TROUBLESHOOTING ............P. 24 - 26 CUSTOMER SUPPORT ............P. 26 LIMITED WARRANTY ............P. 30 RETURNING PRODUCTS FOR SERVICE ......P. 31 PREPARATION This product has been water pressure tested at the factory and is depth rated to 200 ft (60m).

  • Page 4: Specifications - No Camera Installed

    SPECIFICATIONS - no camera installed • 200 ft (60m) depth rating • Controls for all camera functions except Mobile Device Connection Button • Slightly negative buoyancy in fresh water. Actual buoyancy varies depending on choice of lens and port. • 1/4-20 thread tray mounting with 3-inch (76mm) spacing •...

  • Page 5: Parts Of The Housing - Front View

    Parts of the Housing - Front View Movie Button Power Button Flash Pop Up Switch Shutter Fiber Optic Ports Front Dial Button 1/4-20 External Tray Mounts Lens Release Button...

  • Page 6: Parts Of The Housing - Back View

    Parts of the Housing - Back View MENU INFO 5. Q.SET / Center Button 1. Mode Dial 2. MENU Button Macro / Right Button INFO / Down Button Exp. Comp./Single-erase/Up AE Lock / Left Button Playback / Right Button...

  • Page 7: Housing And Camera Setup Steps

    HOUSING and CAMERA SETUP STEPS Step 1 - Initial Camera Setup 1. Insert a fully charged camera battery 2. Insert and properly format a memory card. 3. Set Rec.Mode to “Av” or “M.” 4. Set Image Review to “4 sec.” 5.

  • Page 8: Step 2 - Opening The Housing

    Step 2 - Opening the Housing Lid Snaps have a Lock. 1. Push Lid Snap Locks forward and lift as shown. Open opposing Lid Snaps simultaneously. Keep pressure on the Lid Snaps so they do not fly open quickly. Some Lid Snaps have a lot of spring tension once they go over center, so keep a firm grip on each Lid Snap.
  • Page 9 Step 3 - Install Camera in Housing - continued Diagram A Pull to Remove Mounting Tray Mounting Plate 4. Using a coin or flat head Diagram B screwdriver (preferred), secure the camera Mounting Tray to the camera tripod mount, Diagram B. Tighten camera firmly to avoid movement on tray.
  • Page 10 Step 3 - Install Camera in Housing - continued 5. Gently slide the camera with Mounting Tray back into the Mounting Plate, Diagram C, page 10. Using your thumbs, push against the Mounting Tray until it stops sliding forward into the Mounting Plate. Give the Tray an extra push to make sure it is properly seated all the way forward in the Mounting Plate and no housing controls are in the way.

  • Page 11: Step 4 - Closing The Housing

    Step 4 - Closing the Housing Lid Hook 1. Make sure the o-ring is clean and in its proper location on the back of the housing. 2. Place the back onto the housing front. 3. Place each lid snap into the Even gap on corresponding hook on the all 4 sides...

  • Page 12: Step 6 - Entering The Water

    Step 6 - Entering the Water Before entering the water, turn the camera ON and operate each of the housing controls to get a feel for using the camera in the housing. As soon as you enter the water, take a moment and check to see that the housing is properly sealed.

  • Page 13: Strobe Compatibility And Use

    DS125 ....... yes, above serial number 5000 • DS160, DS161 ....yes • DS200 ....... yes, above serial number 7163 • Non-Ikelite ......yes (in most cases), manual flash exposure only • Built-in ....... no Fiber Optic Cord Compatibility • Ikelite 4501 Fiber Optic Coiled Cord •...

  • Page 14: Attach Fiber Optic Cord To The Housing

    Attach Ikelite Fiber Optic Cord to the Housing The Ikelite Housing features a Fiber Optic Port on the housing front. The Port is designed to accept standard fiber optic cords. 1. Lightly lubricate the Sync Cord O-rings. Use ONLY Ikelite lubricant (supplied with housing).

  • Page 15: Using Fiber Optic Strobes

    Attaching an optional Tray + Dual Handles will add stability and gripping point(s) for comfortable use of the housing. Add a second strobe to eliminate shadows and evenly light your subjects. MADE IN USA Go to ikelite.com for a complete list of accessories for your housing.

  • Page 16: Spare Parts

    O-ring Storage When storing the housing, remove the main housing o-ring. Lightly lubricate the o-ring until it appears shiny and place in a small resealable plastic bag. Use only Ikelite lubricant. Place the bag inside the housing and store until needed.

  • Page 17: Lubricant

    Lubricant Ikelite provides silicone lubricant with the housing. We recommend you use only Ikelite lubricant on Ikelite products. Other brands may cause the main housing o-ring to swell and not seal properly. Use only enough lubricant to lightly cover the main housing o-ring or lubricate a sticky control.
  • Page 18 Place the plastic bag with o-ring inside the housing for safe keeping. If removing a housing push button, Do Not re-use the E-clip. Contact Ikelite for replacement E-clips (part 0319.12).

  • Page 19: Control Maintenance

    After a few minutes, operate the push button. If this does not correct the problem, return the housing to Ikelite for maintenance. If you are on a trip and unable to return the housing immediately, a push button may be lubricated by pressing and holding the push button all the way in.
  • Page 20 To lubricate the control, gently pull on the knob until the stainless steel shaft is exposed. Lightly lubricate the shaft, then move the shaft in and out several times. This will lubricate the x-ring in the Ikelite control gland. This should be done before using the housing after a prolonged storage period,...
  • Page 21 In the unlikely event one of these controls sticks or becomes difficult to operate you can remove the control from the housing and lubricate it, or return the housing to Ikelite for maintenance. To remove the control, Diagram L, page 22, loosen the set screw in the knob (hex head wrench required);...
  • Page 22 Control Maintenance - continued Loosen Set Screw Lubricate end of shaft (Hex Head Wrench Required) before reinserting into Diagram J gland Knob Control Shaft O-rings Control Gland Tighten set screw down against this flat area when replacing the knob Housing Lubricate Shaft Diagram K Housing...

  • Page 23: Photo Tips

    PHOTO TIPS The number one rule in underwater photography is to eliminate as much water between the camera and subject as possible. Get as close as you can to the subject, then use the zoom. If you are using flash for still photos, subjects beyond 6 ft (1.8m) will not have much color regardless of strobe power.

  • Page 24: Troubleshooting

    If still sticky, see the Control Maintenance section, pages 19-22. - Return housing to Ikelite for routine maintenance. Image is over/ - Check that the built-in flash or external strobe is underexposed, firing when taking a picture.
  • Page 25 Place one or two new packs in your housing before each day of diving. - If moisture or water droplets are present around the controls or sealing areas, return the housing to Ikelite for evaluation. - Clean the main housing o-ring and sealing surface of the housing...

  • Page 26: Customer Support

    - Add an external strobe when NOT using a color correcting filter. CUSTOMER SUPPORT Please read the troubleshooting section of this instruction manual before contacting Ikelite Customer Support. Ikelite Underwater Systems Service Department 50 West 33rd St. Indianapolis, IN 46208 USA Email: ikelite@ikelite.com...

  • Page 27: Limited Warranty

    This Ikelite product is warranted against any manufacturing defects for a period of one (1) year from the original date of purchase. Defective products should be returned to Ikelite postage paid. Ikelite will, at its sole discretion, repair or replace such products, and will return to customer postage paid.
  • Page 28 PRODUCT REGISTRATION Please go to ikelite.com to register your Ikelite housing within 15 days of purchase. Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA ikelite.com © 2016 Ikelite Underwater Systems 6973.10_Canon_M10_1-0416...
