TIME CODE INPUT
FROM MIXING CONSOL
BUS OUTPUT
"--+----~
TO MIXING CONSOLE
L..-_ _
+-__
~
LINE OR TAPE OUTPUT
L...-------4-----.,;:.
TI M E COD E OUTPUT
~
_ _ _ _ _ _ _ _ _ _
~---+TOEXTERNAL
L -_ _ _ _ _ _ _ _ _ _ _ _
-+__--+
SYNCHRONIZER
OR CONTROLLER
D
o
o
L...------f---(]: TO AC POWER
OUTLET

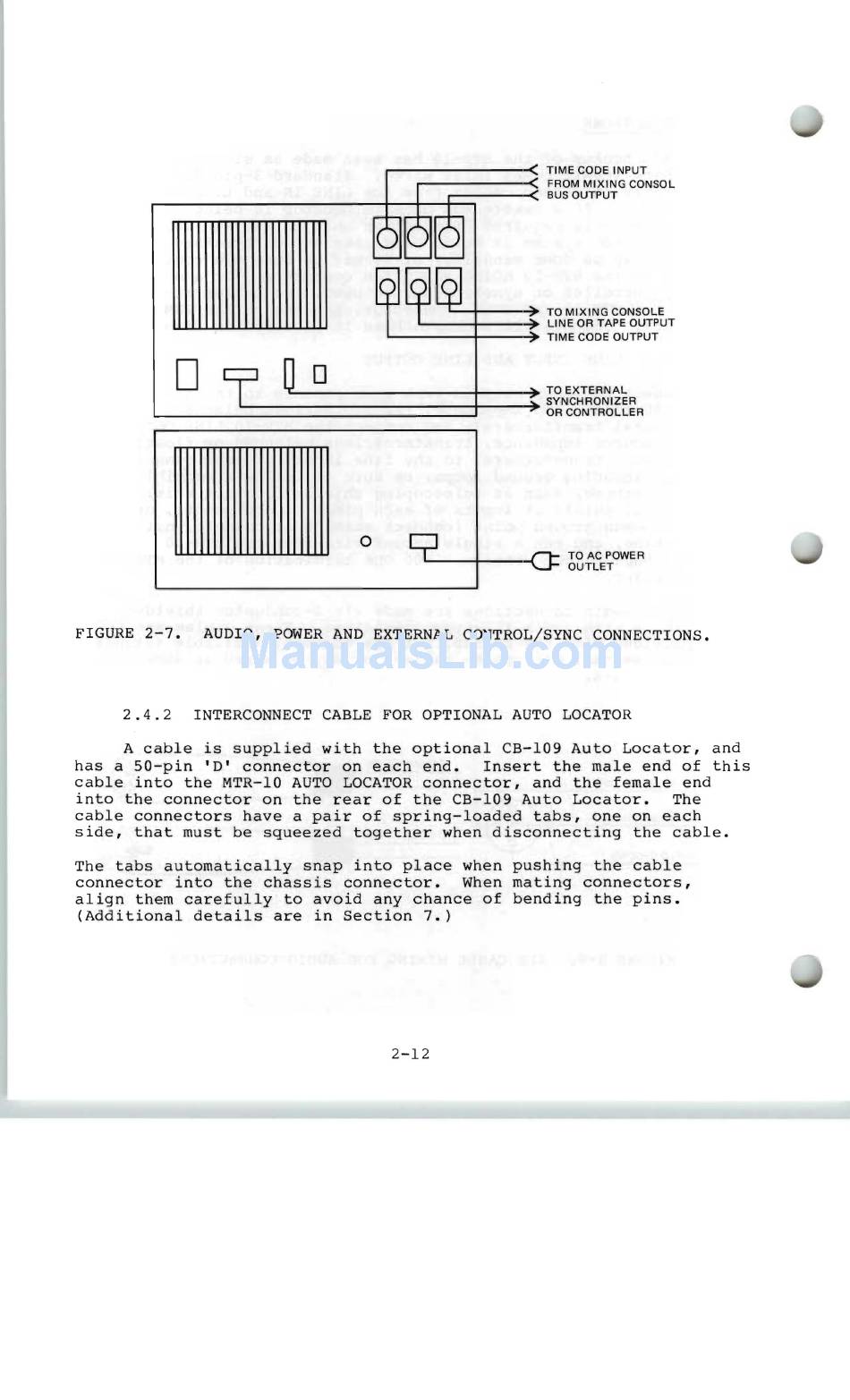

FIGURE 2-7. AUDIO, POWER AND EXTERNAL CONTROL/SYNC CONNECTIONS.
2.4.2 INTERCONNECT CABLE FOR OPTIONAL AUTO LOCATOR
A cab l e is supplied with the optional CB-I09 Auto Locator, and
has a 50-pin 'D' connector on each end. Insert the male end of this
cable into the MTR-IO AUTO LOCATOR connector, and the female end
into the connector on the rear of the CB-I09 Auto Locator. The
cable connectors have a pair of spring-loaded tabs, one on each
side, that must be squeezed together when disconnecting the cable.
The tabs automatically snap into place when pushing the cable
connector into the chassis connector. When mating connectors,
align them carefully to avoid any chance of bending the pins.
(Additional details are in Section 7.)
2-12
